Why Seafood Processing Wastewater Is Not a Generic Food Effluent

Seafood processing wastewater carries a pollutant signature that breaks a generic food-industry design. The stream is generated across thawing, eviscerating, washing, pre-cooking, spray cooling, solution filling, can washing, and sterilization. The pre-cook and sterilization steps dominate the load because they discharge hot water loaded with dissolved protein, free emulsified oil, and reduced sulfur compounds that become hydrogen sulfide once the stream cools (per JWC Environmental seafood application notes).

Typical raw influent from a fish or shellfish line runs COD 1,500–6,000 mg/L, BOD 800–3,500 mg/L, TSS 500–2,500 mg/L, oil and grease 200–800 mg/L, and pH 6–9, with periodic brine spikes when canning, curing, or brining lines dump (JWC Environmental, 2026). Temperature swings of 15–30 °C across a single shift are normal, and salinity can climb above 5,000 mg/L Cl⁻ on canning days. Both parameters push any downstream biology away from a default municipal-activated-sludge design and toward a more salt-tolerant configuration — a point the high-salinity wastewater treatment guide addresses in detail.

Managing these specific pollutants requires a structured multi-stage treatment approach.

Seafood Wastewater Treatment Process Flow: The Five-Stage Train

Seafood plants are best served by a fixed five-stage train: screening, grit removal and equalization, dissolved air flotation, biological treatment, and disinfection with optional RO polishing. The train is the same whether the plant is a 50 m³/day shrimp processor or a 2,000 m³/day tuna cannery — only the unit-operation sizes change.

  1. Stage 1 — Coarse and fine screening. A rotary mechanical bar screen or JWC-type internally fed rotary drum screen (typically 0.5–2 mm aperture) recovers solids before they hit the pumps, cutting BOD loading by 15–30% and protecting downstream equipment (JWC Environmental, 2026).
  2. Stage 2 — Grit removal and equalization. Batch thawing and cook cycles produce hydraulic and organic shocks of 2–4×; an equalization basin sized at 8–12 hours of average flow damps those peaks to within ±20% of mean.
  3. Stage 3 — Dissolved air flotation. A dissolved air flotation (DAF) system is the standard primary clarifier, removing free oil, emulsified fats, and floatable suspended solids. Hydraulic residence time is typically 20–30 minutes with 4–6 bar saturator recycle.
  4. Stage 4 — Biological treatment. MBR, SBR, conventional activated sludge, or anaerobic lagoon, selected by flow, footprint, and reuse goals. A packaged MBR membrane bioreactor system combines secondary and tertiary separation in one tank.
  5. Stage 5 — Disinfection and reuse polishing. Chlorine dioxide (1–2 mg/L residual, 30 min contact) or UV (≥40 mJ/cm²) for discharge; an industrial RO system or nanofiltration skid added when in-plant reuse is required (per the nanofiltration system guide).

Sludge handling runs in parallel: DAF float and waste activated sludge are thickened and dewatered on a plate-and-frame filter press, typically reaching 18–25% dry solids. Coagulant, polymer, and pH adjustment are dosed through an automatic chemical dosing system paced on flow.

Influent vs. Effluent Targets at Each Stage

Influent vs. Effluent Targets at Each Stage

Design-bench values for seafood treatment are derived from DAF manufacturer literature, MBR module data sheets, and industry reviews. Use the table below to sanity-check your own jar tests and pilot data before committing to a PFD.

ParameterRaw influentPost-DAFPost-biological (MBR)Post-discharge / reuse
COD (mg/L)1,500–6,000600–2,50040–80< 50 (discharge) / < 10 (post-RO)
BOD (mg/L)800–3,500400–1,800< 20< 20 / < 5 (post-RO)
TSS (mg/L)500–2,500100–400< 5< 5 (0.1 µm submerged PVDF membrane)
Oil & grease (mg/L)200–80020–60< 5< 5
Total nitrogen (mg/L)80–25070–22010–30 (with pre-anoxic)< 20 typical; < 10 with RO
pH6.0–9.06.5–8.07.0–8.06.5–8.5

Conventional activated sludge typically results in higher COD (80–150 mg/L) and TSS (10–30 mg/L) after the secondary clarifier, which is why an MBR is preferred for tight limits or reuse. Removal rates above are typical design-bench values; actual performance depends on influent variability, MLSS, and DAF uptime. Operators chasing unexplained TSS creep should walk through the effluent TSS troubleshooting guide.

The choice of biological technology determines the final system footprint and cost.

Choosing the Biological Stage: MBR, SBR, Activated Sludge, or Anaerobic

Biological stage selection drives footprint, CAPEX, and reuse readiness. The following comparison is based on Zhongsheng engineering data, the Sigma DAF seafood treatment brief (2026), and Thuan 2024 prevalence data.

OptionEffluent COD (mg/L)Footprint vs. ASCAPEX bandOPEX bandReuse ready?Best when…
MBR (0.1 µm PVDF)40–80~40% of ASHighMedium (membrane CIP)Yes — direct to ROTight limits, small site, reuse target
SBR60–120~70% of ASMediumMediumOften (after polish)50–500 m³/day, variable load
Conventional AS80–150BaselineLow per m³Medium (clarifier, RAS)With added filtrationSewer discharge, large land parcel
UASB / anaerobic lagoon200–500 (needs aerobic polish)~30% of ASLow–MediumLow (with biogas credit)Only after polish + ROWarm climate, consistent high strength, biogas use
Aerated lagoon150–300LargestLowestLowestNoPlentiful land, warm climate, sewer discharge (Thuan 2024)

Zhongsheng seafood projects typically use MBR when the plant targets reuse or faces tight BOD/TSS limits, conventional AS or SBR when sewer limits are loose and a larger footprint is acceptable, and anaerobic or aerated lagoons when land is cheap, climate is warm, and biogas use is feasible (Thuan 2024). DAF must be sized to drop oil and grease below 60 mg/L before any of these biological units; under-sizing DAF is the most common cause of MBR membrane fouling on fish lines.

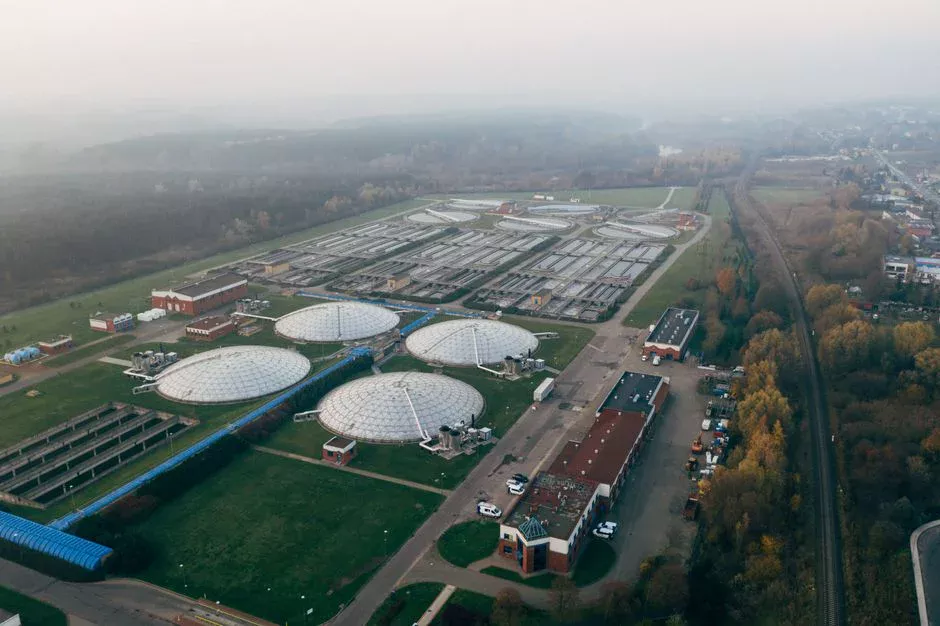

Reuse vs. Sewer Discharge: Where the Real Money Lives

Reuse vs. Sewer Discharge: Where the Real Money Lives

MBR effluent plus disinfection to a sanitary sewer is the lowest-cost path to compliance, subject to local POTW limits on BOD, TSS, oil and grease, and total nitrogen. Surcharges often apply above 250 mg/L BOD or 250 mg/L TSS in most jurisdictions. A reuse loop adds an RO or nanofiltration skid that can cut freshwater intake 60–80% for wash-down, CIP rinse, boiler make-up, and non-contact cooling, but it adds roughly 30–50% to total CAPEX and creates an RO concentrate stream of 15–25% of the feed flow that must be managed by evaporation, crystallization, or licensed haul-off (per the nanofiltration system guide).

Sewer discharge of brine or high-salinity streams is restricted in many coastal jurisdictions, including much of the EU under 91/271/EEC for the food sector, which pushes designers toward in-plant reuse or zero-liquid discharge. The trade-off is rarely a clear win: reuse improves water costs and ESG reporting, while discharge offers simplicity and avoids concentrate liability. A defensible 2026 cost basis is USD 150K–500K for a packaged 100 m³/day system, with custom lines scaling by flow, effluent target, and reuse percentage.

Beyond the main process train, side-stream management is critical for operational stability.

Sludge, Odor, and the Side-Streams People Forget

Oily DAF float sludge and hydrogen sulfide off-gas from pre-cook condensate are the two side-streams most likely to disrupt seafood projects. DAF float and waste activated sludge arrive at 1–3% dry solids and dewater to 18–25% cake on a plate-and-frame press; under-sizing this press often causes lagoon overflows during peak cook seasons. H₂S from hot pre-cook condensate and sulfate-bearing brine is best managed at the source via covered DAF, scrubbed cook-water equalization, sidestream iron-salt dosing (FeCl₃ or FeSO₄ at 10–20 mg/L as Fe), and a biofilter or activated-carbon vent polisher on cook and sterilization vents.

Monthly O&M checklists should include: coagulant and polymer drum turnover, pH probe calibration, MBR membrane CIP chemicals (typically NaOCl + citric acid rotation), UV lamp or ClO₂ generator replacement at 8,000–12,000 hours, and DAF saturator pump seal inspection. A spare parts inventory of one membrane cassette and one saturator pump usually prevents 90% of unplanned downtime on a packaged line.

Frequently Asked Questions

Frequently Asked Questions

What is the best biological treatment for seafood wastewater? An MBR is best for plants targeting reuse or tight effluent limits; conventional activated sludge or SBR is suitable where sewer limits are loose and the site has room. Anaerobic or aerated lagoons are viable only in warm climates with adequate land (Thuan 2024).

Why is DAF the standard pre-treatment? DAF removes free oil, emulsified fats, and floatable solids in 20–30 minutes, dropping oil and grease from 200–800 mg/L to 20–60 mg/L to protect downstream biology from fouling.

Can seafood processing wastewater be reused? Yes. MBR effluent polished by
