How the Choice Between MBR and CAS Actually Plays Out on a Villa Ridge Site
At a Jefferson County carbonate or aggregate plant running a 1990s conventional activated sludge (CAS) clarifier, the Monday-morning problem is almost never the cubic metres per day of treatable flow. The Mississippi alluvial aquifer freshens with winter rain and mill water total dissolved solids (TDS) drifts by 300–1,200 mg/L between summer and January, but the binding constraint is the square metres of civil footprint the existing basin and bund wall leave behind (HydropureWater integrated MBR field data, 2026). The New Madrid Seismic Zone seismic class governs skid and container build; MDNR permit-by-rule under 40 CFR Part 437 effluent guidelines sets the heavy-metal and TSS limits that determine whether a discharge or a reuse permit is even on the table; and the St. Louis metro climate pushes mixed-liquor temperature down to roughly 8 °C in January, which is the operating envelope the aeration basin must be sized against (EPA 40 CFR Part 437, 2026; Missouri Code of State Regulations 10 CSR 20-6).
For mining and metals wastewater in Villa Ridge, an integrated membrane bioreactor (MBR) running 8,000–12,000 mg/L mixed liquor suspended solids (MLSS) and 30+ day sludge retention time (SRT) typically beats CAS on footprint (about 60% of CAS at the same throughput), effluent quality (<1 mg/L TSS vs 5–15 mg/L), and reagent removal (85–95% of residual xanthate and dithiophosphate, feed 5–20 mg/L to permeate <1 mg/L) — but only when the site has a downstream reverse osmosis (RO) polish and a clean-in-place (CIP)-trained operator. CAS still wins on membrane-free capital expenditure (CAPEX) at USD 550–1,700 per m³/day versus USD 800–2,500 per m³/day for integrated MBR (2026 dollars) where existing clarifier volume has service life remaining (HydropureWater mining MBR field reference, 2026). The 1,000 m³/day flotation tail water train from a copper-lead-zinc concentrator is the running example that anchors the rest of this guide; all numbers scale to that envelope, and the regional 2026 mining pretreatment compliance guide covers the upstream chemistry in more detail.
Biology First: MLSS, SRT, and Why the Numbers Are Different
The single physical ratio that drives almost every downstream trade is MLSS: an MBR operates at 8,000–12,000 mg/L while a CAS basin sits at 2,000–4,000 mg/L, a 3–4× gap that is the largest engineering difference between the two technologies (HydropureWater mining MBR field reference, 2026). Higher MLSS means a smaller aeration basin at the same food-to-microorganism (F/M) ratio, and it means the secondary clarifier is eliminated because the ultrafiltration membrane retains all biomass inside the bioreactor. On a 1,000 m³/day mining train, the integrated MBR occupies roughly 60% of the equivalent CAS footprint, with the savings coming almost entirely from the absence of clarifiers and the reduced aeration basin volume (HydropureWater integrated MBR field data, 2026).
Sludge retention time is the second decisive gap. An MBR sustains 30+ day SRT, which retains slower-growing degraders long enough to break down residual flotation reagents — potassium ethyl xanthate, dithiophosphate (DTP) collectors, and frothers — driving 85–95% removal and bringing potassium ethyl xanthate from 5–20 mg/L in the feed to below 1 mg/L in the permeate. CAS, held at 5–10 day SRT to keep sludge settleability workable, washes those slower-growing degraders out before they can establish, leaving 2–4 day half-life residuals in the effluent (HydropureWater mining MBR field reference, 2026).
Heavy-metal removal in both systems is driven by biosorption — dissolved Pb, Zn, Cu, and Cd adsorbing onto the biomass — plus bioaccumulation inside the cells. In an MBR, the cake layer that builds on the membrane contributes 30–60% of total heavy-metal removal before the permeate is polished downstream, and combined with bioaccumulation total removal lands at 70–95% when influent pH is held at 6.5–7.5. CAS relies on the same biosorption principle but on wasted activated sludge rather than on a membrane-retained biomass, so removal is limited to 30–60% and dissolved organics pass through largely untouched (HydropureWater mining MBR field reference, 2026). A packaged integrated MBR system sized to that envelope is the default 2026 configuration for brownfield mining duty.
Effluent Quality, Footprint, and the DAF Pre-Step Both Trains Share
Upstream and downstream of the biological step, the two trains are nearly identical, and that is the key reason the comparison should be framed as a middle-of-train choice rather than a wholesale swap. A ZSQ dissolved air flotation (DAF) unit in the 4–300 m³/h range ahead of the bioreactor removes 60–80% of influent oil and 30–50% of TSS, which extends MBR cleaning intervals from weekly to monthly and cuts chemical CIP consumption by 50–70% (HydropureWater mining MBR field reference, 2026). The same DAF protects a CAS clarifier from sludge loss during shock loads, so the upstream equipment does not move the needle between the two technologies.
The biological step is where the trade lives. MBR permeate sits below 1 mg/L TSS because the flat-sheet PVDF membrane is an absolute physical barrier, while a well-run secondary clarifier with polymer aid still discharges 5–15 mg/L TSS (HydropureWater mining MBR field reference, 2026). At the same throughput, the MBR footprint is approximately 60% of the CAS footprint because the clarifier is gone and the aeration basin is smaller. For mine sites in the St. Louis metro, that footprint difference is often the deciding factor: a 1990s clarifier rectangle cannot host a second basin, but it can usually host a cassette rack. A standard ZSQ dissolved air flotation unit sized to 60–80% oil removal and 30–50% TSS removal covers the pre-step for either technology without biasing the choice.
Head-to-Head Parameters: MBR vs CAS for a 1,000 m³/day Mining Train
The table below condenses the design review slide into a single reference. Numbers are 2026 field ranges from a 1,000 m³/day flotation tail water envelope; scale them with caution outside that envelope.
| Parameter | Conventional Activated Sludge (CAS) | Integrated Membrane Bioreactor (MBR) |
|---|---|---|
| MLSS (mg/L) | 2,000–4,000 | 8,000–12,000 |
| SRT (days) | 5–10 | 30+ |
| Effluent TSS (mg/L) | 5–15 (with polymer aid) | <1 |
| Heavy-metal removal (Pb, Zn, Cu, Cd) | 30–60% (biosorption only, with chemical precipitation upstream) | 70–95% (biosorption + bioaccumulation) |
| Total N removal (with supplemental C) | 40–60% | 75–90% |
| Xanthate / DTP removal | 20–40% (slower growers wash out) | 85–95% |
| Membrane area per 1,000 m³/day | N/A (clarifier-based) | 1,800–3,200 m² (DF series cassettes) |
| Footprint at same throughput | 100% (baseline) | ~60% |
| Installed CAPEX per m³/day (2026) | USD 550–1,700 (with tertiary filter) | USD 800–2,500 (cassette + cassette rack) |
Two rows in that table carry the trade the engineer has to defend. The CAPEX row shows CAS membrane-free CAPEX at 30–50% lower — but that assumes the site reuses existing clarifier volume and does not need a tertiary media filter ahead of any downstream RO. Once those civil and polishing items are priced in, the gap narrows quickly. The heavy-metal row is also worth annotating for the metallurgist: MBR hits 70–95% through biosorption (30–60% share) plus bioaccumulation inside the cells, while CAS relies on wasted-sludge biosorption only and typically needs chemical precipitation upstream, which generates 3–8 kg of dry hazardous solids per m³ treated (HydropureWater mining MBR field reference, 2026). DF series flat-sheet MBR cassettes at 0.1–0.2 m²/m³ cassette density are the building block that delivers the membrane-area row above.
Operating Cost, Energy, and the BWRO Polish That Decides the Real Winner
Aeration is 36–68% of MBR operating expense, dominated by coarse-bubble scour across flat-sheet modules — which is 10–20× lower than the membrane-aeration energy of external cross-flow configurations (per the 2022-05 Global NEST pilot, DOI: 10.30955/gnj.004278; HydropureWater mining MBR field reference, 2026). On a brownfield retrofit, that aeration share is the line item the EH&S lead will press on, and the answer is the same as for CAS: specify blowers with variable-frequency drives and turn them down with dissolved-oxygen control, not up.
The downstream stage is what decides the real winner. MBR permeate at 5,000–20,000 mg/L TDS is the correct feed strength for a brackish-water reverse osmosis (BWRO) unit running at 70–85% recovery, and an industrial RO system bringing permeate below 500 mg/L TDS is suitable for grinding dilution water or heap-leach makeup. CAS effluent at 5–15 mg/L TSS typically needs an additional sand or media filter before the RO to protect the membranes from fouling, and that filter partially erodes the CAS footprint advantage. For zero-liquid-discharge (ZLD) finishing, RO concentrate at 30,000–60,000 mg/L TDS feeds an evaporator or crystallizer, and this final stage is technology-agnostic between MBR and CAS (HydropureWater mining MBR field reference, 2026). When the biological step feeds a satellite polishing train rather than a full RO, a hollow-fiber UF system is the typical buffer, though it is usually redundant if MBR is already in line.
Sizing a Villa Ridge Train at 500, 1,000, 2,500, and 5,000 m³/day
The four flow bands a brownfield retrofit in the St. Louis metro actually sees map to cassette and skid counts an engineer can put on a general-arrangement drawing today. Flat-sheet submerged MBR is the default for mining duty because influent TSS of 500–5,000 mg/L is often abrasive; hollow-fiber UF/MBR has higher packing density but only wins when the feed is pre-filtered to under 100 mg/L TSS, which is usually a satellite polishing train, not the main biological step (HydropureWater mining MBR field reference, 2026).
| Flow band (m³/day) | DF series cassette count | Typical skid / container build | Flux envelope (L/m²·h) |
|---|---|---|---|
| 500 | 4–8 | 1 winterized container (20 ft) | 15–25 |
| 1,000 | 8–14 | 1–2 skids, civil basin retrofit | 15–25 |
| 2,500 | 18–32 | 2–3 skids + cassette hall | 15–25 |
| 5,000 | 36–72 | 3–5 skids, dedicated building | 15–25 |
The operating temperature caveat for Villa Ridge is binding: mixed-liquor temperature drops to roughly 8 °C in the January average, which slows nitrification and lengthens SRT targets. Size aeration basin volume against that envelope, and add fine-bubble diffuser turndown so the basin does not over-aerate when the temperature recovers in March. CIP cycles at the 15–25 L/m²·h flux band run monthly on a well-run flat-sheet submerged MBR (HydropureWater mining MBR field reference, 2026). A packaged integrated MBR system sized to 500–10,000 m³/day of flotation tail water or thickener overflow covers the full envelope above.

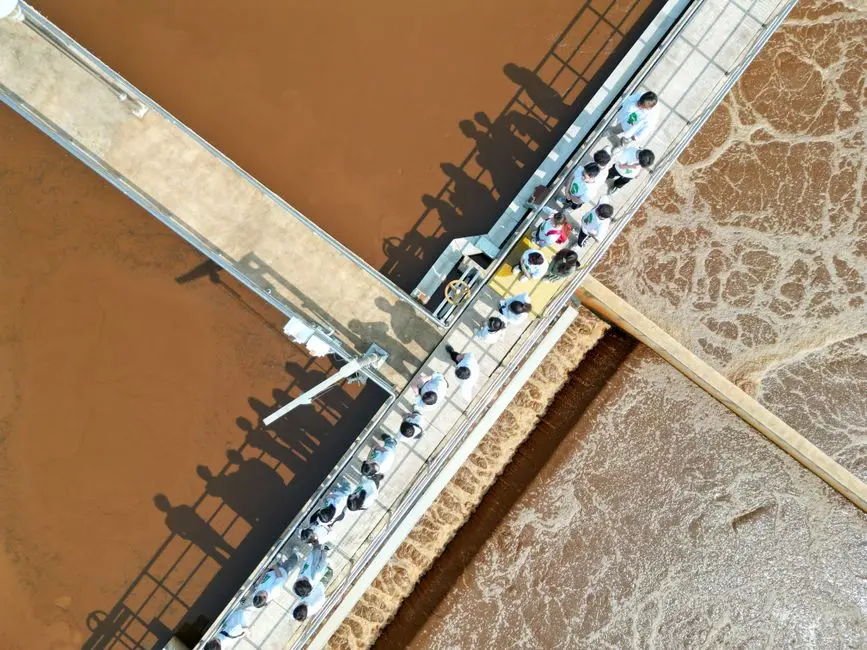

When CAS Is Still the Correct Call in 2026
An honest 2026 guide names the four scenarios where CAS is the right answer. First, where existing clarifier volume has 20+ years of remaining service life and there is no flow increase, re-rastering the aeration basin to an MBR is hard to justify on CAPEX alone. Second, where influent TDS sits under 5,000 mg/L and the plant does not run a closed-loop reuse target, the heavy-metal and reagent removal advantages of MBR are not yet needed and a well-tuned CAS will meet the discharge consent.
Third, where the operator pool has no membrane CIP training, the 36–68% aeration share of MBR OPEX is dwarfed by the cost of unplanned membrane-replacement events when CIP discipline is poor. Fourth, where there is no RO polishing downstream, the <1 mg/L MBR TSS advantage is wasted because the effluent is going to a polishing pond or a controlled discharge rather than back into the process (HydropureWater mining MBR field reference, 2026). In any of these four scenarios, upgrading the existing CAS — adding a selector zone, fine-bubble diffusers, and a polymer dosing skid — delivers more value per dollar than a greenfield MBR. The Coatesville mining MBR-vs-CAS guide covers an analogous retrofit envelope with similar CAS-still-wins cases.
Five-Step Selection Checklist for a 2026 Villa Ridge Review
This is the Monday-morning decision sequence to run with the metallurgist, the EH&S lead, and the CAPEX committee in the room.
- Define the reuse target. Grinding dilution water, heap-leach makeup, controlled discharge, or ZLD — and the downstream train that follows the biological step. Without this, the MBR-vs-CAS question is unanswerable.
- Measure influent across one representative ore cycle. TDS, residual xanthate/DTP, and dissolved Pb/Zn/Cu/Cd — not one grab sample. Mining influent drifts with ore body and reagent scheme.
- Audit existing civil. Clarifier volume, bund walls, cable trenches, chemical dosing skids. Decide whether the rectangle drawn by the existing civil can host an MBR cassette, or whether a winterized containerized MBR skid is the right satellite move.
- Cost the two CAPEX cases on the same basis. Membrane-free CAS with tertiary filter and any RO polish media filter, versus integrated MBR with cassette count and the same downstream RO polish. 2026 installed CAPEX runs USD 550–1,700 per m³/day for CAS (with tertiary filter) and USD 800–2,500 per m³/day for integrated MBR (HydropureWater mining MBR field reference, 2026).
- Audit operator capability for membrane CIP, then sign off. With the EH&S and CAPEX leads, not before. The Coatesville mining MBR-vs-CAS guide uses the same five-step frame for a different US site; the Grannis mining MBR-vs-CAS guide extends it to a smaller satellite train.
Frequently Asked Questions
How much smaller is an MBR footprint than CAS for a Villa Ridge mining train?
An integrated MBR occupies roughly 60% of the footprint of an equivalent CAS train at the same throughput, primarily because the 8,000–12,000 mg/L MLSS operating range eliminates the large secondary clarifiers CAS requires. For a 1,000 m³/day flotation tail water train at a Jefferson County carbonate or aggregate plant, that 40% footprint reduction is often the deciding factor because the existing 1990s civil rectangle cannot host a second clarifier (HydropureWater integrated MBR field data, 2026).
Does an MBR replace a downstream RO at a Villa Ridge mine?
No. For TDS below 500 mg/L — required for grinding reuse or for surface discharge under most 2026 mining-jurisdiction limits — a brackish-water RO must follow the MBR. MBR permeate at 5,000–20,000 mg/L TDS is the correct feed strength for a BWRO unit running at 70–85% recovery, and the industrial RO system bringing permeate below 500 mg/L TDS is suitable for grinding dilution water or heap-leach makeup (HydropureWater mining MBR field reference, 2026).
What xanthate and DTP removal can an MBR achieve on Villa Ridge feed?
A properly sized MBR running at 10,000 mg/L MLSS and 30+ day SRT removes 85–95% of residual xanthate and DTP, reducing potassium ethyl xanthate from 5–20 mg/L in the feed to below 1 mg/L in the permeate. CAS, held at 5–10 day SRT, leaves 2–4 day half-life residuals because the slower-growing degraders get washed out before they can establish (HydropureWater mining MBR field reference, 2026).
What flux and CIP schedule should a flat-sheet MBR run at on mining duty?
Flat-sheet PVDF MBRs handle 500–5,000 mg/L TSS at flux 15–25 L/m²·h with monthly CIP cycles when paired with a ZSQ dissolved air flotation pre-step. The DAF removes 60–80% of influent oil and 30–50% of TSS upstream, which extends MBR cleaning intervals from weekly to monthly and cuts chemical CIP consumption by 50–70% (HydropureWater mining MBR field reference, 2026).
When is CAS still the right call in 2026 for a Villa Ridge retrofit?
CAS still wins when the site has existing clarifier volume with 20+ years of service life remaining, influent TDS stays under 5,000 mg/L, there is no downstream RO polishing, and the operator pool has no membrane-CIP training. In those four scenarios, upgrading the existing CAS — adding a selector zone, fine-bubble diffusers, and a polymer dosing skid — delivers more value per dollar than a greenfield MBR (HydropureWater mining MBR field reference, 2026).
