Why PCB Manufacturing Wastewater Is Unusually Difficult to Treat
PCB manufacturing wastewater is treated by source segregation followed by a train of physical-chemical and biological steps: copper recovery (ion exchange or electrowinning) on concentrated streams, pH adjustment and DAF on mixed wastewater, Fenton or advanced oxidation to break EDTA/ammonia complexes, MBR biological polishing, and RO for water reuse. Typical 2026 targets are total Cu <0.5 mg/L, COD <500 mg/L on the biotreated effluent, and RO recovery of 85-95%.
Four core effluent streams define the engineering problem, and blending them is the single fastest way to make a plant untreatable. Spent developer carries high pH (12-13), 5,000-15,000 mg/L carbonate, and up to 20,000+ mg/L COD. Spent etchant contains Cu at 5,000-150,000 mg/L in either acid chloride (HCl/H2O2), ammoniacal (NH3/NH4Cl), or persulfate matrices. Scrubber blowdown adds dilute acids and oxidizer residues, and dilute rinse water — the largest volume stream by far — carries 10-200 mg/L of suspended metals and drag-out chemistry. Mixing spent developer with spent etchant neutralizes alkalinity on a stoichiometric basis and creates a chemical lock-up: EDTA and NH3 immediately bind free Cu²⁺ into soluble complexes that do not precipitate at any pH the downstream stage can reach.
That chelation problem is what separates a real PCB treatment train from a Bartleby-style three-stage municipal template. EDTA at 200-1,000 mg/L, free ammonia at 50-500 mg/L, citrate, and tartrate each form Cu or Ni complexes whose conditional solubility product (K' at pH 9) is 10⁻⁶ to 10⁻⁸ orders of magnitude above the hydroxide-only baseline. Without a dedicated oxidation step in front of the biological stage, 60-85% of the chelated COD and the associated metals pass straight through to the MBR, where they foul the membrane, depress SVI, and break nitrification (Zhongsheng field data, 2025-2026).
2026 discharge benchmarks by jurisdiction are tightening, not loosening. China's GB 39731-2020 sets total Cu ≤0.5 mg/L and total Ni ≤0.5 mg/L on the integrated discharge line, with COD ≤500 mg/L and NH3-N ≤45 mg/L. The EU IPC-1401 best-practice reference and the BAT-AEL revisions for surface treatment call for Cu in the 0.1-0.5 mg/L range. The US EPA Metal Finishing categorical standard at 40 CFR 433 still sets Cu at 1.0 mg/L daily maximum and 0.86 mg/L monthly average, but 2024-2026 review dockets are pushing toward tighter limits at the categorical and pretreatment-control points.
Step 1: Source Segregation and Equalization
Source segregation is the conceptual backbone of every defensible PCB treatment train, and the first design decision is what to keep apart. Three segregated holding systems are standard: a high-concentration tank for spent developer and spent etchant (HRT 8-24 h, agitated, vented, isolated from the rest of the plant), a low-concentration tank for combined rinse and scrubber blowdown (HRT 12-24 h, mixed), and a separate chelated/cyanide-bearing tank for any chemistry containing EDTA, NTA, or free cyanide (small volume, dedicated blow-down, isolated reagent feeds). Equalization tank HRT should be sized at 8-24 h so that upstream batch discharges do not impose shock loads on the downstream DAF or Fenton stages.
Headworks protection on the combined low-concentration stream is non-negotiable. A rotary bar screen at headworks with 3-6 mm aperture stainless steel rake teeth removes the hair, rag, and fiber that otherwise wrap around DAF paddle mechanisms and blind MBR modules. Specify 304 or 316L construction, continuous duty, and an integrated screw compactor to drop solids moisture below 75%.
Equalization-tank instrumentation should alarm at the operating envelope boundaries: pH >10 indicates developer spill entering the wrong tank, pH <2 indicates etchant spill, ORP outside ±200 mV on the chelated tank flags oxidation-state excursions (peroxide overdosing or bisulfite underdosing). The equalized feed to DAF should be pH 6-9, temperature <40 °C, and TSS <500 mg/L — anything outside that window is a chemistry problem, not a hydraulic one, and is corrected before air-flotation duty collapses.
Step 2: Copper Recovery and Heavy-Metal Precipitation
Recovery-first design turns a waste stream into a revenue line and shrinks the downstream design load. On the concentrated etchant tank, deploy ion exchange (strong-acid cation resin, Na-form) or electrolytic recovery cells. Typical performance: 90-99% Cu recovery from a 5,000-30,000 mg/L feed down to 50-200 mg/L in the strip effluent, with spent regenerant recycled upstream to concentrate the feed. For the ammoniacal etchant stream, electrowinning is preferred because it strips Cu without breaking the NH3 matrix; the barren etch can be re-strengthened and returned to the plating line, which is the most defensible closed-loop configuration a plant can claim.
On the combined low-concentration stream (and on the ion-exchange strip effluent), hydroxide precipitation is the workhorse. Reaction pH 8.5-9.5 for Cu, 10-11 for Ni, with NaOH or Ca(OH)2 dosing. For final polishing to a sub-0.5 mg/L Cu discharge, sulfide precipitation with Na2S or TMT-15 (trimercaptotriazine) is added downstream of the hydroxide stage; sulfide carries Cu, Ni, and Zn down to <0.1 mg/L when the residual dissolved-oxygen is held below 0.5 mg/L. Use a automatic chemical dosing skid for pH, peroxide, and flocculant control on the precipitation stage to hold pH within ±0.2 across a 4:1 feed-load turndown.
The floc/solids separation step after precipitation is a DAF unit for floc and metal-hydroxide removal. Size DAF for 4-300 m³/h hydraulic capacity with 50-200 mg/L Al³⁺ (as PAC) or 5-15 mg/L anionic polyacrylamide flocculant. Air-to-solids ratio should be set to 0.02-0.05 (wt/wt) and surface loading held to 5-15 m/h. Properly flocculated, Cu-laden floc floats in a 0.5-2 mm layer; the underflow reports to a sludge thickener and then to a filter press for cake at 18-25% DS before off-site metal recovery.
Step 3: Fenton and Advanced Oxidation to Break Chelators
Fenton oxidation is the gatekeeper that lets the rest of the train work, and skipping it is why a high percentage of MBR systems fail on real PCB wastewater. Operating window: Fe²⁺ (as FeSO4·7H2O) at 100-500 mg/L, H2O2 at 0.5-2.0× the stoichiometric COD demand (typical 1,000-3,000 mg/L on PCB mixed wastewater), pH 2.5-3.5, reaction time 30-90 min, temperature 25-40 °C, and a neutralization step to pH 7-8 immediately downstream to precipitate residual iron as Fe(OH)3. Inside that envelope, the hydroxyl radical pathway delivers 60-85% removal of chelated-COD and breaks >90% of the Cu-EDTA, Cu-NH3, and Ni-citrate complexes (Zhongsheng field data, 2025-2026); the resulting free Cu²⁺ re-precipitates at the neutralization stage and is recycled back upstream to the DAF.
High-ammonia matrices (spent etchant with >500 mg/L NH3-N) push the Fenton pathway off-optimum: hydroxyl radicals are scavenged by ammonia and the iron-catalyst surface passivates. For those feeds, switch the AOP to ozone (O3 5-15 mg/L, pH 9-11) for direct ammonia oxidation, or persulfate (Na2S2O8 500-2,000 mg/L, Fe²⁺ activation, 60 °C) for selective organic oxidation. UV/H2O2 at 254 nm, 1-5 kWh/m³, is a useful polishing step on the Fenton effluent when residual EDTA <10 mg/L is required for an MBR feed. The automatic chemical dosing skid controls peroxide, acid, and Fe²⁺ feed, with ORP feedback to hold the working state of the Fenton reactor and avoid the peroxide residuals that otherwise carry into the bio stage and bleach the biomass.
This stage is the difference between a defensible PCB spec and a generic three-stage municipal template. Bartleby's reference and similar sources describe BOD/TSS removal on sanitary sewage; they do not address the chelator chemistry that is the actual rate-limiting step in PCB effluent treatment.

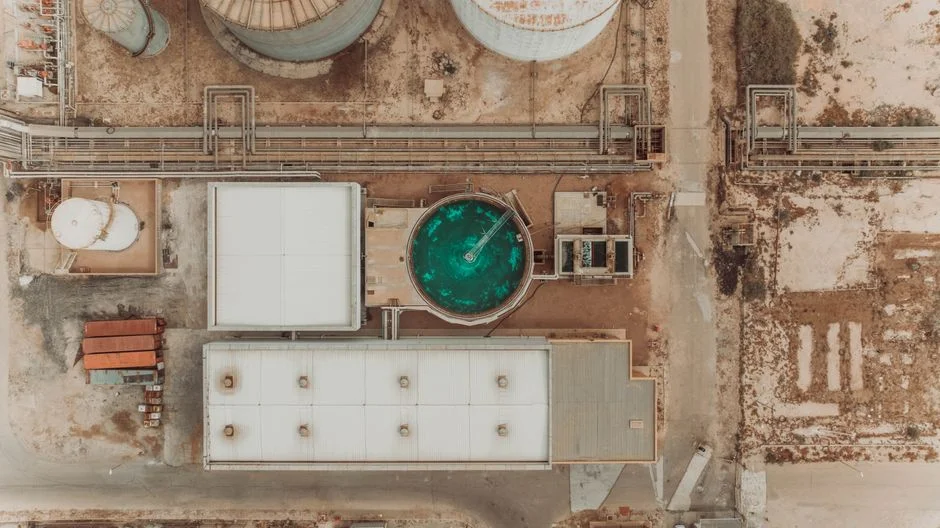

Step 4: Biological Treatment and MBR Polishing
With chelators broken and free metals already precipitated, the Fenton-neutralized effluent is ready for biological polishing. The recommended configuration is a pre-anoxic zone (HRT 4-8 h) followed by an aerobic MBR basin (HRT 12-24 h). The anoxic zone denitrifies residual nitrate and consumes any carryover carbon; the aerobic zone is operated at SRT 15-30 d, MLSS 5,000-8,000 mg/L, DO 2-3 mg/L, pH 7-8, and F/M 0.05-0.15 kg BOD/kg MLSS·d. Nitrification must be sized to handle residual NH3-N from spent etchant (typically 20-100 mg/L on the MBR feed) at 1-2 °C winter temperature.
The MBR itself uses 0.1-0.4 µm PVDF submerged membranes in either hollow-fiber or flat-sheet geometry. Specify hollow-fiber for standard mixed liquor (MLSS <10,000 mg/L) and flat-sheet modules for high-solids operation above 10,000 mg/L. Flux should be designed at 10-20 L/m²·h with a relaxation-backwash cycle of 9 min on / 1 min off, and chemical-in-place cleaning every 30-90 d using 1,000-2,000 mg/L NaOCl and 1-2% citric acid. The MBR effluent is essentially particulate-free: TSS <1 mg/L, turbidity <1 NTU, COD 50-80 mg/L, NH3-N <5 mg/L. A MBR system for biotreated PCB effluent delivers a 60% footprint reduction versus conventional activated sludge plus a secondary clarifier, which is meaningful in fabs where plant area costs real money.
Common failure modes to spec against: ammonia override at low temperature (design SRT for 8-10 °C, not 15 °C), bulking sludge from chelator breakthrough (which is why Fenton cannot be skipped), and membrane fouling from carryover Fe(OH)3 floc (set neutralization pH 7.5-8.0 and add inline coagulation polish before the MBR).
Step 5: RO Polishing and Reuse Loop
RO converts the MBR permeate from a discharge into plant utility water. Configure as a two-pass system: a first-pass RO at 85-95% recovery, with the concentrate (5-15% of feed) returned to the equalization tank, and a small second-pass polishing RO on a slipstream for ultrapure-grade use. Permeate quality: TDS <50 mg/L, conductivity <10 µS/cm, TOC <1 mg/L — within non-critical rinse, scrubber-makeup, and cooling-tower-feed limits. For higher-purity use (final rinse, ENIG line), a side-stream mixed-bed polisher or EDI cell takes the RO permeate to 10-18 MΩ·cm.
RO pretreatment is mandatory. Place a multi-media filter ahead of the high-pressure pump, sized to bring the Silt Density Index below 3 (target SDI <2) and protect the RO membrane from particulate fouling. Add 1-5 µm cartridge guard filtration as a final safety net. Specify an industrial RO system for reuse water with a programmable logic controller that monitors inter-stage differential pressure, conductivity, and recovery; alarm on >15% flux decline, >2× differential pressure, or >10% conductivity drift to catch scaling and biofouling before the membrane is damaged.
Brine management is the open question. A 500 m³/d PCB plant running 85% RO recovery generates ~75 m³/d of RO concentrate. For sites with 2026 ZLD mandates, this concentrate routes to an evaporation/crystallization train; otherwise it returns to the equalization tank and re-enters the treatment loop. The full economics are in the electronics wastewater ZLD blueprint and the parallel HF wastewater treatment system with the same DAF-RO-MBR hybrid.
Process Parameter Reference Table
The table below compiles the four primary unit operations a PCB process engineer would lift into a P&ID or specification. CAPEX bands are order-of-magnitude only and are anchored to publicly available 2025-2026 equipment quotations; site-specific cost depends on feed characterization, building footprint, and reuse targets.
| Unit Operation | Typical Influent | Target Effluent | Removal Efficiency | Key Operating Parameter | Footprint (per m³/d) | CAPEX Band (USD/m³/d, 2025-2026) |
|---|---|---|---|---|---|---|
| DAF (post-precipitation) | Cu 5-50 mg/L; TSS 200-500 mg/L; pH 8.5-9.5 | Cu <1 mg/L; TSS <30 mg/L | 80-95% TSS, 70-90% Cu (post-hydroxide) | Air/solids 0.02-0.05; surface loading 5-15 m/h; PAC 50-200 mg/L | 0.05-0.10 m² | $80-$200 |
| Fenton AOP | COD 1,000-5,000 mg/L; chelated-Cu 5-50 mg/L; pH 6-9 | COD 200-800 mg/L; free Cu <2 mg/L | 60-85% chelated-COD; >90% complex break | Fe²⁺ 100-500 mg/L; H2O2 1,000-3,000 mg/L; pH 2.5-3.5; 30-90 min | 0.10-0.20 m² | $50-$150 |
| MBR | COD 200-800 mg/L; NH3-N 20-100 mg/L; pH 7-8 | COD 50-80 mg/L; TSS <1 mg/L; NH3-N <5 mg/L | 85-95% COD; >99% TSS | SRT 15-30 d; MLSS 5,000-8,000 mg/L; flux 10-20 L/m²·h; PVDF 0.1-0.4 µm | 0.15-0.25 m² | $250-$650 |
| RO (two-pass) | TDS 500-2,000 mg/L; conductivity 500-2,000 µS/cm; SDI <3 | TDS <50 mg/L; conductivity <10 µS/cm | 95-99% salt rejection; 85-95% water recovery | Feed pressure 10-15 bar; recovery 85-95%; CIP every 30-90 d | 0.08-0.15 m² | $300-$800 |
Frequently Asked Questions
What is the typical COD range of raw PCB wastewater? Mixed-stream influent typically runs 500-5,000 mg/L COD, with spent developer alone reaching 20,000+ mg/L. The high end is dominated by chelating agents (EDTA, citrate, tartrate) and developer organics, not by biodegradable BOD; BOD/COD ratios in raw PCB effluent often sit at 0.1-0.3, which is the inverse of municipal sewage.
Can PCB wastewater be treated without Fenton oxidation? Only when the chelator load is consistently low (EDTA <50 mg/L, free NH3 <100 mg/L) and the discharge limit is ≥2 mg/L Cu. Outside that envelope, chelated Cu and Ni pass directly into the biological stage, depress nitrification, foul the MBR membrane, and push the final Cu above any of the 2026 jurisdictional limits cited above. Fenton is the gatekeeper.
What is the 2026 Cu discharge limit in China, the EU, and the US? China GB 39731-2020 sets total Cu ≤0.5 mg/L on the integrated discharge line. The EU BAT-AEL best-practice range sits at 0.1-0.5 mg/L Cu. The US EPA Metal Finishing categorical standard at 40 CFR 433 still allows Cu ≤1.0 mg/L daily maximum / 0.86 mg/L monthly average, but ongoing 2024-2026 categorical reviews are tightening both the daily-max and monthly-average values for direct and indirect dischargers.
How much water can a PCB fab realistically reuse? 60-85% of treated effluent when RO is included in the train, with the upper end achieved by recycling the RO concentrate back to the equalization tank and reusing MBR permeate for non-critical rinse, scrubber makeup, and cooling-tower feed. With a ZLD finishing stage (evaporation + crystallization), overall water recovery can exceed 90% — at higher OPEX and CAPEX.
What is the CAPEX range for a 500 m³/d PCB wastewater plant in 2026? Order-of-magnitude $1.5M-$4M USD total CAPEX, depending on whether copper recovery is included, whether the reuse loop is sized for 60% or 85% recovery, and whether ZLD finishing is in scope. Equipment-only CAPEX (DAF + Fenton + MBR + RO) is in the $700K-$1.8M range for that capacity, with the balance covering civil works, instrumentation, installation, and commissioning.
