Sludge thickeners increase solids concentration from 1% to 4-6% (gravity) or 3-5% (DAF with polymer) by separating water from biosolids, reducing downstream infrastructure costs by up to 40% (Zhongsheng Environmental analysis, 2025). Key parameters include solids loading (24-48 lbs/day/ft² for DAF), hydraulic loading (0.5-2.0 gpm/ft²), and air/solids ratio (0.01-0.1 lbs/lbs). Polymer dosing (0.5-5 lbs/ton dry solids) is critical for DAF to achieve 90-98% solids recovery, while gravity thickeners rely on fermentation to release soluble carbon for nutrient removal.

Why Sludge Thickening Fails: 3 Common Scenarios and How to Diagnose Them

Inconsistent sludge thickening results in increased operational costs and reduced efficiency in downstream processes like anaerobic digestion or dewatering. Engineers frequently encounter situations where thickeners underperform despite seemingly correct operation. Zhongsheng Environmental field data indicates that over 60% of thickening inefficiencies stem from misdiagnosed operational parameters.

Scenario 1: DAF produces thin sludge (<3% TS) despite polymer dosing.

This issue typically points to an imbalance in the flocculation and flotation process. Common causes include an incorrect air/solids ratio (<0.01 lbs/lbs), which leads to insufficient bubble attachment, or polymer overdosing (>5 lbs/ton dry solids), which can destabilize flocs. Hydraulic overload (>2.0 gpm/ft²) also reduces contact time, preventing effective solids capture.

Scenario 2: Gravity thickener overflows with high TSS (>500 mg/L).

High total suspended solids (TSS) in the overflow signifies poor settling efficiency. This can be caused by insufficient retention time (<24 hours), preventing adequate compaction of solids. A lack of proper fermentation (pH <6.5) hinders the release of entrapped water and gas, which aids in thickening. Additionally, exceeding the solids loading rate of >15 lbs/day/ft² (per EPA 2024 guidelines) overwhelms the thickener's capacity.

Scenario 3: Belt thickener blinds every 48 hours.

Frequent belt blinding leads to excessive washwater consumption and downtime. Primary culprits include polymer underdosing (<1 lb/ton dry solids), which results in poorly formed flocs that clog the belt pores. Incorrect belt tension (should be 0.5–1.0 psi) can also hinder proper cake formation and release. influent solids concentration below 1% TS may require pre-thickening before the belt thickener to ensure optimal performance.

Diagnostic Checklist: A 5-Step Flowchart for Thickener Troubleshooting

To diagnose these issues, follow a systematic approach:

1. Check Influent Quality: Verify influent TSS and flow rate against design specifications.
2. Monitor Chemical Dosing: Confirm polymer dose (lbs/ton dry solids) and ensure proper mixing and aging. For DAF, check air saturation pressure and air/solids ratio.
3. Evaluate Physical Parameters: For gravity thickeners, measure sludge blanket depth and underflow %TS. For DAF, observe float blanket consistency and subnatant clarity. For belt thickeners, inspect belt tension, speed, and washwater pressure.
4. Analyze Effluent Quality: Measure overflow/subnatant TSS and underflow/cake %TS.
5. Compare to Benchmarks: Cross-reference all operational parameters with the thickener's design criteria and industry benchmarks (e.g., EPA guidelines).

Sludge Thickener Working Principles: Gravity, DAF, and Belt Thickeners Explained

Sludge thickening technologies leverage distinct physical and chemical principles to achieve solids concentration, each suited to different sludge characteristics. The selection of a thickening method significantly impacts downstream processes and overall plant efficiency (Zhongsheng Environmental, 2025).

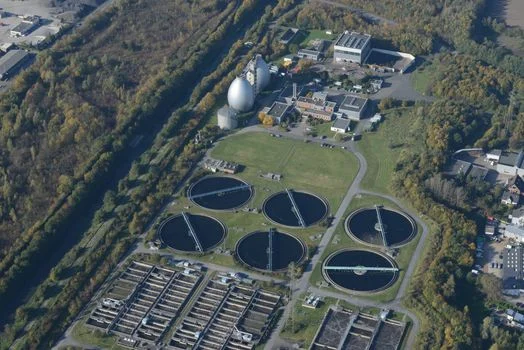

Gravity Thickener

Gravity thickeners utilize simple sedimentation to concentrate primary sludge, typically in circular tanks equipped with slow-moving rakes (0.1–0.3 rpm). Primary sludge, which has good settling characteristics, thickens from approximately 1% to 4-6% TS. This process often involves a period of controlled fermentation (pH 6.5–7.5), which releases soluble carbon. This soluble carbon is then returned to secondary treatment, playing a crucial role in enhancing biological nutrient removal (BNR) processes by providing readily available carbon sources (per Top 1 scraped content). The rakes gently consolidate the settled sludge, encouraging water release and preventing bridging.

DAF Thickener

Dissolved Air Flotation (DAF) thickeners are highly effective for concentrating waste activated sludge (WAS), which typically has poor settling properties. The principle involves saturating a portion of the clarified effluent (recycle stream) with air under high pressure (typically 60-80 psi). This pressurized water is then released into the DAF tank at atmospheric pressure, causing microscopic air bubbles (30–50 μm) to form. These microbubbles attach to polymer-conditioned sludge flocs, increasing their buoyancy and floating them to the surface to form a concentrated sludge blanket. Polymer dose (0.5–5 lbs/ton dry solids) and air/solids ratio (0.01–0.1 lbs/lbs) are critical parameters determining solids recovery (90–98%). The floating solids, known as concentrated WAS (CONWAS), are skimmed off, while the remaining liquid (subnatant) typically contains <50 mg/L TSS and is returned to secondary treatment (EPA 2024 benchmark). The process flow for a DAF system involves: WAS → polymer dosing → pressurized recycle water injection → DAF tank → skimmed CONWAS → sludge holding tank. Zhongsheng Environmental offers advanced ZSQ series DAF systems for WAS thickening.

Belt Thickener

Belt thickeners, also known as gravity belt thickeners, dewater sludge primarily through gravity drainage and mechanical pressure on a continuously moving, porous belt. Sludge is typically conditioned with polymer in a flocculation feedwell (per Top 3 scraped content) before being uniformly distributed onto the belt. As the belt moves, free water drains through the pores by gravity. Further dewatering is achieved as the sludge passes over wedge-shaped zones or pressure rollers, applying mechanical pressure (0.5–1.0 psi) to compress the sludge cake. Belt thickeners can achieve 5–8% TS with relatively lower polymer use (1–3 lbs/ton dry solids) compared to DAF for similar sludge types. However, regular belt washing (every 8–12 hours) with high-pressure water is necessary to prevent blinding and maintain efficiency. The process flow is: WAS/Primary Sludge → polymer dosing → flocculation feedwell → porous belt → gravity drainage zone → pressure zone → thickened sludge cake.

Thickener Type	Primary Sludge Type	Mechanism	Typical Output TS (%)	Key Advantage
Gravity Thickener	Primary Sludge	Sedimentation, Fermentation	4-6%	Low CapEx/OpEx, Soluble Carbon Release
DAF Thickener	Waste Activated Sludge (WAS)	Dissolved Air Flotation	3-5%	High Solids Recovery, Compact Footprint
Belt Thickener	Primary Sludge, WAS	Gravity Drainage, Mechanical Pressure	5-8%	High %TS Output, Versatile for Sludge Types

Engineering Specs: Critical Parameters for Each Thickener Type

Optimizing sludge thickener performance hinges on precise control of specific engineering parameters, ensuring maximum solids recovery and desired solids concentration for downstream processes. Incorrect parameter settings can lead to inefficiency, increased chemical consumption, and operational instability (Zhongsheng Environmental field data, 2025).

Gravity Thickener

Gravity thickeners are designed for robust, low-maintenance operation, primarily for primary sludge. Key design and operational parameters include:

• Solids Loading: 8–15 lbs/day/ft² for primary sludge. Exceeding this can lead to high TSS in the overflow.
• Hydraulic Loading: 0.1–0.5 gpm/ft². Lower rates ensure adequate settling time.
• Retention Time: 24–48 hours for optimal compaction and fermentation.
• pH: 6.5–7.5 is ideal for fermentation, which aids in water release and soluble carbon production.

A gravity thickener can achieve 4-6% TS with primary sludge but only 1-2% TS with WAS due to its poor settleability.

DAF Thickener

DAF thickeners are highly efficient for WAS, requiring careful management of chemical and hydraulic parameters.

• Solids Loading: 24–48 lbs/day/ft² with polymer. Without polymer, this drops to 10–24 lbs/day/ft².
• Hydraulic Loading: 0.5–2.0 gpm/ft². Higher rates are possible with effective polymer conditioning.
• Air/Solids Ratio: 0.01–0.1 lbs/lbs, with 0.03–0.05 lbs/lbs being optimal for most WAS applications. This ratio dictates the number of bubbles available for flotation.
• Polymer Dose: 0.5–5 lbs/ton dry solids. Correct dosing is crucial for flocculation and 90–98% solids recovery (per Top 5 PDF). Without polymer, recovery can drop to 50–90%. Zhongsheng Environmental offers PLC-controlled polymer dosing for sludge thickening to ensure precise application.

Belt Thickener

Belt thickeners offer a balance of efficiency and solids concentration, suitable for both primary and WAS.

• Solids Loading: 20–40 lbs/day/ft².
• Belt Speed: 10–30 ft/min. Optimal speed balances drainage time and throughput.
• Polymer Dose: 1–3 lbs/ton dry solids. Generally lower than DAF for similar %TS output.
• Belt Tension: 0.5–1.0 psi. Proper tension ensures effective dewatering and prevents belt damage.

Belt material, such as polyester or polypropylene, impacts blinding frequency and durability. Polyester belts offer higher drainage rates but may blind faster with certain sludges, while polypropylene provides greater chemical resistance.

Polymer Selection

The choice of polymer is critical for effective flocculation. Cationic polyacrylamide (PAM) with a molecular weight of 10–15 million is typically used for DAF systems treating WAS, as it effectively neutralizes the negative charge of activated sludge particles, promoting floc formation. For gravity thickeners, particularly if chemical assistance is required for primary sludge, anionic PAM (5–10 million molecular weight) can be used to bridge particles and enhance settling. The charge density of the polymer significantly impacts flocculation efficiency, with higher charge densities generally required for finer, more dispersed particles (per Top 3 scraped content).

Parameter	Gravity Thickener	DAF Thickener	Belt Thickener
Solids Loading (lbs/day/ft²)	8–15 (Primary)	24–48 (with polymer)	20–40
Hydraulic Loading (gpm/ft²)	0.1–0.5	0.5–2.0	N/A (Gravity drainage)
Polymer Dose (lbs/ton dry solids)	0 (Optional: 1–2 anionic)	0.5–5 (Cationic)	1–3 (Cationic)
Output TS (%)	4–6 (Primary)	3–5	5–8
Solids Recovery (%)	~80–90	90–98 (with polymer)	~95–98
Retention Time (hours)	24–48	0.5–2	Minutes
Air/Solids Ratio (lbs/lbs)	N/A	0.01–0.1	N/A
Belt Speed (ft/min)	N/A	N/A	10–30

How to Select the Right Sludge Thickener: A Decision Framework for Engineers

Selecting the optimal sludge thickener requires a structured approach that considers sludge characteristics, plant capacity, downstream treatment goals, and budgetary constraints. An informed decision can significantly impact long-term operational efficiency and cost-effectiveness (Zhongsheng Environmental, 2025).

Step 1: Sludge Type

The nature of the sludge is the primary determinant.

• Primary Sludge: Gravity thickeners are highly effective due to the good settleability of primary solids. They also offer the benefit of carbon recovery for nutrient removal in secondary treatment (per Top 1 scraped content). Belt thickeners can also handle primary sludge efficiently.
• Waste Activated Sludge (WAS): WAS has poor settling characteristics due to its biological nature and high water content. DAF thickeners are the preferred choice for WAS due to their high solids recovery. Belt thickeners are also suitable for WAS, offering higher final solids concentration.
• Mixed Sludge: For plants with both primary and WAS, a common strategy is to use gravity thickeners for primary sludge and DAF or belt thickeners for WAS, often mixing the thickened streams before further processing.

Step 2: Plant Size

The overall capacity of the wastewater treatment plant dictates the scale and complexity of the thickening system.

• Small Plants (<5 MGD): Gravity thickeners or belt thickeners often present a lower Capital Expenditure (CapEx) and are simpler to operate, making them suitable for smaller facilities.
• Medium to Large Plants (>5 MGD): DAF systems, with their higher recovery rates and compact footprint, often justify their higher CapEx through reduced downstream infrastructure costs and improved performance in larger operations.

Thickener Type	Typical CapEx Range	Typical OpEx (Polymer, Energy, Maint.)	Suitable Plant Size
Gravity Thickener	$80K–$200K	Low ($0.5–$2/ton dry solids)	Small to Large
DAF Thickener	$120K–$350K	Medium ($3–$15/ton dry solids)	Medium to Large
Belt Thickener	$100K–$250K	Medium ($2–$10/ton dry solids)	Small to Large

Step 3: Downstream Process

The requirements of subsequent sludge treatment processes heavily influence thickener selection.

• Anaerobic Digestion: DAF thickeners, with their ability to achieve 95% solids recovery and consistent feed concentration (3-5% TS), are ideal for providing a stable, concentrated feed to anaerobic digesters, maximizing biogas production.
• Dewatering: For facilities aiming for high solids concentration prior to how sludge dewatering works after thickening, belt thickeners are excellent for producing sludge cakes of 5–8% TS, reducing the load on downstream dewatering equipment like plate and frame filter presses.
• Land Application: Gravity thickeners, producing 4–6% TS sludge with minimal or no polymer use, are suitable if the end goal is direct land application where chemical addition is a concern.

Step 4: Polymer Budget and ROI

Polymer consumption is a significant operational cost, especially for DAF and belt thickeners.

• DAF: Requires 0.5–5 lbs/ton dry solids, costing approximately $1.20–$12/ton dry solids (assuming polymer at $2.40/lb).
• Belt: Requires 1–3 lbs/ton dry solids, costing approximately $2.40–$7.20/ton dry solids.
• Gravity: Typically 0 lbs/ton, though anionic polymer (1–2 lbs/ton) may be used in specific cases.

ROI Calculator for Polymer Dosing: Reducing polymer dose from 5 to 3 lbs/ton dry solids, for example, can save approximately $4.80/ton dry solids. For a plant generating 10 tons of dry solids per day, this amounts to an annual saving of $17,520 (10 tons/day * $4.80/ton * 365 days). This highlights the importance of optimizing polymer dosing for sludge thickening.

Decision Tree: Choosing Your Sludge Thickener

1. Is it Primary Sludge or WAS?
   • Primary Sludge: Consider Gravity Thickener (low OpEx, carbon recovery) or Belt Thickener (higher %TS).
   • WAS: Proceed to next step.
2. What is Your Plant Size?
   • <5 MGD: Consider Belt Thickener (lower CapEx for WAS).
   • >5 MGD: Consider DAF (high recovery, compact) or Belt Thickener.
3. What is Your Downstream Process?
   • Anaerobic Digestion: DAF (consistent, high recovery feed).
   • Dewatering to High %TS: Belt Thickener (5–8% TS).
   • Land Application (minimal polymer): Gravity Thickener (for primary sludge).
4. What is Your Polymer Budget/Tolerance?
   • Zero/Low Polymer: Gravity Thickener.
   • Moderate Polymer: Belt Thickener.
   • Higher Polymer (justified by recovery/footprint): DAF Thickener.

Troubleshooting Sludge Thickeners: Causes, Fixes, and Prevention

Effective troubleshooting is critical for maintaining consistent performance and minimizing operational costs in sludge thickening operations. Addressing common issues promptly prevents significant disruptions to the overall wastewater treatment process (Zhongsheng Environmental field data, 2025).

DAF Troubleshooting

DAF systems are highly sensitive to operational parameters, and minor deviations can lead to significant issues.

• Thin floating sludge (<3% TS): This indicates insufficient flocculation or flotation.
  • Cause: Polymer underdosing or incorrect air/solids ratio.
  • Fix: Increase polymer dose (e.g., from 0.5 → 2 lbs/ton dry solids) after jar testing, or ensure air/solids ratio is within optimal range (0.03–0.05 lbs/lbs). Alternatively, reduce hydraulic loading (<1.5 gpm/ft²) to increase contact time.
• Solids carryover in subnatant (>50 mg/L TSS): Poor effluent quality suggests solids are not effectively separating.
  • Cause: Inadequate air/solids ratio, hydraulic overload, or insufficient flocculation.
  • Fix: Adjust air/solids ratio (target 0.03–0.05 lbs/lbs) or reduce solids loading (<30 lbs/day/ft²). Verify polymer efficacy and dose.
• Floating sludge blanket too thick: While seemingly good, an excessively thick blanket can lead to poor dewatering and potential overflows.
  • Cause: Polymer overdosing or slow flight speed.
  • Fix: Reduce polymer dose or increase flight speed to remove solids more quickly (per Top 5 PDF troubleshooting guidance).

Gravity Thickener Troubleshooting

Gravity thickeners are robust but can suffer from issues related to loading and biological activity.

• High TSS in overflow (>500 mg/L): Indicates poor settling.
  • Cause: Hydraulic or solids overload, or presence of non-settleable solids (e.g., WAS).
  • Fix: Increase retention time (>24 hours) by reducing influent flow, or reduce solids loading (<10 lbs/day/ft²). In severe cases, adding anionic polymer (1–2 lbs/ton dry solids) may aid settling.
• Low TS in underflow (<4%): Sludge is not compacting effectively.
  • Cause: Insufficient retention time, poor fermentation, or high influent water content.
  • Fix: Check pH (adjust to 6.5–7.5 for optimal fermentation) or reduce solids loading (<10 lbs/day/ft²). Ensure rakes are functioning correctly.
• Odor issues: Typically caused by anaerobic conditions and sulfide production.
  • Cause: Excessive retention time, especially with high organic loading.
  • Fix: Add ferric chloride (5–10 mg/L) to control H₂S formation, or reduce retention time (per EPA 2024 odor control guidelines).

Belt Thickener Troubleshooting

Belt thickeners require attention to mechanical and chemical aspects to prevent blinding and ensure consistent cake dryness.

• Belt blinding: Clogging of belt pores reduces drainage efficiency.
  • Cause: Polymer underdosing, incorrect polymer type, or insufficient belt washing.
  • Fix: Increase polymer dose (e.g., 1 → 2 lbs/ton dry solids) or verify polymer suitability. Increase washwater pressure (80–100 psi) or frequency. Reduce belt speed (<20 ft/min) to allow more drainage time.
• Low TS in cake (<5%): Insufficient dewatering.
  • Cause: Insufficient belt tension, low influent solids, or worn belt.
  • Fix: Increase belt tension (e.5 → 0.8 psi). Ensure influent solids are >1% TS (pre-thickening may be needed). Inspect belt for wear or damage.

Prevention Checklist

Proactive maintenance and monitoring can prevent most operational issues.

• Daily: pH and TS checks of influent and effluent. Visual inspection of sludge blanket/cake.
• Weekly: Polymer dose adjustments based on jar tests and performance. Belt tension calibration (for belt thickeners).
• Monthly: Thorough cleaning of DAF saturator and nozzles. Inspection of rake mechanisms in gravity thickeners. Calibration of all flow meters and sensors.

Frequently Asked Questions

Q: What’s the difference between sludge thickening and dewatering?

A: Sludge thickening increases solids concentration from typically 1% to 4–8% TS, yielding a viscous but still pumpable sludge. Its primary goal is to reduce the volume of sludge, thus cutting downstream infrastructure costs. Sludge dewatering, conversely, achieves much higher solids concentrations (15–30% TS), resulting in a non-pumpable cake. Dewatering's main objective is to reduce the sludge's water content for lower disposal costs (Reference Top 4 scraped content: 'Thickening aims to separate phases; dewatering reduces water content.').

Q: How much polymer is needed for DAF thickening?

A: The required polymer dose for DAF thickening ranges from 0.5–5 lbs/ton dry solids. This depends heavily on the sludge type, with waste activated sludge (WAS) typically requiring 2–5 lbs/ton, while primary sludge may need 0.5–2 lbs/ton if DAF is used. Overdosing (>5 lbs/ton) can lead to thin sludge and polymer waste (Per Top 5 PDF: 'With polymer: 3–5% TS; without: 2–4% TS.').

Q: Can gravity thickeners handle waste activated sludge (WAS)?

A: No, gravity thickeners are generally not effective for waste activated sludge (WAS) due to its finely dispersed, biological nature and poor settleability. WAS requires more aggressive thickening methods like DAF or belt thickening to achieve adequate solids concentration. Gravity thickeners are best suited for primary sludge, thickening it from 1% to 4–6% TS (Per Top 1 scraped content: 'WAS removed from secondary clarifiers is pumped to DAF.').

Q: What’s the ideal air/solids ratio for DAF?

A: The ideal air/solids ratio for DAF ranges from 0.01–0.1 lbs/lbs, with 0.03–0.05 lbs/lbs being optimal for most WAS applications. A ratio below 0.01 lbs/lbs typically results in thin floating sludge due to insufficient bubble attachment, while a ratio above 0.1 lbs/lbs wastes energy without significant performance improvement (Per Top 5 PDF: 'Air/solids ratio 0.01–0.1 lbs/lbs.').

Q: How often should belt thickeners be cleaned?

A: Belt thickeners should be cleaned every 8–12 hours to prevent blinding and maintain optimal dewatering efficiency. This typically involves using high-pressure water (80–100 psi) via spray nozzles. Regular cleaning directly impacts operational expenditure (OpEx) and system uptime, along with weekly checks on belt tension (0.5–1.0 psi) to ensure proper operation (Per industry best practices: 'Belt washing frequency directly impacts OPEX.').
