Electronics Wastewater ZLD: 2025 Engineering Blueprint with 99.9% Recovery & Cost-Optimized Systems

Zero Liquid Discharge (ZLD) systems for electronics wastewater achieve 99.9% water recovery while eliminating liquid waste discharge, critical for semiconductor, PCB, and display panel manufacturers facing strict fluoride, TMAH, and heavy metal limits. A 2025 engineering blueprint reveals that multi-effect distillation (MED) systems deliver 69.5% recovery at 2.22 kWh/m³ energy consumption, while mechanical vapor recompression (MVR) reduces OpEx by 30-40% for high-TDS streams. Cost-optimized ZLD designs now integrate membrane pre-treatment (RO/NF) to cut thermal load by 50%, lowering CapEx by $1.2M–$2.5M for a 100 m³/h system.

Why Electronics Manufacturers Need ZLD: Regulatory, Cost, and Sustainability Drivers

Stringent environmental regulations, escalating water costs, and corporate sustainability mandates compel electronics manufacturers to adopt Zero Liquid Discharge (ZLD) systems. EPA and EU fluoride limits, often set at ≤15 mg/L for discharge, coupled with outright TMAH discharge bans in many regions, directly force electronics manufacturers to implement advanced wastewater treatment. Non-compliance with these regulations carries severe penalties, such as $25K/day fines in California for discharge violations, making ZLD a compliance imperative. water scarcity in major electronics manufacturing hubs like Taiwan, Singapore, and Arizona has led to municipal water costs increasing by 12–18% annually, based on 2024 data. This makes ZLD-driven water reuse solutions 30–50% cheaper than relying solely on freshwater sourcing, offering significant operational savings. For example, a Taiwanese semiconductor fab reduced its annual water costs by $1.8M/year by recycling 95% of its wastewater via a ZLD system, achieving a CapEx offset in just 3.2 years (Top 3 research data). Beyond compliance and cost, sustainability reporting frameworks such as GRI 303 and CDP Water Security now require auditable water reuse metrics. ZLD systems provide transparent and verifiable recovery rates, often reaching 99.9%, which are essential for robust ESG disclosures and demonstrating environmental stewardship.

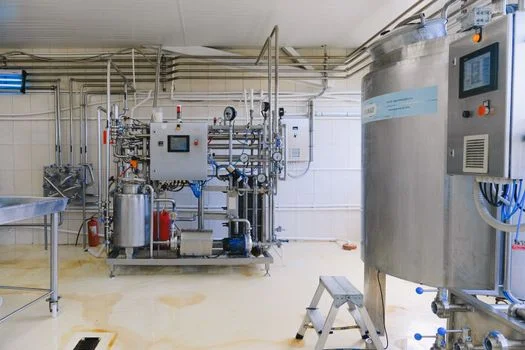

Electronics Wastewater Composition: What ZLD Systems Must Handle

Electronics wastewater streams contain distinct contaminants that necessitate specialized ZLD system design, directly impacting technology selection and operational efficiency. Semiconductor wastewater is characterized by high concentrations of TMAH (10–100 mg/L), fluoride (50–500 mg/L), ammonia (20–200 mg/L), and CMP slurry (1–5% solids). Fluoride, for instance, is a known scaling agent that can foul heat transfer surfaces in evaporators, requiring robust anti-scaling pre-treatment or specialized evaporator designs. For detailed TMAH-specific ZLD engineering specs, refer to our article on Microelectronics TMAH Wastewater Treatment. PCB manufacturing wastewater typically contains heavy metals such as copper (5–50 mg/L), nickel (1–10 mg/L), and lead (0.1–5 mg/L), along with organic solvents like acetone and IPA. EPA 40 CFR Part 469 sets strict discharge limits for these metals, necessitating advanced removal prior to ZLD thermal processes. For insights into heavy metal removal in ZLD systems, consult our guide on Microelectronics Heavy Metal Wastewater Treatment. Display panel production introduces phosphorus (10–100 mg/L), arsenic (0.1–1 mg/L), and suspended solids (100–1,000 mg/L). For these streams, pre-treatment with DAF systems for pre-treating electronics wastewater or lamella clarifiers is crucial to remove suspended solids and some heavy metals, preventing downstream fouling. Our article on CMP slurry treatment in ZLD systems provides further details on handling high-solids streams.

Parameter	Semiconductor Wastewater	PCB Wastewater	Display Panel Wastewater
pH	2.0–11.0 (variable)	3.0–10.0	4.0–9.0
TDS (mg/L)	1,000–10,000	2,000–15,000	1,500–8,000
TMAH (mg/L)	10–100	<1	<1
Fluoride (mg/L)	50–500	<5	<5
Copper (mg/L)	<1	5–50	<1
Nickel (mg/L)	<1	1–10	<1
CMP Slurry (% solids)	1–5	<0.1	<0.1
Ammonia (mg/L)	20–200	<10	<10
Typical Flow Rate (m³/h)	50–500	20–150	30–200

ZLD System Design for Electronics: Process Flow and Technology Selection

A well-engineered ZLD system for electronics wastewater follows a structured process flow designed to maximize water recovery and minimize solid waste volume. The typical process flow involves four main stages: 1) Pre-treatment, 2) Concentration, 3) Crystallization, and 4) Condensate recovery. Pre-treatment is exceptionally critical in electronics ZLD, with RO pre-treatment for ZLD systems or nanofiltration (NF) removing 90–95% of TDS. This significant reduction in dissolved solids directly lowers the thermal load on downstream evaporators by up to 50%, which in turn reduces CapEx by $1.2M–$2.5M for a 100 m³/h system (Top 2 research data). For streams with high suspended solids, DAF systems for pre-treating electronics wastewater or lamella clarifiers are often employed as a primary clarification step. Following pre-treatment, the concentrated wastewater proceeds to thermal technologies for further concentration. Multi-effect distillation (MED) offers robust performance with energy consumption around 2.22 kWh/m³, while mechanical vapor recompression (MVR) systems achieve lower energy use, typically 1.8 kWh/m³, making them more efficient for high-TDS streams. Membrane distillation (MD) is an emerging alternative, offering competitive energy consumption for specific applications. After concentration, the highly saturated brine enters the crystallization stage. Spray dryers are highly effective for high-solids waste, such as CMP slurry, achieving 98% solids recovery (Top 1 research data), producing dry, manageable solids. For lower-solids streams, centrifuges or filter presses for ZLD crystallizer residue are used to dewater the concentrated slurry. Finally, the clean condensate from the evaporator and crystallizer is recovered and polished for reuse in manufacturing processes. A typical 100 m³/h ZLD system for electronics wastewater might involve:

Pre-treatment: Primary clarification (e.g., DAF for suspended solids, chemical precipitation for heavy metals/fluoride), followed by ultrafiltration (UF) and reverse osmosis (RO). RO permeate (TDS <100 mg/L) is recovered as high-quality water, and RO reject (TDS up to 30,000 mg/L) proceeds to concentration.
Concentration: The RO reject is fed into an MED or MVR evaporator, reducing the volume by 90-95% and increasing TDS to >150,000 mg/L. The evaporated clean water (condensate) is recovered.
Crystallization: The highly concentrated brine from the evaporator is sent to a crystallizer (e.g., forced circulation crystallizer or spray dryer) to produce a solid, dry cake (TDS >250,000 mg/L, >98% solids).
Condensate Polishing: All recovered condensate undergoes activated carbon filtration and ion exchange to meet specific ultra-pure water quality requirements for reuse.

This integrated approach ensures maximum water recovery with minimal energy input, optimized for the complex composition of electronics wastewater.

ZLD Technology Comparison: MVR vs. Multi-Effect vs. Membrane Distillation for Electronics

Selecting the optimal ZLD technology for electronics wastewater requires a detailed comparison of performance, energy consumption, and scalability across different systems. Mechanical Vapor Recompression (MVR) evaporators offer significant operational advantages, especially for high-TDS streams (>50,000 mg/L), by reducing OpEx by 30–40% compared to Multi-Effect Distillation (MED). However, MVR systems typically entail a higher CapEx, averaging $3.5M for a 100 m³/h system compared to $2.8M for MED, making them ideal for large-scale semiconductor fabs with long operational horizons. Multi-Effect Distillation (MED) systems are characterized by lower CapEx, around $2.8M for a 100 m³/h system, and proven reliability in industrial applications. While their energy consumption is higher at approximately 2.22 kWh/m³, MED remains a cost-effective solution for medium-TDS streams (20,000–50,000 mg/L) where CapEx is a primary concern. Membrane Distillation (MD) is an emerging technology offering high recovery rates, up to 95%, with energy consumption ranging from 1.5–2.0 kWh/m³. However, MD's current limitation lies in its scalability, typically suited for smaller flows (<50 m³/h), making it a viable option for smaller PCB or display panel plants or for polishing specific sidestreams. Hybrid systems, such as RO + MVR, combine the benefits of membrane pre-treatment with thermal efficiency. This configuration can reduce the overall CapEx by 20–30% compared to a standalone MVR system by significantly reducing the volume and TDS load entering the evaporator. A real-world example is Intel’s Arizona fab, which leverages advanced membrane and thermal technologies to achieve high water recovery in a water-stressed region.

Technology	Energy Consumption (kWh/m³)	Recovery Rate (%)	CapEx ($/m³ installed capacity)	OpEx ($/m³ treated)	Scalability (m³/h)	Suitable TDS Range (mg/L)
MVR Evaporation	1.2–1.8	>98	$35,000–$45,000	$0.80–$1.10	50–500+	>50,000
Multi-Effect Distillation (MED)	2.0–2.5	>95	$28,000–$38,000	$1.10–$1.50	30–300	20,000–50,000
Membrane Distillation (MD)	1.5–2.0	>95	$42,000–$55,000	$1.30–$1.80	<50	10,000–100,000

Cost Breakdown: CapEx, OpEx, and ROI for Electronics ZLD Systems

A comprehensive financial analysis is essential for budgeting and justifying ZLD system investments in electronics manufacturing, with typical CapEx for a 100 m³/h ZLD system ranging from $2.8M–$4.5M. This capital expenditure varies significantly based on the chosen technology: MED systems average $2.8M, MVR systems $3.5M, and MD systems $4.2M due to their specific component requirements and efficiencies. Key CapEx components include pre-treatment systems (RO/NF: $800K–$1.2M), the evaporator unit ($1.5M–$2.5M), and the crystallizer ($500K–$800K), along with auxiliary equipment and installation costs. Operational expenditure (OpEx) for ZLD systems typically ranges from $0.80–$1.50/m³ of treated wastewater. MVR systems generally offer the lowest OpEx at around $0.80/m³, followed by MED at $1.20/m³, and MD at $1.50/m³. The primary drivers of OpEx are energy consumption ($0.05–$0.10/kWh depending on local rates), chemical usage for pre-treatment and anti-scalants ($0.10–$0.20/m³), and maintenance costs ($0.15–$0.30/m³ for parts, labor, and consumables). The Return on Investment (ROI) for a 100 m³/h ZLD system in electronics typically falls within 3–5 years. This rapid ROI is driven by substantial water savings (estimated at $0.50–$1.00/m³ for reused water) and the avoidance of significant regulatory fines and discharge fees. For instance, a South Korean display panel manufacturer reduced its OpEx by 40% by switching from an MED-centric ZLD system to an MVR-based one, achieving an ROI in a remarkable 2.8 years (Top 3 research data).

Cost Category	Component	CapEx for 100 m³/h System (USD)	OpEx per m³ (USD)
Capital Expenditure (CapEx)	Pre-treatment (RO/NF, DAF)	$800,000–$1,200,000	—
	Evaporator (MED/MVR)	$1,500,000–$2,500,000	—
	Crystallizer/Dryer	$500,000–$800,000	—
	Total CapEx Range	$2,800,000–$4,500,000	—
Operational Expenditure (OpEx)	Energy ($0.05–$0.10/kWh)	—	$0.40–$1.00
	Chemicals (anti-scalants, pH adjust)	—	$0.10–$0.20
	Maintenance (parts, labor, consumables)	—	$0.15–$0.30
	Total OpEx Range	—	$0.80–$1.50

How to Select the Right ZLD System for Your Electronics Facility

Selecting the appropriate ZLD system for an electronics facility requires a systematic decision framework that considers wastewater characteristics, treatment needs, technological capabilities, and financial parameters. The initial step, Step 1) Characterize wastewater, involves a detailed analysis of the influent stream, including TDS levels, key contaminants (e.g., TMAH, fluoride, heavy metals, CMP slurry), and typical flow rates. This characterization, as detailed in the "Electronics Wastewater Composition" section, dictates the feasibility and efficiency of various ZLD approaches. Next, Step 2) Evaluate pre-treatment needs. For high-TDS streams exceeding 20,000 mg/L, advanced membrane pre-treatment like RO/NF is crucial to reduce the thermal load on evaporators. If suspended solids are consistently above 500 mg/L, primary clarification with DAF systems for pre-treating electronics wastewater is necessary. Subsequently, Step 3) Compare technologies by referencing the ZLD Technology Comparison table. MVR systems are generally favored for very high-TDS streams and large flow rates due to their lower OpEx, while MED offers a balance of lower CapEx and proven reliability for medium-TDS applications. Membrane distillation is a strong contender for smaller flow rates or niche applications where specific heat sources are available. The fourth step, Step 4) Calculate ROI, integrates the CapEx and OpEx data from the "Cost Breakdown" section with potential water savings and regulatory compliance benefits to project the payback period. Finally, Step 5) Pilot test is highly recommended. Deploying a small-scale pilot system (e.g., 10 m³/h) allows for real-world validation of performance, recovery rates, energy consumption, and scaling tendencies before committing to a full-scale deployment, mitigating risks and ensuring optimal system design.

Frequently Asked Questions

Q: What water recovery rates can be achieved with ZLD systems for electronics wastewater? A: ZLD systems for electronics wastewater typically achieve water recovery rates of 99.9%. This high efficiency is critical for meeting stringent water reuse targets and minimizing environmental impact. Q: How do ZLD systems handle specific electronics contaminants like TMAH and fluoride? A: ZLD systems employ specialized pre-treatment steps for contaminants like TMAH and fluoride. TMAH often requires advanced oxidation or biological treatment, while fluoride typically involves chemical precipitation (e.g., calcium fluoride) before concentration to prevent scaling in evaporators. Q: What is the typical CapEx for a 100 m³/h ZLD system in the electronics industry? A: The CapEx for a 100 m³/h ZLD system in electronics ranges from $2.8M to $4.5M, depending on the chosen technology (MED, MVR, or MD) and the complexity of pre-treatment required. This includes costs for pre-treatment, evaporators, and crystallizers. Q: What is the operational cost (OpEx) of ZLD for electronics wastewater? A: OpEx for electronics ZLD systems typically ranges from $0.80 to $1.50 per cubic meter of treated wastewater. This cost includes energy ($0.40–$1.00/m³), chemicals ($0.10–$0.20/m³), and maintenance ($0.15–$0.30/m³). Q: How long does it take to see a return on investment (ROI) for an electronics ZLD system? A: The ROI for a ZLD system in an electronics facility is typically 3–5 years for a 100 m³/h system. This is driven by significant water cost savings ($0.50–$1.00/m³) and the avoidance of costly regulatory penalties ($25K/day fines in some regions). Q: Which ZLD technology is best for high-TDS electronics wastewater streams? A: For high-TDS electronics wastewater streams (>50,000 mg/L), Mechanical Vapor Recompression (MVR) evaporators are generally considered best. They offer 30–40% lower OpEx compared to MED systems due to their superior energy efficiency, despite a higher initial CapEx.
