Why Solar Cell Etching Wastewater Is a Distinct Treatment Problem
Solar cell etching wastewater is a segregated multi-stream process. Acidic HF/HNO3/H2SO4 texturing waste is neutralized with Ca(OH)2 to pH 8–9, precipitating CaF2 and CaSO4 to bring fluoride from 200–5,000 mg/L below 10 mg/L; the clarified supernatant is polished by DAF and MBR with RO or MEE evaporation achieving zero liquid discharge. NMP solvent washings are recovered by vacuum distillation at 80–120 °C before biological treatment of the remaining COD/NH3-N load.
A crystalline silicon or TOPCon/HJT fab generates four chemically incompatible streams. Acidic texturing waste carries F⁻ 200–5,000 mg/L, pH 0.5–2, NO3⁻-N 500–3,000 mg/L, and SiO2 50–300 mg/L (Zhongsheng field data, 2026). Alkaline sawing/NaOH waste from wafer cutting and PSG etching adds 3–8 m³/h of high-pH effluent. Fluorinated DI rinse water — the largest volumetric stream at 20–60 m³/h — is dilute but continuous. NMP solvent from screen-printing and lamination prep carries 1,000–10,000 mg/L of a high-boiling, biodegradable-resistant organic. Combined-stream treatment fails because F⁻ at >50 mg/L inhibits nitrifying bacteria, NO3⁻-N above 800 mg/L collapses denitrification stoichiometry, and NMP at >500 mg/L strips aeration and lyses MBR biomass. The pH window between 3.5 and 9, anchored by the CaF2 solubility product Ksp ≈ 3.9×10⁻¹¹, is the foundation of the neutralization step — below pH 3.5, HF exists as undissociated acid that penetrates rubber-lined pumps and corrodes 316L stainless steel; above pH 9, Ca(OH)2 overdose wastes reagent without improving fluoride removal.
Stream Segregation: The First Engineering Decision
Segregation at the source drives 70% of the treatment plant's CAPEX and decides whether reuse is even possible. At a typical 1 GW wafer-and-cell fab, the four streams show distinctly different flow and load profiles:
| Stream | Typical flow (m³/h) | pH | Key contaminant | Peak load | Collection material |
|---|---|---|---|---|---|
| Acid texturing waste | 5–15 | 0.5–2 | F⁻, NO3⁻-N, SiO2 | F⁻ 5,000 mg/L | HDPE-lined concrete or FRP with vinyl ester resin |
| Alkaline sawing/PSG waste | 3–8 | 11–14 | NaOH, SiO3²⁻, IPA | COD 1,500 mg/L | PP or FRP, separate sump |
| Fluorinated DI rinse | 20–60 | 2–5 | F⁻ (dilute), SS | F⁻ 50–200 mg/L | HDPE overflow trough |
| NMP solvent waste | 1–4 | 6–9 | NMP, traces of Ag, Cu | NMP 10,000 mg/L | 304SS or carbon steel with solvent-rated PTFE seals |
HF attacks concrete within hours and pits standard 304/316 stainless steel at any concentration above 100 mg/L F⁻ at pH <3; only HDPE, FRP with vinyl ester resin, or 316L with HF-resistant gaskets survive. Cross-contamination penalties are severe: even 1% acid carryover into the MBR feed drops biomass activity by 30–50% (industry baseline, 2024) and forces reseeding cycles of 2–4 weeks. Compliance anchoring differs by jurisdiction — China GB 30486-2013 sets F⁻ ≤ 10 mg/L and COD ≤ 50 mg/L for the solar PV industry, the EU Industrial Discharges Directive applies for fabs in Germany or France, and US TCLP governs land-disposed sludge.
Acid Stream Treatment: Neutralization, Fluoride Precipitation, and Sludge Handling
The acid train converts the most toxic stream into a dischargeable or reusable effluent. The four operational steps are:
- Equalization (8–24 h HRT): HDPE or FRP tank with mechanical agitation smooths HF and HNO3 spikes from batch texturing baths; FRP must use vinyl ester resin with EPDM or PTFE gaskets.
- Two-stage Ca(OH)2 neutralization: Stage 1 raises pH to 6.5–7.5 with 5–10% lime slurry at 8–15 kg Ca(OH)2 per m³, precipitating 70–80% of fluoride and the bulk of heavy metals. Stage 2 raises pH to 8.0–9.0 with 1–3 mg/L anionic polymer flocculant, dropping residual F⁻ to <10 mg/L. PLC-controlled lime and polymer dosing with pH redundant probes is mandatory — a 0.5-unit overshoot above pH 9 wastes 20–30% additional reagent without improving F⁻ removal.
- Clarification: A lamella clarifier for acid neutralization or a DAF system for fluoride sludge separation removes precipitated CaF2/CaSO4 at 2–5% DS. Secondary treatment routinely removes 85–95% of BOD and TSS in the clarified supernatant (per Environmental Engineering English reference, U3L3), which is the benchmark the MBR polish step must meet or exceed.
- Sludge dewatering: A filter press for CaF2 sludge dewatering conditions the clarifier underflow to 25–35% DS cake for landfill or, in aggressive reuse schemes, for fluoride recovery via acid regeneration. Residual NO3⁻-N at 200–800 mg/L passes forward to biological denitrification.
Material selection is non-negotiable. Concrete tanks fail in months; even FRP with the wrong resin (polyester rather than vinyl ester) blisters at the air interface within 18 months. Operators who skip the equalization step see pH swings of ±2 units in the clarifier, which lets F⁻ slip back into solution and re-dissolve CaF2 — the most common cause of "the clarifier worked for a month and then failed" complaints.
NMP Solvent Recovery and Biological Polishing of the Combined Effluent
NMP is too valuable to incinerate and too refractory to biodegrade in a single pass. Vacuum distillation is the standard recovery step: feed at 1–10 g/L NMP enters a falling-film evaporator at 80–120 °C under 5–20 kPa abs, with >90% NMP recovered at >98.5% purity (Zhongsheng field data, 2026) for direct reuse in cell-printing wash. Concentrated bottoms go to a dedicated incinerator or to a high-rate biological reactor. The distillate condensate, typically <200 mg/L NMP, joins the aqueous train ahead of biological polishing.
The combined effluent — acid supernatant, alkaline waste (post-CaCl2 softening for SiO3²⁻), and NMP condensate — enters a two-stage MBR sized for the actual hydraulic and nitrogen load:
| Parameter | Anoxic zone | Aerobic MBR | Effluent target |
|---|---|---|---|
| HRT | 4–8 h | 8–16 h | — |
| MLSS | 6,000–8,000 mg/L | 8,000–12,000 mg/L | — |
| Membrane | — | PVDF flat-sheet, 0.1 μm | — |
| Flux | — | 10–15 LMH | — |
| NO3⁻-N removal | 500–3,000 → <200 mg/L | — | TN <30 mg/L |
| COD | — | 500–2,000 → <50 mg/L | GB 30486-2013 |
| NH3-N | — | — | <5 mg/L |
Use a submerged MBR for denitrification of NO3-laden PV effluent — sidestream configurations cannot hold the MLSS needed to nitrify 200–800 mg/L NH3-N. For reuse-grade water, polish the MBR permeate through an activated-alumina or selective F⁻ ion-exchange column to drop F⁻ from 5–10 mg/L to <1 mg/L. Operating temperature must stay above 15 °C; below 12 °C, nitrification rates halve and methanol dosing for denitrification must rise 40–60%.

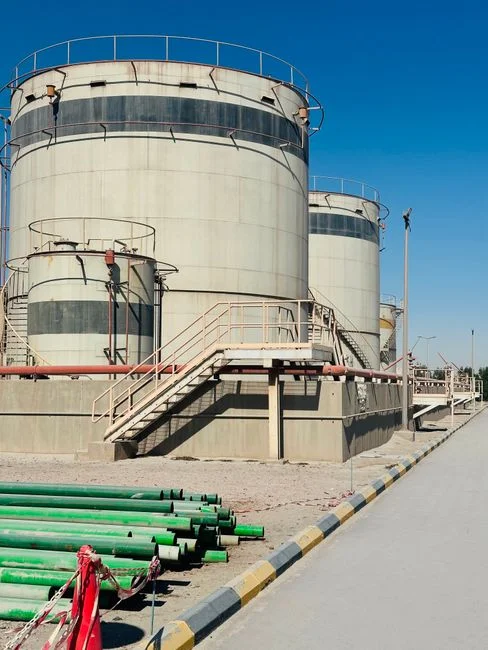

Reuse, ZLD, and the Discharge-vs-Recycle Decision
The final decision is a CAPEX/OPEX trade-off, not a regulatory one. Three configurations cover the realistic range:
| Configuration | Unit operations | CAPEX (USD, 1 GW fab, 30 m³/h) | OPEX drivers | Best fit |
|---|---|---|---|---|
| Discharge to sewer | Neutralization + DAF + MBR | 1.2–1.8 M | Discharge tariff USD 0.3–1.0/m³ | Coastal fabs with municipal treatment |
| Partial reuse (RO) | Above + RO polishing for water reuse loop at 60–70% recovery | 1.8–2.5 M | Membrane replacement 15–20% of OPEX | Water tariff >USD 1.5/m³ |
| Full ZLD | Above + MEE or MVR evaporator | 3.5–5.5 M | 0.15–0.25 kWh/kg water for MVR; 0.5–0.8 kg steam/kg for 4-effect MEE | Inland water-stressed provinces (Xinjiang, Inner Mongolia) |
RO permeate with conductivity <50 μS/cm can feed ultrapure rinsing for incoming wafer cleaning; concentrate returns to the equalization tank. For ZLD, MVR is the lower-energy choice where electricity is cheap and stable; falling-film MEE is more robust against scaling when Ca2+ and F⁻ in the concentrate approach saturation. The freshwater benchmark is 800–1,500 L per kW of PV module produced, with Tier-1 Chinese fabs targeting 200–400 L/kW — reuse is the lever that closes that gap, not ZLD alone. A chlorine dioxide generator downstream of the RO provides residual disinfection before the reuse loop, and a multi-media filter protects the RO membranes from SS breakthrough.
Frequently Asked Questions
What is in solar cell etching wastewater? Four segregated streams: HF/HNO3/H2SO4 texturing waste at F⁻ 200–5,000 mg/L and NO3⁻-N 500–3,000 mg/L, alkaline NaOH sawing waste, fluorinated DI rinse at 20–60 m³/h, and NMP solvent at 1,000–10,000 mg/L (Zhongsheng field data, 2026).
How is fluoride removed from HF wastewater to below 10 mg/L? Two-stage Ca(OH)2 neutralization at pH 6.5–7.5 then 8.0–9.0 precipitates CaF2 (Ksp ≈ 3.9×10⁻¹¹), with polymer flocculant and DAF or lamella clarification polishing residual F⁻ to <10 mg/L per GB 30486-2013.
Can NMP be reused after recovery? Yes. Vacuum distillation at 80–120 °C and 5–20 kPa abs recovers >90% of NMP at >98.5% purity, suitable for direct reuse in screen-printing wash; the bottoms go to incineration or high-rate biological treatment.
Is ZLD required for PV fabs? Only for inland fabs in water-stressed provinces. Coastal fabs typically meet GB 30486-2013 with neutralization + DAF + MBR and discharge at USD 0.3–1.0/m³; full ZLD adds USD 2–4 M in CAPEX but cuts water cost by 60–80% when freshwater tariffs exceed USD 2/m³.
What does a PV wastewater treatment plant cost? A segregated train at 30 m³/h combined flow runs USD 1.2–2.5 M CAPEX; a ZLD add-on brings the total to USD 3.5–5.5 M with OPEX dominated by 0.15–0.25 kWh/kg evaporation for MVR or 0.5–0.8 kg steam/kg for 4-effect MEE.
