Which Standard Controls a Springfield Fabricator's Discharge
Fabricated metals plants in the Springfield, MA service area (Agawam, Chicopee, East Longmeadow, Longmeadow, Ludlow, Springfield, West Springfield, Wilbraham) meet sewer pretreatment limits by stacking two compliance layers: federal categorical standards under 40 CFR Part 433 (Metal Finishing), which set PSES and PSNS for cadmium, chromium, copper, lead, nickel, silver, zinc, and total toxic organics, and the local limits the Springfield Water and Sewer Commission IPP enforces at end-of-pipe, which are at least as stringent and add oil & grease, TSS, and pH caps. The plant must meet whichever limit is stricter on each parameter, so the design envelope is built from the POTW table, not the federal table alone. Compliance is then proven physically by routing floor and process drains through an engineered treatment train before POTW discharge.
40 CFR Part 433 covers the Metal Finishing point source category, which includes forming, finishing, forging, foundry, metal spraying, and machining wash operations co-located with plating or anodizing lines. A stamping shop that ships only dry parts to a separate finisher is generally outside the category; a facility that runs its own zinc, nickel, or chromic acid tank is inside it (HydropureWater 2026). The regulation splits limits into PSES for existing sources and PSNS for new sources, with PSNS tighter. Most POTW pretreatment programs enforce PSNS-equivalent local limits on all industrial users as a conservative baseline, so even an existing plant should usually design to PSNS numbers (HydropureWater 2026).
The IPP jurisdiction extends over the eight municipalities that use the services of the Springfield Regional Wastewater Treatment Facility (SRWTF): Agawam, Chicopee (portion), East Longmeadow, Longmeadow, Ludlow, Springfield, West Springfield, and Wilbraham (Springfield Water and Sewer Commission). The program explicitly regulates heavy metals, cyanide, and other toxic chemicals because wastewater treatment plants are not designed to remove them, and the receiving Connecticut and Chicopee Rivers plus the sludge handling chain must be protected (Springfield Water and Sewer Commission). POTWs impose local limits at the end-of-pipe discharge from an industrial user, that is, at the point of connection to the POTW's collection system, and EPA can enforce local limits developed and approved under 40 CFR Part 403.5(c) as pretreatment standards (EPA 2026).
| Regulatory Layer | Authority | Parameters Covered | Where the Limit Is Enforced |
|---|---|---|---|
| 40 CFR Part 433 (Metal Finishing) categorical | US EPA | Cd, Cr, Cu, Pb, Ni, Ag, Zn, total toxic organics | Source category basis (PSES/PSNS) |
| 40 CFR 403.5 local limits (SRWTF IPP) | Springfield Water and Sewer Commission | Cu, Ni, Zn, Pb, Ag caps, O&G, TSS, pH, metals, cyanide | End-of-pipe at POTW connection |
What Comes Out of a Fabricated Metals Floor Drain
Most fabricated metals floors generate four contaminant families regardless of the specific process mix: free and emulsified oils from stamping, machining, and drawing compounds; dissolved heavy metals (Zn, Ni, Cu, Cr, Pb, Cd) from plating rinsewater and acid pickling; hexavalent chromium from chromic acid anodizing, hard chrome, and conversion coating; and total suspended solids from grinding swarf, casting sand, and hydroxide floc carryover (HydropureWater 2026). Cyanide appears wherever alkaline cyanide plating (Zn, Cu, Cd, Ag) is still in use, and it must be destroyed before metals precipitation or it will resolubilize the precipitates downstream, so cyanide oxidation is sequenced ahead of the precipitation stage in every compliant train (HydropureWater 2026).
Typical operating ranges for a mixed floor drain entering pretreatment are oils at 50–500 mg/L, total dissolved metals at 5–200 mg/L, TSS at 100–1,000 mg/L, and pH swinging between 2 and 12 across batch dumps (HydropureWater field data, 2026). A stamping cell may hold pH at 7 with low metals; a hard chrome line will spike Cr(VI) to 50+ mg/L and drop pH below 2 on a rinse dump (HydropureWater 2026). Plating shops run batch dumps, not steady flow, so equalization is not optional. It is the unit operation that makes the chemistry downstream work at all.
Two design consequences follow. First, you must sample a full week of composite flow before specifying equipment, because a 4-hour composite that misses the Friday afternoon dump will undersize the equalization basin (HydropureWater 2026). Second, the four contaminant families do not all respond to the same chemistry: oils need physical separation or chemical break, hex chrome needs reduction, cyanide needs oxidation, and dissolved metals need pH-driven precipitation. Trying to drop them all into one reaction stage produces an effluent that fails on at least one parameter and usually on three (HydropureWater 2026).
| Contaminant Family | Typical Source | Floor-Drain Range Observed | Required Chemistry |
|---|---|---|---|
| Free/emulsified oils | Stamping, machining, drawing compounds | 50–500 mg/L | Physical separation or chemical break |
| Dissolved metals (Zn, Ni, Cu, Cr, Pb, Cd) | Plating rinsewater, acid pickling | 5–200 mg/L total | pH-driven precipitation |
| Hexavalent chromium | Chromic acid anodizing, hard chrome, conversion coating | 50+ mg/L on rinse dump | Reduction to Cr(III) before precipitation |
| Total suspended solids | Grinding swarf, casting sand, hydroxide floc | 100–1,000 mg/L | Coagulation, flocculation, clarification |

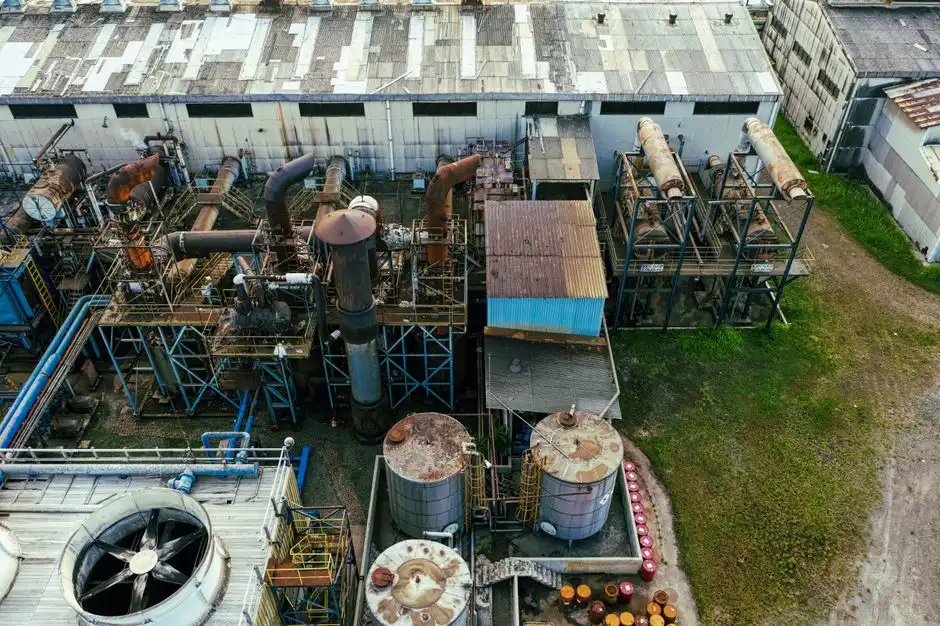

The Standard 2026 Treatment Train in Order
The treatment train below is the standard sequence a fabricated metals plant uses to hit PSNS-equivalent POTW limits. Each step has a defined purpose, a defined outlet spec, and a defined failure mode if it is skipped (HydropureWater 2026). The sequence is: flow equalization, oil and grease removal, hexavalent chrome reduction, cyanide oxidation, hydroxide precipitation of dissolved metals, dissolved air flotation or lamella clarification, pH trim, and final polishing.
Equalization smooths pH into the 6–9 range and cuts the flow coefficient of variation below 0.5 (HydropureWater 2026). Without it, downstream chemistry cannot hold setpoint, which is why equalization is not optional for batch-dump plating shops. Hexavalent chrome is reduced to trivalent chrome using sodium metabisulfite (or ferrous sulfate) at pH 2–3, with ORP controlled at roughly 250–300 mV; the trivalent form then precipitates as Cr(OH)₃ in the pH 8.5–9.5 precipitation stage, where Cr(VI) hydroxide would otherwise remain soluble (HydropureWater 2026). Cyanide destruction uses NaOCl ahead of metals precipitation; sequencing after precipitation resolubilizes the metal hydroxides and fails the discharge limit (HydropureWater 2026).
Hydroxide precipitation with NaOH, followed by a DAF system or lamella clarification, removes the bulk of dissolved metals and TSS. pH trim to 6–9 prepares the stream for sewer discharge. Alarm and shutdown interlocks on pH excursion, ORP out of range, and high TSS should automatically divert flow back to the equalization basin header so a chemistry upset does not become a discharge violation (HydropureWater 2026).
- Flow equalization — outlet pH 6–9, flow CV < 0.5.
- Oil and grease removal — protects downstream chemistry from solvent or emulsifier overload.
- Hexavalent chrome reduction — pH 2–3, ORP 250–300 mV, sodium metabisulfite or ferrous sulfate.
- Cyanide oxidation — NaOCl ahead of precipitation.
- Hydroxide precipitation — pH 8.5–9.5, NaOH dose.
- DAF or lamella clarification — TSS and metal-hydroxide removal.
- pH trim — 6–9 before sewer.
- Polishing (if required) — MBR, RO, or anion exchange/GAC.
Sizing the DAF, the Lamella, and the Sludge Train
Sizing is where pretreatment design succeeds or fails. DAF is governed by three knobs: hydraulic surface loading (4–20 m/h depending on model and floc density), air-to-solids ratio (A/S, 0.005–0.060 with 0.02 a typical design point), and recycle rate (10–30% of forward flow) (HydropureWater 2026). Pushing A/S higher produces a drier float but costs blower power and can shatter fragile floc; pushing recycle rate higher improves TSS removal but dilutes the chemistry and inflates equalization demand (HydropureWater 2026). Lamella clarification is a credible alternative where the solids are denser and oil load is lower.
Floated metal-hydroxide sludge typically runs 2–5% dry solids out of the DAF and dewaters to 25–35% with a plate and frame filter press (HydropureWater 2026). A belt press is cheaper and continuous but caps out around 22% dry solids on metal hydroxide, so if the hauler is paying by wet ton, plate and frame pays back (HydropureWater 2026). A rotary mechanical bar screen upstream of the equalization basin keeps rags, wipes, and tramp metal out of the sludge train, which is the single most common cause of premature press-cloth failure on fabricated metals duty (HydropureWater 2026).
| Design Knob | Operating Range | Design Point | Trade-Off |
|---|---|---|---|
| Hydraulic surface loading | 4–20 m/h | Set by floc density and model | Higher loading, smaller footprint, risk of solids carryover |
| Air-to-solids ratio (A/S) | 0.005–0.060 | 0.02 | Higher A/S dries the float but costs blower power and can shatter fragile floc |
| Recycle rate | 10–30% of forward flow | Mid-range typical | Higher recycle improves TSS removal but inflates equalization demand |
| Sludge dry solids (plate and frame) | 25–35% | — | Vs. belt press cap of ~22% on metal hydroxide |

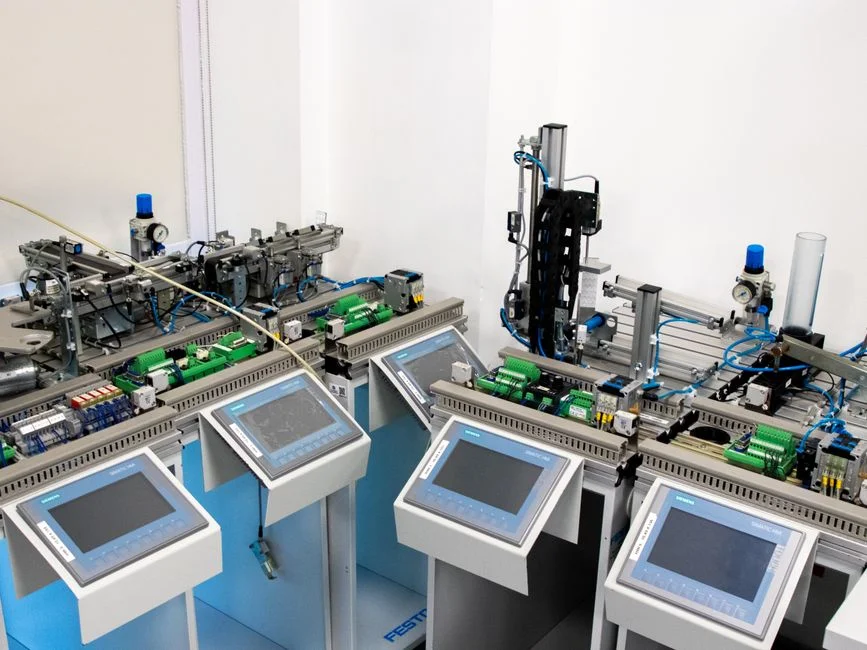

Chemical Dosing and the PLC Skid That Holds Setpoint
Chemical dosing is governed by feedforward (flow-paced) and feedback (pH/ORP) control on a PLC-controlled automatic chemical dosing skid (HydropureWater 2026). The four chemicals are NaOH or H₂SO₄ for pH trim, sodium metabisulfite for chrome reduction, NaOCl for cyanide destruction, and anionic/cationic polymer for floc. Skid-mounting matters: it cuts field install time, it forces the integrator to bench-test the interlocks before shipment, and it gives the operator one panel to lock out instead of five loose pumps (HydropureWater 2026).
Each pump needs a calibration column and a stroke-count totalizer. Without those, the operator is dosing blind and the effluent proves it, so these accessories should appear on every pretreatment skid specification (HydropureWater 2026). On batch-dump plating duty, the ORP loop on the chrome reduction tank and the pH loop on the precipitation tank are the two control points that separate a compliant plant from a violator. A third loop on the equalization basin outlet pH keeps a low-pH dump from short-circuiting into the chrome reduction stage and wasting sodium metabisulfite.
When a Polishing Step Is Actually Needed
Most fabricated metals plants hit sewer limits with the standard train and never need a polishing step (HydropureWater 2026). The cases that do are predictable: the POTW tightens local limits below PSNS, the plant wants to reuse rinsewater and needs RO-quality feed, or a new rule lands and forces a polish stage. For BOD/COD tightening or water reuse, a submerged PVDF MBR membrane bioreactor system delivers sub-1 μm filtration and stable effluent that can be sent to cooling tower makeup or rinsewater reclaim (HydropureWater 2026).
For sub-ppm TDS or specific metal caps (e.g., nickel below 0.1 mg/L for some reuse specs), an RO system is required, and the multi-media filter upstream must hold SDI15 below 3 or the RO membranes fail early (HydropureWater 2026). EPA has a PFAS rulemaking in 2026 scoped to chrome finishing facilities, but no current numerical limit exists; the right 2026 design move is to lay out the pretreatment train so an anion-exchange or GAC polish skid can be bolted on later, rather than installing and operating it ahead of any actual limit (HydropureWater 2026).
Frequently Asked Questions
What 40 CFR Part 433 limits does a Springfield fabricated metals plant actually have to meet?
40 CFR Part 433 (Metal Finishing categorical standards) sets PSES and PSNS limits for cadmium, chromium, copper, lead, nickel, silver, zinc, and total toxic organics. The plant must also meet the local POTW limits developed under 40 CFR 403.5, which are at least as stringent and frequently add oil & grease, TSS, and pH caps, so the design envelope is built from whichever limit is stricter on each parameter (HydropureWater 2026; EPA 2026). The SRWTF IPP enforces these end-of-pipe and explicitly regulates heavy metals and cyanide because wastewater treatment plants are not designed to remove them (Springfield Water and Sewer Commission).
What is the capital cost range for a fabricated metals pretreatment train sized to PSNS-equivalent local limits?
The supplied research does not include a capital cost figure or pricing range for a complete pretreatment train. The information a buyer must request from a vendor is itemized equipment cost for equalization basin, oil removal, chrome reduction tank, cyanide oxidation tank, precipitation tank, DAF, sludge press, and dosing skid, plus installation, plumbing, instrumentation, and commissioning, before any CAPEX comparison is meaningful. A useful check is to ask the vendor to separate skid-mounted equipment cost from field-installed cost, because that ratio typically drives the install-labor number more than the equipment list itself.
How long does it take to design, permit, and install a compliant pretreatment train in the SRWTF service area?
The supplied research does not include a specific lead-time figure for design, IPP permit review, fabrication, or installation. A buyer should request a project schedule from the system integrator that shows IPP permit application review, equipment fabrication, site installation, commissioning, and acceptance sampling as separate line items, and then verify the IPP permit cycle directly with the Springfield Water and Sewer Commission. The IPP contact line is 413-310-3449 and [email protected] (Springfield Water and Sewer Commission).
How do I choose between DAF and lamella clarification for a fabricated metals floor drain?
DAF is governed by three knobs: hydraulic surface loading (4–20 m/h), air-to-solids ratio (0.005–0.060 with 0.02 a typical design point), and recycle rate (10–30% of forward flow), and it is the default pick when oil load is high and floc is light (HydropureWater 2026). Lamella clarification is a credible alternative where the solids are denser and oil load is lower, with achievable surface loading rates in inclined-plate designs. A DAF or clarifier decision guide for fabricated metals walks through the same numbers for a comparable stream, which is a useful cross-check before you sign the PO.
