Why Pretreatment — Not NPDES — Is the Binding Constraint for Pilgrim-Area Mining/Metals Plants
A facility discharging to a US sewer is not governed by an NPDES permit — it is governed by the Clean Water Act §307(b) pretreatment program at 40 CFR Part 403, which delegates enforcement to the local POTW through its sewer-use ordinance (per EPA 40 CFR Part 403). Mining and metals operations in the Pilgrim footprint typically qualify as Categorical Industrial Users under 40 CFR Part 437 (Ore Mining and Dressing) and 40 CFR Part 433 (Metal Finishing) where any plating, pickling, or anodizing line exists, and that classification — not the presence of an NPDES permit — defines the numerical limits the plant must hit before its effluent reaches the municipal manhole.
NPDES only covers separate stormwater outfalls and direct surface-water discharges. The municipal manhole is regulated by the local POTW through its sewer-use ordinance. Federal categorical standards set the floor; the Pilgrim-area POTW ceiling is tighter — typical 2026 local monthly averages run zinc 0.3–1.0 mg/L and copper 0.3–0.5 mg/L against the 40 CFR Part 437 categorical cap of 1.0 mg/L daily max / 0.5 mg/L monthly average. Single excursions trigger CWA §309 civil penalties up to $25,000/day per violation — an order of magnitude higher than a typical NPDES self-monitoring deviation. Pretreatment limits are written around POTW biological-process protection, sludge quality, and worker safety, not receiving-stream assimilation. For a parallel sector blueprint, see the 2026 pretreatment compliance playbook for Franklin-area mining/metals plants.
The 2024–2026 Regulatory Shifts Reshaping Pilgrim-Area Compliance
Three federal actions between 2024 and 2026 are redrawing what counts as compliant at the municipal manhole. The Lead and Copper Rule Revisions (LCRR) are pushing lead action levels toward 10 µg/L and forcing POTWs to re-derive local lead limits at much lower numbers — a limit at the 0.1 mg/L monthly-average band is now a realistic 2027 ask rather than an outlier. EPA's 2024 Multi-Sector General Permit, finalized 2024-09, added PFAS monitoring for PFOS, PFOA, PFHxS, and PFNA in metal-mining sectors, and the local control authority is adopting the same analytical suite for sewer discharges. The 2025 ore-mining BAT revisions, finalized 2025-03, tightened the cost-benefit envelope on total recoverable metals (per EPA 2025 ore mining BAT revisions).
State and Pilgrim-area POTW staff are signalling that the next permit cycle will adopt all three as enforceable local limits. A plant that does not pre-stage jar testing on PFAS sorbents, sulfide polishing residuals, and lead removal kinetics in 2026 will be forced into a retrofit in 2027 with the same equipment vendors booked out 6–9 months. Treat each of these as a permit-cycle risk line item, not a regulatory curiosity.

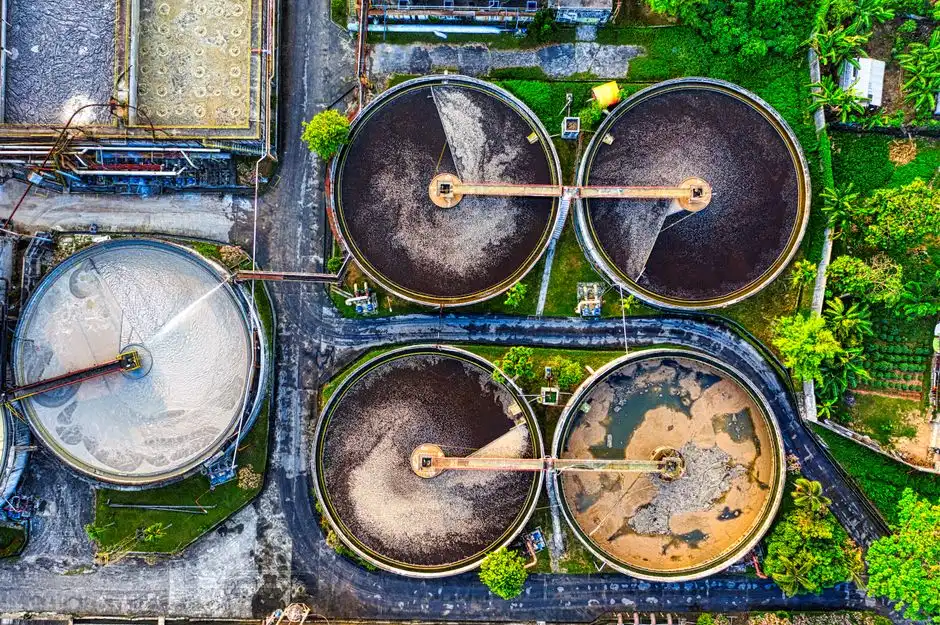

Mapping the Pollutant Profile to the Rule Set
Raw acid mine drainage and spent process solutions typically arrive at pH 2–4 (per HydropureWater field data, 2026). Total suspended solids in raw mining streams run from the hundreds to several thousand mg/L, and dissolved heavy metals include Pb, Cu, Zn, Cd, Ni, and As. Leach-pad runoff and brine streams carry elevated sulfate and TDS that often push the project toward zero liquid discharge or land application rather than sewer discharge. Match the chemistry to the rule before specifying a single piece of equipment.
Plating, pickling, or anodizing lines on-site trigger 40 CFR Part 433 (Metal Finishing) with subcategory-specific caps — copper 3.38 mg/L daily max / 2.07 mg/L monthly average, and total chromium 2.77 mg/L daily max / 1.71 mg/L monthly average (per 40 CFR 433.15). If the plant carries any plating or finishing shop, both Part 437 and Part 433 apply, and each waste stream must be jar-tested separately so the design does not undersize the metal-finishing train against a mining-stream profile. Conflating the two is the single most common reason a plant invests in the wrong treatment train.
Categorical and Local Limit Comparison Table
Use the table below as the one-glance reference for what is actually binding in a Pilgrim-area permit cycle. Where the local column is tighter than the federal column, the local number controls equipment design.
| Parameter | 40 CFR Part 437 daily max | 40 CFR Part 437 monthly avg | Typical 2026 local POTW limit | Tightening flag (2024–2026) |
|---|---|---|---|---|
| Total Cu | — | 0.5 mg/L | 0.3–0.5 mg/L monthly avg | BAT revisions pushing tighter |
| Total Zn | 1.0 mg/L | 0.5 mg/L | 0.3–1.0 mg/L monthly avg | BAT revisions pushing tighter |
| Total Pb | 0.6 mg/L | 0.3 mg/L | site-specific, often <0.1 mg/L | LCRR 10 µg/L action level |
| Total As | 0.5 mg/L | 0.25 mg/L | site-specific | BAT revisions |
| TSS | — | 50 mg/L | 30 mg/L monthly avg typical | — |
| pH | 6.0–9.0 | 6.0–9.0 | 6.5–9.0 | — |
| Ammonia (as N) | no federal cap | no federal cap | POTW nitrogen-load limit | Driven by POTW nitrification capacity |
Ammonia has no federal cap under Part 437, but the POTW will almost always cap it at the nitrogen-load limit that protects its nitrification basins. Confirm the local ammonia number before sizing any equalization or biological side-stream.

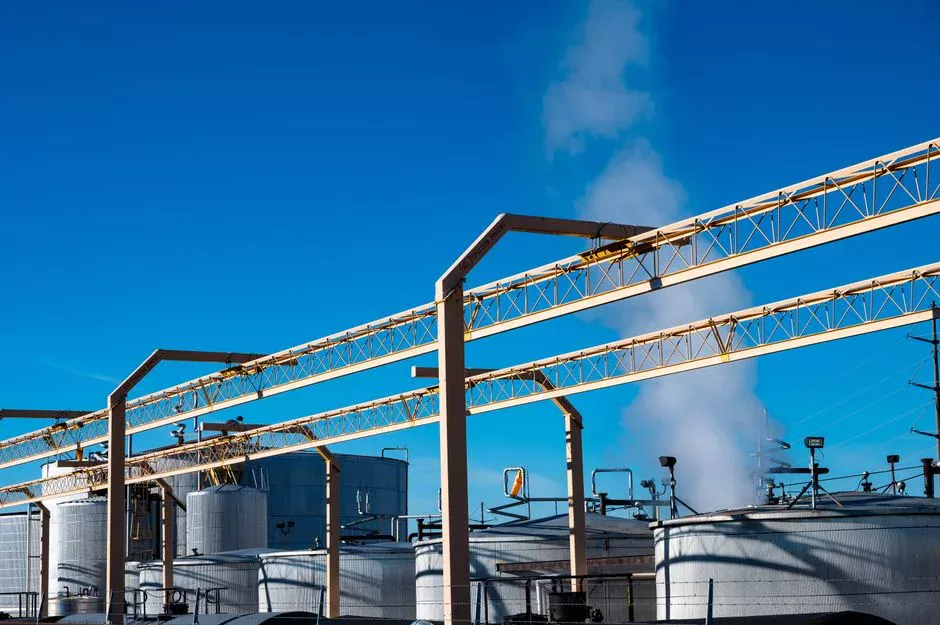

Stage 1 — Equalization and pH Correction
The equalization basin is the most undersized piece of equipment in most mining/metals pretreatment plants, and the most expensive to retrofit. Size the basin at 8–24 hours of average daily flow to dampen batch discharges from shift changes, dump-leach cycles, and mill clean-outs; a 4-hour basin passes every spike from the upstream process straight into the clarifier and overwhelms it (per HydropureWater field data, 2026). Target pH 6.5–9.0 with staged dosing in two reactors if the influent swings more than 2 pH units — each 1 pH unit away from the metals-precipitation optimum can cut removal efficiency by an order of magnitude, sending zinc from <1 mg/L to 10+ mg/L with no other change to the chemistry.
Lime (Ca(OH)₂) is cheaper per ton but generates 3–5× more sludge; high-TDS mining streams often justify the higher reagent cost of NaOH. A PLC-controlled automatic chemical dosing skid that handles both pH adjustment and coagulant feed keeps pH inside a ±0.2 band, which is the difference between meeting and missing a 0.3 mg/L zinc monthly average. Treat the EQ tank as the single most undersized and expensive-to-retrofit piece in a typical Pilgrim-area plant — oversize it on the first pass.
Stage 2 — Metals Precipitation: Hydroxide vs Sulfide
Hydroxide precipitation with NaOH or lime is the default for most plants because the reagent is cheap and the chemistry is well understood; properly controlled precipitation systems in operating mining/metals installations routinely achieve 85–95% total metals removal (per Fluence, 2024-11). Sulfide precipitation with NaHS, FeS, or Na₂S is reserved for streams where residual metal must drop below 0.1 mg/L — sulfide residuals of 0.01–0.05 mg/L for Cu, Zn, Cd, and Ni are an order of magnitude lower than hydroxide. Sulfide reagent cost runs 2–4× higher, and operators must control H₂S off-gassing with sealed reactors and scrubbed vents.
The optimum pH window is parameter-specific and must be locked in with jar testing, not vendor literature — pH 9–10 for Cu/Zn, pH 10–11 for Ni/Cd. For most Pilgrim-area flows, hydroxide precipitation with sulfide polishing on a 10–20% slipstream is the cost-effective compromise when the local limit drops below 0.3 mg/L. For a side-by-side of downstream clarifier options, see the inclined plate settler vs alternatives engineering comparison.

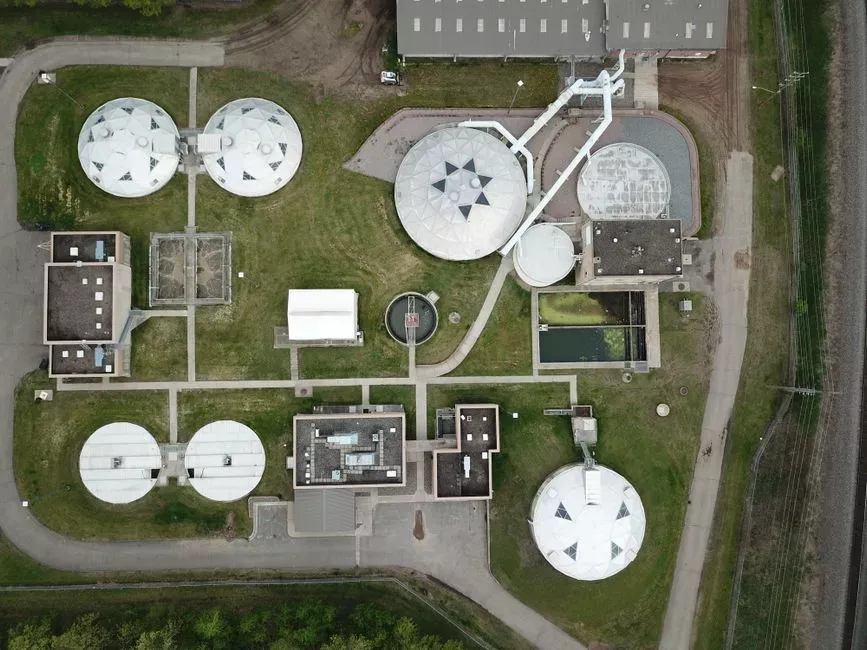

Stage 3 — DAF or Lamella Clarifier: The Pilgrim-Area Decision
Both work; neither is universally better. A DAF system (ZSQ series, 4–300 m³/h) operates at 5–25 m/h hydraulic loading, floats oil-coated and colloidal particles with 30–80 µm micro-bubbles, and achieves 90–98% TSS removal and 85–95% oil/grease removal in mining/metal-finishing service. A lamella clarifier (20–40 m/h surface loading) runs in roughly one-third the footprint of a conventional clarifier, has lower chemical consumption because the sludge blanket is denser, and handles heavy metal-hydroxide flocs very well — but does not remove free oil or colloidal fines as effectively as DAF. For the cross-sector rationale, see the DAF vs clarifier decision guide for Brookhaven mining/metals plants.
Use the heuristic: DAF when the stream carries oil, grease, or fine colloidal metals — including vehicle/rig wash and mill clean-out flows typical at Pilgrim-area concentrators. Use lamella when the stream is primarily a metal-hydroxide sludge at high flow and the footprint is constrained — typically above 100 m³/h. Below 10 m³/h, packaged DAF skid systems are common; above 100 m³/h, multiple DAF trains in parallel or a lamella clarifier becomes more economical.
| Selection criterion | DAF system | Lamella clarifier |
|---|---|---|
| Flow range per unit | 4–300 m³/h | 20–500+ m³/h |
| Hydraulic loading | 5–25 m/h | 20–40 m/h surface loading |
| Footprint | Larger per m³/h | ~1/3 of a conventional clarifier |
| Oil & grease removal | 85–95% | Limited |
| TSS removal | 90–98% | 80–95% |
| Best fit | Colloidal fines, oil, <200 m³/h | Metal-hydroxide sludge, >100 m³/h |
A polymer coagulant aid dosed at 0.5–3 mg/L flocs the metal-hydroxide particles fast enough for the clarifier to operate at 20–40 m/h hydraulic loading without carryover, and reduces TDS bleed by collapsing the colloidal fraction before settling.
Stage 4 — Multimedia Filtration, Disinfection, and Sludge Dewatering
A multimedia filter (anthracite over sand over garnet) at 1–2 m/h filtration rate is the safety net between the clarifier and the sewer manhole. It strips residual TSS to <10 mg/L and provides a buffer for the days when the clarifier underperforms because of a polymer mis-dose or a hydraulic surge. Size the backwash cycle against peak solids loading, not the average.
UV or chlorine dioxide disinfection (1–5 mg/L dose) shows up in the local sewer-use ordinance whenever the POTW's collection system has long force mains or siphons, or whenever the industrial discharge could plausibly carry pathogens from co-tenant food processing or hospital waste. Chlorine dioxide provides the residual the POTW asks for without forming the regulated trihalomethanes that chlorine produces. Sludge from the clarifier and DAF is itself a regulated waste. A plate and frame filter press (1–500 m² filtration area) dewateres the sludge to 25–35% dry solids, producing a stackable cake that can be hauled to a subtitle-D landfill or, for recoverable metals, sent to a smelter. Filtrate returns to the head of the plant — the system is a closed loop, not a pass-through.
Pilgrim-Scale Influent and Effluent Targets (2026 Design Table)
Use the table below as the copy-paste parameter set for a Pilgrim-area operation in the 50–500 m³/h band. Confirm the local POTW numbers against the current sewer-use ordinance before equipment purchase; the local ceiling — not the federal categorical — is the binding number.
| Parameter | Typical 2026 raw influent | 2026 target effluent at the sewer manhole |
|---|---|---|
| pH | 2–4 | 6.5–9.0 |
| TSS | 500–3,000 mg/L | <30 mg/L monthly avg |
| Total Cu | 5–50 mg/L | <0.4 mg/L |
| Total Zn | 10–100 mg/L | <0.5 mg/L |
| Total Pb | 1–20 mg/L | <0.1 mg/L (LCRR-driven) |
| Total Cd | 0.1–5 mg/L | <0.05 mg/L |
| Total Ni | 0.5–10 mg/L | <0.5 mg/L |
| Oil & grease | 50–500 mg/L | <10 mg/L |
| Sulfate | 1,000–5,000 mg/L | site-specific |
| TDS | 2,000–15,000 mg/L | site-specific |
Sulfide polishing on a 10–20% slipstream is required to hit Pb and Cd when local limits drop below 0.1 mg/L — hydroxide alone will not get there. Always confirm against the local POTW sewer-use ordinance before equipment purchase.
Sizing the Skid: Flow Band, Delivery Format, and 2026 Cost Envelope
Flow band determines delivery format. Under 10 m³/h, a packaged skid with factory-tested controls is the default; 10–100 m³/h typically warrants a modular skid with field-assembled tanks; above 100 m³/h, multiple trains in parallel or a lamella clarifier + MBR polishing train becomes more economical. Front the system with a rotary mechanical bar screen to protect downstream nozzles and lamella plates from rag and debris fouling. Design for the peak 2-hour flow with 20–30% turndown capacity, and treat to the local POTW's sewer-use ordinance — not just the federal categorical standard — because the local numbers are tighter and the penalty structure (CWA §309, up to $25,000/day per violation) is enforced.
2026 cost band for a 50 m³/h DAF + lamella + MBR pretreatment package: $400K–$1.2M CAPEX, with OPEX driven by chemical cost and sludge-haul distance. For a 200 m³/h concentrator water stream, full ZLD (DAF + RO at 75–95% recovery + MVR evaporator/crystallizer) lands in the $6M–$15M CAPEX range, with OPEX dominated by evaporator energy at 25–40 kWh/m³ of distillate. Sludge and concentrate disposal OPEX scales with haul distance to the barge/rail/truck point; a 50% reduction in cake mass pays for the plate-and-frame press inside the first year of operation.
Frequently Asked Questions
Is sewer discharge from a mining/metals plant near Pilgrim, US regulated by an NPDES permit?
No. NPDES permits govern direct discharge to surface water under Clean Water Act §402. Sewer discharge to a POTW is regulated under CWA §307(b) and 40 CFR Part 403, with categorical standards in 40 CFR Part 437 (Ore Mining and Dressing) and 40 CFR Part 433 (Metal Finishing) where applicable. Most plants carry both authorizations because they have separate stormwater outfalls.
What local POTW limits should a Pilgrim-area plant design against in 2026?
Local sewer-use ordinances in 2026 typically set zinc at 0.3–1.0 mg/L monthly average and copper at 0.3–0.5 mg/L monthly average, which is tighter than the 40 CFR Part 437 categorical standard of 1.0 mg/L daily max / 0.5 mg/L monthly average. Always confirm against the specific POTW ordinance before sizing equipment.
How do hydroxide and sulfide precipitation compare on residual metals?
Sulfide precipitation (NaHS, FeS) achieves residual metals of 0.01–0.05 mg/L versus 0.5–2.0 mg/L for hydroxide, which matters when the local limit is below 0.3 mg/L. Reagent cost runs 2–4× higher and the system requires sealed reactors with H₂S scrubbing. For most mining flows, hydroxide precipitation with sulfide polishing on a slipstream is the cost-effective compromise.
When should a Pilgrim-area plant pick DAF over a lamella clarifier?
Use DAF when the stream carries oil, grease, or fine colloidal metals — including vehicle/rig wash and mill clean-out flows. Use lamella when the stream is primarily a metal-hydroxide sludge above 100 m³/h and the footprint is constrained. DAF covers 4–300 m³/h per unit; lamella covers 20–500+ m³/h per unit at 20–40 m/h surface loading.
What 2024–2026 regulatory shifts should a Pilgrim-area plant plan for in the next permit cycle?
Three shifts: LCRR is driving lead action levels toward 10 µg/L; EPA's 2024 Multi-Sector General Permit added PFAS monitoring for PFOS, PFOA, PFHxS, and PFNA in metal mining; and the 2025 ore-mining BAT revisions tightened the cost-benefit envelope on total recoverable metals. Pre-stage jar testing and treatability work in 2026 to avoid a forced retrofit in 2027.
