Why a Ludhiana Data Center Needs a Localized Blowdown Strategy
A 100 MW data center can draw up to 2 million liters of water per day, and the sector's water demand is projected to intensify through 2026 and beyond as AI workloads grow (S3, ide-tech.com, 2026). Cooling-tower blowdown (CTBD) accounts for roughly 25–30% of makeup water at 4 cycles of concentration, and is the single largest recoverable stream (S2, genesiswatertech.com).
Punjab's long, hot summer and arid pre-monsoon window push cycles of evaporation concentration higher than a temperate equivalent, so the same facility generates a higher-TDS blowdown that is harder to reuse and more constrained on discharge. Ludhiana sits in a Sutlej-fed watershed where untreated wastewater shows significant seasonal variation in BOD, alkalinity, pH and free CO₂ (S1, ICAR, 2024), which directly affects equalization design and any direct-discharge consent under the Punjab Pollution Control Board. Generic global guides do not capture these drivers, and an off-the-shelf RO skid sized for a temperate site will under-perform on recovery and over-spend on concentrate management in Ludhiana.
The practical consequence is that water security, not just energy, is becoming a defining site-selection criterion in Punjab. Operators are responding by factoring water availability and PCB consent severity into early site assessments, and by prioritizing sources that reduce freshwater withdrawal (S3). For a Ludhiana project team, that means specifying a treatment train and a concentrate-management plan against the actual consent text, not against federal CPCB defaults, and confirming both before the P&ID freeze.
Wastewater Streams a Ludhiana Data Center Must Plan For
CTBD is the dominant stream by volume — typically 6–19 L/s for a mid-size data center and up to ~20 L/s at peak IT load and ambient temperature (S4, linkedin.com/arup, 2024) — but the equalization tank, segregation logic, and STP sizing must account for every other on-site flow. Under-sizing the plant by treating only the cooling loop is the most common engineering mistake on Indian data-center projects.
| Stream | Typical flow / load | Characteristic | Design implication |
|---|---|---|---|
| Cooling tower blowdown | 6–19 L/s typical; up to ~20 L/s at peak ambient + IT load (S4) | Brackish, scaling-prone, 1,200–6,000 mg/L TDS (S2) | Drives the RO/NF sizing and the concentrate path |
| Softener and RO brine from makeup pretreatment | 5–10% of makeup flow | High-TDS, high-hardness sidestream | Recycle to cooling tower, blend with CTBD, or haul off-site |
| Domestic sewage (staff + visitors) | ~100–150 LPCD | Variable BOD, fecal coliforms | Separate package sewage treatment plant sized to occupancy |
| IT-floor wash water and humidification bleed-off | Intermittent, low-to-moderate volume | Dust, trace glycol, biocides | Route via equalization; do not bypass screening |
| Glycol-loop drains (chilled water) | Low volume, occasional | High COD, low volume | Segregate — do not blend with CTBD; dedicated storage |
| Chiller/heat-exchanger cleaning effluent | Batch, scheduled | Acid/alkaline, high TDS, sometimes oil | Neutralization tank before equalization |
| Emergency wastewater (fire-system test, generator cooling, spill containment) | Intermittent, high-volume | Oil, foam, possible fuel | Reserve capacity in equalization; oil-water separator |
Domestic sewage must meet local discharge norms independently of the CTBD treatment choice and is usually a separate consent line item under the Water (Prevention and Control of Pollution) Act, 1974. Glycol-loop drains should be segregated, not blended, because they will dominate COD in a shared equalization tank and push the downstream RO/NF into organic fouling that is hard to clean.

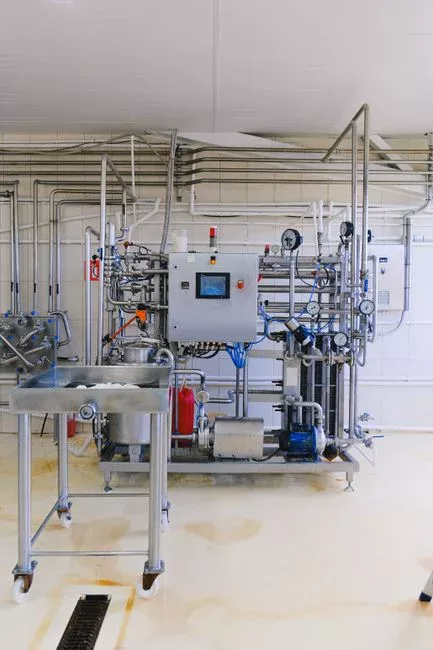

Cooling Tower Blowdown Quality: What the Treatment Plant Must Handle
CTBD is the influent the supplier's guarantees must be measured against. TDS is typically 1,200–6,000 mg/L, about 4–8× the makeup water concentration, depending on cycles of concentration and source water (S2). Suspended solids sit in the 10–50 mg/L range from corrosion products, biofilm fragments and airborne dust, even with basin filtration (S2). Scaling species — calcium, magnesium, silica and alkalinity — concentrate proportionally and are the limiting factor for any RO recovery above 75–80% (S2, S3).
| Parameter | Typical CTBD range | Source of load | Why it matters for design |
|---|---|---|---|
| TDS | 1,200–6,000 mg/L (S2) | 4–8× makeup; cycles of concentration | Sets RO osmotic pressure and concentrate disposal volume |
| Suspended solids | 10–50 mg/L (S2) | Corrosion products, biofilm, dust | Drives side-stream screen and UF sizing |
| Calcium, magnesium, alkalinity | Scales with cycles (S2) | Makeup hardness and CO₂ stripping | Limits RO recovery; drives antiscalant dose |
| Silica | Scales with cycles; high in RO concentrate (S3) | Makeup and evaporation | Reaches saturation at moderate recovery; ZLD trigger |
| Treatment-chemical residues | Biocides, inhibitors, legacy chromates/phosphates (S2) | Cycles of concentration | Discharge consent risk; reuse toxicity check |
| Biological load | Planktonic bacteria, biofilm fragments, occasional algae (S2) | Open cooling tower exposure | Must be neutralized before any membrane stage |
| Iron, manganese (site-dependent) | Elevated in hard Ludhiana groundwater | Source water geology | Raises fouling risk; confirm in site water analysis |
Biological load must be neutralized before any membrane stage, or biofouling will dominate operating cost (S2). Ludhiana groundwater is generally hard and may carry iron and manganese, which raises fouling risk and should be confirmed in a site water analysis before specifying membranes. Conventional brackish-water RO is often limited to 75–80% recovery before scaling becomes unmanageable; pushing higher without staged design and chemistry control usually requires additional stages, booster pumps, and recirculation loops (S3).
Recommended Treatment Train for a Ludhiana Hyperscale or Edge Site
The unit operations below are sequenced to remove progressively finer contaminants and to keep scaling species below saturation at each membrane interface. Start with an equalization buffer sized for at least 8–12 hours of peak blowdown to dampen temperature and concentration swings before downstream units. Next, side-stream screening and self-cleaning filtration (10–25 micron) on the recirculating loop — sized at 1–5% of circulation flow — keeps suspended solids in blowdown low enough to protect membranes (S2). A multi-media filter brings SDI to RO-inlet spec, typically followed by an automatic chemical dosing system for antiscalant and pH correction.
From there, an ultrafiltration system (0.01–0.1 micron, 90–95% recovery) removes bacteria, colloids and high-molecular-weight organics at low pressure (10–30 psi) and serves as RO pretreatment (S2). The industrial RO system then runs at conservative local recovery (50–75%) to keep scaling species below saturation, producing permeate at 10–50 mg/L TDS that returns as cooling-tower makeup (S2). Where hardness rather than full TDS is the discharge or reuse constraint, nanofiltration (75–150 psi, 70–85% recovery) is a softer alternative that consumes less energy and produces permeate in the 30–50% feed-TDS range (S2).
Concentrate management is the real decision point. The concentrate can be blended back into the cooling loop at controlled ratios, sent to on-site evaporation, or hauled off for deep-well or authorized disposal — the choice is driven by Punjab PCB consent text. For high-recovery applications on brackish CTBD, an architecture that separates salt removal from osmotic pressure limits — such as staged RO with controlled precipitation of sparingly soluble salts — can push overall recovery well beyond the conventional 75–80% ceiling without multi-stage complexity (S3). A common configuration combines RO at 50–75% recovery with MVC treatment of the RO concentrate at ~95% recovery, achieving overall system recovery of 85–95% with minimal liquid discharge (S2).
Reuse vs. Discharge vs. ZLD: The Decision Matrix for Punjab
Three end-of-pipe options are technically proven, but they are not equally economic at a Ludhiana site. Cooling-tower makeup reuse delivers the highest value, typically 60–85% recovery and the largest reduction in freshwater withdrawal and discharge volume (S2). Discharge compliance is appropriate where reuse is constrained and sewer capacity exists; feasibility depends on TDS, phosphorus, and biocide residual limits — some jurisdictions set TDS below 1,500 mg/L and direct discharge fees of US$5–15 per 1,000 gal (S2). Zero liquid discharge via RO → MVC (95–98% recovery, distillate <10 mg/L TDS) → crystallization is technically proven but capital-intensive.
| Option | Typical recovery | Strength | Limitation for a Ludhiana site |
|---|---|---|---|
| Cooling-tower makeup reuse | 60–85% (S2) | Highest water value, lowest freshwater withdrawal | Limited by cooling-tower demand; cannot absorb full blowdown |
| Sewer discharge under PCB consent | Single-pass through RO/NF as needed | Lowest CAPEX when consent allows | Consent-driven; TDS <1,500 mg/L and biocide limits apply (S2) |
| Partial ZLD (RO + MVC on concentrate) | 85–95% (S2) | Cuts discharge volume 80–90% | Adds thermal energy load; still produces brine for disposal |
| Full ZLD (RO + MVC + crystallizer) | 95–99% (S2) | No liquid discharge | Capital-intensive; economic only when freshwater or consent is severe |
For Punjab sites, the practical decision usually sits between partial ZLD and sewer discharge under PCB consent — full ZLD is justified only if freshwater cost or consent constraints are severe. Any reuse stream that touches staff areas (toilet flushing, landscape irrigation) must meet local reuse-water microbiological standards, which usually means a downstream disinfection stage with a UV sterilizer or a chlorine dioxide generator, and a documented cross-connection control plan.
CAPEX and OPEX Envelope for a Ludhiana Data-Center Water Plant
The numbers below are the ranges a supplier should be benchmarked against; site-specific quotes will move with feed water, consent text, and freshwater unit cost. A 50,000 GPD RO skid for blowdown treatment typically costs US$250,000–500,000 installed, with operating cost around US$1.50–3.00 per 1,000 gal treated covering energy, chemicals, membrane replacement, and maintenance (S2). Side-stream filtration packages for a typical data center sit in the US$50,000–200,000 range depending on circulation flow (S2).
| Item | CAPEX range | OPEX or energy | Source |
|---|---|---|---|
| 50,000 GPD RO skid (blowdown duty) | US$250,000–500,000 installed | US$1.50–3.00 per 1,000 gal treated (S2) | S2, genesiswatertech.com |
| Side-stream filtration package | US$50,000–200,000 | Minimal; solids disposal | S2 |
| MVC system, 10,000–30,000 GPD concentrate duty | US$1–3M | 15–25 kWh per 1,000 US gal distillate (S2) | S2 |
| Full ZLD (RO + MVC + crystallizer) | US$3–8M | US$5–15 per 1,000 gal treated (S2) | S2 |
For a Ludhiana site, the realistic envelope is mid-range RO-plus-UF with partial concentrate management. Full MVC and crystallization should be quoted only after the PCB consent text and freshwater unit cost are known. Operating the cooling tower at higher cycles of concentration — supported by side-stream filtration and a compatible cooling-water chemistry program — is the lowest-cost lever for reducing blowdown volume before any capital is committed to ZLD (S2).
Compliance and Permitting Path Under Punjab PCB
Data centers in Punjab fall under the Water (Prevention and Control of Pollution) Act, 1974, and require Consent to Establish (CTE) and Consent to Operate (CTO) from the Punjab Pollution Control Board before commissioning. Consent conditions typically set site-specific limits on TDS, total suspended solids, BOD, COD, oil and grease, residual chlorine, and specific heavy metals — these must be confirmed against the latest PCB schedule, not assumed from CPCB defaults.
The receiving-water context matters. Untreated wastewater in the Ludhiana watershed shows strong seasonal variation in BOD, alkalinity, pH and free CO₂ (S1, ICAR, 2024), so seasonal low-flow conditions in the Sutlej and Buddha Nallah often drive the tightest consent parameters — tighter than the annual average would suggest. An on-line monitoring plan for flow, pH, conductivity and residual chlorine is increasingly part of the consent and should be budgeted in the automation scope. For a comparative view of how nearby jurisdictions frame the same problem, see this Data Center Wastewater & Cooling Blowdown Treatment in Ecatepec de Morelos, Mexico (2026 Guide); for an Indian inland parallel, see Data Center Wastewater & Cooling Blowdown Treatment in Kallakurichi, India (2026 Guide). Domestic sewage from the data center must meet local discharge norms regardless of the CTBD treatment choice, which is why a package sewage treatment plant sized for the staff population is normally a separate consent line item. For plant-level instrumentation that supports the consent reporting, see Wastewater Treatment Plant Dashboard KPIs.
Frequently Asked Questions
What is a realistic CAPEX and OPEX range for a Ludhiana data-center blowdown treatment plant?
A 50,000 GPD RO skid for blowdown duty typically costs US$250,000–500,000 installed, with operating cost around US$1.50–3.00 per 1,000 gal treated covering energy, chemicals, membrane replacement, and maintenance (S2). Side-stream filtration adds US$50,000–200,000. The buyer should request a feed-water-specific quote that itemizes membrane replacement, antiscalant, and cleaning chemical lines, and that confirms whether the freshwater unit cost at the site makes a partial or full ZLD economic. Site-specific quotes move with feed water, consent text, and freshwater unit cost — the ranges above are benchmarks, not firm prices.
How do I choose a treatment supplier for a Punjab data center?
Shortlist suppliers that can demonstrate blowdown-specific experience — not just packaged RO skids — and ask for at least one operating reference on a site with similar TDS, cycles of concentration, and feed-water hardness. The supplier should provide a written guarantee covering permeate TDS, recovery rate, and membrane life at the actual feed water, and should size the equalization tank against the full on-site wastewater inventory, not only CTBD. Confirm that the offered antiscalant and cooling-water chemistry program is compatible with the membrane system; incompatible chemistry is the most common cause of early membrane fouling (S2).
What is the right RO recovery target for CTBD at a Ludhiana site?
Conventional brackish-water RO is typically limited to 75–80% recovery before scaling becomes unmanageable (S3). For a Ludhiana site with hard source water and silica-bearing concentrate, a conservative local recovery of 50–75% is the defensible baseline (S2). Higher overall recovery (85–95%) is achievable by combining RO with MVC on the concentrate, or by an architecture that separates salt removal from osmotic pressure limits (S3). The final number should be set against the actual PCB consent text and a concentrate-disposal plan, not against a vendor's brochure figure.
How long does Punjab PCB consent typically take, and what is the risk if it is delayed?
Consent timelines vary with application completeness, the wastewater inventory disclosed, and the receiving-water sensitivity at the specific Ludhiana location. Because the Sutlej/Buddha Nallah watershed shows strong seasonal variation in BOD, alkalinity, pH and free CO₂ (S1, ICAR, 2024), PCB reviewers often impose tighter parameters for projects discharging into this watershed than CPCB defaults would suggest. A late consent can hold up commissioning, and any change to the design basis after submission will restart the review. Submit the CTE application with the full on-site wastewater inventory, including domestic sewage and glycol-loop drains, before the P&ID freeze.
