How Fabricated Metals Plants Near Alexandria Meet 2026 Sewer Pretreatment Limits

Does 40 CFR Part 433 Apply to Your Alexandria Plant

40 CFR Part 433 (Metal Finishing) is the federal categorical pretreatment standard that applies to forming, finishing, forging, foundry, metal spraying, and machining wash operations co-located with plating or anodizing lines (per 40 CFR 433.10). The first design decision for any fabricated-metals shop near Alexandria is not equipment — it is whether the facility is even inside this category. A dry-part stamping shop that ships blanks to a separate finisher is generally outside Part 433, while a facility that runs its own zinc, nickel, or chromic acid tank is inside it. The difference is binary and changes the entire permitting track: a categorical shop files a Part 433 baseline monitoring report and lives with PSNS daily-maximum limits, whereas a non-categorical shop files only a standard CIU permit against AlexRenew's local limits under 40 CFR 403.5.

The jurisdictional check has two lines. Line 1, process test: does the facility perform any operation listed in 40 CFR 433.10(a) — electroplating, electroless plating, anodizing, chromate conversion coating, chemical etching, pickling, or machining wash that drains through the same floor drain as a plating line? Line 2, flow test: do any of those operations discharge through a regulated outlet to the sanitary sewer? If the answer to both is yes, the plant is in. If either is no, the plant must still contact AlexRenew's pretreatment program at (703) 721-3500 ext. 2020 to confirm the local-limits-only track, because AlexRenew can still impose categorical-equivalent limits on any user under 40 CFR 403.5 and City of Alexandria Code Sec. 5-6-101.

The Two Compliance Layers: PSNS vs AlexRenew Local Limits

Part 433 splits its limits into PSES (existing source) and PSNS (new source), with PSNS tighter because it applies to plants constructed after the rule's promulgation date (per 40 CFR 433.13-433.15). Most POTWs, including AlexRenew, enforce PSNS-equivalent numbers on all industrial users as a conservative baseline, so an existing plant should design to PSNS numbers even when the federal rule would permit the looser PSES column (HydropureWater field data, 2026). The second layer is the AlexRenew local limit, developed under 40 CFR 403.5 and authorized by 40 CFR 403.1(a), 9VAC25-31-800, and City of Alexandria Code Sec. 5-6-101. The design envelope is whichever limit is stricter on each parameter — and in practice, local limits add the parameters the federal table underweights, including oil & grease, total suspended solids, and pH caps.

For every metals parameter in the table, AlexRenew's local limit is at least as strict as Part 433 PSNS and is often tighter by a factor of two to three. The plant must design to the stricter number on each line, which is why the local table — not the federal table — drives equipment sizing.

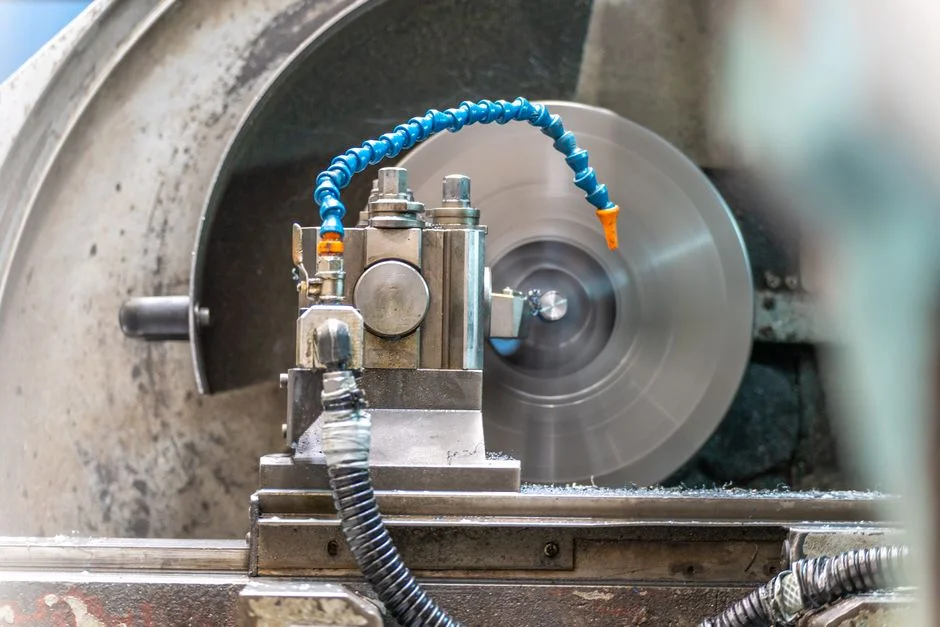

What Comes Out of a Fabricated Metals Floor Drain

Most fabricated metals floors generate the same four contaminant families regardless of the specific process mix: free and emulsified oils from stamping, machining, and drawing compounds; dissolved heavy metals (Zn, Ni, Cu, Cr, Pb, Cd) from plating rinsewater and acid pickling; hexavalent chromium from chromic acid anodizing, hard chrome, and conversion coating; and total suspended solids from grinding swarf, casting sand, and hydroxide floc carryover. Cyanide appears wherever alkaline cyanide plating (Zn, Cu, Cd, Ag) is still in use, and it must be destroyed before metals precipitation or it will resolubilize the precipitates downstream (per 40 CFR 433.10).

Typical operating ranges (HydropureWater field data, 2026) for a mixed floor drain entering pretreatment are oils at 50–500 mg/L, total dissolved metals at 5–200 mg/L, TSS at 100–1,000 mg/L, and pH swinging between 2 and 12 across batch dumps. A stamping cell may hold pH at 7 with low metals; a hard chrome line will spike Cr(VI) to 50+ mg/L and drop pH below 2 on a rinse dump. Two design consequences follow. First, sample a full week of composite flow before specifying equipment, because a 4-hour composite that misses the Friday afternoon dump will undersize the equalization basin. Second, the four contaminant families do not all respond to the same chemistry: oils need physical separation or chemical break, hex chrome needs reduction, cyanide needs oxidation, and dissolved metals need pH-driven precipitation.

Equalization: The Stage That Makes the Chemistry Work

Undersized equalization is the single most common reason pretreatment fails downstream. The EQ basin must deliver a smoothed outlet of pH 6–9 and a flow coefficient of variation below 0.5, because the chemistry stages downstream assume a steady feed rate and a bounded pH window; a 2 pH-unit swing arriving at the precipitation reactor will push zinc back into solution and send the daily-max violation downstream (HydropureWater field data, 2026). Plating shops run batch dumps, not steady flow, so equalization is not optional — it is the unit operation that makes the chemistry downstream work at all.

The sampling point matters: a 4-hour composite that misses the Friday afternoon dump will undersize the basin. Require a full week of 24-hour composite samples across two production cycles before specifying volume, with a rotary mechanical bar screen upstream of the basin to keep rags, wipes, and tramp metal out of the sludge train. The screen protects the plate and frame filter press downstream and is the single most common cause of premature press-cloth failure when it is missing.

The Chemistry Sequence: Chrome Reduction, Cyanide Oxidation, Metals Precipitation

The three reaction stages must run in this order, with a PLC-controlled automatic chemical dosing skid coordinating reagent feed, pH, and ORP at each step. Each pump needs a calibration column and a stroke-count totalizer; without those, the operator is dosing blind and the effluent proves it.

Stage 1, Cr(VI) reduction. Sodium metabisulfite (or ferrous sulfate) is dosed at pH 2–3 with ORP controlled at 250–300 mV until Cr(VI) is non-detectable by 1,5-diphenylcarbazide. Stage 2, cyanide destruction. Alkaline chlorination with NaOCl at pH greater than 10 and ORP greater than 600 mV, with a holding time tied to the operator log; cyanide must be destroyed before precipitation or it will complex Zn and Cu and resolubilize the metal hydroxides downstream. Stage 3, hydroxide precipitation. NaOH raises pH to 8.5–9.5 to precipitate dissolved metals (Zn, Ni, Cu, Pb, Cd, Cr3+, Ag) as their hydroxides, with anionic/cationic polymer added for floc. The failure mode if any stage is skipped is direct: residual Cr(VI) stays soluble at pH 9 and carries through, residual cyanide complexes Zn and Cu and prevents precipitation, and out-of-spec pH sends every metal down the drain.

DAF or Lamella: Sizing the Clarification Stage

Clarification is where pretreatment design succeeds or fails. DAF is governed by three knobs: hydraulic surface loading (4–20 m/h depending on model and floc density), air-to-solids ratio (A/S, 0.005–0.060 with 0.02 a typical design point), and recycle rate (10–30% of forward flow). Pushing A/S higher produces a drier float but costs blower power and can shatter fragile floc; pushing recycle rate higher improves TSS removal but dilutes the chemistry and inflates equalization demand. A dissolved air flotation system sized to 4–8 m/h surface loading with A/S of 0.02 and 20% recycle is a defensible default for a mixed floor drain carrying both oils and metal floc.

The trade-off curve: DAF wins on oil & grease and floated floc; a high-efficiency sedimentation tank (lamella) wins on dense hydroxide floc and lower chemical demand at 20–40 m/h surface loading. The same selection logic is laid out in the DAF vs clarifier for fabricated metals wastewater decision walkthrough. Default to DAF for a mixed floor; switch to lamella when the stream is plating-only with low oils.

pH Trim, Sludge Dewatering, and Discharge Sampling

Final pH trim to 6–9 with H2SO4 or NaOH is the last in-line stage before the discharge sampler, and it is the parameter AlexRenew inspectors check first. Floated metal-hydroxide sludge typically runs 2–5% dry solids out of the DAF and dewateres to 25–35% with a plate and frame filter press — versus a belt press cap of about 22% dry solids on metal hydroxide. The payback math depends on whether the hauler bills by wet ton; if so, plate and frame pays back because you ship one-third the water (HydropureWater field data, 2026).

Compliance verification runs on 24-hour composite samples, daily-max and monthly-average reporting against Part 433 PSNS and AlexRenew local limits, with automatic diversion back to the EQ basin header on pH or ORP excursion. Alarm and shutdown interlocks on pH, ORP out of range, and high TSS should be wired into the dosing skid PLC so a chemistry upset becomes a recycle event, not a discharge violation.

When You Actually Need a Polish Stage

Polishing is a conditional, not a default. Most fabricated metals plants hit sewer limits with the train above and never need a polishing step. The cases that justify one are predictable and can be designed for in advance.

Condition 1: AlexRenew tightens local limits below PSNS. Add a submerged MBR membrane bioreactor system with PVDF membranes for BOD/COD tightening or water reuse. Condition 2: rinsewater reuse requiring sub-ppm TDS or specific metal caps (Ni under 0.1 mg/L). Add RO with a multi-media filter holding SDI15 below 3 upstream or the RO membranes fail early. Condition 3: the EPA 2026 PFAS rulemaking on chrome finishing lands a numerical limit. The right 2026 move is to design the train so an anion exchange or GAC skid bolts on later, not to install it now and pay to operate it ahead of an actual limit. Closed-loop zero liquid discharge is rarely economic for a fabricated metals plant unless water scarcity or a specific reuse-economics case supports the capital.

For reagent selection on the polish stage, the wastewater treatment chemicals selection matrix gives a side-by-side of polymers, reducing agents, and oxidizers against the influent ranges in this article.

Frequently Asked Questions

Does 40 CFR Part 433 apply to a stamping shop with no plating line?

Generally no. Part 433 covers forming, finishing, forging, foundry, metal spraying, and machining wash operations co-located with plating or anodizing lines (per 40 CFR 433.10). A dry-part stamper that ships blanks to a separate finisher is outside the category, but AlexRenew may still impose local-limits-only discharge requirements under 40 CFR 403.5.

What is the design ORP for hexavalent chrome reduction?

ORP controlled at 250–300 mV (Ag/AgCl) at pH 2–3 with sodium metabisulfite, until Cr(VI) reads non-detectable by 1,5-diphenylcarbazide. The trivalent chrome then precipitates as Cr(OH)3 in the pH 8.5–9.5 precipitation stage.

What A/S ratio should a DAF be designed to for a mixed fabricated metals floor?

A/S of 0.02 with 10–30% recycle and 4–20 m/h hydraulic surface loading. Higher A/S dries the float but costs blower power and can shatter fragile floc; higher recycle improves TSS removal but dilutes chemistry and inflates equalization demand.

How do I design the 2026 train for the EPA PFAS chrome-finishing rulemaking?

Design the pretreatment train so an anion exchange or GAC polish skid bolts on later, do not install it now. There is no current numerical PFAS limit for chrome finishers (per the EPA Metal Finishing Effluent Guidelines page, epa.gov/eg/metal-finishing-effluent-guidelines), so paying to operate a polish stage ahead of an actual limit is wasted OPEX.

What is the dewatering target for floated metal-hydroxide sludge before hauling?

Plate and frame filter press reaches 25–35% dry solids on metal hydroxide versus a belt press cap of about 22%. If the hauler bills by wet ton, plate and frame pays back because you ship roughly one-third the water (HydropureWater field data, 2026).
