Why the sludge train is the real design constraint in coal mining wastewater
Coal mining wastewater sludge treatment in 2026 separates into three streams that must be sized independently: AMD neutralization sludge at 2.5–5 kg dry solids per kg of iron removed (mostly gypsum, CaSO₄·2H₂O), DAF float at 5–15 kg DS per 1,000 m³ treated, and biological waste-activated sludge at 0.1–0.3 kg DS per kg COD removed. A plate and frame filter press dewaters all three to 25–35% dry solids cake; AMD cake is suitable for mine backfill where regulation allows.
A water balance that passes while the solids balance fails is a compliance failure in slow motion. The 2026 procurement record on Chinese coal-to-chemicals EPC packages shows that applying a single process train to all three streams — AMD, washery recycle, and gasification wastewater — is the single most common design error, because the three streams differ by five pH units, two orders of magnitude in TSS, and a factor of 100 in dissolved organics (per the Coal Mining Wastewater Characteristics and Treatment: 2026 envelope). Conflating them produces either a runaway sludge-disposal cost or an undersized filter press that bottlenecks the whole plant.
The defensible 2026 train runs in four ordered stages — equalization and neutralization, oxidation and clarification, biological treatment (SBR/BAF) where required, and membrane polishing — and each stage contributes a distinct sludge that must be sized separately. AMD alone, with influent Fe of 50–500 mg/L, pH 2–4, and SO₄²⁻ above 1,000 mg/L, generates 2.5–5 kg DS per kg Fe at pH 8.5 (per the 2026 engineering guide). Translated to a 50 m³/h feed at 100 mg/L Fe, that is roughly 9–18 t/d of dry solids — the number that drives filter-press area, polymer dose, and backfill volumes downstream. Treat the sludge train as the primary deliverable, and the water balance will follow.
The three sludge streams: chemistry, mass yield, and dewatering behavior
Matching a raw influent assay to the right sludge-handling decision starts with a side-by-side view of the three streams a coal operation produces. AMD neutralization sludge is a gypsum matrix (CaSO₄·2H₂O) carrying co-precipitated Fe(OH)₃, Al(OH)₃, and trace heavy metals; it generates 2.5–5 kg DS per kg Fe at pH 8.5 and dewateres to 25–35% cake in a filter press (per 2026 engineering guide). DAF float from Stage 2 adds 5–15 kg DS per 1,000 m³ treated, with underflow from the clarifier at only 2–5% DS — too thin to press alone without a thickener or co-conditioning with AMD sludge. Biological waste-activated sludge from the SBR/BAF train produces 0.1–0.3 kg DS per kg COD removed, and the phenol-acclimated sludge from gasification wastewater needs cationic polymer dosing at ≥8 kg/t DS before any press will cycle cleanly. RO brine is not a sludge in the strict sense, but it appears in every mass balance: 5,000–50,000 mg/L TDS at 5–30% of RO feed volume, normally routed to an MVR crystallizer for ZLD rather than a mechanical dewatering unit.
| Stream | Dominant chemistry | Yield | Filter-press cake solids | Default disposal route |
|---|---|---|---|---|
| AMD neutralization | Gypsum (CaSO₄·2H₂O) + Fe(OH)₃ + Al(OH)₃ + trace metals | 2.5–5 kg DS/kg Fe at pH 8.5 | 25–35% DS | Underground mine backfill or secure landfill |
| DAF float (Stage 2) | Oil, fines, biomass; 2–5% DS underflow from clarifier | 5–15 kg DS per 1,000 m³ treated | 20–30% DS when co-pressed with AMD sludge | Secure landfill, or co-pressed with AMD cake |
| Biological WAS (SBR/BAF) | Phenol-acclimated biomass; needs ≥8 kg/t DS polymer | 0.1–0.3 kg DS/kg COD removed | 22–30% DS after conditioning | Secure landfill or co-incineration with coal fines |
| RO brine (Stage 4) | 5,000–50,000 mg/L TDS, chloride and sulfate dominated | 5–30% of RO feed volume | Not mechanically dewatered | MVR crystallizer → ZLD solids |
The table maps each stream to its disposal constraint before any equipment is selected. AMD cake carrying immobilized Fe, Al, and trace heavy metals is the most reusable stream because the gypsum matrix locks metals into a stable crystalline form; DAF float and biological sludge are usually landfill-bound unless the site has a co-incineration route for the WAS. Specifying a single DAF system to handle both Stage 2 clarification and float thickening is the 2026 default where oil and fines co-exist in the feed.
Conventional lime neutralization vs High-Density Sludge: a 2026 process choice
The conventional lime or limestone neutralization train produces underflow sludge at roughly 1% solids, which then needs a thickener, a sludge lagoon, or both before any mechanical dewatering can run economically (per the EPA 1971 review, Figure 11). The High-Density Sludge (HDS) process recycles a fraction of the thickened underflow back into the neutralization reactor as seed crystals, which raises underflow solids to 15–40% — directly compatible with filter-press feed and a step change in downstream equipment sizing. HDS cuts sludge volume by roughly an order of magnitude versus the conventional process for the same iron load, because each pass of recycle provides nucleation sites that promote denser settling and lower water content in the underflow.
| Parameter | Conventional lime/limestone | High-Density Sludge (HDS) |
|---|---|---|
| Underflow solids from clarifier | ~1% DS | 15–40% DS |
| Sludge volume vs HDS | ~10× larger for same Fe load | Baseline |
| Filter-press feed compatibility | Requires thickener or lagoon upstream | Direct press feed |
| Recycle loop required | No | Yes — sludge recirculation pump and larger reactor |
| Maintenance burden | Low | Moderate (pump, line wear from gypsum) |
| Best-fit site | Small, remote, low-throughput (<5 t/d DS) | Any AMD site >5 t/d DS or targeting backfill |
The 2026 selection rule is straightforward: specify HDS for any AMD site producing more than 5 t/d dry solids or any site targeting underground backfill, because the thicker underflow directly feeds a filter press and produces a denser, more stable cake. Conventional lime neutralization is still acceptable for small or remote operations where the recycle loop is a maintenance liability, but the filter-press area and sludge-disposal cost swing the economics decisively toward HDS at scale. The EPA 1971 review flagged both processes but did not translate the volume reduction into 2026 sizing numbers; the corrected approach is to assume HDS underflow at 15–40% DS, multiply by the AMD sludge mass yield of 2.5–5 kg DS per kg Fe, and skip the standalone thickener line entirely.
Dewatering equipment selection: filter press, centrifuge, or belt press
Plate and frame filter press remains the 2026 default for AMD and biological sludge, delivering 25–35% DS cake across all three streams with a filtration area range of 1–500 m² in standard product lines. The mechanical advantage is simple: a recessed-plate press generates the highest cake solids of any mechanical dewaterer, which directly reduces haulage cost, landfill volume, and any backfill mass-handling penalty. For a plate and frame filter press running on AMD gypsum cake, polypropylene mono-filament cloth rated at 80–120 cfm airflow is the 2026 specification — the mono-filament weave resists blinding from the abrasive gypsum crystals and releases cake cleanly on each cycle. Biological sludge from gasification wastewater requires cationic polymer at 6–12 kg/t DS, dosed through an automatic chemical dosing system tied to the press feed flow.
Decanter centrifuges produce 20–25% DS cake at a smaller footprint than a filter press, but the abrasive AMD gypsum accelerates bowl and conveyor wear; in 2026 the accepted role for a centrifuge on a coal-mine site is as a thickener upstream of a press when feed solids are below 2% — not as a standalone dewatering unit. Belt presses sit at 18–22% DS cake with low CAPEX but high polymer demand (often 10–20 kg/t DS), and they are rarely specified for new AMD plants in 2026. The exception is coal washery recycle streams, where the belt-pressed cake is sent directly to fines recovery rather than landfill. RO brine is not mechanically dewatered: it routes to an MVR crystallizer at 30–60 kWh/m³ thermal energy, which is the 2026 baseline for any site committed to ZLD. A 30–50 m² plate press on a 4-hour cycle handles the 50 m³/h AMD case detailed in the next section with one operating unit plus one standby.

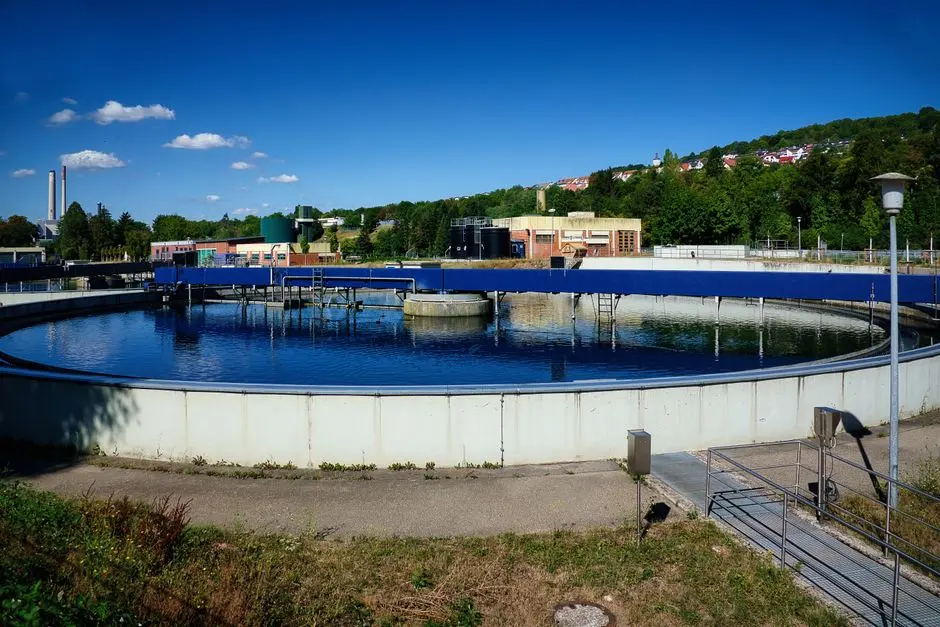

Worked example: sizing a coal mining wastewater sludge train at 50 m³/h
Start with the influent envelope: AMD at 50 m³/h, 200 mg/L Fe, pH 3, target pH 8.5 after lime neutralization. The sludge mass calculation is 2.5–5 kg DS per kg Fe × 200 mg/L × 50 m³/h × 24 h, which gives 600–1,200 kg DS/d, or 0.6–1.2 t/d dry solids. Add the SBR/BAF biological stage on a 10 m³/h side stream at 10,000 mg/L COD, and the WAS contribution is 0.1–0.3 kg DS per kg COD × 10,000 mg/L × 10 m³/h × 24 h, or 240–720 kg DS/d. The combined sludge load is therefore 0.84–1.92 t/d dry solids, call it 1.0–1.9 t/d for round-number procurement (per the 2026 engineering guide mass-yield ranges).
Convert dry solids to wet cake at 25–35% DS: the 1.0–1.9 t/d DS range becomes 2.9–7.6 t/d wet cake to haul or backfill. A 30–50 m² plate and frame filter press on a 4-hour cycle produces 80–120 kg DS per m² per cycle, which puts the daily throughput at 2.4–6.0 t/d DS on a single unit — covering the 1.0–1.9 t/d load with margin for the upper-case 1.92 t/d peak. Specify one operating press plus one standby, both in the standard product range of 1–500 m², and feed the press from a lamella clarifier underflow thickened to 3–5% DS, with an MBR system on the biological side for sludge separation before the same press. The arithmetic is procurement-ready: 30–50 m² of filtration area, one duty press, one standby, and a polymer dose of 6–12 kg/t DS on the biological WAS stream.
Disposal and reuse routes: backfill, landfill, and resource recovery in 2026
AMD cake to underground mine backfill is the lowest-cost disposal route when the regulatory classification allows it. The gypsum matrix (CaSO₄·2H₂O) immobilizes Fe, Al, and trace heavy metals in a stable crystalline form, but the gate is the regulator: MSHA in the US and the EU Mining Waste Directive 2006/21/EC both classify paste backfill against inert vs non-hazardous thresholds, and any backfill project needs a stability demonstration on the specific cake chemistry. DAF float and biological sludge default to secure landfill; some coal-to-chemicals sites co-incinerate biological WAS with coal fines if the calorific value justifies the boiler modification, but this is the exception rather than the 2026 norm.
RO brine goes to an MVR crystallizer for ZLD designs, with mechanical vapor recompression at 30–60 kWh/m³ thermal energy as the 2026 baseline (per the 2026 engineering guide). By-product recovery is still limited: the EPA 1971 review concluded that there is no practical use for AMD sludge, and that finding has not changed in 2026, although the gypsum fraction is increasingly sold to cement or board manufacturers where local logistics and purity allow. The 2026 default is therefore to design for backfill or landfill first, then treat any gypsum sale as a credit line rather than a revenue assumption. The 2026 mining pretreatment compliance guide details how a defensible mass balance is built around these disposal constraints, not around water reuse alone.
Frequently Asked Questions
How much dry sludge does an AMD plant produce per kilogram of iron removed?
Expect 2.5–5 kg of dry solids per kg Fe at pH 8.5, dominated by gypsum (CaSO₄·2H₂O) with co-precipitated Fe(OH)₃, Al(OH)₃, and trace heavy metals. At 200 mg/L Fe in the feed and 50 m³/h flow, that is roughly 0.6–1.2 t/d of dry solids — the number that drives filter-press area, polymer dose, and disposal cost. A plate and frame filter press dewaters this cake to 25–35% DS.
When should an AMD plant switch from conventional lime neutralization to High-Density Sludge?
Specify HDS for any site producing more than 5 t/d dry solids, or any site targeting underground backfill where a denser, more stable cake matters. HDS raises underflow solids to 15–40% DS versus roughly 1% for the conventional process, cuts sludge volume by about an order of magnitude for the same iron load, and feeds a filter press directly without a standalone thickener. Conventional lime is still acceptable for small, remote operations where the recycle loop is a maintenance burden.
What polymer dose and filter cloth are specified for AMD and gasification-wastewater sludge in 2026?
Biological WAS from gasification wastewater needs cationic polymer at 6–12 kg/t DS, dosed through an automatic chemical dosing system tied to press feed flow. For the AMD gypsum cake, specify polypropylene mono-filament cloth rated at 80–120 cfm airflow — the mono-filament weave resists blinding from abrasive gypsum crystals and releases cake cleanly on each cycle.
How is RO brine handled on a coal-mine wastewater site committed to zero liquid discharge?
RO brine at 5,000–50,000 mg/L TDS, representing 5–30% of RO feed volume, is not mechanically dewatered. The 2026 baseline is an MVR crystallizer at 30–60 kWh/m³ thermal energy, producing a solid salt cake for landfill and a distillate that recycles to the process. MVR is the default for any coal-to-chemicals site with a ZLD permit constraint.
Is AMD cake acceptable for underground mine backfill, and what regulates it?
Yes, where regulation allows. The gypsum matrix immobilizes Fe, Al, and trace heavy metals in a stable crystalline form, which is why AMD cake is the preferred backfill candidate. The gate is classification: MSHA in the US and the EU Mining Waste Directive 2006/21/EC both require an inert vs non-hazardous determination, and any backfill project needs a stability demonstration on the specific cake chemistry before the regulator will approve placement in a worked-out panel.
