Why Debarking Runoff Is a Special DAF Challenge
Debarker water is not a municipal wastewater analog and not a standard pulp-mill liquor — it sits between the two and stresses nearly every assumption a DAF vendor's standard curve is built on. A typical debarker basin sees TSS in the 2,000–5,000 mg/L range, water temperatures of 30–45 °C, and a stream carrying bark fragments, grit, sand, fine wood fibers, and dissolved extractives such as resin acids and tannins. Most of that solids load settles slowly or floats as a stable colloid; plain lamellas and clarifiers lose the fines, and a conventional primary clarifier typically achieves only 20–35% TSS removal on this profile (Zhongsheng field data, 2026).
Hydraulic variability is the second stress. Log-feed surges every 1–5 minutes drive instantaneous flow swings of 3–10× the average, which destroys gravity settling kinetics and forces a float-driven separation where hydraulic residence time can be controlled in a single tank. NPDES-permitted mills need consistent effluent TSS and BOD against permit limits set under 40 CFR Part 122 and 40 CFR Part 125.3 technology-based standards, and a closed-loop log-spray circuit cannot tolerate grit carry-over that wears or plugs spray nozzles within a shift.
EPA's own Kraft Pulp Mill Compliance Assessment Guide flags that pulp-mill effluents are highly variable in both flow and quality, so the permitting and monitoring framework already anticipates surge loads (EPA Kraft Pulp Mill Compliance Assessment Guide, 40 CFR Part 122 permitting, 40 CFR Part 136 monitoring). That variability is the engineering signal to size the DAF for peak, not average, and to design chemistry that recovers quickly after a slug of resin-laden water from a fresh pine log deck.
Pollutant Profile That Drives the DAF Design
Before selecting a unit, an engineer should bench their own influent data against a debarker-typical profile and see which parameters actually govern equipment selection. The table below summarizes the expected envelope for a drum or rotary debarker at a kraft mill, mechanical pulp mill, or sawmill:
| Parameter | Debarker influent range | Reuse target (log-spray) | NPDES discharge target |
|---|---|---|---|
| TSS | 2,000–5,000 mg/L | <50 mg/L | Site-specific under 40 CFR 125.3 |
| BOD5 | 500–2,000 mg/L | <100 mg/L | Per permit BPT/BAT limit |
| COD | 1,500–5,000 mg/L | <300 mg/L | Per permit limit / 40 CFR Part 122 |
| pH | 5–8 | 6.0–7.5 | 6.0–9.0 typical permit band |
| Temperature | 30–45 °C | <40 °C preferred for spray | Per permit thermal limit |
| Resin acids | Periodic spikes during pine runs (5–40 mg/L) | Track build-up in loop | Counted in conventional pollutant load |
The colloidal fraction is the part that drives the chemistry. Stormwater research has shown that the d < 63 µm particle-size fraction can carry roughly 32% of the total pollutant load, even though it is a small share of the mass (Hahn, Dissolved Air Flotation for Micropollutants from Stormwater Runoff, Springer). For debarker water, the equivalent insight is that the colloidal fines, resin-acid micelles, and tannin complexes control DAF performance far more than the coarse bark chips that a simple bar screen already removes.
Variable flows preclude relying on a single grab sample. EPA's framework under 40 CFR Part 136 requires flow-proportional or composite sampling methods for NPDES reporting, and the same logic applies to the resin-acid spikes that follow a fresh pine log charge. Any DAF program should be pilot-tested on a representative composite, not on a single calm-hour grab.
Core DAF Configuration Choices for Debarker Service
Four configuration decisions move the needle on a wood-fiber stream: saturator pressure and recycle ratio, bubble size, reactor geometry, and hydraulic loading on the flotation surface. The table below is the working envelope:
| Parameter | Design target | Failure mode if exceeded |
|---|---|---|
| Saturator pressure | 5–6 bar (72–87 psig) | >7 bar: no proportional TSS gain, higher energy use |
| Recycle ratio | 5–8% of forward flow | <5%: insufficient bubble inventory; >10%: dilutes influent |
| Bubble size | 30–50 µm | >70 µm: fines drop out; <20 µm: over-stabilized blanket, slow rise |
| Hydraulic loading | 5–15 m/h on flotation surface | >20 m/h: float blanket collapses, TSS breakthrough |
| Skimmer speed / beach angle | Set to float at 4–6% DS | Too fast: water carry-over; too slow: float returns to cell |
| Cell geometry | Rectangular, cross- or counter-current skimming | Circular cells: poor grit/foam split on bark streams |
Higher saturator pressure increases dissolved-air inventory but adds blower and pump energy without proportional TSS gain beyond 7 bar. Micro-bubbles in the 30–50 µm range are the design target for wood-fiber floatation — coarser bubbles in the 70–100 µm range lose the fines that carry the most pollutant load, and finer bubbles below 20 µm over-stabilize the float blanket and slow the rise rate. Rectangular cells with cross-flow or counter-current skimming handle the grit-and-foam split more reliably than circular designs on bark-laden streams, where the float can re-entrain along a circular weir.
A typical wood-yard DAF cell treating 50 m³/h with a 10 m/h hydraulic loading requires roughly 5 m² of flotation surface plus 30–40% additional area for hydraulic damping across surge cycles. The ZSQ series dissolved air flotation (DAF) system is built around this rectangular saturator-and-cell envelope for wood-fiber streams, and it accepts the standard 5–6 bar saturator with a recycle loop sized to the 5–8% ratio above.
Chemical Program: Coagulant, Flocculant, pH Control
A working reagent recipe for debarker water typically runs in two stages. Stage 1 is a coagulant — ferric chloride or aluminum sulfate at 30–100 mg/L — to neutralize bark colloids and break resin-acid emulsions. Stage 2 is a cationic flocculant — polyacrylamide (CPAM) at 0.5–3 mg/L — because bark and wood-fiber surfaces carry a net negative charge and an anionic polymer cannot bridge them.
Residence times matter. Flash-mix at 30–60 s distributes the coagulant, then a 3–5 min floc-maturation zone in a paddle-mix chamber ahead of the cell builds floc strong enough to survive the bubble attachment zone without shearing apart. The pH window is 6.0–7.5; outside that range, both coagulant hydrolysis and polymer charge density degrade, and the blanket loses integrity. Field data show that running at pH 5.5 typically cuts TSS removal by 10–15 percentage points on the same wood-fiber stream (Zhongsheng field data, 2026).
Tie the dosing system to a PLC that reads influent flow plus a streaming-current or zeta-potential probe. Flow-paced dosing alone over-doses on dilute batches and under-doses on resin spikes; a charge-based trim loop stabilizes the program across the 3–10× flow swings that a log deck produces. Pairing the DAF with a Zhongsheng automatic chemical dosing system keeps coagulant and polymer pumps paced against the same flow signal and logs the dose history for permit records.

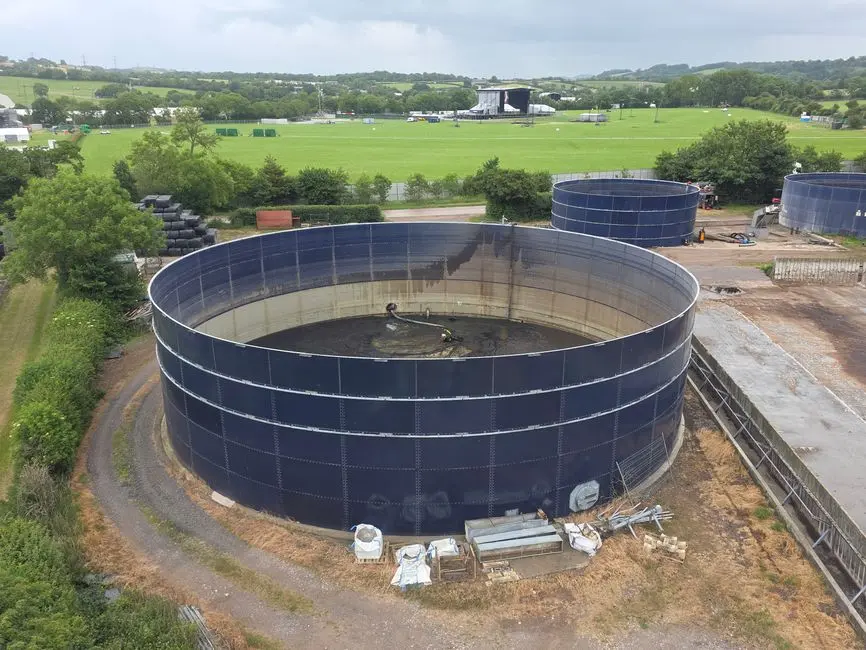

Reuse Loop vs NPDES Discharge: A Side-by-Side Decision
Once the DAF is producing consistent clarified water, the engineer has to decide whether that water closes a log-spray loop or continues to the mill's biotreatment train. The two paths have different downstream obligations, and the choice is mostly a function of water balance, permit cost, and existing biotreatment capacity.
| Dimension | Reuse path (log-spray / saw cooling) | Discharge path (NPDES outfall) |
|---|---|---|
| Polishing step | Sand filter or lamella to <50 mg/L TSS | Aerated lagoon or activated sludge |
| Water balance impact | Cuts fresh-water intake; defers discharge volume | No intake offset; full volume discharged |
| Permit interaction | No DMR load, but internal reuse monitoring still required | Every mg/L BOD/COD/TSS counts against 40 CFR Part 122 limits, reported on DMRs |
| Failure cost | Nozzle plugging, foam in log deck, BOD build-up in loop | Permit excursion, surcharge, consent-order risk |
| Best fit when | Mill is fresh-water-constrained or pays high sewer surcharges | Biotreatment capacity exists and site is water-rich |
| Monitoring under 40 CFR Part 136 | Internal composite sampling recommended | Mandatory flow-proportional composite, NPDES reporting |
Decision rule of thumb: if the mill is fresh-water-constrained or pays high sewer surcharges, the reuse path usually wins on life-cycle cost; if biotreatment capacity is already in place and the site is water-rich, sending clarified DAF effluent to the aerated lagoon is cheaper per cubic meter. Either way, EPA-compliant sampling under 40 CFR Part 136 still applies — DAF does not exempt the discharger from monitoring (per EPA Kraft Pulp Mill Compliance Assessment Guide, 40 CFR Part 136).
Sizing Shortcut, Footprint, and What to Put in a Vendor RFQ
The back-of-envelope sizing rule for a rectangular DAF cell: required flotation surface area (m²) = peak flow (m³/h) ÷ hydraulic loading (m/h). At a 10 m/h loading, 100 m³/h peak flow needs about 10 m² of flotation surface, plus 30–40% added for hydraulic damping during a log-feed surge. A 50 m³/h packaged unit typically occupies 6–8 m × 2.5 m including the saturator, chemical skids, and sludge hopper (Zhongsheng field data, 2026).
An RFQ that survives a vendor meeting should list, at minimum:
- Design flow and peak flow (m³/h) including any surge multiplier from the log deck
- Influent TSS, BOD, COD, pH, and temperature — actual data, not design assumptions
- Target effluent TSS for the chosen reuse or discharge path
- Polymer preference (cationic vs anionic) and dose range from jar tests
- Automation level, including streaming-current or zeta-potential trim
- Local code envelope, including seismic class, ambient temperature, and any state-level DAF effluent guidance
Confirm the vendor's stated micro-bubble size, saturator working pressure, and recycle ratio against the design envelope in Section 3 — vague brochures that quote only "high removal efficiency" without bubble-size and saturator numbers should be filtered out before the technical review. The ZSQ series dissolved air flotation (DAF) system ships with a published 30–50 µm bubble envelope and 5–6 bar saturator, and a Zhongsheng lamella clarifier can be paired downstream for the reuse path's final polish. For broader context on where this technology sits in 2026, the resource recovery from wastewater trends in 2026 overview is a useful cross-check.

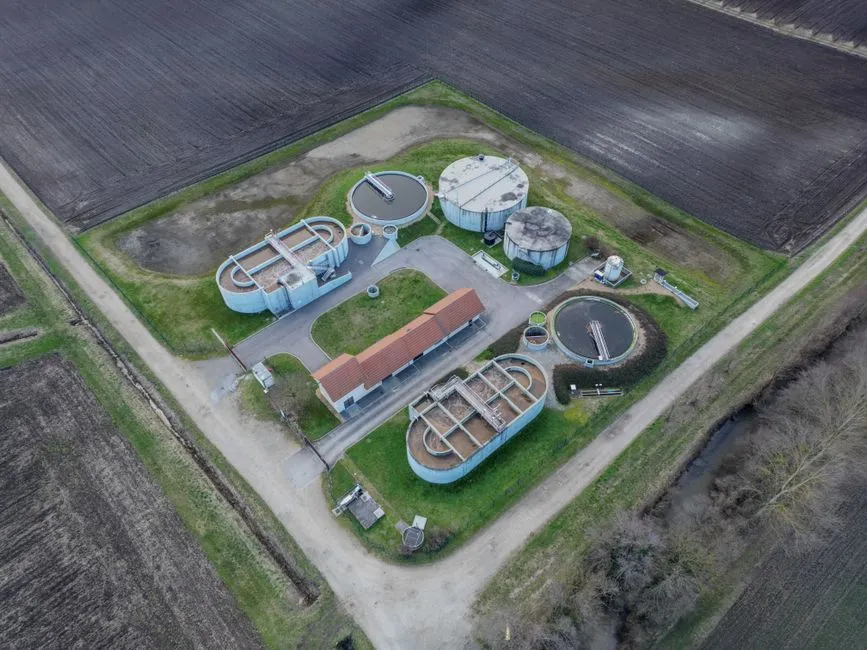

Frequently Asked Questions
What bubble size and saturator pressure does a debarker DAF need?
Design for 30–50 µm micro-bubbles produced by a 5–6 bar saturator at a 5–8% recycle ratio. That envelope routinely delivers 90–95% TSS removal and 60–80% BOD removal on 2,000–5,000 mg/L wood-fiber streams (Zhongsheng field data, 2026).
How does debarker water fit into the EPA NPDES frame?
Debarker effluent is a process wastewater subject to NPDES permitting under 40 CFR Part 122, with technology-based limits set under 40 CFR 125.3 (BPT/BAT) and monitoring required by 40 CFR Part 136. The EPA Kraft Pulp Mill Compliance Assessment Guide is the standard cross-reference for which limits apply to a given mill.
Which polymer works best for wood-fiber DAF?
Cationic polyacrylamide (CPAM) at 0.5–3 mg/L is the field default because bark and wood-fiber surfaces are anionic. Anionic polymers do not bridge these surfaces effectively, and non-ionic polymers need much higher doses to reach the same TSS removal.
What is the safe hydraulic loading for a wood-fiber DAF?
Operate between 5 and 15 m/h on the flotation surface. Above roughly 20 m/h, the float blanket collapses and TSS breakthrough rises sharply because the bubble-to-fiber attachment time falls below the contact-zone residence time.
Should the clarified water go to reuse or to the NPDES outfall?
If the mill is fresh-water-constrained or pays high sewer surcharges, close the loop to log-spray or saw cooling after a sand or lamella polish. If biotreatment capacity is in place and the site is water-rich, sending clarified effluent to the aerated lagoon is cheaper per cubic meter. Both paths still require 40 CFR Part 136 monitoring, and mills operating across borders should also cross-check the EU industrial effluent limits compliance guide or the Canadian industrial wastewater compliance guide if any portion of the discharge crosses jurisdictions.
