Why Solvent Stripper Dilute Defeats a Generic DAF Specification
A correctly configured dissolved air flotation (DAF) system treating solvent stripper dilute runs at 20–40 minutes hydraulic retention with 20–30% recycle, micro-bubbles in the 20–60 µm range, and an air-to-solids ratio of 0.01–0.02. Coagulant pairing (typically ferric chloride or PAC plus a cationic polymer at 5–15 mg/L) drops TSS below 30 mg/L and FOG below 20 mg/L, after which the DAF effluent is routed either to an MBR–RO reuse loop or to a downstream biological–discharge train.
Solvent stripper dilute is the overhead condensate or side-draw from a steam or nitrogen stripper used to recover solvent from a process stream. It is typically 90–95% water by mass, with COD in the 200–800 mg/L band, TDS at 2,000–15,000 mg/L, residual solvent at 50–500 mg/L, and pH that swings between 4 and 10 as the upstream batch swings. It looks like a thin wastewater; it is not. The float load is dominated by FOG and emulsified solvent droplets, not by settleable solids, so the textbook air-to-solids math built around 1,000–3,000 mg/L TSS wastewater fails on this stream. A spec lifted from a municipal drinking-water or food-industry DAF datasheet will undersize the saturator, mistime the flocculation stage, and bleed solvent through to whatever polishing train follows.
The Wisconsin DNR's Basic General Wastewater Study Guide frames DAF as a primary FOG and TSS removal step, suitable for streams where the float blanket is the product, not a clarifier underflow (dnr.wisconsin.gov, Basic General Wastewater Study Guide). The pulp-and-paper reclamation review from BioResources places DAF at the head of the train ahead of MF/UF/RO where dissolved-air contact is doing most of the FOG/emulsion work before the membranes (bioresources.cnr.ncsu.edu, 2016). Both confirm DAF's place as the front end of the train for stripper dilute, but neither gives the operating envelope. The remainder of this article fills that gap: 20–40 min HRT, 20–30% recycle, 20–60 µm bubble size, 5–10 g/m³ saturator-air-to-effluent on a low-TDS basis.
Core DAF Design Parameters for Solvent Stripper Dilute
DAF on solvent stripper dilute runs longer than municipal DAF and lighter on air than a high-solids industrial DAF. The float load is light, the bubble-particle contact has to compensate for low TSS, and the chemistry has to break emulsified solvent without re-dispersing it downstream. The parameter set below is the working envelope for a 10–50 m³/h feed rate; outside that, scale the saturator and recycle pump accordingly.
| Parameter | Design value | Notes |
|---|---|---|
| Hydraulic retention time | 20–40 min | Longer than the 15–25 min typical of food-industry DAF; compensates for low TSS background and improves bubble-particle contact on FOG-dominated float. |
| Recycle rate | 20–30% of forward flow | Lower end (20%) acceptable when influent FOG is high enough to act as bubble nuclei; upper end (30%) used on low-FOG or high-solvent carryover days. |
| Saturator pressure | 4–6 bar | Standard saturator window; below 4 bar, dissolved-air mass drops and the float blanket thins. |
| Micro-bubble size | 20–60 µm | Generated by eductors or needle-valve nozzle pack; finer bubbles raise dissolved-air efficiency but raise risk of re-dispersing emulsified solvent if floc chemistry is wrong. |
| Air-to-solids ratio (mass) | 0.01–0.02 | Translates to a practical saturator-air-to-effluent ratio of 5–10 g/m³ on a low-TSS stripper stream even when the A/S number looks high. |
| Surface loading rate | 5–10 m/h | Upper end (10 m/h) is acceptable for dilute streams because the float blanket is thin and skimmer speed is not the bottleneck. |
| Coagulant — FeCl₃ | 30–80 mg/L as Fe | Best at pH 6–8; lock pH with an alkali stage ahead of coagulation on streams that swing 4–10. |
| Coagulant — PAC | 40–100 mg/L as Al₂O₃ | Lower alkalinity consumption than FeCl₃; useful when stripper dilute already carries ammonia and CO₂. |
| Flocculant — CPAM | 5–15 mg/L | Charge density 30–60%, molecular weight 6–10 MDa; lower charge for streams with surfactant carryover to avoid re-emulsification. |
| Working pH | 6.0–8.0 | Dose alkali (NaOH 10–20%) ahead of coagulant injection to lock working pH against upstream swings. |
| Working temperature | < 40 °C | Quench/cooling loop or extended equalization to keep DAF inlet below 40 °C; above 45 °C, the float bladder can collapse. |
Polymer selection is where most stripper-dilute DAFs go wrong. A 30% charge cationic polyacrylamide (CPAM) is the default; on surfactant-laden streams, drop to a 10–20% charge anionic or nonionic blend and raise the dose to 12–15 mg/L. Over-charging a solvent-bearing feed re-emulsifies the very droplets the DAF is trying to float, and the float blanket will turn into a milky white sheet that does not skim cleanly. The Zhongsheng ZSQ series DAF system ships with an eductor nozzle pack sized for 20–60 µm bubble generation at 4–6 bar saturator pressure; needle-valve packs are interchangeable for tighter bubble size distributions when the FOG fraction of the float load is above 60%.
Upstream and Downstream Equipment Around the DAF
DAF on stripper dilute is the middle of a train, not the end. Specify it as if the equalization tank, screens, mixers, and downstream polishing are part of the same hydraulic envelope, or the DAF will either starve on flow or be overwhelmed by pH or temperature shock.
Upstream, run the stripper dilute through an equalization tank with at least 8–12 hours of residence. This flattens pH from 4–10 swings to a working 6–8 and cools the feed from up to 60 °C down to below 40 °C before the DAF inlet. A coarse Zhongsheng GX rotary bar screen at 3–6 mm aperture ahead of the equalization tank removes rags, lint, and condenser carryover that would otherwise foul the saturator nozzles. Between the equalization tank and the DAF, an inline static mixer or flocculation tube with 3–5 min HRT handles coagulant and polymer contact: rapid mix at G = 700–1,000 s⁻¹ for 30–60 seconds, then slow mix at G = 50–100 s⁻¹ for 4–5 minutes. A flash mix that is too gentle will not break the emulsion; one that is too violent will shred the floc and bleed TSS through the float.
Downstream, the choice splits. For reuse, route DAF effluent to an MBR (submerged PVDF, 0.1 µm nominal pore) and then a brackish-water RO at 70–80% recovery. Send the RO concentrate back to the equalization tank, not to drain; this closes the water loop and keeps solvent out of the discharge line. For discharge, route DAF effluent to a biological stage (MBR or conventional activated sludge with SRT 15–25 days) and then to disinfection with ClO₂ at 1–2 mg/L or UV at 30–40 mJ/cm². The BioResources pulp-and-paper reclamation review documents this DAF → MF/UF → RO train as established practice for industrial water reuse (bioresources.cnr.ncsu.edu, 2016); the MBR is functionally equivalent to MF/UF in the same position, with the bonus of biological COD reduction in the same vessel.
An automatic chemical dosing skid on the equalization tank and the flocculation tube is non-optional on this duty. pH swings from 4 to 10 will defeat any manually-set coagulant dose within an hour; flow-paced dosing on both NaOH (10–20%) and FeCl₃ or PAC is the only way to keep the DAF working at its design point.
Reuse vs Discharge: Choosing the Downstream Train
The choice between a reuse loop (DAF → MBR → RO) and a discharge loop (DAF → biological → disinfection) is driven by water cost, site water scarcity, and permit envelope — not by DAF performance. Both trains take the same DAF effluent at < 30 mg/L TSS and < 20 mg/L FOG; what changes is what comes next.
| Decision axis | Reuse loop (DAF → MBR → RO) | Discharge loop (DAF → biological → disinfection) |
|---|---|---|
| Driver | Local water cost > $2–4/m³, documented water scarcity, or a steam/cooling circuit that can accept RO permeate (TDS < 50 mg/L, COD < 30 mg/L target). | Sewer or surface-water permit allows COD < 250–500 mg/L, BOD < 30 mg/L, TSS < 30 mg/L; no economic reuse driver. |
| CAPEX (20 m³/h, full train) | ~2.5–3.5× higher than discharge; $250,000–$400,000 including equalization + DAF + MBR + RO (directional range, Zhongsheng 2026 field data). | DAF + MBR or activated sludge + disinfection; CAPEX roughly one-third of the reuse train at the same flow. |
| OPEX | ~$0.6–1.2/m³, dominated by RO membrane replacement, polymer, and RO pump power. | ~$0.2–0.4/m³, dominated by biological sludge handling and disinfection chemical. |
| Footprint | Larger; RO trains and concentrate management add 30–50% floor area over a discharge-only skid. | Compact; MBR + UV or ClO₂ fits in a single skid package. |
| Operator skill | Higher; RO CIP, antiscalant selection, and concentrate management require trained operators. | Standard wastewater-operator skill set; SRT control and disinfection residual checks. |
| Permit complexity | RO concentrate cannot be bled to discharge; route to a separate evaporator or back to the stripper feed tank. | Discharge permit required; monitor for residual solvent breakthrough on DAF effluent (add carbon pre-polisher if solvent > 5–10 mg/L upstream of biology). |
| Best fit | Coatings and pharmaceutical plants with on-site steam generation, sites in water-stressed basins, plants targeting zero-liquid-discharge. | Chemical plants with a municipal sewer agreement and no steam reuse circuit, or sites where the stripper dilute volume is too small to justify RO. |
The reuse option requires an industrial RO unit sized for 70–80% recovery with concentrate recycle; the discharge option needs a solvent-breakthrough monitor on the DAF outlet and a carbon pre-polisher as a swing unit for days when the stripper runs hot. Both are valid; the wrong default is to install RO when the permit allows discharge, or to install discharge biology when the site is paying $5/m³ for incoming water. An automatic chemical dosing skid is shared by both trains for pH and coagulant control ahead of the DAF.

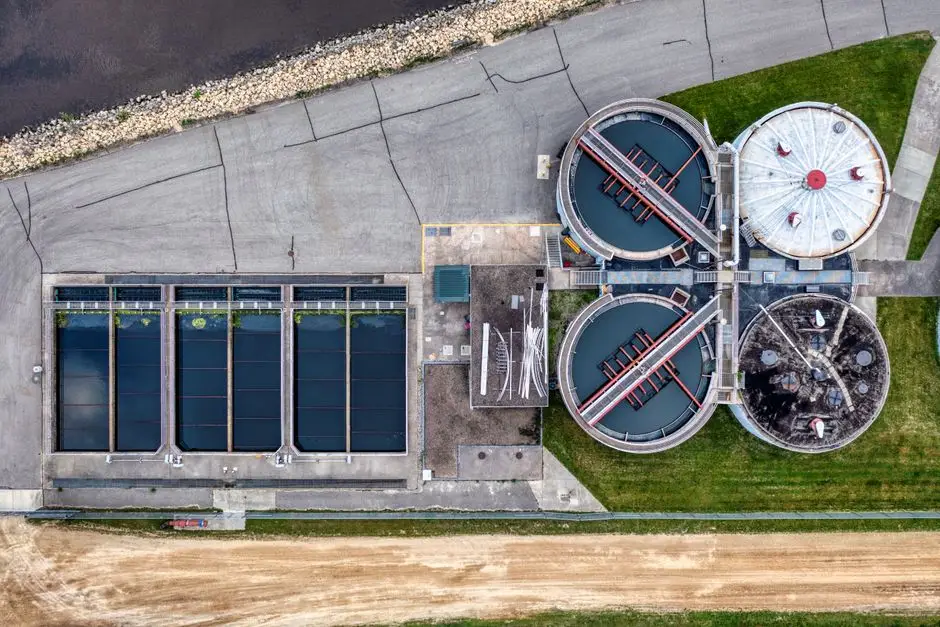

Operating, Troubleshooting and Cost Considerations
The day-to-day failure modes of a stripper-dilute DAF are not the same as a municipal DAF. Float-bladder collapse shows up when the inlet temperature exceeds 45 °C; install a quench loop or lengthen equalization to keep the DAF inlet below 35–40 °C. If FOG creeps above 50 mg/L in the DAF effluent, raise polymer dose to 10–15 mg/L and check for emulsified-solvent carryover from the stripper or over-surfactant dosing upstream.
Indicative DAF-only CAPEX for 10–50 m³/h is $35,000–$120,000 skidded (Zhongsheng 2026 field data); a full reuse train (equalization + DAF + MBR + RO) at 20 m³/h runs $250,000–$400,000. OPEX is dominated by polymer ($0.04–0.10/m³) and saturator-pump power ($0.05–0.08/m³); chemical cost rises sharply if pH swings force excess caustic dosing, which is why a high-efficiency equalization tank ahead of the DAF pays for itself in chemical savings within 12–18 months on streams that swing pH more than two units across a batch.
Frequently Asked Questions
What hydraulic retention time should a DAF on solvent stripper dilute be sized to?
20–40 minutes, longer than the 15–25 min typical of food-industry DAF, because the float load is light and bubble-particle contact must compensate for low TSS background.
What A/S ratio applies on a low-TSS stripper stream?
An air-to-solids ratio of 0.01–0.02 by mass, which translates to 5–10 g/m³ saturator-air-to-effluent because the TSS baseline is low.
When does the DAF effluent go to RO instead of biological discharge?
Route to RO when local water cost exceeds $2–4/m³, the site is water-stressed, or the plant has a steam/cooling circuit that can accept RO permeate; otherwise, route to biological discharge with disinfection.
What is the polymer dose for stripper dilute?
5–15 mg/L of cationic polyacrylamide (CPAM) at 30–60% charge density and 6–10 MDa molecular weight; drop charge density to 10–20% on surfactant-laden streams to avoid re-emulsification.
