Why Textile Dyeing Effluent Is Hard to Treat
Reactive and azoic dyes produce color visible to the human eye at concentrations as low as 1 mg/L, which is why color — not COD — sets the size of most textile effluent treatment plants. A dyehouse discharge typically carries 500–5,000 Pt-Co units of apparent color, 800–6,000 mg/L of COD, 200–1,500 mg/L of BOD, and 100–800 mg/L of TSS in a single stream that also runs hot (30–60 °C) and alkaline (pH 8–12) from reactive dye baths (IntechOpen, Jiangmen case study). Auxiliary chemicals — surfactants, sizing agents, leveling agents, sodium hydroxide — push TDS into the 5,000–80,000 mg/L range, with NaCl and Na2SO4 from reactive dyeing and sulfate from sulfur dyes doing most of the work. That salinity is the second pillar of the problem: at 20,000 mg/L TDS, conventional activated sludge loses 40–60% of its nitrification efficiency and floc breaks apart, which forces designers toward hardened biomass or membrane bioreactors. The third pillar is refractory organics: azo bonds resist aerobic oxidation and need reductive cleavage under anaerobic conditions to break the chromophore. The field consequence is visible — a 2025 Bhilwara soil study found Sodium Adsorption Ratio elevated to 18–24 in fields irrigated with untreated dyehouse discharge, with Fe, Cu, Mn, and Zn loading 3–8× above agricultural baseline (Industrial Engineering, 2025-09). That is the receiving environment a 2026 textile ETP is being designed against.
Typical Influent and Discharge Targets in 2026
The table below gives a single anchor for influent characterization and shows the regulatory spread a 2026 project must design to. The inlet target of CODCr ≤ 1,000 mg/L after biological treatment is the design condition used in the Guangdong Jiangmen plant to meet China GB 4287-2012 Class II limits (IntechOpen), and it remains a defensible design point in 2026 for export-oriented mills. Color, not COD, is the binding parameter: a reactive red at 50 mg/L is more visible than 800 mg/L of glucose-COD, and most reuse specs require < 50 Pt-Co regardless of jurisdiction.
| Parameter | Typical 2026 Influent | China GB 4287-2012 (Class II) | India CPCB Textile Norms | Bangladesh DOE | EU BAT-AEL (Directive 2010/75/EU) | Vietnam QCVN 40:2011/BTNMT |
|---|---|---|---|---|---|---|
| pH | 8–12 | 6–9 | 6.5–8.5 | 6–9 | 6–9 | 6–9 |
| COD (mg/L) | 800–6,000 | 100 (direct), 200 (indirect) | 250 | 200 | 120–160 | 150 |
| BOD (mg/L) | 200–1,500 | 30 | 30 | 50 | 25 | 50 |
| TSS (mg/L) | 100–800 | 100 | 100 | 150 | 30–60 | 100 |
| Color (Pt-Co) | 500–5,000 | 80 (dilution) | — (proxy: ADMI) | — (visible) | — (BAT-AEL, site-specific) | 50 (ADMI) |
| TDS (mg/L) | 5,000–80,000 | — | 2,100 (TDS, inland) | 2,000 | — (salt flux, site-specific) | 1,000 (ZLD incentive if higher) |
| Temperature (°C) | 30–60 | ≤ 40 | ≤ 40 (receiving water) | — | Site-specific | ≤ 40 |
The directional trend in 2026 is unmistakable: color limits below 50 Pt-Co and TDS below 2,100 mg/L are converging across jurisdictions, and water-stressed hubs — Tirupur, Karur, Nammi, Gazipur, Karachi — are mandating zero liquid discharge or 80%+ reuse for new dyehouse permits. Plants designed only for the 2012 Chinese indirect-discharge standard will fail India CPCB inland norms and EU BAT-AEL on color and TDS simultaneously.
The Mainstream Process Flow in 2026
The 2026 process train has converged on a five-stage sequence with hydraulic retention times drawn from operating plants in Guangdong, India, and Bangladesh. The order matters because each step is a guard for the next.
- Screening and equalization: a rotary mechanical bar screen removes lint, fibers, and packaging debris that would otherwise wind around biological aerators; an 8–24 h equalization basin with diffused aeration dampens the pH 8–12 spikes and 30–60 °C hot rinses that follow batch dyeing cycles.
- Coagulation/flocculation + DAF: alum or polyaluminium chloride (50–200 mg/L) plus anionic polymer (1–3 mg/L) is dosed via an automatic chemical dosing system and followed by a DAF unit for color and TSS removal at 8–12 h HRT, removing 60–80% of color and 70–85% of TSS before the biological stage.
- Anaerobic biological (UASB or hydrolytic tank): HRT 8–10 h at 30–37 °C; the reductive environment cleaves azo bonds (–N=N–) and removes 30–50% of COD while decolorizing the most recalcitrant reactive dyes (IntechOpen, Jiangmen case).
- Aerobic biological (SBR or MBR): HRT 6–8 h with MLSS 6,000–10,000 mg/L, polishing remaining COD and BOD; a biological carbon polish tank adds 1–2 h for residual recalcitrance.
- Tertiary Fenton or ozone + sand filter + RO/NF: Fenton oxidation at pH 3–4 (Fe2+ 50–200 mg/L, H2O2 200–600 mg/L) breaks aromatic rings, followed by sand filtration and an industrial RO system for reuse-grade permeate.
The Jiangmen plant has run this train for five years with steady effluent quality and no sludge efflux from the biological train (IntechOpen). For an engineer sizing a new plant, the lesson is that the HRTs above are not theoretical — they are the operating envelope of a validated Chinese design that has met Class II standards continuously since the early 2010s.
Process Comparison: SBR vs MBR vs Fenton + RO
The biological-plus-tertiary package is the single biggest design decision because it sets footprint, OPEX, and reuse potential simultaneously. The table below compares the three packages a 2026 buyer will most often be offered.
| Criterion | SBR (Sequencing Batch Reactor) | MBR (Membrane Bioreactor) | Fenton + UF/RO |
|---|---|---|---|
| Mode | Batch, fill–react–settle–decant | Continuous with submerged PVDF membrane | Chemical oxidation + membrane separation |
| COD removal | 90–95% | 95–98% | 97–99% |
| Color removal | 50–70% (residual visible) | 70–90% | 95–99% |
| TDS removal | None (biological) | None (biological) | 95–99% (RO) |
| Footprint vs CAS | 40–60% smaller | 60–80% smaller | Reuse-grade permeate |
| MLSS tolerance | 4,000–6,000 mg/L | 8,000–15,000 mg/L | N/A (downstream of MBR) |
| Sludge handling | Conventional wastage | Less waste sludge (long SRT) | Iron sludge from Fenton — needs plate and frame filter press |
| OPEX (USD/m³) | 0.20–0.40 | 0.30–0.60 | 0.55–1.20 |
| Best-fit case | Low-TDS effluent, no reuse target | High-MLVSS dyehouse liquor, indirect discharge | Reuse-grade water, ZLD path, EU/India inland discharge |
An MBR integrated wastewater treatment system using an MBR flat-sheet membrane module at 0.1 µm pore size handles the variable MLVSS of dyehouse mixed liquor with lower fouling than hollow-fibre modules — the flat-sheet geometry tolerates higher suspended solids and is easier to clean-in-place after surfactant spikes. Fenton oxidation at pH 3–4 with Fe2+/H2O2 breaks aromatic rings but produces an iron-rich chemical sludge that has to be dewatered separately; the sequence adsorption → NF → RO is critical because the activated carbon guard reduces concentration polarization at the NF membrane and protects downstream RO from hydrolyzed reactive dyes and dyehouse auxiliaries (IntechOpen). For a mid-cap mill (200–800 m³/d) choosing between SBR, MBR, and Fenton+RO, the decision is almost always reuse-driven: if the plant needs >80% reuse or faces inland TDS limits, MBR plus Fenton plus RO is the only package that closes the mass balance.

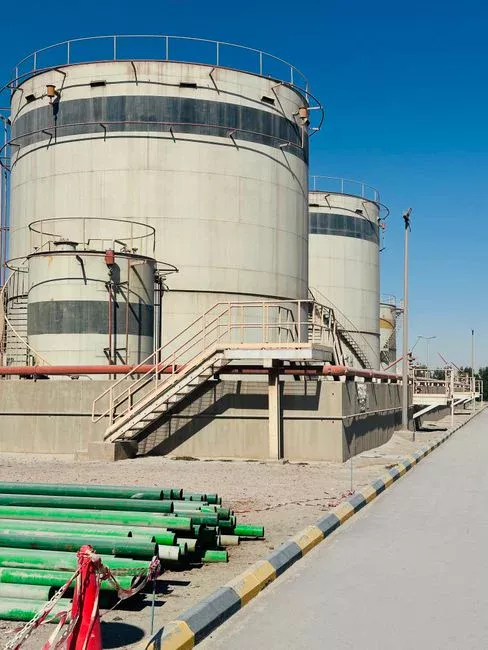

2026 CAPEX and OPEX Benchmarks
Procurement and finance need a defensible price envelope before they can sign a purchase order, and the 2026 numbers below are the bands a mill owner or EPC should be budgeting against for an installed plant in Asia (Zhongsheng field data, 2026; cross-checked against Indian EPC bid sheets for textile ETPs in Tirupur and Bhilwara).
| Process Package | CAPEX (USD per m³/day, installed) | OPEX (USD per m³ treated) | Dominant OPEX Driver |
|---|---|---|---|
| SBR-based plant (no reuse) | 180–320 | 0.25–0.45 | Aeration energy (0.4–0.9 kWh/m³) |
| MBR-based plant (indirect discharge) | 280–480 | 0.35–0.65 | Aeration + membrane cleaning |
| Fenton + RO reuse-grade plant | 450–650 | 0.60–1.20 | RO high-pressure pumps (0.8–1.8 kWh/m³) + Fenton reagents |
| Full ZLD (brine crystallizer) | 700–1,100 | 1.10–2.20 | Thermal evaporation energy |
Energy is the single largest variable in OPEX, and it splits roughly 40–55% to biological aeration, 25–35% to RO high-pressure pumping, and 10–20% to sludge dewatering and chemical dosing. Membrane replacement is a non-trivial lifecycle cost: PVDF MBR modules carry a 5–7 year service life, RO membranes 3–5 years depending on feed SDI and cleaning discipline, and the annualized replacement should be factored into a 10-year OPEX model. ZLD adds 35–55% to OPEX over a Fenton+RO plant, but in water-stressed hubs it converts a discharge liability into a permit certainty — the financial case for ZLD is rarely about water cost, it is about being allowed to operate.
Designing for Reuse and Zero Liquid Discharge
Reuse has become the 2026 default in any textile hub where freshwater cost exceeds USD 0.30/m³ and discharge rules are tightening in parallel. The reuse hierarchy is well defined: NF permeate is suitable for rinsing and washing; RO permeate with polishing can be used for boiler feed; brine from the RO concentrate, evaporated in a mechanical vapor recompression or thermal crystallizer, is the only path to ZLD. The critical design point is that adsorption must precede NF/RO in textile applications — reactive dye hydrolyzates, surfactants, and dyehouse auxiliaries will foul an RO membrane within weeks if they reach it directly (IntechOpen). The MBR is the workhorse pre-RO biological polish because it removes the bulk of the recalcitrant COD and turbidity that would otherwise shorten RO life; a turbidity spike of 5 NTU above design can cut RO membrane life by 30–40%. For ZLD, evaporation and brine management are the gating cost: a 50,000 mg/L TDS concentrate at 100 m³/d needs roughly 8–12 t/d of evaporation capacity, which sets the OPEX floor for any full-ZLD textile plant.

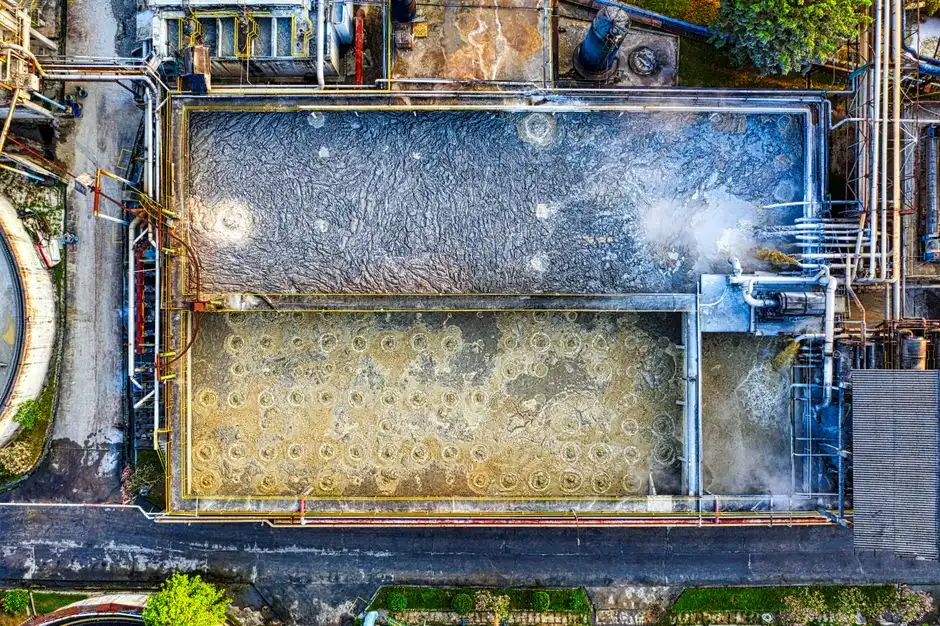

Equipment Shortlist for a 2026 Textile Dyeing ETP
The table below translates the process flow into a procurement-ready list. Every line item maps to a real piece of equipment an EPC can quote against.
| Process Stage | Equipment | Function |
|---|---|---|
| Headworks | Rotary mechanical bar screen (GX series); equalization basin with diffused aeration | Fiber/lint removal, flow and pH dampening |
| Primary physicochemical | DAF unit for color and TSS removal; automatic chemical dosing system | Coagulation, flocculation, 60–80% color and TSS removal |
| High-rate settling | High-efficiency sedimentation tank (optional pre-anaerobic) | Sludge thickening, hydraulic buffering |
| Biological | MBR integrated wastewater treatment system with MBR flat-sheet membrane module (DF series) | Anaerobic + aerobic COD/BOD/color removal, 95–98% COD |
| Tertiary + reuse | Multi-media filter; Fenton/ozone contactor; industrial RO system | Polishing, color breakthrough, reuse-grade permeate |
| Reuse loop | JY integrated water purification unit; chlorine dioxide generator | Reuse-loop polishing, biological control in recycled water |
| Sludge | Plate and frame filter press | Dewatered cake to ≥ 30% DS, hauling-ready |
For a 500 m³/d mill in the MBR/Fenton/RO band, the installed equipment cost lands in the USD 200,000–280,000 range with the RO and MBR modules at roughly 45% of that line item, and the balance split across civil tanks, dosing skids, blowers, and instrumentation. Buyers comparing EPC bids should always normalize the scope to the boundary above — anything that omits the sludge line or the chemical dosing skid is not a comparable price.
Frequently Asked Questions
What is the typical COD removal efficiency of a 2026 textile dyeing ETP?
A correctly sized train of anaerobic + aerobic + tertiary treatment removes 95–99% of influent COD. The MBR stage alone typically delivers 95–98% on a CODCr feed of 800–6,000 mg/L, and adding Fenton + RO pushes total removal to 97–99% (IntechOpen Jiangmen case, 5-year operating data).
How much does a 1,000 m³/day textile dyeing ETP cost in 2026?
Installed CAPEX ranges USD 280,000–480,000 for an MBR plant meeting indirect discharge, and USD 450,000–650,000 for a reuse-grade Fenton + RO plant in Asia (Zhongsheng field data, 2026). OPEX runs USD 0.35–0.65/m³ for MBR and USD 0.60–1.20/m³ for Fenton + RO.
Can a textile ETP achieve zero liquid discharge?
Yes, but at a 35–55% OPEX premium over a Fenton+RO plant. Full ZLD adds a mechanical vapor recompression or thermal crystallizer to handle the RO concentrate, and energy becomes the gating cost — typically 1.10–2.20 USD/m³ in OPEX for a 50,000 mg/L TDS feed.
What influent parameters drive the design of a textile ETP most strongly?
Color, salinity (TDS), and refractory COD are the three design drivers. Color is the rate-limiting parameter because reactive dyes are visible at 1 mg/L, and most 2026 discharge standards require under 50 Pt-Co regardless of jurisdiction. Salinity above 20,000 mg/L TDS forces hardened biological design or a membrane bioreactor.
What is the typical membrane life for an MBR and RO system in textile effluent?
PVDF MBR flat-sheet modules last 5–7 years with proper cleaning-in-place; RO membranes last 3–5 years depending on feed SDI, antiscalant dosing, and the consistency of the upstream biological polish. A 10-year lifecycle model should budget membrane replacement at year 5 for RO and year 6 for MBR (Zhongsheng field data, 2026).
