What petroleum wastewater changes about the equipment decision
For petroleum wastewater in Nazareth, choose DAF when free oil, FOG, or poorly settleable solids are the main treatment target; choose a gravity clarifier when the stream is dominated by readily settleable solids. A combined train may be necessary for refinery or petrochemical wastewater containing both floatable oil and settleable solids. In 2026, selection should follow representative wastewater testing, peak flow and contaminant loading, chemical conditioning, sludge and oil recovery, materials, controls, and the required discharge or reuse outcome—not the equipment name alone.
Flow rate alone cannot characterize the separator duty. Oily wash water, floor-wash runoff, process blowdown, condensate, and variable batch discharges can have different oil, FOG, solids, temperature, and flow-duration profiles. The buyer should identify every proposed stream, record which are excluded, and prevent clean condensate or stormwater from distorting the design basis.
Representative analysis should cover TSS, oil and grease, FOG, settleable solids, pH, temperature, and discharge duration. Sizing must reflect hourly and daily flow, peak-hour demand, batch events, and peak contaminant load. The required pretreatment, discharge, reuse, or downstream-treatment outcome must also be defined before selecting equipment.
Mechanism matters as much as equipment classification. In a food-processing example, Ecologix Systems reports 95% oil-and-grease removal with DAF versus 70% with a clarifier for the same stream. That comparison illustrates why contaminant behavior matters, but it does not guarantee performance for petroleum wastewater in Nazareth. Chemical demand and conditioning should be reviewed through the coagulant dosing system design criteria.
DAF and gravity clarifier operate on different principles
DAF separates floatable material by attaching microbubbles to conditioned particles and lifting oil, FOG, and suspended solids to the surface for skimming, while gravity clarification removes suspended solids by settling them into a bottom collection zone.
Clearwater Industries describes microbubbles of 30–50 microns in its DAF systems. That is equipment context, not a universal design specification. The conditioning sequence is important: coagulation destabilizes contaminants, flocculation forms particles with improved bubble attachment, and the resulting floc must contact the bubbles and remain suitable for skimming.
A conventional clarifier depends on settleability, hydraulic loading, and flow distribution. It produces settled sludge; DAF produces a removable surface float, although heavier solids can also collect at the bottom of a DAF unit. Neither mechanism eliminates the need for a route for removed oil, FOG, and solids.
Terminology can obscure the mechanism in a bid. Clearwater Industries calls its systems “dissolved-air flotation clarifiers.” A procurement document should state explicitly whether separation is by flotation or gravity settling and identify the equipment included. Review the proposed industrial DAF system for petroleum wastewater and the gravity alternative shown in the high-efficiency sedimentation tank against the same wastewater duty.
| Decision element | DAF | Conventional gravity clarifier |
|---|---|---|
| Primary mechanism | Microbubble-assisted flotation | Gravity settling |
| Main removal target | Free oil, FOG, suspended solids, and poorly settleable material | Predominantly settleable solids |
| Conditioning | Coagulation and flocculation support bubble attachment | Chemical assistance may be considered from test results |
| Removed material | Skimmable surface float plus heavier bottom solids | Collected bottom sludge |
| Design question | Can the particles be conditioned, attached to bubbles, and skimmed reliably? | Will the material settle reliably at the required clarification rate? |

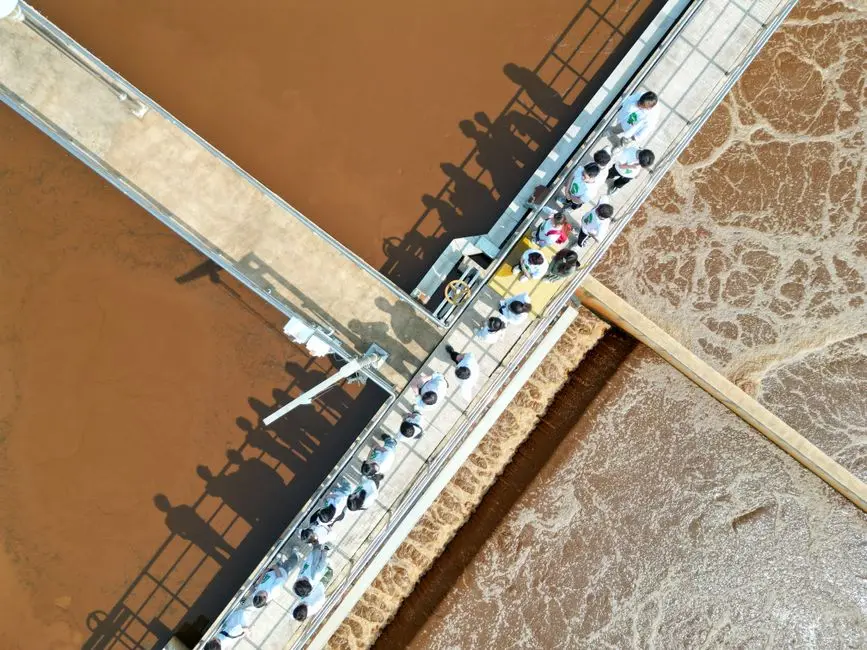

Choose by contaminant behavior, not by equipment name
A gravity clarifier is the more credible candidate when representative testing shows that the target solids settle reliably at the required clarification rate and peak hydraulic loading.
DAF is the leading candidate when the primary objective is free-oil or FOG recovery, or when suspended solids do not settle readily. A combined treatment train becomes appropriate when the stream contains floatable oil and settleable solids, or when the separator is only the first stage of a larger petroleum wastewater treatment plant. DAF can remove oil by flotation before clarification removes material that settles by gravity.
Supplier model descriptions are screening information rather than a final selection. Clearwater Industries describes its FPAC DAF for small-to-medium flows with very high TSS and FOG loads, its FPBC high-profile flotation system for low-to-medium solids loads, and its FPHF DAF for high flows with low-to-large solids loads. Actual hydraulic flow, contaminant load, wastewater chemistry, and the specified treatment outcome must govern the final choice.
The chemistry check is decisive. A bidder should explain whether particles can be conditioned, attached to bubbles, and skimmed reliably. If the answer is uncertain, investigate chemical compatibility, mixing intensity, pH, temperature, and oil characteristics before accepting the design. The PLC-controlled chemical dosing system should be tied to the treatment sequence and control philosophy, rather than treated as a separate accessory selected by pump count.
| Observed wastewater condition | Preferred starting point | Evidence required before acceptance |
|---|---|---|
| Free oil or FOG predominates | DAF with conditioning | Oil characteristics, chemical demand, flotation response, and recovered-material route |
| Readily settleable solids predominate | Gravity clarifier | Settleability and clarification performance at peak loading |
| Floatable and settleable material coexist | DAF followed by clarification | Mass balance, flotation performance, settling rate, and sludge route |
| Variable batch discharges dominate | Equalization plus the separator supported by testing | Peak-hour flow, batch duration, peak load, and demonstrated operating range |
| Reuse or further treatment is required | Separator as an upstream stage | Project-specific effluent and reuse criteria plus downstream process definition |
Build the petroleum wastewater treatment train
A petroleum wastewater package should begin with flow segregation, equalization, and flow control so washing batches and oily discharges do not overwhelm chemical dosing, flotation, or solids withdrawal.
Place chemical conditioning, mixing, and flocculation before flotation. Verify the sequence, mixing arrangement, control logic, and chemical storage arrangements rather than specifying pumps only by quantity. After DAF, route floated oil and FOG to the approved recovery or disposal route and withdraw heavier bottom solids sufficiently to prevent accumulation.
After gravity clarification, evaluate sludge collection and withdrawal, inspection access, and downstream disposal or dewatering. If removed solids require further dewatering, the project scope may need to include a plate-frame filter press rather than treating sludge handling as an undefined consequence.
Neither separator substitutes for biological, membrane, adsorption, filtration, or other downstream treatment when the permit or reuse specification requires it. For example, an integrated wastewater treatment system may form part of the wider train rather than the primary oil-removal step.
This follows the supplied 2026 transportation-wastewater guide’s principle: a hybrid system can combine DAF oil removal with clarifier sedimentation for complex streams, while further treatment may be required for nutrients or dissolved contaminants. The transport example supports the treatment logic, but it does not replace testing of the petroleum factory’s wastewater.

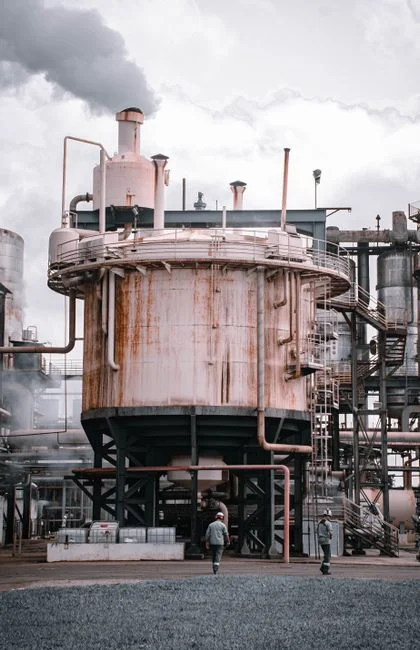

Compare bids on treatment scope and lifecycle cost
Comparable bids must use the same wastewater data package, design flow, contaminant-loading basis, operating range, required effluent outcome, and treatment assumptions.
Require separate line items for the separator, coagulation, flocculation, pumping, controls, sensors, skid piping, installation, commissioning, training, sludge handling, and downstream integration. Otherwise, a clarification price can conceal essential functions or omit the recovered-material route. The PLC-controlled chemical dosing system and any plate-frame filter press should be evaluated as defined parts of the treatment scope.
Compare operating consequences as well as purchase price: chemical consumption, energy, maintenance, recovered oil or FOG, sludge characteristics, sludge handling, installation, and reuse potential. Ecologix Systems states that clarifiers generally have lower operating costs, while DAF may be more cost-effective for specific contaminants such as oils. Treat this as a screening hypothesis, not a Nazareth project estimate; the research contains no factory-specific quotation.
Wetted materials must match the actual chemical and temperature environment. Clearwater Industries, dated 2026-04-27, reports standard DAF construction in 304 stainless steel, with 316 stainless steel, polypropylene, and other materials available on request. The bidder should specify materials against the project service rather than accept a generic construction list.
Do not treat generic flow ratings as complete design guarantees. Clearwater Industries, dated 2026-04-27, describes one COMPACT DAF skid for 66 GPM or less and a modular two-skid arrangement for larger flows. Those configurations are screening references, not substitutes for project-specific hydraulic and contaminant sizing.
| Bid item | Information the buyer must require | Reason for comparison |
|---|---|---|
| Design basis | Wastewater data, peak and daily flow, contaminant load, operating range, and assumptions | Confirms that all bidders designed for the same duty |
| Complete equipment scope | Separation, conditioning, pumping, controls, sensors, piping, sludge removal, and commissioning | Prevents omitted scope from hiding in allowances |
| Material schedule | Wetted materials matched to chemical and temperature service | Addresses compatibility and maintainability |
| Lifecycle inputs | Chemical consumption, energy, maintenance, recovered material, and sludge handling | Establishes operating consequences rather than purchase price alone |
| Validation and handover | Pilot basis, startup test, acceptance protocol, training, spares, and support | Connects equipment delivery to operational acceptance |
Validate the choice with testing and acceptance criteria
Representative sampling across normal production, cleaning, and batch-discharge conditions is more defensible than relying on one composite sample.
Use settleability or flotation testing when the nominal model comparison does not distinguish the two mechanisms. A pilot trial should have defined objectives, sampling procedures, measured parameters, operating conditions, and acceptance criteria before it is authorized. The industrial DAF versus clarifier comparison provides a useful validation framework, but its industrial example is not a performance guarantee for petroleum wastewater.
Commission with representative wastewater and document chemical dose, mixing, bubble attachment, skimming, bottom-solids withdrawal, clarified effluent, and recovered material across the intended operating range. Establish the operating baseline from those records rather than from generic equipment claims.
The supplier must identify the applicable discharge or reuse criteria and demonstrate the proposed treatment basis against project-specific requirements. Obtain those criteria from the factory or responsible authority; generic separator performance does not establish compliance. For an oil-recovery case, compare the proposed DAF arrangement with the DAF versus API separator for oily wastewater only at the mechanism-screening stage.
Final acceptance should also reconcile the delivered package, controls narrative, service access, operator training, preventive maintenance, spare parts, and local support. If those items are not defined before award, the equipment may meet its tank rating but still become an operating or compliance risk.
Frequently Asked Questions
Is DAF or a gravity clarifier cheaper for petroleum wastewater treatment?
Clarifiers generally have lower operating costs, according to Ecologix Systems, while DAF may be more cost-effective for oil-specific treatment. No defensible project price can be derived from the supplied research because it provides no quotation or Nazareth factory data. Request equivalent bids covering chemical use, energy, recovered oil or FOG, sludge handling, maintenance, installation, and commissioning, then compare them on the same wastewater duty.
How should a factory select a DAF or clarifier supplier?
Require every bidder to use the same wastewater characterization, peak-flow and loading basis, required outcome, material requirements, and complete supply list. Ask each supplier to identify the actual separation mechanism, treatment assumptions, controls scope, validation plan, and project-specific acceptance basis. Reject an offer that provides only a nominal flow rating or generic performance statement.
