MBR for Seafood Processing Wastewater: 2026 Guide

MBR for Seafood Processing Wastewater: 2026 Guide

What Makes Seafood Processing Wastewater Different?

An MBR can treat seafood processing wastewater, but the correct system depends on the organic load, fats and solids, peak flow, discharge permit and intended reuse. Studies of fish-processing wastewater report strong biological treatment, including 93±2% COD removal for commercial PES membranes and 96±1% for PBM-coated membranes. However, an AnMBR study reported effluent COD of 250.43 mg/l, TP of 19.96 mg/l and TN of 62.65 mg/l, so additional post-treatment was required. In practice, seafood plants should combine debris and FOG control, biological treatment, membrane separation, polishing and disinfection.

Seafood effluent is not a single, uniform stream. Fish processing, fish canning and cleaning operations can produce wastewater with soluble and particulate organics, fats and oils, suspended solids, debris, nutrients and production-driven flow variation. A plant serving one high-volume line may differ materially from a multi-product facility with discharge from fish cutting, cooking, brining, washing and equipment cleaning. The design basis must therefore be built from the plant’s own streams and operating schedule.

Direct application evidence comes from pilot trials using wastewater from the Makindi fish farm in Kenya, published by the International Journal of Engineering and Technology Publishing. Commercial polyethersulfone, or PES, membranes were compared with membranes modified using a polymerizable bicontinuous microemulsion, or PBM, because the wastewater contained high amounts of fouling agents. The pilot used pre-filtered wastewater and recirculation between denitrification and aeration tanks. Its results demonstrate application relevance, but they do not establish universal performance for a commercial seafood plant.

Before selecting an MBR, obtain a site wastewater characterization covering average and peak flow, COD, BOD, TSS, oil and grease, nitrogen, phosphorus, pH and temperature. Also record production, cleaning and discharge schedules because batch discharges can concentrate solids and surfactants. A published removal percentage cannot be transferred directly unless the wastewater, treatment objectives and operating envelope are comparable.

Protect the membrane from the start. The U.S. Environmental Protection Agency’s Wastewater Management Fact Sheet: Membrane Bioreactors, published in June 2021, states that all MBR systems require manufacturer-dependent fine screens with 1–3 mm cutoffs immediately before the membranes and that these screens require frequent cleaning. A GX rotary bar screen for MBR headworks should therefore be evaluated as part of the treatment system, not as an accessory. Where oil and grease or floatable solids are material, DAF pretreatment for seafood wastewater may protect downstream biological and membrane stages.

Aerobic or Anaerobic MBR for Seafood Wastewater?

An MBR combines biological treatment with membrane-based solids separation, and the EPA reports in June 2021 that membrane filtration can replace the secondary clarifier and sand filters in a conventional activated-sludge system. For seafood wastewater, the biological route should follow from the required effluent quality and operating objective rather than from membrane format alone.

An aerobic membrane bioreactor is generally the more direct route when biologically degradable organics must be removed and nutrient removal is required. In the Kenya fish-processing pilot published by the International Journal of Engineering and Technology Publishing, commercial PES membranes achieved 93±2% COD removal and 69±3% phosphate removal, while PBM-coated membranes achieved 96±1% COD removal and 84±1% phosphate removal. The corresponding nitrogenous-compound removals were 85±2% for PES and 88±1% for PBM-coated modules. These are study results, not guaranteed commercial values.

An anaerobic membrane bioreactor can suit objectives centered on organic conversion and energy recovery, but it does not eliminate the need to meet discharge or reuse limits. The University of the Aegean study of a Vietnamese seafood-processing factory found that AnMBR effluent still contained COD of 250.43 mg/l, TP of 19.96 mg/l and TN of 62.65 mg/l. The researchers concluded that additional post-treatment was required, which is direct evidence against treating membrane separation as the final treatment step.

The same Kenya study used study-specific hydraulic retention times: 27.4–31.7 hours for PES and 38.4–46.0 hours for PBM-coated modules. Those values should not be copied into a design without a site-specific biological loading and solids-retention analysis.

Selection point Aerobic MBR Anaerobic MBR
Primary objective Biodegradable organics and nutrient removal through aerobic biological treatment Organic conversion with an energy-recovery objective
Application evidence Kenya fish-processing pilot: 93±2% COD removal for PES and 96±1% for PBM-coated membranes Vietnamese seafood-processing AnMBR: effluent COD 250.43 mg/l, TP 19.96 mg/l and TN 62.65 mg/l
Study-specific HRT 27.4–31.7 hours for PES; 38.4–46.0 hours for PBM-coated modules Not established by the supplied evidence
Procurement question What biomass-retention strategy, oxygen balance and nutrient-removal configuration support the permit? What biogas balance and polishing sequence will achieve the required final effluent?

For a more structured route comparison, see the MBR versus conventional activated sludge for food wastewater. Ask each supplier to explain the process basis, biomass-retention strategy, oxygen or biogas balance, membrane-flux assumptions and polishing sequence. Comparing quotations only by nominal flow leaves the central process decisions unresolved.

Build a Treatment Train That Protects the Membrane

Build a Treatment Train That Protects the Membrane

MBR membranes retain microorganisms and solids, but they do not remove every dissolved contaminant; therefore, a seafood treatment train must place biological and polishing steps around the membrane stage rather than treating the MBR as a catch-all.

  1. Source control and segregation: Keep fish tissue, scales, packaging debris, wash water and high-strength process streams under control at source. Segregating incompatible streams can reduce the treatment load before equipment is sized.
  2. Screening: Remove debris that could damage membranes or blind the membrane area. The EPA states that all MBR systems require manufacturer-dependent 1–3 mm fine screens immediately upstream of the membranes.
  3. Equalization: Damp production and cleaning peaks, stabilize feed conditions and provide operational buffer.
  4. Oil, FOG and solids removal where needed: Protect the biological process and membrane from material that can foul or coat the surface.
  5. Biological treatment: Apply aerobic or anaerobic biology suited to the organic load and treatment objective.
  6. Membrane separation: Retain biomass and solids while producing permeate.
  7. Polishing: Address residual dissolved nutrients, organics, color, salts or trace constituents that the membrane stage does not resolve.
  8. Disinfection: Apply only as required by the permit or reuse specification.
  9. Reuse or discharge: Confirm the final quality against the receiving water or reuse specification.

The EPA reports in June 2021 that MBR membranes are effective for removing solid material, while removal of dissolved wastewater components must be facilitated by additional treatment. That distinction is decisive for nutrient limits, residual soluble COD and reuse specifications.

Hydraulic control belongs in the process design. EPA guidance states that peak design flows should be no more than 1.5–2 times average design flow. If production peaks exceed that criterion, the project may need additional membrane capacity or internal or external equalization. This should be checked before comparing membrane-area options.

Membrane care must also be designed. EPA identifies good screening, throughput that is not excessive, and regular use of mild cleaners as measures that extend membrane life. Common cleaning solutions include sodium bleach and citric acid, applied under manufacturer-recommended protocols. Automatic chemical dosing for membrane cleaning should therefore be specified around the manufacturer’s control philosophy, with chemical strength, frequency and safety interlocks included in the commercial scope.

Retained solids are recycled to the biological reactor, while excess waste sludge is periodically removed. EPA notes that conventional thickening, dewatering and disposal methods can apply, although MBR sludge may require conditioning because of colloidal particles and filamentous organisms. A plate-and-frame filter press for sludge dewatering should be evaluated against the expected waste-sludge characteristics rather than added only after start-up.

When MBR Effluent Still Needs Post-Treatment?

The seafood-processing AnMBR study demonstrates that membrane separation cannot be assumed to satisfy a discharge or reuse specification: effluent COD, TP and TN were approximately twice Vietnam’s cited technical regulation.

The University of the Aegean study compared chlorine, polyaluminium chloride combined with anionic polymer, and granular activated carbon. Chlorine had the lowest treatment efficiency for TSS, COD, TP and TN. GAC was more effective than PAC for TN and TSS. Under the best tested GAC condition—5000 mg/L and 60 minutes—the reported efficiencies were 94.04% for TSS, 79.11% for COD, 86.19% for TP and 71.23% for TN. This is a study condition, not a universal dosage prescription or a design guarantee.

Polishing and disinfection solve different problems. A multi-media filter can provide particulate polishing, but it should not be credited automatically with dissolved nutrient removal. Chlorine disinfection addresses viable microorganisms rather than the full COD, nitrogen or phosphorus profile. Where a reuse specification requires a defined microbial barrier, an multi-media filter for effluent polishing or UV sterilizer for reuse-water treatment should be selected from the actual quality requirement. A chlorine dioxide generator for disinfection also requires a defined dose, contact condition and residual-control basis.

Evidence or stage Reported result Engineering interpretation
AnMBR effluent before post-treatment COD 250.43 mg/l; TP 19.96 mg/l; TN 62.65 mg/l Additional treatment was required to meet the cited regulation
Chlorine post-treatment Lowest treatment efficiency among the tested methods for TSS, COD, TP and TN Disinfection should not be treated as a substitute for the required polishing train
GAC at 5000 mg/L for 60 minutes TSS 94.04%; COD 79.11%; TP 86.19%; TN 71.23% A study-specific polishing condition requiring site-specific validation
Kenya pilot permeate COD <100 mg/l; NO3--N 5–30 mg/l; PO43--P ≤5 mg/l Study results associated with proposed washing, irrigation and cleaning uses

The Kenya pilot reported permeate within <100 mg/l COD, 5–30 mg/l NO3--N and ≤5 mg/l PO43--P and identified washing, irrigation and cleaning as potential reuse applications. Those results should not be presented as guaranteed project performance. The final selection must be tied to the permit, receiving-water conditions, reuse specification and pretreatment requirements.

Compare the MBR Configurations Before You Buy

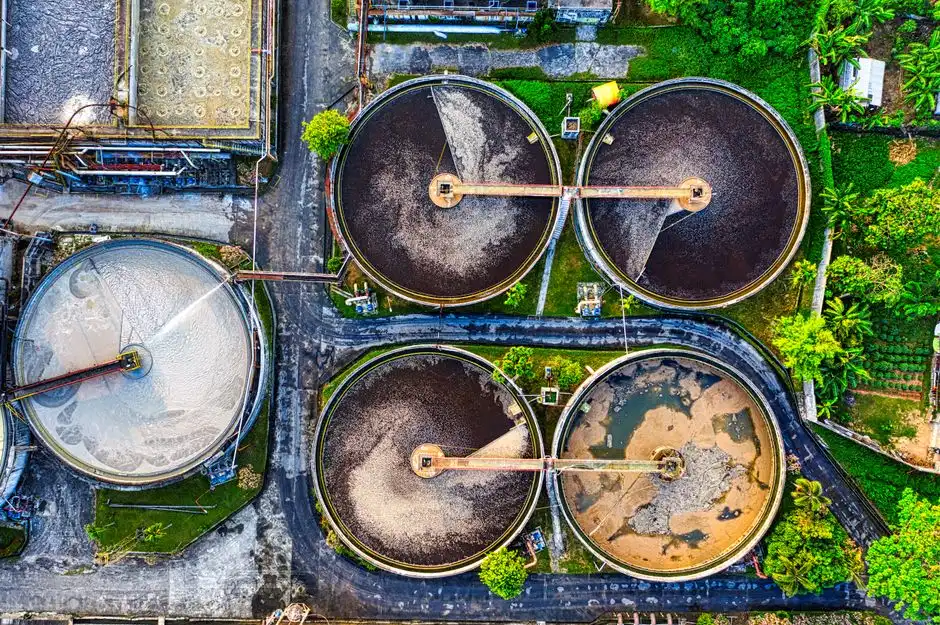

Compare the MBR Configurations Before You Buy

EPA describes two membrane-location arrangements: membranes immersed in the biological reactor or installed in a separate vessel through which mixed liquor circulates. Neither arrangement, nor hollow-fiber versus flat-plate format, is universally superior; the appropriate choice depends on site constraints, hydraulics, maintenance access and fouling conditions.

For each configuration, request the proposed footprint, design flux, cleaning method, replaceable components, energy demand, spare-parts strategy and treatment boundary. A submerged arrangement may reduce transfer-pump complexity for some layouts, while an external arrangement keeps membranes in a separate vessel and changes access, piping and maintenance arrangements. Hollow-fiber and flat-plate systems have different screening requirements, replaceable elements and cleaning access, so they should be compared on delivered performance and maintainability rather than format labels.

EPA identifies membrane cleaning, fouling control, eventual replacement, air-scour energy and solids-retention management as central operating factors. It also describes the “N plus 1” concept: one additional membrane tank or unit beyond the nominal requirement can provide operational flexibility and maintain available capacity during maintenance. A supplier should explain how its proposed train and redundancy satisfy the plant’s operating envelope.

Comparison item Information to obtain Why it affects procurement
Membrane location Submerged in the reactor or external in a separate vessel Determines piping, access, footprint and maintenance arrangements
Membrane format Hollow-fiber or flat-plate modules; screening requirement; replacement method Influences pretreatment, mechanical handling and spare-parts requirements
Verified catalog example Integrated submerged-PVDF MBR listed for 10–2,000 m³/day Supplier information to request and verify, not a universal benchmark
Verified catalog example DF flat-sheet modules listed at 0.1 μm, 80–225 m² and 32–135 m³/day per module Shows why module area, capacity and system boundaries must be matched rather than compared by flow alone
Commercial scope Civil work, blowers, pumps, controls, chemical systems, sludge handling, installation and commissioning Prevents an incomplete equipment quotation from becoming the apparent project price

The catalog information for an integrated submerged-PVDF MBR system and DF flat-sheet MBR membrane modules provides examples of the specifications to request, not proof that those values suit a seafood site. A membrane manufacturer’s broader element information can be reviewed through RO and UF membrane filter elements, but the supplier must remain responsible for the selected MBR process.

Budget for Fouling Control, Energy and Membrane Life?

MBR total cost includes more than the membrane skid because the membrane is only one part of the fouling-control, flow-control and residuals-management system.

EPA reports in June 2021 that MBRs generally have higher capital and operating costs than conventional systems for the same throughput. Operating costs include membrane cleaning, fouling control, eventual replacement and air scour. The causal relationships are straightforward: effective upstream solids control reduces material reaching the membrane; excessive throughput increases the amount that must be removed by cleaners; and regular mild cleaning helps extend membrane life.

Build separate budget lines for:

  • Headworks and pretreatment: screening, solids removal, oil and FOG control and associated disposal;
  • Hydraulic resilience: internal or external equalization and any additional membrane capacity required by peak flow;
  • Membrane operation: air scour, permeate pumping, cleaning chemicals, recovery and monitoring;
  • Replacement reserve: membrane elements and other wear parts;
  • Biological operation: aeration or biogas handling, biomass control and nutrients;
  • Post-treatment: polishing, disinfection and any membranes or media;
  • Sludge handling: wasting, thickening, conditioning, dewatering and disposal;
  • Commercial services: installation, commissioning, training, warranty and local service.

Ask each supplier to state the assumptions behind every operating-cost line: design flow, actual utilization, loading, cleaning frequency, chemical consumption, energy price and replacement interval. Without those inputs, a cost-per-m³ comparison is not auditable. The MBR wastewater treatment cost per m³ guide can help structure the request, but site wastewater data must remain separate from generic cost information.

Use peak flow as a cost check as well as a sizing check. Under the EPA criterion, peak design flow should not exceed 1.5–2 times average design flow. A low purchase price can be offset by added equalization, extra membranes, more frequent cleaning or accelerated replacement if the hydraulic envelope was omitted from the quotation.

Also request two cost scenarios: normal production and the highest credible production and cleaning combination. The supplier should explain which constraints activate in each scenario and whether the proposed membrane area and biological capacity remain valid without exceeding the design basis.

A Supplier-Selection Checklist for a 2026 Project?

A Supplier-Selection Checklist for a 2026 Project?

A credible MBR proposal should convert a site-specific wastewater characterization and compliance target into a complete, testable treatment train.

  1. Issue the design basis: wastewater characterization, average and peak flows, permit limits, reuse targets, site constraints and expected operating envelope.
  2. Request the process narrative: pretreatment, biological stage, membrane configuration, flux or loading basis, polishing, controls, blowers, sludge removal, redundancy and commissioning.
  3. Require evidence: relevant seafood or food-processing experience, pilot data and references; ask the supplier to identify which results are measured and which are predictions.
  4. Review membrane management: warranty, cleaning protocol, expected chemical use, spare-module availability, replacement pricing and operator training.
  5. Check flow and redundancy: explain how the train handles peak flow, cleaning downtime and the loss of a membrane unit. EPA’s N plus 1 discussion supports considering one additional membrane unit where appropriate, while physical membrane-throughput limits still apply.
  6. Set acceptance criteria: define test conditions, sampling points, analytical methods, guarantees and remedies.
  7. Confirm the physical boundary: list every included item and every client responsibility.

Do not transfer the Kenya pilot’s 93±2% or 96±1% COD removals into a commercial guarantee. Those results came from pre-filtered Makindi fish-farm wastewater, specific modules and study-specific conditions. A guarantee should refer to the buyer’s wastewater and operating envelope. The flat-sheet MBR cost and configuration decision guide can help prepare the technical review, but the supplier’s proposal must be checked against site data.

Document to request Minimum decision content
Design basis Measured wastewater parameters, flow profile, permit and reuse targets
Process proposal Complete train with biological and membrane design basis
Performance commitments Specified test conditions, analytes, acceptance method and remedy
Operations manual Startup, shutdown, cleaning, chemicals, controls and troubleshooting
Commercial schedule Batteries limits, exclusions, civil interfaces, services and delivery responsibilities
Warranty and support Coverage, exclusions, spares, replacement terms and local service access

Frequently Asked Questions

What is the main cost driver for an MBR for seafood processing wastewater?

The main cost drivers are membranes, pretreatment, equalization, air scour, cleaning, replacement, post-treatment and sludge handling. Request a site-specific cost-per-m³ calculation that states the assumed flow, loading, utilization, cleaning frequency, chemical consumption and replacement interval. Compare suppliers on the same treatment boundary; a membrane-module price is not a complete project cost.

How should an MBR be sized for a seafood plant?

Size the system from average and peak flow, wastewater loading, pretreatment performance, membrane configuration and required redundancy—not from nominal flow alone. The EPA states that peak design flow should be no more than 1.5–2 times average design flow; above that range, the design may require additional membranes or internal or external equalization. Ask the supplier to document every design flow and loading assumption.

How do I select a seafood wastewater MBR supplier?

Require a wastewater-specific process basis, relevant pilot or operating evidence, a complete included-equipment list, a maintenance plan, membrane warranty terms, local support and written acceptance criteria. Also ask the supplier to define the biological process, pretreatment performance, cleaning triggers, redundancy and treatment-train boundaries. The MBR wastewater treatment cost per m³ guide can support commercial structuring, but it cannot replace site-specific technical review.

Can an MBR alone meet a seafood wastewater discharge or reuse specification?

Do not assume so. Membranes remove solids effectively, but additional treatment is required for dissolved contaminants; the cited AnMBR effluent contained COD of 250.43 mg/l, TP of 19.96 mg/l and TN of 62.65 mg/l and required post-treatment. Select the biological route and polishing train against the applicable permit or reuse specification, receiving-water conditions and pretreatment requirements.

Is MBR permeate suitable for washing, irrigation or cleaning?

Those were potential uses identified in the Kenya pilot, which reported permeate within <100 mg/l COD, 5–30 mg/l NO3--N and ≤5 mg/l PO43--P. They are study findings, not guaranteed project uses. Confirm suitability through site-specific treatment, validation and the receiving reuse specification, including any additional disinfection and pretreatment requirements.
