Which treatment fits a Heavener food-processing plant?
For food and beverage wastewater treatment in Heavener, MBR is usually the better fit when consistent solids separation, low BOD and TSS, a compact installation, automation, or water reuse justify higher capital and operating costs. Conventional activated sludge generally has the lower initial cost and remains suitable when space is available and discharge limits are less demanding. EPA reports that MBRs are suitable for some industrial and commercial applications and produce effluent suitable for reuse applications. The final choice requires a wastewater characterization, site hydraulic review, and the applicable permit and reuse criteria.
Start the selection with specific site inputs: receiving stream and permit category, average and peak wastewater flow, production and cleaning schedules, required BOD, COD and TSS limits, reuse targets, available footprint, utilities, and operator capability. These inputs determine whether the difference in solids separation, reactor volume, downstream polishing and operating burden is worth paying for.
EPA’s Wastewater Management Fact Sheet: Membrane Bioreactors identifies better effluent quality, smaller space requirements and easier automation as MBR advantages over conventional biological systems. It also states that MBR capital and operating costs are typically higher than conventional systems at the same throughput. That is a framework for evaluating MBR cost and selection in 2026, not a substitute for a Heavener-specific cost estimate.
For a food-processing plant, the decision sequence is:
- Obtain written discharge or reuse criteria.
- Characterize average and peak flows and wastewater constituents.
- Check whether fats, proteins, sugars, solids or cleaning chemicals require pretreatment.
- Compare the full treatment train, footprint and operating resources.
- Select MBR, conventional activated sludge, or MBR followed by additional polishing.
Technology preference alone is not a defensible basis. A preliminary engineering screen can identify the likely train, but final selection requires representative wastewater samples and a site-specific hydraulic review.
How CAS and MBR treat food and beverage wastewater
Conventional activated sludge and MBR both use microorganisms to remove biodegradable organics, but they separate biological solids differently. That difference changes the downstream treatment, plant layout and operating responsibilities.
In conventional activated sludge, mixed liquor enters a secondary clarifier, where biomass settles and is separated from treated water. The clarified effluent may then require filtration or other tertiary treatment when finer solids removal, pathogen control or reuse preparation is necessary. A secondary clarifier therefore remains a critical process element whose hydraulic and solids-handling performance affects downstream results.
An MBR combines a suspended-growth biological reactor with membrane filtration. EPA states that membrane filtration can replace the secondary clarifier and sand filters used in a typical activated-sludge system. The membranes retain microorganisms and suspended material while biological treatment addresses biodegradable organics. This separation of functions is important: a membrane is a solids-retention barrier, not a universal removal mechanism for dissolved contaminants. EPA states that removal of dissolved wastewater components must be facilitated with additional treatment steps.
| Process element | Conventional activated sludge | MBR |
|---|---|---|
| Organic removal | Suspended-growth biological reactor | Suspended-growth biological reactor |
| Solids separation | Secondary clarifier | Membrane filtration replaces the clarifier and can replace sand filters in a typical activated-sludge system, according to EPA |
| Effluent characteristic | Requires downstream polishing when the endpoint demands finer solids removal or reuse preparation | EPA reports low concentrations of bacteria, TSS and BOD, with low phosphorus also identified in the fact sheet |
| Primary fouling risk | Clarifier settling and sludge-handling limitations | Debris, fats, proteins, sugars and biological solids reaching the membranes |
| For dissolved salts and other dissolved constituents | Additional treatment is generally required | Additional treatment is still required; an MBR does not replace desalination or equivalent removal steps |
ZwitterCo’s food-sector review states that MBR plus reverse osmosis can provide multi-stage treatment, but identifies RO as the stage needed when dissolved salts and other dissolved constituents must be removed. The resulting sequence is therefore biological treatment, membrane solids separation and, where required, further polishing—not an assumption that MBR permeate alone meets every reuse specification.

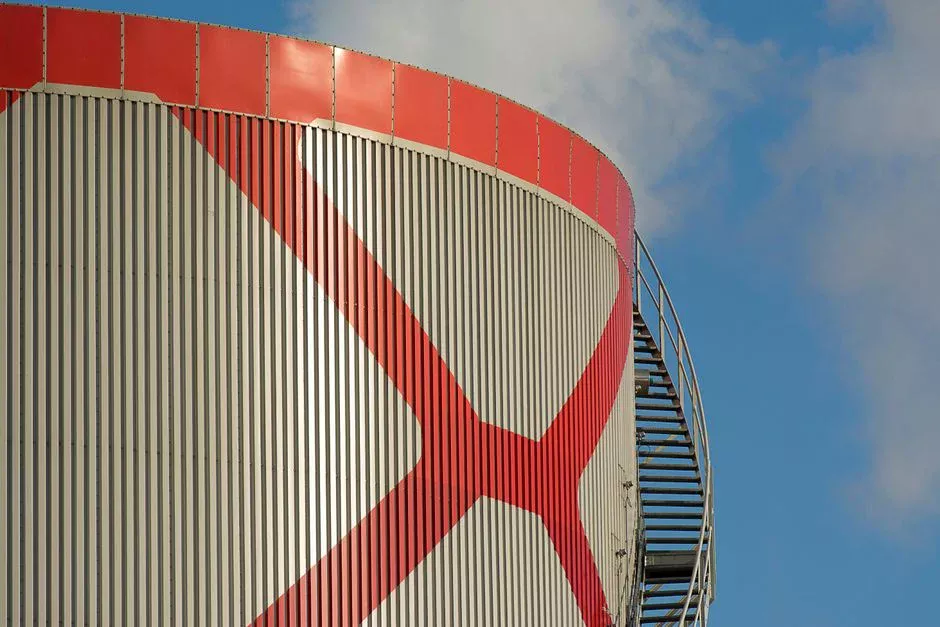

Effluent quality, footprint, and operating complexity
MBR improves solids separation and reactor compactness, but it exchanges membrane-system duties for clarifier and conventional filtration duties. The buyer should compare the consequences of that trade over the full operating life.
A conventional system depends on secondary-clarifier performance to separate biomass from treated water. MBR filtration provides a more controlled solids-retention barrier and typically produces effluent with low suspended solids. EPA reports that MBR effluent contains low concentrations of bacteria, TSS and BOD and low phosphorus, facilitating high-level disinfection.
EPA also states that membrane filtration permits a higher biomass concentration, allowing smaller bioreactors, and that MBR systems need less space and can support higher flow or improved performance in a smaller space than a conventional design using secondary clarifiers and sand filters. The integrated MBR membrane bioreactor system is specified by HydropureWater as submerged PVDF filtration below 1 μm with a 60% smaller footprint than conventional systems. That is one manufacturer’s product specification, not a universal MBR benchmark or a Heavener site guarantee.
| Evaluation item | Conventional activated sludge | MBR |
|---|---|---|
| Capital and O&M | Generally lower capital cost at comparable throughput | EPA reports typically higher capital and operating costs at the same throughput |
| Solids separation | Clarifier settling performance is critical | Membrane filtration provides a controlled solids-retention barrier |
| Space | Requires space for biological treatment and secondary clarification, with filters where required | EPA identifies smaller space requirements as an advantage |
| Maintenance | Clarifier, aeration, sludge settling, pumps and any filters require attention | Adds membrane cleaning, fouling control, eventual replacement and air-scour energy |
| Automation | Conventional process operation and controls | EPA identifies ease of automation as an MBR advantage |
| Waste sludge | Conventional solids processing | EPA states that standard activated-sludge solids-processing technologies can be used; MBR sludge can have a low settling rate and may require chemicals for acceptable disposal |
EPA lists membrane cleaning, fouling control, eventual replacement and higher air-scour energy among MBR disadvantages. CAS avoids those membrane-specific burdens, but variable clarifier performance, settling constraints and added filter or tertiary needs can limit the final effluent or consume space. The comparison should therefore include the downstream treatment removed by the MBR, not just the biological reactor and membranes.
Protect the MBR from fats, proteins, and production peaks
Food-processing wastewater can foul an MBR before the biological process has stabilized because production batches, clean-in-place cycles and ingredient changes create concentrated, intermittent loads. The pretreatment design must therefore follow the actual discharge schedule and constituent profile.
ZwitterCo states that food and beverage streams contain sugars, proteins and fats that can quickly cause biofouling and scaling on conventional membranes. Ask each bidder for flow during production, cleaning, flushing, product changeover and shutdown, together with FOG, suspended solids, protein, pH, temperature, COD and BOD characteristics. These data determine whether screening alone is adequate or whether solids and oil removal must precede the biological reactor.
Equalization buffers production and cleaning discharges, dilutes shock loads and gives operators time to respond to upset streams. Whether it is needed, and whether it can be internal or must be external, follows from the peak-flow review. EPA states that peak design flow should generally be no more than 1.5 to 2 times average design flow; if the peak exceeds that range, additional membrane capacity or equalization is required.
| Design input or protection measure | Engineering requirement supported by the research |
|---|---|
| Fine screening | EPA requires 1- to 3-mm cutoff fine screens immediately before MBR membranes, depending on the manufacturer |
| Hollow-fiber membrane screening | EPA states that hollow-fiber membranes typically require 1- to 2-mm screening |
| Plate-membrane screening | EPA states that plate membranes require 2- to 3-mm screening |
| Peak-flow control | EPA states that peak design flow should generally be no more than 1.5 to 2 times average design flow; otherwise add membrane capacity or equalization |
| FOG, oil, solids and colloidal removal | Use DAF pretreatment for food-processing wastewater where the wastewater characterization shows material that should be removed before biological treatment or membrane filtration |
| Screen handling | Specify the mechanical bar screen or equivalent screening arrangement, screen cleaning frequency and the captured-material disposal route |
DAF is not automatically required for every food plant. It becomes credible where the characterization demonstrates suspended solids, FOG, oil and grease, or colloidal material that would overload biological treatment or foul membranes. Conversely, a bar screen protects against debris but does not remove dissolved fats or fine colloids. The bidder should therefore connect each pretreatment claim to measured wastewater constituents and the membrane manufacturer’s protection requirements.

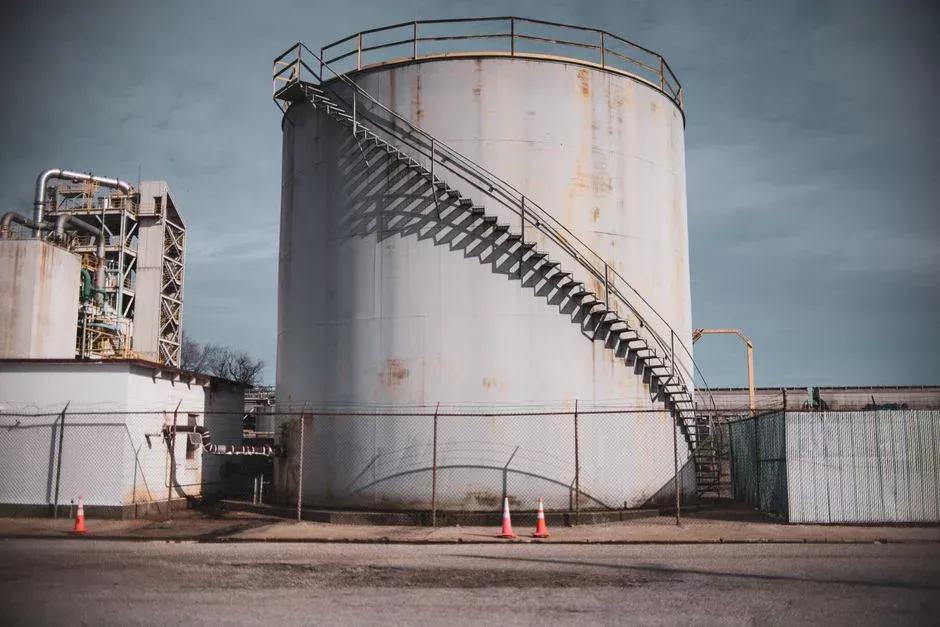

Match the treatment train to discharge or reuse goals
The correct endpoint determines the treatment train: conventional discharge, reuse with low suspended solids, or reuse requiring removal of dissolved constituents. MBR improves solids separation; it does not independently deliver near-potable water or remove every dissolved contaminant.
- Conventional discharge: Use conventional activated sludge when the permitted discharge route is conventional, adequate space is available and lower capital cost is the priority. Include filtration, disinfection or other polishing if the written permit or reuse criteria requires it.
- Low-solids reuse preparation: Use MBR when low TSS and BOD, compact layout, automation or reuse readiness justify the added cost. EPA states that MBR effluent is readily discharged to surface streams or can be sold for reuse such as irrigation, subject to the applicable requirements.
- Dissolved-contaminant removal: Use MBR plus RO or another polishing process when the endpoint requires removal of dissolved salts or other dissolved constituents. The MBR provides low-suspended-solids water that can serve as polishing-stage feed when the overall design calls for it.
EPA notes that MBR permeate has low suspended solids, making disinfection easier and stating that disinfection might not be required depending on permit requirements. That is not permission to omit disinfection without a written regulatory determination. Industrial reuse also requires matching the treatment objective to the intended use: irrigation, cooling, process rinsing and near-potable applications do not have the same dissolved-solids requirements.
The industrial reverse-osmosis water purification system is described by HydropureWater for food and beverage applications. Its relevance does not establish that RO is needed at every Heavener plant. Include it when the reuse specification or water chemistry requires dissolved-contaminant removal that the biological process and MBR cannot provide.
Ask the reuse authority for written acceptance criteria covering constituents, monitoring, reliability and operating conditions. “Reuse-ready” should therefore mean demonstrated compliance with the stated endpoint, not a generic claim based on membrane efficiency alone.
Build a defensible MBR versus CAS procurement comparison
A defensible procurement comparison requires every bidder to price the same treatment objective and operating boundary. Otherwise, a low bid may omit pretreatment, polishing, sludge handling, utilities or membrane replacement.
Issue a common basis of design covering average flow, peak flow, production schedule, wastewater characterization, treatment objectives, effluent guarantees, available footprint, utilities, disposal route and sludge-handling responsibility. Then require the installed scope to include screening, equalization, the biological reactor, membrane modules where applicable, aeration, controls, pretreatment, disinfection, sludge handling and downstream polishing.
| Bid item | Information every supplier should provide |
|---|---|
| Design basis | Average and peak flow, production and cleaning schedule, wastewater characterization, permit or reuse criteria, footprint and utilities |
| Installed treatment scope | Screening, equalization, biological treatment, membrane system, aeration, controls, pretreatment, disinfection, sludge handling and polishing |
| Membrane data | Material, pore size, module configuration, design flux, cleaning chemicals, expected cleaning frequency, replacement provisions and warranty terms |
| Operating resources | Electrical demand, air scour, chemical cleaning, operator labor, spare membranes, planned downtime and response arrangements |
| Redundancy | EPA describes an N plus 1 membrane-unit approach that can preserve treatment capacity during maintenance; applicability depends on site flow and maintenance plan |
| Performance and commercial support | Project-specific guarantees, acceptance tests, commissioning criteria, technical support, spare-parts availability and warranty exclusions |
Do not accept an unsupported membrane lifetime as a budget assumption. EPA notes that membrane life affects cost-effectiveness and that guarantee length differs among providers, so require the terms and conditions behind any claim. Treat the HydropureWater page as one manufacturer’s specification: request project-specific validation of effluent, footprint and fouling assumptions before using it as a design basis.
Compare bids over the same operating scenario. Include electrical demand, air scour, cleaning chemicals, labor, spare modules, sludge disposal and the consequences of membrane downtime. Capital price alone will obscure the real difference between a CAS train with downstream filters and an MBR train with redundant membrane capacity.
Frequently Asked Questions
How much more does an MBR cost than conventional activated sludge for a food-processing plant?
EPA reports that MBR capital and operating costs are typically higher than conventional systems for the same throughput, with membrane cleaning, fouling control, replacement and air-scour energy contributing to O&M. There is no supported Heavener price in the available research. Request a full-scope installed price and operating-cost model using the plant’s average and peak flow, wastewater characterization, pretreatment, equalization, redundancy, sludge route and any polishing. The 2026 wastewater treatment plant cost benchmarks can support budgeting structure, but it cannot supply a project quotation without those inputs.
How should MBR capacity be sized for peak production and cleaning flows?
Size the train from average flow, peak flow, equalization, pretreatment and the production and cleaning schedule—not from annual wastewater volume alone. EPA’s design checkpoint is that peak design flow should generally be no more than 1.5 to 2 times average design flow; if it exceeds that range, add membrane capacity or equalization. The bidder should also show how the selected design protects the membranes during product changeovers, shutdowns and concentrated clean-in-place discharges.
What should a buyer check when selecting an MBR supplier?
Require a project-specific wastewater characterization, treatment guarantees, membrane material and configuration data, fouling-control plan, cleaning protocol, redundancy strategy, maintenance support, commissioning tests and full-scope pricing. Also ask how the supplier will validate the stated footprint and how membrane replacement and downtime risks are handled. A manufacturer’s general performance statement is not a substitute for a site-specific guarantee.
Does MBR alone remove every contaminant needed for reuse or discharge compliance?
No. MBR combines biological treatment with membrane solids separation, and EPA states that dissolved wastewater components require additional treatment steps. Request written discharge or reuse criteria and demonstrate compliance with the complete train. If dissolved salts or other dissolved constituents must be removed, evaluate MBR followed by RO or another appropriate polishing process; MBR permeate alone should not be described as near-potable or universally reuse-ready.
