Lancaster Mining Pretreatment 2026: Meeting Sewer Discharge Limits

The Two Compliance Layers a Lancaster Mining Operation Must Clear

A mining or metals operation near Lancaster, PA that discharges to a regional sewer faces two stacked compliance layers, and only one of them is on the federal book. The first layer is the federal categorical floor, applied through the site's NPDES permit: for a mineral mining or aggregate operation the citation is 40 CFR Part 436 (Mineral Mining and Processing Effluent Guidelines), which the EPA promulgated in 1975 and amended in 1976, 1977, 1978, and 1979, and which covers wastewater from mine drainage, mineral processing operations, and stormwater runoff (EPA, 2026-02).

For an operation that processes metal ore rather than industrial minerals, the categorical citation shifts to 40 CFR Part 437 (Ore Mining and Dressing), which carries active numeric limits for metals and suspended solids. The second layer is local: the receiving POTW administers an Industrial Pretreatment Program under 40 CFR Part 403, issues Industrial User Permits to Significant Industrial Users, and enforces site-specific Local Limits for heavy metals, pH, and TSS. LASA's pretreatment program, administered under its Chapter 60 Industrial Waste rules, is a parallel example of how a regional authority reconciles EPA categorical standards with local limits and runs a surcharge program that recovers treatment costs when influent exceeds 250 mg/L BOD, 250 mg/L TSS, 40 mg/L TN, or 12 mg/L TP (lasa.org).

Both sets of numbers have to be in front of the engineer when the train is sized, because designing to the federal floor alone will underdesign for the local ceiling and designing to the local ceiling alone will not satisfy the categorical rule. The Lancaster-area operator should request the sewer authority's current Local Limits table, surcharge thresholds, and SIU criteria before specifying equipment, and should confirm the NPDES permit's incorporated 40 CFR Part 436 or 437 subpart and its current numeric effluent limits at the same time. That dual confirmation is the difference between a defensible scope of supply and a return-to-bid later.

Which 40 CFR Part 436 Subpart Applies to a Lancaster-Area Site

The first subpart check determines whether federal numeric limits exist at all. 40 CFR Part 436 is organized by mineral, and each subpart either has active numeric effluent limits or is reserved, meaning no current federal numeric ceiling has been promulgated. The EPA effluent guidelines page lists the following as reserved: Dimension Stone (Subpart A), Lightweight Aggregates (Subpart H), Mica and Sericite (Subpart I), Trona (Subpart P), Rock Salt (Subpart Q), Mineral Pigments (Subpart T), Lithium (Subpart U), Fire Clay (Subpart AA), Attapulgite and Montmorillonite (Subpart AB), Kyanite (Subpart AC), Shale and Common Clay (Subpart AD), Aplite (Subpart AE), Kaolin (Subpart AG), Ball Clay (Subpart AH), Feldspar (Subpart AI), Talc/Steatite/Soapstone/Pyrophyllite (Subpart AJ), and Garnet (Subpart AK) (EPA, 2026-02). Lancaster County is a known dimension-stone and aggregate region, so the most common Part 436 fit for a local quarry is Subpart A or Subpart H, both reserved, which means the operator is regulated to the Local Limits issued by the receiving POTW rather than to a federal numeric ceiling.

An operator producing metals rather than crushed stone or aggregate leaves Part 436 and falls under 40 CFR Part 437, which carries active numeric effluent limits for metals and suspended solids. Confirming the right subpart up front is what tells the engineer whether the federal layer is a numeric constraint or a framework-only layer, and that distinction changes the design margin and the control loop on pH and metals.

Characterizing the Wastewater Streams a Lancaster Metals Plant Actually Generates

The second engineering step, before any equipment is specified, is to characterize each wastewater stream separately. Mining operations produce some of the most chemically complex wastewater of any industrial sector because acid mine drainage, process water, tailings pond effluent, and dewatering discharge can all be present at the same site (AMPAC USA, 2025-09). When sulfide minerals such as pyrite and pyrrhotite in waste rock and tailings oxidize, the result is sulfuric acid that leaches iron, manganese, copper, zinc, arsenic, and cadmium at concentrations that exceed regulatory limits. Process water from ore processing (flotation, heap leaching, cyanide gold extraction, chlorination) carries process chemicals and dissolved ore constituents and often runs high in TDS, with cyanide, ammonia, or chloramines depending on the circuit (AMPAC USA, 2025-09). Tailings pond effluent adds fine solids, processing reagents, and leached metals; dewatering discharge varies with the geology of the pit or underground workings.

The trap to avoid is the "one stream fits all" assumption. A copper leach circuit, a gold mill with a cyanide detoxification step, and a dimension-stone quarry with sediment-laden runoff cannot share a single default treatment train, and the engineer who treats them as a single stream will underdesign for the worst-case chemistry. The defensible move is to request representative sampling by stream, recording peak and average m³/h, pH, a full metal scan, TDS, and TSS, and to keep that data in the basis of design before any RFQ goes out.

The Six-Step Treatment Train That Maps to Local Sewer Limits

The defensible unit-operation sequence for a Lancaster-area operation in 2026 has six steps, and each one maps to a specific discharge parameter and a specific piece of equipment. Step 1 is pH correction: raise pH with lime so dissolved metals precipitate as metal hydroxides and gypsum drops out, with a lime raise to pH above 10 before thickening as the published setpoint (AMPAC USA, 2025-09; PMC review, 2024-02). Step 2 is coagulation and flocculation, where the automatic chemical dosing skid for lime and flocculant aggregates suspended solids and fine metal particles into settleable or floatable flocs. The coagulant and flocculant choice has to match the floc density that drives the next step. Step 3 is solids separation: a DAF system for mining wastewater solids separation is preferred when the floc is buoyant or the influent carries oils and fines that float; a lamella clarifier for metal hydroxide sludge is preferred when sludge volume and footprint are the constraint and the floc is heavy. Step 4 is multimedia filtration to drop turbidity and colloids and protect the downstream membranes, using a multi-media filter for RO pretreatment with a target SDI after the filter, not just an inlet turbidity number. Step 5 is the membrane polish: a ultrafiltration system for RO pretreatment handles fine colloids, and an industrial RO system for mining wastewater takes the dissolved salts and metals below the local ceiling, with RO rated at greater than 99% rejection of dissolved metals and salts, 50–70% recovery on an AMD feed, and 70–85% recovery as the RO stage of a zero-liquid discharge train (AMPAC USA, 2025-09). Step 6 is monitoring and self-reporting: a PLC/HMI with continuous pH, flow, and conductivity feeding POTW self-monitoring records, with the surcharge layer enforced when influent exceeds the domestic-strength thresholds of 250 mg/L BOD, 250 mg/L TSS, 40 mg/L TN, or 12 mg/L TP (lasa.org).

For a more detailed comparison between DAF and lamella for mining wastewater, see the DAF vs clarifier for mining wastewater factory selection guide, and for the categorical-side framing on a parallel metals segment, see metals plant pretreatment compliance and industrial pretreatment program compliance.

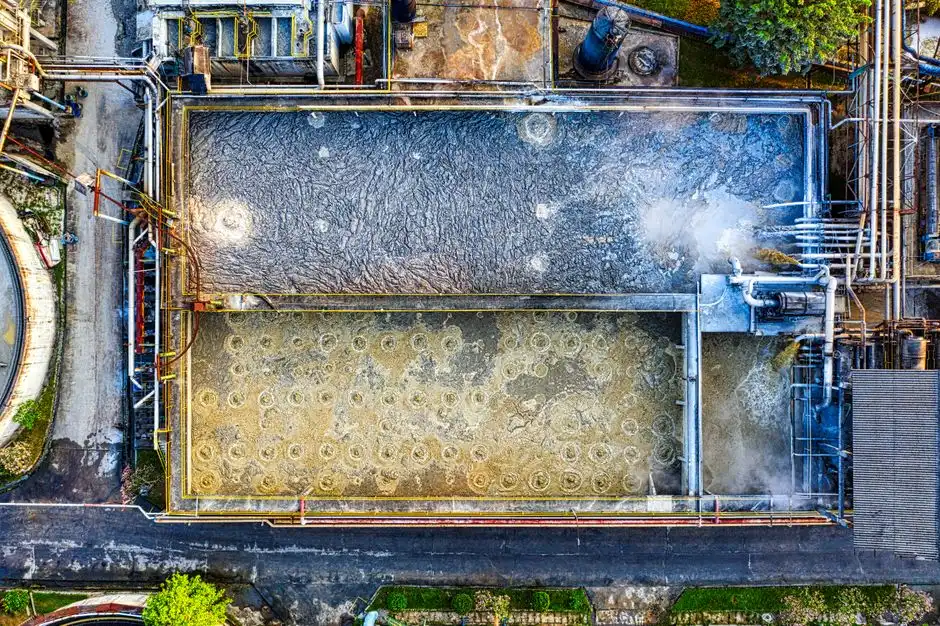

Sizing the Train for a Lancaster-Area Operation in 2026

The supplied research does not publish flow ranges specific to Lancaster-area operations, so sizing must be done against the operator's own basis of design rather than a generic range. A small dimension-stone or sand-and-gravel site typically runs in the low-to-mid two-digit m³/h range; a process plant with heap leach or milling sits an order of magnitude higher. The operator should size against peak daily discharge, not the average, because peak flows drive equalization basin volume and pump selection. The basis of design to put into an RFQ is the peak and average flow in m³/h, the influent pH and full metal profile from a representative sampling round, the local sewer authority's Local Limits for metals, pH, and TSS, and the desired recovery percentage if reuse is in scope. The supplied research does not publish price points for a complete pretreatment train, so a buyer requests a quotation against their own basis of design rather than rely on a published range.

Where Reuse Pays Back the Compliance Investment

RO-enabled reuse can reduce freshwater intake by 40–60% versus once-through operation, and that is the lever to monetize the compliance investment (AMPAC USA, 2025-09). Every cubic meter the plant reuses is a cubic meter it does not pay to draw from a freshwater source or to discharge to a surcharged sewer. Where zero-liquid discharge is required, RO handles the bulk water recovery, typically 70–85% of the feed, before the more energy-intensive thermal stages handle the remaining concentrate; the operator should request a recovery curve from the supplier, not just a nameplate figure (AMPAC USA, 2025-09). The sizing logic is to reuse as much as economics allow, then polish the rest to sewer quality, because even with reuse, any volume not recycled must still meet local limits on metals, pH, and TDS. For a compact package on a small site, an integrated water purification skid combines equalization, pH correction, coagulation, DAF or lamella, multimedia filtration, and RO in one footprint.

Choosing a Supplier and What to Put in the RFQ

The first filter is installed-base: confirm the supplier has built the same unit operations, including DAF or lamella, multimedia filter, UF, RO, and sludge dewatering, at flows in the same order of magnitude as the Lancaster site. The second filter is integration: require that the proposed scope ties the chemistry dosing, the PLC/HMI controls, and the membrane skid into a single integrated control system so the data lands in one record set for POTW self-reporting. The third filter is performance documentation: ask for a recovery curve on the RO (not just a nameplate figure), a target SDI after the multimedia filter, and a cake dryness target from the filter press for mining sludge dewatering. The operator's own basis of design, including peak and average flow, full metal scan, local limits, and desired recovery, is what unlocks a defensible quotation; published price points are not available in the supplied research for this category.

Frequently Asked Questions

Which 40 CFR Part 436 subpart applies to a Lancaster dimension-stone or aggregate site?

Most Lancaster County dimension-stone and aggregate operations fall under Subpart A (Dimension Stone) or Subpart H (Lightweight Aggregates), both of which are reserved under 40 CFR Part 436, so no federal numeric effluent limit applies and the Local Limits issued by the receiving POTW are the controlling ceiling (EPA, 2026-02). A buyer should request the sewer authority's current Local Limits table and surcharge thresholds at the same time as confirming the NPDES permit's incorporated subpart.

What stack of regulations applies to a metals finishing or ore-processing operation near Lancaster?

A metals or ore-processing operation leaves 40 CFR Part 436 and falls under 40 CFR Part 437 (Ore Mining and Dressing), which carries active numeric effluent limits for metals and suspended solids incorporated through the site's NPDES permit. On top of that, the receiving POTW's Industrial Pretreatment Program under 40 CFR Part 403 issues an Industrial User Permit to Significant Industrial Users and enforces site-specific Local Limits and a surcharge program for BOD, TSS, TN, and TP above domestic strength (lasa.org). A defensible scope has to clear both layers.

What unit operations belong in a defensible 2026 pretreatment train, and where does RO fit?

The defensible sequence is pH correction with lime, coagulation and flocculation, DAF or lamella solids separation, multimedia filtration with a target SDI, and a membrane polish using UF and RO rated at greater than 99% rejection of dissolved metals and salts, with continuous PLC/HMI monitoring on the back end (AMPAC USA, 2025-09). RO is the polishing step that conventional methods cannot replace and is also the unit that enables 40–60% freshwater reuse (AMPAC USA, 2025-09).

What should go into an RFQ so suppliers return a defensible quotation?

The basis of design that unlocks a defensible quote is the peak and average flow in m³/h, the influent pH and full metal profile from a representative sampling round, the local sewer authority's Local Limits for metals, pH, and TSS, and the desired recovery percentage if reuse is in scope. The supplied research does not publish price points for a complete pretreatment train, so a buyer should request a quotation against their own basis of design rather than rely on a published range, and should require a recovery curve on the RO, a target SDI after the multimedia filter, and a cake dryness target from the filter press.
