Why EV and Auto Parts Wastewater in La Vergne Is a Different Problem
EV battery and auto parts plants along the La Vergne–Smyrna–Murfreesboro corridor generate an effluent signature that breaks the assumptions built into a municipal CAS design. Cutting fluids, machining coolants, drawing compounds, phosphate detergents, and trace metals (notably Ni, Cu, Zn, and Al) dominate the load, and the surfactant fraction keeps much of the oil emulsified rather than free-floating. Flows swing hard: a single shift changeover or a batch rinse cycle can move influent loading by a factor of two to three over the shift average, which a basin sized for steady domestic loading cannot absorb gracefully.
The regulatory pressure is Tennessee-specific. TDEC industrial pretreatment permits enforce oil and grease, metals, and COD limits that have been tightening through the 2026 review cycle, and any plant discharging to a local POTW or to surface water under a direct permit is now reading those limits line by line. Nissan Smyrna assembly, several Tier-1 EV suppliers, and ancillary parts makers sit within roughly 20 miles of La Vergne, so the decision between retrofitting a CAS basin and installing an MBR skid is not academic for this buyer. A useful cross-sector reference for the same trade-off in a different industrial matrix is this MBR vs CAS comparison for chemicals wastewater.
How Conventional Activated Sludge Handles EV Effluent

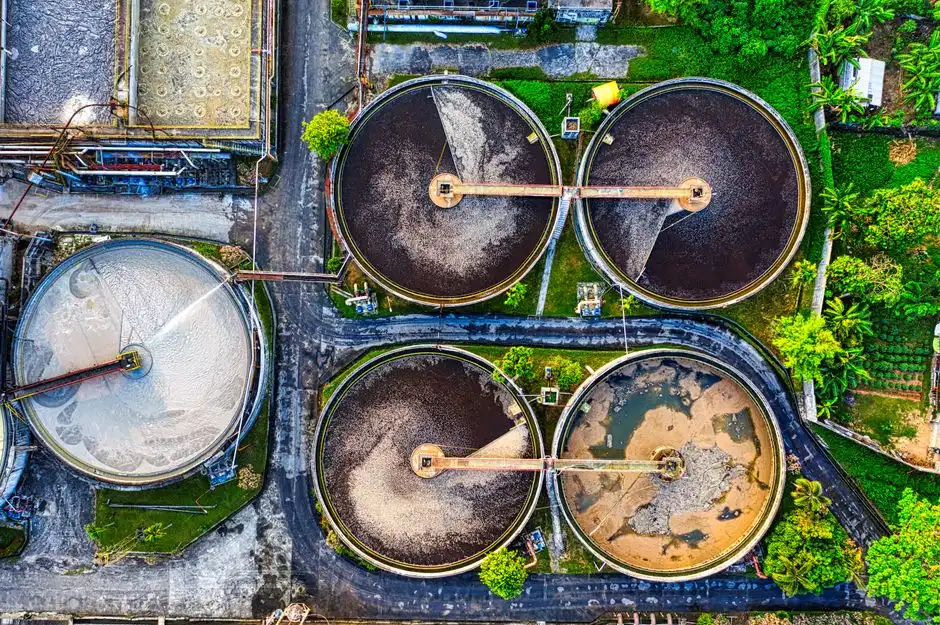

A conventional activated sludge system uses an aeration tank followed by a secondary clarifier, with biomass separated by gravity settling rather than by a physical barrier. When loads are steady and biodegradable, CAS does the oxidation job reliably at a capital cost most plant engineers already understand. The trouble starts when the feed is dominated by emulsified oils and synthetic surfactants from machining wash water, because these compounds disrupt floc formation and the clarifier loses its settling margin. The visible symptom is sludge washout over the weir, rising effluent TSS, and a clarifier that no longer responds to return-activated-sludge tuning.
CAS effluent almost always needs tertiary polishing (sand filter, cartridge, or UF) before any water-reuse application; the secondary clarifier alone is not a reuse-quality stream. The civil footprint is also larger than the MBR alternative. The HydropureWater integrated MBR catalog states a 60% smaller footprint relative to conventional layouts, and while that is a vendor-side figure, the directional difference is consistent with published comparisons: a clarifier-driven layout needs both an aeration basin and a settling volume plus sludge return, whereas an MBR collapses those into a single tank. For a La Vergne plant with limited civil space inside an existing building footprint, that is often the first line item on the retrofit evaluation.
How an MBR Handles EV Effluent Differently
An MBR couples a biological reactor with a submerged membrane module — typically PVDF flat sheet, in the 0.1–0.4 µm pore range — so the membrane replaces the secondary clarifier and retains biomass regardless of how well it settles. Because settleability no longer gates the system, the reactor can be run at mixed-liquor suspended solids well above the practical ceiling of a clarifier-based CAS. The 2012 theses.fr MBR viability study (Agence Bibliographique de l'Enseignement Supérieur, 2012) discusses this elevated MLSS operating window and its effect on biological capacity, and the same point is consistent with the broader peer-reviewed MBR literature.
Sub-micron membrane filtration rejects suspended solids, most bacteria, and a meaningful fraction of emulsified oil droplets, producing a clarified effluent that is one polishing step closer to reuse. The HydropureWater integrated MBR system specifies under 1 µm filtration with a 60% smaller footprint than conventional layouts and a capacity envelope of 10–2,000 m³/day, which covers essentially every plant size in the Smyrna–La Vergne corridor. On trace organics, the peer-reviewed comparisons in Elsevier Water Research (2008) on pharmaceuticals and Wiley Water Environment Research (2009) on emerging pollutants both report MBR outperforming CAS on removal of many low-molecular-weight and refractory compounds, which matters for EV/auto plants that may carry PFAS, solvent traces, or glycol residues from cleaning lines.
Side-by-Side: MBR vs CAS for the La Vergne Plant
The table below maps each technology to the metrics a plant engineer actually reports on. Qualitative data is sourced to the HydropureWater MBR catalog (60% footprint reduction, <1 µm filtration), Elsevier Desalination (2012) on reuse advantage, and the 2008/2009 peer-reviewed comparisons on trace organics.
| Parameter | Conventional Activated Sludge (CAS) | Membrane Bioreactor (MBR) |
|---|---|---|
| Effluent TSS | Dependent on clarifier settling; vulnerable to oil/surfactant upsets | Consistently low; set by membrane integrity, not biomass settleability |
| Effluent BOD/COD | Good at steady load; degrades under shock | Good at steady and shock load due to higher MLSS capacity |
| Oil & grease tolerance | Sensitive; emulsified oil disrupts floc and clarifier | More tolerant; DAF upstream still required to protect membrane flux |
| Footprint | Larger (separate aeration + clarifier + RAS) | ~60% smaller than conventional layouts (HydropureWater catalog) |
| MLSS operating range | Capped by clarifier settling (~3,000–5,000 mg/L practical) | Higher MLSS practical (8,000–12,000 mg/L range, per theses.fr 2012) |
| Reuse readiness | Secondary clarifier effluent typically not reuse-quality | Sub-1 µm clarified effluent; one step closer to RO/reuse polishing |
| Sensitivity to shock load | High; relies on biomass settling margin | Lower; membrane retains biomass through load swings |
| Operator skill | Lower; familiar to most plant staff | Higher; membrane cleaning and aeration control are added disciplines |
| Typical capex drivers | Civil works, blowers, clarifier mechanism | MBR skid, membrane modules, blowers, controls |
| Typical opex drivers | Aeration energy, sludge hauling | Higher aeration energy, membrane cleaning, periodic membrane replacement |
A shortlisted supplier should be asked to provide a site pilot or reference-plant dataset before any award.
Which System Fits Your La Vergne Plant: A Decision Framework
The right answer is a function of plant size, reuse intent, and what is already in the ground. The framework below is built around flow bands that match engineering decision points and the HydropureWater MBR capacity envelope of 10–2,000 m³/day.
| Plant profile | Reuse intent | Likely best fit | Key reason |
|---|---|---|---|
| < 50 m³/day, stable CAS in place, no reuse mandate | POTW discharge only | Retrofit: add DAF pretreatment and polishing to existing CAS | Lowest capex; MBR skid capex rarely justified at this scale |
| 50–500 m³/day, TDEC tightening or corporate reuse target | Partial reuse (cooling tower make-up, wash water) | MBR skid in a single integrated unit | Collapses aeration and clarification, supports variable loads, reaches near-reuse quality |
| > 500 m³/day, strict reuse and heat-recovery needs | High-grade reuse (boiler feed, process rinse) | MBR + RO polishing | MBR alone is not reuse-quality for TDS-sensitive loops; RO is needed downstream |
Before deciding, capture the influent oil and grease profile, the peak-to-average flow ratio across shifts, the available civil footprint, the effluent destination, and any corporate ESG or water-reuse target. For a pre-engineered membrane module sized to skid retrofit, the DF series flat sheet membrane module is a common reference point in this flow band.
Pretreatment and Polishing Around the MBR
An MBR is only as effective as the units in front of and behind it. Emulsified oil must be removed before the membrane or flux drops rapidly; dissolved air flotation is the standard front-end for EV/auto plants, and the DAF pretreatment unit in this catalog is sized to sit upstream of an MBR skid. Skipping DAF is the common cause of premature membrane fouling on machining effluent.
For reuse loops, an ultrafiltration or RO step is normally added after the MBR. Reuse targets that involve cooling-tower make-up or process rinse water usually require RO for TDS control, with UF as a safety barrier upstream. Sludge handling (filter press or lamella) and chemical dosing for pH and coagulant control should be designed in parallel, and multi-media filtration such as the catalog's multi-media filter typically sits between the MBR and any RO unit. The cost-per-cubic-metre picture for the full train is covered in the MBR cost per m³ 2026 guide.
Total Cost: What the Buyer Should Ask the Supplier
Request a written split of capex items — civil works, MBR skid, blowers, membrane module cost, DAF, controls — and a separate opex line for aeration energy, membrane cleaning chemicals, expected membrane replacement interval, and sludge hauling. MBR aeration energy is structurally higher than CAS because the membrane module needs continuous air scour, and that delta should be visible in the supplier's opex model. Require the supplier to provide a site-specific cost model with stated assumptions on influent quality, flow, and reuse targets before any award.
Frequently Asked Questions
What is the typical cost of an MBR versus a CAS retrofit for a La Vergne EV/auto plant?
Vendor-stated dollar figures should not be relied on without a site-specific model. Ask each shortlisted supplier for a written capex split (civil works, MBR skid, membrane module, DAF, controls) and an itemized opex (aeration energy, membrane cleaning chemicals, membrane replacement interval, sludge hauling) tied to your plant's measured influent quality and peak-to-average flow ratio. Also request a reference plant of similar flow band and influent signature so the energy and chemical assumptions can be benchmarked against actual operating data.
How should a La Vergne plant select an MBR or CAS supplier?
Shortlist on three verifiable inputs: a reference plant in the same flow band and effluent family (ideally automotive or metal-finishing), a written membrane replacement interval and cleaning protocol with chemical consumption numbers, and a documented commissioning plan that includes a site pilot on your actual effluent. Confirm the skid ships within your project timeline and that the supplier can support membrane module replacement locally.
Does an MBR actually handle emulsified cutting oils and machining coolants?
Yes, but only with DAF pretreatment in front of it. Emulsified oil that reaches the membrane will foul the module and collapse flux, so the MBR alone is not a complete answer for machining effluent. With a properly sized DAF upstream and the MBR running at the elevated MLSS window discussed in the theses.fr 2012 viability study, the system absorbs the shift-to-shift oil swings seen in EV/auto plants.
Is MBR effluent reuse-ready for an automotive plant?
MBR effluent is one step closer to reuse than CAS secondary effluent, but it is not reuse-quality on its own for TDS-sensitive loops such as boiler feed or process rinse. For cooling-tower make-up and general wash water, MBR effluent typically passes through UF and RO polishing. Confirm the final reuse target with the supplier so the polishing train is sized correctly from day one.
