Textile Wastewater COD Removal: 2026 Process Guide

What a textile wastewater COD train must actually remove

Dye-bath effluent is a multi-parameter problem, not a single number, and the published lab studies only become meaningful when the reader's own 24-hour composite sits in the same envelope. S2 reports a representative textile starting profile at COD 855 mg/L, BOD 340 mg/L, TDS 5,200 mg/L, TSS 1,600 mg/L and pH 12.5, with phosphate, ammonium, sulphate and measurable Cr, Cd and Pb (S2, RSC Adv, 2026). S4 frames the matrix as BOD, COD, TDS, TSS, pH and turbidity coupled, and warns that residual dyes, hydrosulphides and auxiliary chemicals block light and strip dissolved oxygen from receiving water, so designing on COD alone is not defensible (S4, Case Studies in Chemical and Environmental Engineering, 2022).

The influent envelope is what decides whether a quoted lab removal percentage applies. A fibre-rich reactive-dye stream carries very different suspended solids and colour loads than a polyester disperse-dye stream, and salt content from sodium sulphate or sodium chloride pushes conductivity into ranges that change oxidant demand and biological kinetics. Before trusting any single bench-scale number, map the plant's own COD, BOD, TDS, TSS, pH, colour, salinity, temperature and bromide against the S1 and S2 starting values; if the envelopes are within range, the AOP comparison in Stage 3 is directly applicable, and if they are not, the trial matrix in Stage 6 has to widen to cover the gap.

Compliance anchors: the textile COD ceiling you are designing to

The single most useful design anchor for a Chinese dye-house is the textile-specific GB4287-2012 limit, because it sits between the general industrial and the municipal envelopes and is tight enough to force a real polishing stage. GB4287-2012 sets the direct-discharge COD ceiling at 100 mg/L and the indirect-discharge ceiling at 200 mg/L, tightened from a previous 500 mg/L (S5, citing PeerJ 2017). For a European mill exporting to sewer the EU general limit sits below 120 mg/L, and the China general limit below 50 mg/L (S5, citing Arvia 2026), so a designer working to GB4287-2012 100 mg/L direct has a measurable margin against the general EU line but little margin against the China general line.

The discharge route must be fixed before the polish stage is sized, because the polishing train and the disinfection choice change with that route (S5). Direct discharge to a watercourse almost always requires an AOP polish and a final disinfection step, sewer discharge can often be met with biological plus a margin-stage polish, and reuse changes the envelope entirely to RO-grade targets. The table below summarises the relevant textile and general envelopes the engineer should be comparing against.

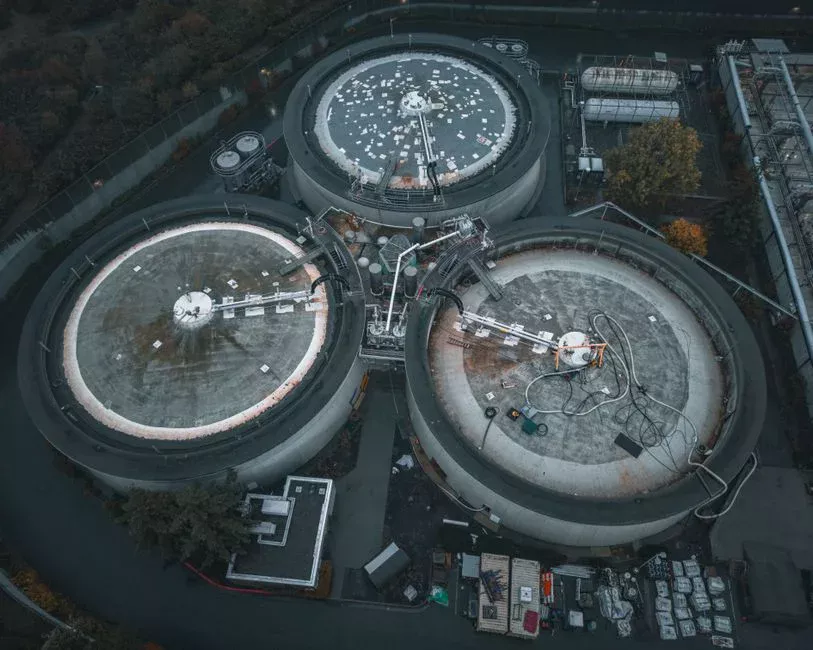

Stage 1: primary treatment to strip particulate COD, colour carriers and fibres

Primary treatment is the front of the plant and decides whether everything downstream works (S5). On a textile stream the primary stage must remove settleable and floatable solids, a portion of particulate COD, fibre debris, and the colour carriers that arrive as suspended dye aggregates; the most common selection is between dissolved air flotation (DAF) and high-rate lamella clarification, with a rotary bar screen upstream of both. S5 frames DAF as proven across food, pulp and paper, textile, metalworking and petrochemical pre-treatment duty, with a standard model range of 4–300 m³/h across 13 sizes so the same family scales from a single dye-house line to a large mill (S5).

Where building footprint is tight, a high-rate lamella clarifier with sludge recirculation and inline flocculation operates at surface loading rates of 20–40 m/h and can reduce coagulant consumption by up to 30%, a useful choice when the upstream stream is variable and the plot area is fixed (S5). Both DAF and lamella are best paired with an automatic coagulant and polymer dosing skid for textile plants so that coagulant feed tracks the actual influent load rather than a fixed setpoint. Upstream of the clarifier, a rotary bar screen for textile headworks protects the lift station and downstream biology from the rags, plastics and fibrous debris that textile plants generate.

The product side of this stage maps onto two proven options. For floatable and colloidal loads the practical pick is a DAF system for textile pre-treatment, sized to flow, SS loading and surfactant content rather than to catalogue capacity. For footprint-constrained sites a high-rate lamella clarifier for textile primary duty delivers the same particulate-COD removal with the higher surface loading rate, and the resulting sludge feeds forward to a dewatering press later in the train.

Stage 2: biological treatment for the biodegradable COD fraction

The biological stage is where the bulk of biodegradable COD is consumed, and published textile-relevant experience places cumulative primary plus secondary COD removal at 75–85% (S5, citing Arvia 2026). The configuration is chosen from influent strength, footprint, reuse targets and the operator skill available on site; the four options on textile duty are conventional activated sludge (CAS), A/O contact oxidation, sequencing batch reactor (SBR) and membrane bioreactor (MBR). S5 describes conventional activated sludge as the workhorse for high-flow municipal and food plants with land available, which on a large dye-house with plot to spare remains the lowest-energy choice.

Where footprint is constrained or the downstream polish is an AOP, MBR is the configuration that earns its place. S5 notes that the MBR membrane bioreactor couples activated sludge with submerged PVDF membrane filtration, delivers near-reuse-quality effluent with sub-1 µm filtration and a 60% smaller footprint than a conventional clarification-plus-basin layout, and accepts influent variability that would upset a settling tank. MBR modules in the 80–225 m² configuration produce 32–135 m³/day per module, with 10–20× lower energy consumption than external cross-flow systems (S5). All biological configurations are sensitive to upstream SS swings, which is exactly why primary solids removal on textile streams is non-negotiable (S5).

For a dye-house targeting GB4287-2012 100 mg/L direct the practical pick is an integrated MBR for textile biological stage, with a PVDF flat-sheet MBR module for textile duty as the upgrade path. The MBR's sub-1 µm polish also reduces the suspended-catalyst carryover that would otherwise scavenge hydroxyl radicals in the AOP stage that follows.

Stage 3: AOP polish to drop the recalcitrant, non-biodegradable COD

The residual COD that survives the biological stage is dominated by non-biodegradable, recalcitrant compounds, and removing it is the explicit purpose of advanced oxidation (S5, citing Arvia 2026). AOP variants on textile duty include ozone, UV/H₂O₂, Fenton, peroxone and electrochemical oxidation, and selection cannot be made from catalogue claims because scavenging demand varies sharply by dye class, salt load and pH (S5). S1, a Research Square preprint on real textile wastewater, quantifies four of these variants at bench scale and is the cleanest cost-and-energy data set in the cited research (S1).

S1 reports the following on real textile effluent: electro-oxidation (EO) alone at pH 5.5, 7.5 mA/cm², 40 min achieved 100% colour removal and 75.39% COD removal at 2.85 kWh/m³ and 0.304 US$/m³; peroxi-coagulation (PC) alone at pH 3, 7.5 mA/cm², 120 min achieved 89.41% colour removal and 74.28% COD removal at 2.34 kWh/m³ and 0.249 US$/m³; EO + Fe²⁺ at pH 3, 7.5 mA/cm², 40 min achieved 99.9% colour removal and 96.38% COD removal at 0.54 kWh/m³ and 0.199 US$/m³; PC + H₂O₂ at pH 3, 7.5 mA/cm², 40 min achieved 99.9% colour removal and 90.63% COD removal at 0.62 kWh/m³ and 3.466 US$/m³ (S1). Among the four, S1 identifies EO + Fe²⁺ as the most efficient on COD, energy and cost.

S2 reports a different polish, a bench-scale Azadirachta indica leaf extract plus polyaluminum chloride (PAC) process, which dropped textile COD from 855 to 47 mg/L, TDS from 5,200 to 1,500 mg/L, TSS from 1,600 to 110 mg/L, BOD from 340 to 20 mg/L, and pH from 12.5 to 6.6, with Cr from 1.3 to 0.233 mg/L, Cd from 0.147 to 0.030 mg/L and Pb from >0.01 to 0.347 mg/L (S2, RSC Adv, 2026). None of those residual heavy-metal values reached the WHO targets of Cr 0.05, Cd 0.003 and Pb 0.01 mg/L, so the S2 authors explicitly recommend advanced or integrated methods for full compliance, which is the same conclusion the engineer reaches on a real dye-house.

On textile matrices specifically, Fenton and EO + Fe²⁺ both exploit the iron-mediated hydroxyl radical pathway, but the iron generates an iron-bearing sludge that has to be dewatered downstream; an AOP choice therefore has a sludge-handling consequence (S1, S2, S5). The table below is the textile-specific AOP comparison that no top-3 page provides.

Train validation: treatability trial, COD test method, and supplier qualification

All published performance ranges must be validated per project on the actual dye-house effluent, because textile scavenging demand varies sharply with dye class, salt content and pH (S5, citing Arvia 2026). The trial must run on a representative 24-hour composite, not a grab sample, and it must cover at least the operating envelope the supplier will quote against: the four S1 operating points, the S2 green-chemistry point, and a salt-loading sweep that matches the plant's own sodium sulphate or sodium chloride range.

Standard COD test methods can be biased in bromide-rich industrial wastewater, and the test method itself should be reviewed before any limit is taken at face value (S5, citing Chemosphere 2019). The inputs the engineer must hand to the supplier are a 24-hour composite profile for COD, BOD, TSS, pH, temperature, FOG, salinity and bromide, plus the peak instantaneous flow and the fixed discharge route (S5). Sizing should target GB4287-2012 100 mg/L direct (or 200 mg/L indirect) with measurable margin, not to the limit itself (S5, S4).

The bill of materials the supplier should be asked to quote as a single train includes primary solids removal, the biological stage, the AOP polish, and the sludge dewatering for iron-bearing AOP residuals that follows any Fenton or EO + Fe²⁺ configuration. For broader context on the engineering envelope, the best technology to remove COD BOD from industrial wastewater buyer guide and the general COD and SS removal engineering guide sit alongside this article; for a geography-specific view, the textile wastewater treatment in South Africa 2026 guide applies the same DAF → MBR → AOP logic to a different influent envelope.

Frequently Asked Questions

What budget envelope should a dye-house expect for a COD removal train sized to GB4287-2012 100 mg/L direct?

No project-specific CAPEX or OPEX figure is provided in the cited research, so cost must be scoped against the variables that drive it: influent COD and SS load, peak flow, the discharge route (sewer vs surface water vs reuse), the polishing technology selected, and the level of automation (S5). The actionable check before requesting a price is to fix the 24-hour composite influent profile and the discharge route, then ask each supplier to quote on the same influent envelope and the same compliance target so that bids are comparable.

How do I qualify a supplier for a textile AOP polish without trusting catalogue claims?

Supplier selection should be driven by treatability-test evidence on the actual wastewater, validated COD removal data from reference plants of similar matrix, and the supplier's ability to integrate the polishing unit with the upstream biological train. The actionable check is to require documented reference plants in the same industry (textile) and pilot or bench data on a representative sample of the plant's own effluent before signing.

What is the right COD test method to use before sizing an MBR or AOP on textile effluent?

Standard COD test methods can be biased in bromide-rich industrial wastewater, so the test method itself should be reviewed before any limit is taken at face value (S5, citing Chemosphere 2019). The actionable check is to specify the test method in the supplier enquiry and to confirm it on the bench results before any biological or MBR sizing is frozen.

Can a green-chemistry polish alone deliver GB4287-2012 100 mg/L direct compliance?

On the cited S2 bench data, the Azadirachta indica + PAC process reduced COD from 855 to 47 mg/L and dropped Cr, Cd and Pb, but none of those residual metal values reached the WHO limits (S2, RSC Adv, 2026), and the S2 authors explicitly recommend advanced or integrated methods for full compliance with international discharge standards. The actionable check is to treat any green-chemistry bench result as a polishing data point, not as a stand-alone compliance certificate.
