Why Hydrostatic Test Water Is a Distinct DAF Application
A high-recycle (20–30%) dissolved air flotation unit with 10–50 µm micro-bubbles is the standard DAF configuration for hydrostatic test water from pipelines and pressure vessels. Sized for 50–500 mg/L oil+grease and 200–2000 mg/L TSS, it produces a clear overflow suitable for discharge under EPA POTW limits or direct reuse as utility wash water. DAF's proven track record separating industrial mineral oil (per Durban University of Technology research) and colloidal matter from water makes it the default pre-treatment or polishing step for test water recovery.
Hydrostatic test water is the water used to pressure-test new or refurbished pipelines, pressure vessels, storage tanks, and process piping before commissioning. It is then drained for disposal or recovery. Despite appearing clear, it carries a contaminant load that defeats conventional settling: free and emulsified oil from new pipe dope and thread sealant (typically 50–500 mg/L), rust and mill scale flaked from internal pipe walls (driving TSS to 200–2000 mg/L), and intermittent biocides such as glutaraldehyde or DBNPA used to control microbial growth during long test holds, plus fluorescent dye tracer added to leak-detection campaigns.
Conventional gravity settling fails on this stream for two reasons. First, emulsified oil droplets in the 1–20 µm range have negligible settling velocity under Stokes' law and will not separate in a clarifier with realistic residence times. Second, sub-50 µm particulates — rust fines, silica scale, and polymer fragments from thread sealant — remain in suspension indefinitely without coagulant bridging. DAF sidesteps both problems: microbubbles attach to oil droplets and colloidal particles, reducing their effective density and floating them in minutes rather than hours. Research from Durban University of Technology (S2) confirms DAF's optimisation on industrial mineral oil, while CRC Press pilot work (S1) demonstrates DAF's effectiveness on colloidal-laden water generally.
Test water is also intermittent and batch-style rather than continuous — a pipeline test campaign may produce 50–500 m³ over 3–14 days, then nothing for months. DAF's quick start-up (under 5 minutes from saturated recycle to stable float) and high turndown suit this duty cycle. The ZSQ series DAF system spans 4–300 m³/h across 13 models, matching both single-vessel test campaigns and multi-pig batch operations.
Core DAF Configuration Parameters for Test Water
A defensible DAF datasheet for hydrostatic test water requires six primary operating parameters: recycle ratio, micro-bubble size, hydraulic retention time, surface loading rate, coagulant/flocculant dose, and sludge handling. These specifications ensure the system handles the specific oil and solids loading of test water.
| Parameter | Typical Range | Design Default for Test Water | Driver / Trade-off |
|---|---|---|---|
| Recycle ratio (by volume) | 10–40% | 20–30% (10–15% for rust-only flush; 30–40% for heavy emulsified oil) | Drives air-to-solids ratio; higher recycle = more bubble surface for oil-droplet capture but larger saturator and compressor |
| Micro-bubble size | 10–50 µm | 20–40 µm | Smaller bubbles improve oil-droplet and colloid capture efficiency but raise compressor specific work; 4–6 bar saturation pressure is the practical envelope |
| Hydraulic retention time (cell) | 5–20 min | 10–15 min | Longer for emulsified oil (slower bubble-droplet attachment kinetics); shorter for free-oil-dominant flush water |
| Surface loading rate | 5–15 m/h | 8–12 m/h | Higher rates risk float re-entrainment; lower rates improve clarity but inflate tank footprint |
| Coagulant (cationic) dose | 20–100 mg/L | 30–60 mg/L as PAC or FeCl₃ | Charge neutralisation of negatively charged oil droplets and rust colloids; pH 6.5–7.5 window for optimum hydrolysis |
| Flocculant (anionic) dose | 0.5–2 mg/L | 0.8–1.5 mg/L | Polymer bridging strengthens floc so bubbles can lift it without breakup; overdose causes viscous floc that traps water and defeats flotation |
| Float sludge dry solids | 2–6% DS | 3–5% DS | Skimmed to sludge holding tank; downstream plate-and-frame filter press dewaters to 25–35% cake for disposal |
| Saturation pressure | 4–6 bar | 5 bar | Higher pressure dissolves more air per m³ recycle, producing denser bubble population |
The chemistry sequence is charge neutralisation first, then polymer bridging. Cationic polyaluminium chloride (PAC) or ferric chloride destabilises the negative surface charge on oil droplets and rust colloids; a low-dose anionic polyacrylamide then bridges the destabilised particles into a robust floc with enough strength for bubbles to lift it intact. Dosing the coagulant in the rapid-mix zone (30–60 s, G ≈ 300–500 s⁻¹) and the flocculant in a slow-mix zone (5–10 min, G ≈ 30–80 s⁻¹) is standard practice. The automatic chemical dosing skid delivers both reagents in proportion to flow and influent turbidity, removing the operator-judgement variable that defeats manual systems on batch test water.
For comparison with a related DAF duty, the same recycle-ratio and bubble-size logic applies to DAF configuration for paper machine seal water, where emulsified oil and fibre fines drive similar chemistry choices. The micro-bubble flotation working principle provides additional technical context for engineers new to bubble-attach kinetics.

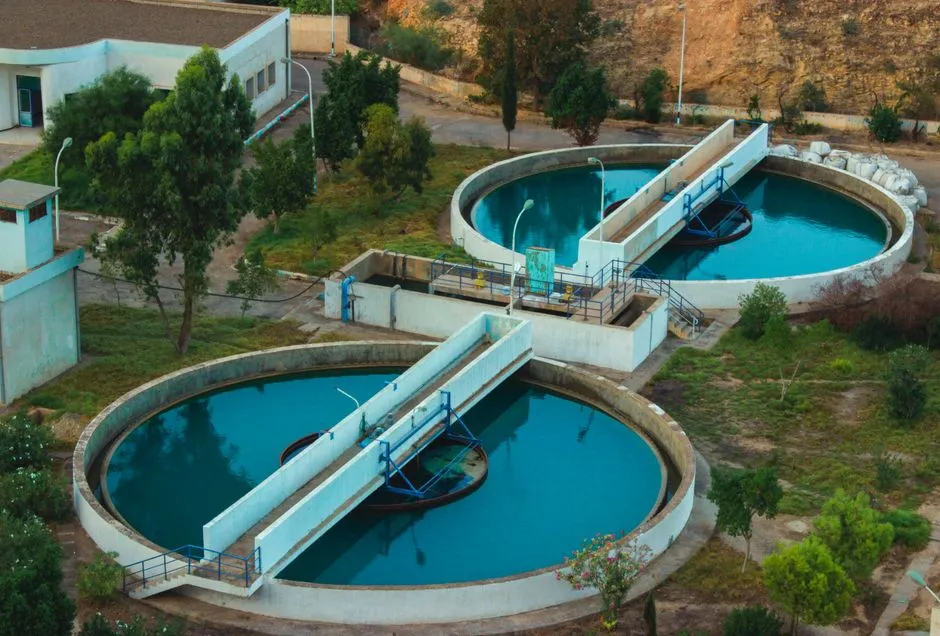

Reuse vs Discharge vs Sewer — Decision Framework
DAF overflow destinations are determined by biocide and dye carryover, downstream water quality targets, and the timing of the next test campaign. These factors dictate whether the water is suitable for reuse or must be treated for discharge.
| Route | Influent Constraint | DAF Overflow Spec Required | Post-DAF Polishing |
|---|---|---|---|
| A — Sewer / POTW | No biocide or dye flagged | Oil+grease < 100–200 mg/L (per local POTW); TSS < 250 mg/L | None typically required |
| B — Surface water discharge | Compliant with EPA Clean Water Act effluent guidelines for the receiving stream | Oil+grease < 10–15 mg/L; TSS < 30 mg/L | Multi-media filter, MBR, or RO required — DAF is pre-treatment only |
| C — Reuse as next-test fill | No biocide carryover (glutaraldehyde interferes with downstream corrosion tests); no fluorescent dye | Oil+grease < 10 mg/L; TSS < 30 mg/L; turbidity < 5 NTU | Multi-media polish filter mandatory; cartridge guard recommended |
| D — Reuse as equipment wash / utility water | Biocide tolerable at wash-grade dilution; dye tolerable if no aesthetic complaint | Oil+grease < 20–30 mg/L; TSS < 50 mg/L | Optional; DAF overflow often sufficient |
The decision tree reduces to two questions. First, is biocide or tracer dye present in the test water? If yes, Routes A and B (sewer or surface) are the only defensible options — biocide carryover would invalidate the next pressure test and dye residue corrupts leak-detection interpretation. If no, Routes C and D (reuse) become viable. Second, what is the next test interval? A campaign restarting within 30 days justifies Route C with full polish filtration; longer intervals or one-off campaigns favour Route A or B for lower capex. The ZSQ series DAF system capacity range of 4–300 m³/h covers both single-pipeline test water volumes and full-spread multi-pig operations without respec. Surface-discharge polish is handled by the multi-media filter for the TSS trim step.
Pretreatment and Post-Treatment Around the DAF
DAF is one unit operation in a process train rather than a standalone solution. Proper integration of upstream screening and downstream polishing is essential to meet commissioning standards. The standard train for hydrostatic test water runs: screening → pH adjustment → coagulant → DAF → optional polish → reuse or discharge, with a parallel sludge branch.
Upstream, a coarse bar screen or rotary mechanical screen removes rags, PTFE thread tape, pipe-thread chippings, and large debris that drain out with the test water and would jam DAF skimmers. The GX series rotary mechanical bar screen handles this with a 2–5 mm aperture that protects downstream equipment without headloss problems. pH adjustment to 6.5–7.5 follows, optimised for the coagulant hydrolysis window of either PAC (broad optimum 6.0–8.0) or ferric chloride (tighter 6.5–7.5). The automatic chemical dosing skid integrates pH probe feedback with coagulant and flocculant metering, eliminating the manual trim step that most batch operations get wrong.
Downstream of the DAF, the polish step depends on the route. For Route C (reuse as next-test fill), a multi-media filter (sand + anthracite + garnet) drops TSS to under 10 mg/L and turbidity to under 5 NTU, which is the minimum standard for refilling a hydrostatic test on a clean line. For Route B (surface discharge under EPA Clean Water Act effluent guidelines), MBR or UF may be required if the receiving stream's TMDL is tight; RO is only justified if downstream process water specs demand it, which is rare for test water. The sludge branch runs floated scum to a sludge holding tank, then through a plate-and-frame filter press for cake at 25–35% dry solids suitable for offsite disposal or landfill, depending on the oil content classification. For a deeper treatment-train review, the engineering notes on the paper machine seal water configuration cover a similar parallel branch.
Frequently Asked Questions
What DAF recycle ratio is best for hydrostatic test water?
20–30% by volume is the standard design default. Drop to 10–15% for light rust-only flush water from a clean existing line, and rise to 30–40% only for heavy emulsified oil from new-pipe tests where
Frequently Asked Questions
What DAF configuration is used to treat hydrostatic test water for reuse?
A high-rate Dissolved Air Flotation (DAF) system is utilized, typically incorporating a chemical coagulation and flocculation stage prior to the flotation tank. This configuration uses micro-bubbles (10-60 microns) to attach to suspended solids and oil droplets, lifting them to the surface for mechanical skimming.
What recycle ratio should a DAF have for pipeline test water?
The typical recycle ratio for treating hydrostatic test water ranges between 10% and 30% of the total influent flow. This ensures sufficient saturated air concentration to maintain the buoyancy of oil and sediment particles regardless of the influent turbidity.
Can hydrostatic test water be reused after DAF treatment?
Yes, hydrostatic test water can be reused provided the DAF treatment reduces Total Suspended Solids (TSS) and Oil and Grease (O&G) to levels compliant with project specifications. Many campaigns target O&G levels below 10 mg/L to prevent pipeline fouling during reuse cycles.
How much oil and grease can DAF remove from test water?
DAF systems are capable of removing 90% to 99% of free and emulsified oil and grease. Depending on the chemical dosing, effluent concentrations can be reduced from several hundred mg/L down to less than 5 mg/L.
What is the typical flow rate for a DAF unit on a hydrostatic test campaign?
Typical flow rates for mobile DAF units used in pipeline campaigns range from 50 m³/hr to 250 m³/hr. The specific capacity is selected based on the total volume of the pipeline segment and the required turnaround time for water discharge or reuse.
