Why Dairy Wastewater Is a DAF-First Application
A dissolved air flotation system designed for dairy wastewater should target an air-to-solids (A/S) ratio of 0.005–0.02, hydraulic retention of 20–40 minutes, and surface loading of 5–25 m/h; with PAC plus anionic polyacrylamide dosing, dairy plants consistently achieve >90% FOG and TSS removal at influent loads of 2,000–10,000 mg/L COD (Zhongsheng field data, 2026). Dairy effluent sits in a different operating envelope from municipal sewage: typical raw streams show COD 2,000–10,000 mg/L, FOG 200–1,500 mg/L, TSS 1,000–5,000 mg/L, pH 6–11, and temperature 20–40°C, with day-to-day swings driven by CIP rinses, product changeovers, and seasonal milk throughput. FOG and colloidal protein are the load-bearing contaminants here — emulsified butterfat globules (0.1–10 µm) and casein micelles form stable colloidal systems that gravity clarifiers cannot break in a reasonable footprint. A 2-hour sedimentation tank will leave 60–80% of FOG in suspension; a 20-minute micro-bubble flotation cell will lift that same load to the surface as a floatable layer. That is why the equipment-supplier consensus, including the top-ranked stainless-steel DAF reference for food-type industries, calls out that the technology is built to "remove oil and SS" in a single stage (china-sewagetreatment.com, 2025-03). For a permit-driven, footprint-constrained dairy plant, DAF is the correct first stage ahead of any biological polishing step.
Dairy Influent Characterization by Product Type
Engineers defending a P&ID need numbers they can attach to a specific stream. The table below consolidates typical raw influent ranges observed at milk, cheese, butter/cream, ice cream, and yogurt plants (Zhongsheng field data, 2026; cross-referenced against EPA food-processing guidance, 2024). Cheese whey streams dominate the FOG loading on a dairy site — 1,000–1,500 mg/L FOG is common — and should be segregated upstream of DAF so the saturator and float scraper are not asked to handle a transient slug. Yogurt and milk lines are lower in FOG (200–600 mg/L) but higher in colloidal protein, which still drives the A/S and polymer demand. Ice-cream wastewater tracks the milk profile with elevated sugar and TSS from fruit inclusions; butter/cream lines are the most FOG-concentrated at 800–1,500 mg/L and benefit most from an extended 30–60 min flotation HRT.
| Product stream | COD (mg/L) | BOD (mg/L) | FOG (mg/L) | TSS (mg/L) | TN (mg/L) |
|---|---|---|---|---|---|
| Milk processing | 2,000–5,000 | 1,200–3,000 | 200–600 | 500–1,500 | 50–150 |
| Cheese / cheese whey | 5,000–10,000 | 3,000–6,500 | 1,000–1,500 | 2,000–5,000 | 150–400 |
| Butter / cream | 3,000–8,000 | 2,000–5,000 | 800–1,500 | 800–2,000 | 60–180 |
| Ice cream | 2,500–6,000 | 1,500–3,500 | 300–800 | 1,000–2,500 | 60–160 |
| Yogurt | 2,000–4,500 | 1,200–2,800 | 200–500 | 600–1,500 | 80–200 |
Design for the peak shift load, not the annual average. CIP discharges from a cheese line can spike flows by 2–3× within 20 minutes; sizing the equalization basin for 8–24 h of HRT and the DAF hydraulic envelope for 1.5× average flow is the conservative move. The ZSQ series dissolved air flotation system covers 4–300 m³/h across 13 skid sizes, which is the practical envelope for most single-line dairy plants between 10 m³/d artisan dairies and 5,000 m³/d beverage-grade facilities.

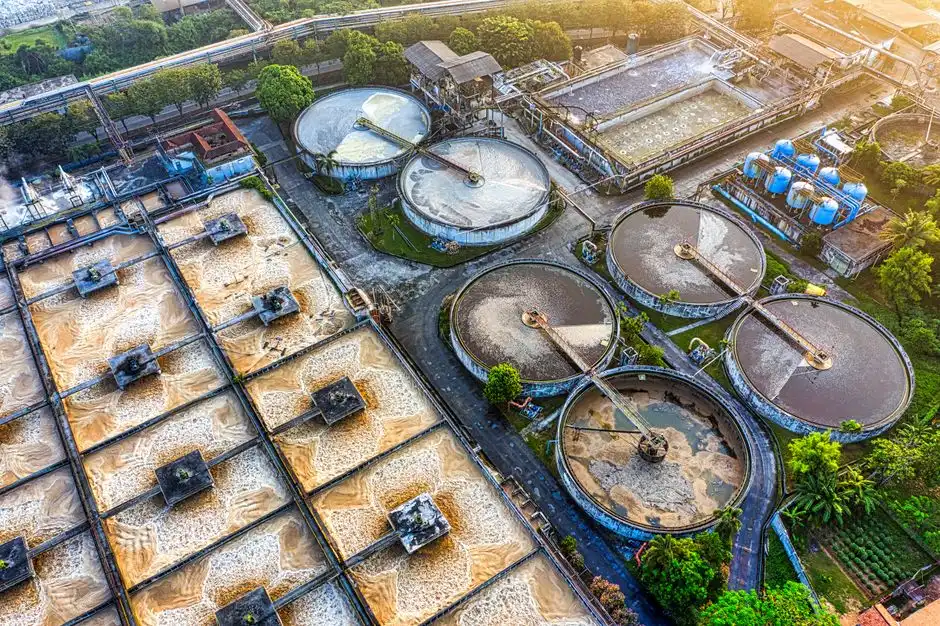

Core DAF Design Parameters for Dairy Streams
Four numbers govern DAF sizing: the air-to-solids ratio, hydraulic retention time, surface loading rate, and solids loading rate. Get these right and the saturator, recycle pump, and float scraper follow mechanically.
Air-to-solids ratio (A/S). A/S is the mass of dissolved air released in the contact zone divided by the mass of suspended solids (and equivalent FOG) entering the cell. For high-FOG dairy streams the design target is A/S = 0.005–0.02 (mass air / mass TSS+FOG); a value of 0.01 is a defensible midpoint when cheese whey is present. A/S is controlled by saturator pressure (typically 4–6 bar), recycle ratio (10–30% of influent flow), and white-water temperature (saturation falls about 3% per °C above 20°C, so warm dairy streams above 30°C need a slightly higher recycle).
Hydraulic retention time (HRT). 20–40 minutes in the flotation zone is the dairy envelope; standard milk and yogurt lines run 20–30 min, cheese whey and butter lines run 30–40 min. A shorter HRT starves bubble-particle attachment; a longer HRT risks floc breakup and short-circuiting.
Surface loading rate (SLR). 5–25 m/h, with 10–15 m/h as the dairy standard. SLR is hydraulic flow divided by effective flotation area. Going above 25 m/h pulls the float layer back into the bulk liquid before skimming.
Solids loading rate (SoLR). 0.2–0.5 kg TSS/m²·h on the flotation area; cheese whey at 5,000 mg/L TSS often sits at the upper end.
| Parameter | Dairy design range | Standard midpoint | Driver |
|---|---|---|---|
| A/S ratio (mass air / mass TSS+FOG) | 0.005–0.02 | 0.010 | Saturator pressure 4–6 bar, recycle 10–30% |
| Flotation zone HRT (min) | 20–40 | 30 | Cheese whey and butter → upper end |
| Surface loading rate (m/h) | 5–25 | 12 | Cheese whey → 5–10; milk/yogurt → 10–15 |
| Solids loading rate (kg TSS/m²·h) | 0.2–0.5 | 0.35 | Float scraper torque and reach |
| Saturator pressure (bar) | 4–6 | 5 | Air solubility at 20°C ≈ 24 mg/L per bar |
| Recycle ratio (%) | 10–30 | 20 | Higher for warm (>30°C) streams |
Sizing flow example: 100 m³/h dairy influent at 3,000 mg/L TSS, target SLR 12 m/h, A/S 0.010, recycle 20%. Required flotation area = 100 / 12 = 8.3 m²; saturator airflow at recycle 20 m³/h and 5 bar is approximately 2.4 kg air/h, which at A/S 0.010 supports 240 kg TSS/h — comfortably above the 300 mg/L × 100 m³/h = 30 kg/h actual TSS load. For project engineers, the DAF System for Ceramic Tile Wastewater Design: 2026 Engineering Guide runs the same arithmetic against a different stream, useful as a cross-check on the saturator equation.
Coagulant and Flocculant Selection for Dairy DAF
Chemistry is where most dairy DAF units underperform. The default program is PAC at 50–300 mg/L plus anionic polyacrylamide at 0.5–5 mg/L, with the dose tuned to the stream's colloidal-protein and FOG load. PAC destabilizes the protein-stabilized emulsion by neutralizing surface charge and bridging the 0.1–10 µm fat globules into pin flocs; the anionic PAM then binds those pin flocs into a strong, low-density float that skims cleanly. Cationic PAM is generally unsuitable for dairy: at the natural pH of most dairy streams (6–9) the casein is already anionic, and overdosing cationic polymer restabilizes the emulsion, producing a milky effluent that scores 0% removal.
| Chemical | Function | Dairy dose range | Notes |
|---|---|---|---|
| Polyaluminium chloride (PAC) | Coagulant — charge neutralization, emulsion break | 50–300 mg/L | 10–18% Al₂O₃ grade; dose scales with FOG + colloidal protein |
| Anionic polyacrylamide (A-PAM) | Flocculant aid — floc strength and float structure | 0.5–5 mg/L | High molecular weight (8–12 MDa), 30–40% charge density |
| Cationic polyacrylamide (C-PAM) | Generally not recommended for dairy DAF | — | Restabilizes casein-stabilized emulsions above ~2 mg/L |
| pH adjuster (NaOH / H₂SO₄) | Holds flocculation pH at 6.5–7.5 | As required | PAC performs poorly outside 6.0–8.0 |
| Jar test protocol | 1 min rapid mix → 15 min slow mix → 5 min settle | — | Measure residual FOG (IR method) and TSS on supernatant |
Run a four-jar matrix (PAC at 50, 150, 250, 300 mg/L; PAM at 1, 2, 3, 5 mg/L) on a real sample at process temperature before committing to a dose. The optimum is where supernatant TSS is minimized and the float layer is 5–10% of the cell volume — not the dose that produces the largest floc. A PLC-controlled automatic chemical dosing system tied to influent flow is the standard 2026 spec; trim the PAC setpoint on streaming FOG analyzer feedback where the discharge permit is tight. Operators chasing float-layer collapse or cloudy subnatant should also work through the DAF Unit for Wastewater Troubleshooting: 7 Data-Backed Fixes for Operators reference, which addresses the most common chemistry and hydraulics failure modes.
Process Flow: DAF Integrated into a Dairy Treatment Train
DAF is a pre-treatment stage, not a complete plant. The defensible treatment train for a dairy effluent of 2,000–10,000 mg/L COD is screen → equalization → DAF → biological polishing → optional tertiary. A standard sequence:
- Screening: a rotary mechanical bar screen at 2–5 mm aperture removes packaging debris, curd fines, and CIP rags before they blind the DAF influent distributor.
- Flow equalization: 8–24 h HRT basin with mechanical mixing and aeration; flattens CIP and product-changeover peaks so the DAF sees a steady 1.0–1.5× average flow rather than a 3× slug.
- DAF: FOG and TSS reduction, as sized above. Float sludge to a separate holding tank; subnatant forward to biology.
- Biological stage: anaerobic (UASB or IC) for high-COD cheese whey streams (COD removal 70–85% at 5–10 kg COD/m³·d), followed by aerobic (activated sludge or SBR) for residual BOD and ammonia polishing.
- Tertiary / MBR: an MBR integrated wastewater treatment stage where the discharge limit is below 50 mg/L BOD or where water reuse for CIP final rinse is targeted.
Float sludge from the DAF — typically 3–8% dry solids — is sent to a thickener or directly to a belt press for further dewatering; the FOG-rich float makes excellent biogas co-feed in an anaerobic digester.
Expected Removal Efficiencies and Effluent Quality
DAF is excellent for FOG and TSS, modest for COD, and intentionally leaves dissolved organics for the biological stage. The table below summarizes the envelope a process engineer can write into a design basis or discharge permit application (Zhongsheng field data, 2026).
| Parameter | Influent range (mg/L) | DAF effluent (mg/L) | DAF removal (%) | Comment |
|---|---|---|---|---|
| TSS | 1,000–5,000 | 20–80 | 85–95 | Driven by A/S and PAM dose |
| FOG | 200–1,500 | 10–50 | 90–97 | Most reliable metric; a well-tuned DAF hits >95% |
| COD total | 2,000–10,000 | 800–3,000 | 50–70 | DAF removes only the particulate fraction |
| BOD | 1,200–6,500 | 500–2,000 | 55–70 | Soluble BOD passes through |
| TN | 50–400 | 45–380 | 5–15 | DAF is not a nitrogen stage |
DAF alone almost never meets a COD/BOD discharge limit on a dairy plant — typical local discharge limits sit at 100–250 mg/L COD and 20–50 mg/L BOD. The biological stage following DAF carries the remaining load. If the design target is water reuse for CIP or boiler feed, plan for an MBR or RO downstream; DAF does not address dissolved salts or pathogens.
Frequently Asked Questions
What air-to-solids ratio should a dairy DAF target?
A/S 0.005–0.02 (mass air / mass TSS+FOG), with 0.010 as the working midpoint for high-FOG cheese whey. Achieved at saturator pressure 4–6 bar and recycle ratio 10–30% of influent flow. Below 0.005 you lose float; above 0.02 you waste compressed air and churn the float layer (Zhongsheng field data, 2026).
How long should wastewater stay in the DAF flotation zone?
20–40 minutes for most dairy lines; 30–40 minutes for cheese whey and butter streams. Shorter than 20 min starves bubble attachment; longer than 50 min risks floc breakup and short-circuiting. Equalize upstream for 8–24 h so the DAF sees a steady hydraulic load.
What coagulant and floc dose removes FOG most effectively?
Polyaluminium chloride at 50–300 mg/L plus anionic polyacrylamide at 0.5–5 mg/L, jar-tested at process temperature. Cationic PAM is not recommended for dairy because casein-stabilized emulsions restabilize at overdose. Hold pH at 6.5–7.5 for PAC performance.
Can a DAF unit meet the dairy discharge limit on its own?
No for COD and BOD. DAF reliably delivers 90–97% FOG removal and 85–95% TSS removal, but only 50–70% COD removal because dissolved organics pass through. A biological stage (anaerobic + aerobic, or MBR) is required to reach typical 100–250 mg/L COD and 20–50 mg/L BOD limits.
What is the right surface loading rate for a dairy DAF?
5–25 m/h, with 10–15 m/h as the standard. Cheese whey streams sit at 5–10 m/h to keep the float layer stable; milk and yogurt lines can run 10–15 m/h. Going above 25 m/h pulls float back into the bulk liquid before skimming.
What influent characterization should the engineer assume for design?
For a multi-product dairy plant assume COD 2,000–10,000 mg/L, FOG 200–1,500 mg/L, TSS 1,000–5,000 mg/L, pH 6–11, temperature 20–40°C, with a peak shift factor of 1.5–3.0× average flow during CIP. Design the equalization basin and DAF hydraulic envelope to that peak, not the annual average.
