What Changes Between MBR and Conventional Activated Sludge?
For food and beverage wastewater in West Seneca, the choice between an industrial membrane bioreactor and conventional activated sludge usually comes down to how much the plant values predictable solids separation, compact equipment, and reuse-ready effluent. Both processes use biological treatment for organics, but CAS separates biomass by gravity settling in a clarifier, while MBR uses membranes to retain solids and discharge low-suspended-solids permeate. MBR offers major footprint and process-control advantages, but membranes add fouling, cleaning, energy, and replacement costs. CAS can remain the better economic choice when the existing system is sound, flows are stable, and discharge requirements are moderate. The correct decision requires site-specific influent testing, permit review, and a life-cycle cost comparison.
Conventional activated sludge, or CAS, treats wastewater biologically in an aerated basin where microorganisms consume biodegradable organics. The biomass then enters a secondary clarifier, where gravity settling separates it from the treated liquid. MBR keeps the suspended-growth biology but substitutes membrane separation for the clarifier. PCI Membranes explains that the membranes retain biomass inside the bioreactor and take the place of clarifiers used in CAS.
Both systems still require an engineered treatment train. A typical sequence is screening, equalization, pH correction where needed, FOG or solids pretreatment, biological treatment, solids separation, disinfection, and any polishing required for reuse. An MBR is therefore not automatically a complete pretreatment, nutrient-removal, disinfection, or reuse plant.
PCI Membranes reports that MBR can sustain higher biomass concentrations and reduce footprint by up to 50% for the application described. This is a source-specific comparison, not a universal West Seneca layout guarantee. The technical overview of how an MBR system works provides useful background on the shared biology and changed separation step.
Why Food and Beverage Wastewater Changes the Decision
Food processing and beverage plant wastewater can vary substantially with production, cleaning, and discharge schedules, so the design must begin with measured wastewater characteristics rather than a generic food-industry average. Relevant constituents can include product loss, dairy or juice residues, starches, proteins, fats and oils, cleaning chemicals, sanitizers, and batch dumps. Their effects must be established by sampling because a plant’s product mix and operating schedule determine the actual load.
Equalization, pH correction, screening, FOG removal, and membrane-compatible pretreatment may be necessary before either biological process can perform consistently. MBR membrane separation is not a substitute for upstream removal of dispersed oil, grease, surfactants, or material that would overload or foul the membranes. DAF pretreatment for FOG removal can remove floatable material before the biological stage; the MBR then retains solids and produces filtered permeate.
The case for MBR becomes stronger when shift peaks, cleaning cycles, stringent solids limits, limited space, or reuse requirements make secondary clarification a recurring operating risk. The case for CAS remains credible when the existing clarifier performs reliably and the wastewater envelope is comparatively stable.
| Plant input | Why the buyer needs it | Decision affected |
|---|---|---|
| Flow profile and batch schedule | Shows peak flow, duration, and equalization demand | MBR versus CAS sizing |
| BOD, COD, TSS, and FOG | Defines organic, solids, and FOG loading | Pretreatment and biological capacity |
| pH and temperature | Identifies biological upset and correction needs | Equalization and treatment reliability |
| Nutrients and salinity | Supports biological nutrient and osmotic assessments | Process configuration |
| Surfactants and toxicity indicators | Identifies inhibitory or membrane-adverse inputs | MBR feasibility and pretreatment |
| CIP and production discharges | Documents chemical slugs and intermittent loads | Controls, training, and guarantees |
Treatment Performance and Compliance Risk
MBR removes the gravity-settling failure mode from the solids-separation step and generally provides effluent with very low suspended solids. PCI Membranes describes MBR effluent as free of suspended solids with reduced bacteria and viral content. That is a meaningful difference for a plant where clarifier carryover during a production or cleaning peak is the principal compliance concern.
Lower TSS does not, however, demonstrate compliance with every BOD, FOG, pH, nutrient, or disinfection requirement. The applicable discharge permit, sewer-use agreement, pretreatment agreement, and intended reuse destination must govern the final treatment train. A West Seneca buyer should not import Ohio pretreatment limits or sampling practices into the New York evaluation without verification.
The 2024 Elsevier review, Evaluation of membrane bioreactor technology for industrial wastewater treatment and its application in developing countries, identifies high-quality effluent, smaller footprint, reduced chemical use, and reuse potential among MBR’s broader advantages. It also emphasizes that membrane selection, backwashing, chemical cleaning, mixed liquor suspended solids control, aeration control, operator training, and pretreatment determine operational success.
| Performance question | Evidence to request | Acceptable basis |
|---|---|---|
| Separation performance | Membrane pore size, design flux, MLSS range, and expected filtrate quality | Defined influent and operating envelope |
| Fouling and cleaning | Cleaning triggers, chemical-cleaning frequency, and normalized-flux trends | Documented site wastewater basis |
| Availability | Backup strategy, spare-module policy, and critical spares | Accepted operating mode |
| Compliance | Guaranteed parameters, test method, and sampling point | Permit or agreement conditions |
| Exclusions | Limits for FOG, surfactants, cleaning chemicals, and batch dumps | Explicitly documented exceptions |
The 2026 MBR cost-per-m3 guide is useful for broader cost framing, but performance guarantees remain the more important first technical filter.
Footprint, Equipment and Site Constraints in West Seneca
The elimination of the secondary clarifier is a central footprint advantage of MBR, but the claimed reduction must be converted into a dimensioned site plan. PCI Membranes reports up to 50% smaller footprint for the application described. The verified HydropureWater product catalog states that its integrated system has a 60% smaller footprint than conventional systems and gives a product-selection capacity range of 10–2,000 m³/day. Those figures describe published product comparisons and selection scope, not proof that a particular West Seneca flow or layout will achieve the same result.
Actual footprint depends on treatment capacity, aeration volume, equalization, pretreatment, membrane configuration, maintenance access, controls, piping, and the selected product scope. A buyer should compare complete layouts rather than isolated tanks. A tank-by-tank comparison that omits blowers, chemical storage, drainage, access clearances, and future expansion can reverse the apparent advantage.
Site inputs for a West Seneca food or beverage facility include available pad area, indoor or outdoor installation, vehicle and maintenance access, electrical capacity, air supply, drain routing, odor controls, and future flow changes. The integrated submerged-PVDF MBR system should be evaluated within these constraints. Its 10–2,000 m³/day range is appropriate for preliminary supplier outreach; final configuration still requires the measured flow profile and influent envelope.
Ask every bidder for a dimensioned layout showing tanks, blowers, membrane modules, controls, chemical handling, piping, clearances, and maintenance access. Also require a dimensioned CAS alternative and a hybrid option so that footprint is compared on equal treatment duties rather than unequal scope.

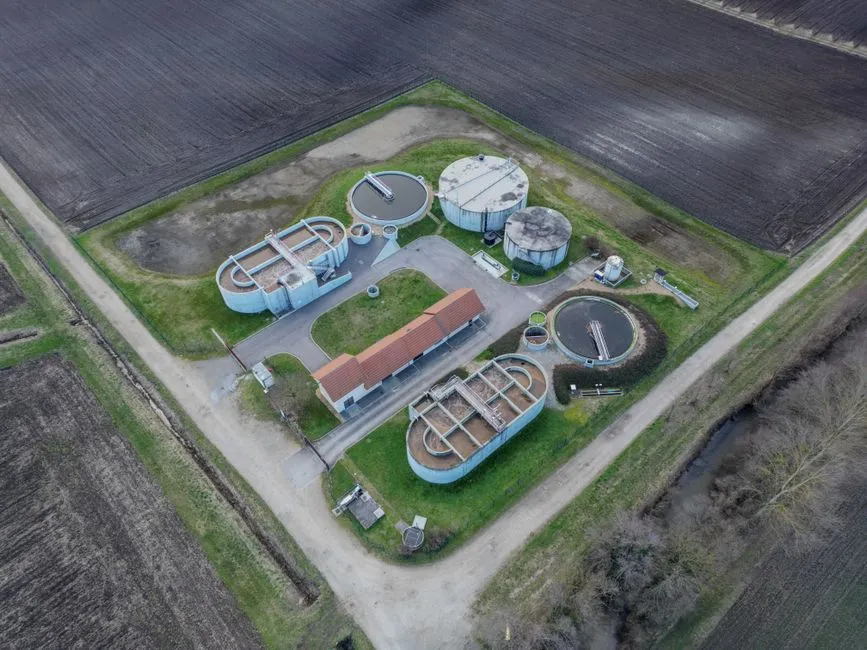

Fouling, Reliability and Operating Complexity
MBR reliability depends on controlling membrane fouling before it reduces available treatment capacity. The operating sequence includes membrane scouring, flux monitoring, transmembrane-pressure monitoring, backwashing where applicable, chemical cleaning, and module replacement or repair. The 2024 Elsevier review recommends wastewater-specific membrane selection, backwashing, chemical cleaning, MLSS and aeration control, staff training, and appropriate pretreatment to address fouling and energy demand.
CAS has a different operating burden. Operators must maintain mixed-liquor conditions, sludge wasting and recirculation, and the settling behavior of the secondary clarifier. MBR substitutes membrane condition and cleaning routines for much of the reliance on gravity settling, but that trade does not make operation maintenance-free.
FOG, surfactants, suspended solids, and inadequately designed pretreatment can increase membrane cleaning demand. These inputs may need to be removed or controlled upstream. A membrane supplier should provide a cleaning-cycle schedule by influent condition, a spare-module strategy, normalized-flux and transmembrane-pressure trends, critical spares, alarm-response procedures, and operator training.
| Reliability evidence | Questions for the supplier |
|---|---|
| Cleaning basis | Which influent conditions shorten the interval between cleanings? |
| Flux and pressure | What trends trigger investigation or corrective action? |
| Module strategy | Can individual elements be isolated or replaced, and what spares are included? |
| Controls | Which functions are automatic, and which require operator action? |
| Training | Who receives startup, normal-operation, and alarm-response training? |
The DF Series 0.1 μm flat-sheet MBR module provides a concrete example of membrane construction, with PVDF material and integrated aeration-box scouring. That configuration should be compared by vendor using the same influent basis; it does not establish universal performance superiority.
Capital Cost and Total Cost of Ownership
Neither an MBR price nor a CAS price is meaningful without a defined scope and operating basis. Compare initial capital separately for biological treatment, equalization, pretreatment, membrane modules, aeration, controls, civil work, piping, electrical service, commissioning, disinfection, and reuse equipment. Operating costs should then include electricity, cleaning chemicals, labor, membrane replacement, sludge handling, consumables, and disposal.
Avoided costs belong in a separate value category. They may include reduced potable-water use where reuse is permitted, lower sludge-handling costs if lower yield is demonstrated, fewer compliance events, and avoided capital from continued use of an existing tank. Reuse credit should not be recognized before the intended application and receiving authority have been consulted.
| Cost category | MBR inputs required | CAS inputs required |
|---|---|---|
| Initial capital | Complete plant scope, civil work, membranes, controls, commissioning | Retained assets, retrofit scope, clarifier and controls work |
| Energy and chemicals | Site load, aeration demand, cleaning schedule, chemical prices | Site aeration load and chemical use |
| Labor and maintenance | Cleaning labor, membrane replacement, spares, training | Operations labor, sludge handling, clarifier maintenance |
| Sludge and disposal | Site-specific yield and disposal route | Site-specific yield and disposal route |
| Reuse and avoided cost | Permitted reuse volume and avoided potable-water cost | Same verified volume and cost basis |
| Replacement schedule | Contractual membrane life and replacement assumptions | Remaining life of pumps, blowers, clarifier equipment, and controls |
The supplied research does not establish universal 2026 prices for West Seneca. Use the plant’s electricity rate, chemical cost, labor rate, sludge-disposal cost, potable-water cost, and expected replacement schedule in a net-present-value comparison over an agreed period. The 2026 wastewater OPEX breakdown provides a broader framework, while the 2026 MBR cost-per-m3 guide can help structure a supplier request. Any financial proposal should still be tied to measured site data.

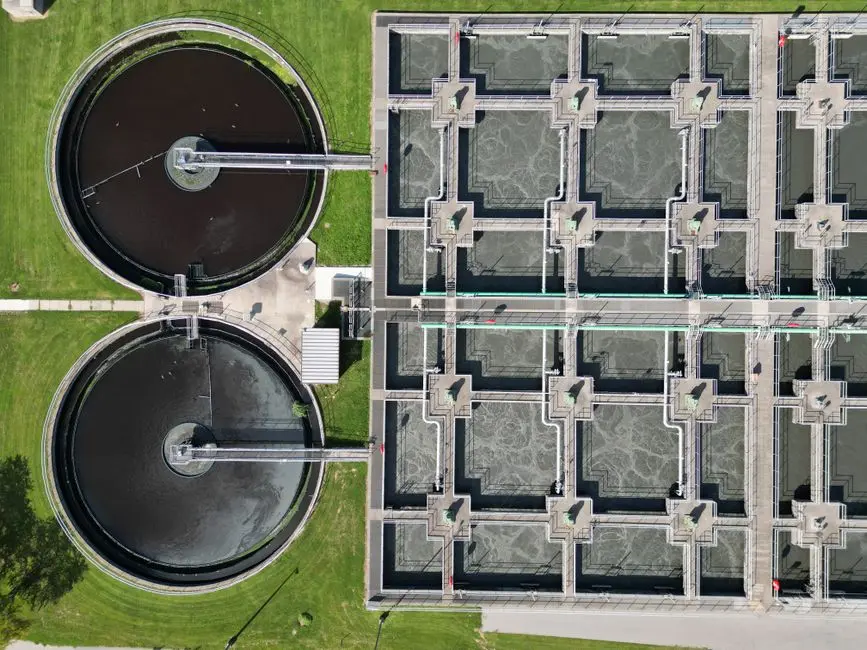

Choose MBR, CAS or a Hybrid Based on Plant Conditions
The procurement path follows from the verified constraints: compactness and solids separation favor MBR, sound existing assets and stable wastewater favor CAS, and a specific deficient stage may justify a hybrid. The first step is not to select a process; it is to define the treatment duty and the operating envelope that every alternative must meet.
| If the plant finds… | Then evaluate… | Required proof |
|---|---|---|
| Low, stable TSS is important; space is constrained; reuse has clear value | MBR | Site flow profile, pretreatment assessment, pilot or design review, guarantees, and cleaning plan |
| Existing tanks and clarifier are sound; wastewater is stable; operators know the process | Retain or retrofit CAS | Structural assessment, hydraulic capacity review, equipment condition, and life-cycle cost |
| Existing biological capacity is valuable, but FOG capture or solids separation is deficient | Hybrid | Written duty for DAF, MBR, or another unit, plus performance and mass-balance verification |
For MBR, require 30-day or campaign-based influent sampling, a membrane pilot where justified, factory and site acceptance criteria, operator training, spares, and complete operating documentation. For CAS, document the remaining life and hydraulic capacity of the existing equipment instead of treating installed assets as free capacity. For a hybrid, define each unit’s role: DAF for floatable FOG removal, MBR for solids separation and biological polishing, and any downstream unit for disinfection or reuse.
The verified 10–2,000 m³/day scope of the integrated submerged-PVDF MBR system can support preliminary outreach, but it is not final sizing. Every vendor should guarantee performance against a documented influent envelope and identify exclusions for FOG, surfactants, cleaning chemicals, and unusual batch discharges. A DAF pretreatment system for FOG removal should be evaluated by its measured role, not included merely to enlarge the project scope.
Frequently Asked Questions
Is MBR always cheaper than conventional activated sludge for a food and beverage plant?
No. Compare total cost over the same treatment duty and assessment period, including initial capital, energy, cleaning chemicals, labor, membrane replacement, sludge handling, reuse value, and remaining CAS asset life. The purchasing check is a site-specific net-present-value comparison using the plant’s actual rates; the supplied research does not support a universal West Seneca price.
How should a West Seneca buyer size an MBR?
Size from the actual flow profile and influent envelope, not average daily flow alone. Document production peaks, batch dumps, cleaning discharges, required equalization, and the minimum duration of biological and membrane treatment. Validate the selected configuration through design review and a membrane pilot where justified, then tie the final capacity to those verified inputs.
What should a buyer request from an MBR supplier?
Request membrane material and pore size, design flux, MLSS operating range, transmembrane-pressure and normalized-flux criteria, cleaning methods and frequency, expected membrane life, controls, spare strategy, operator training, critical spares, and performance guarantees. Make the guarantees conditional on a written influent envelope, with exclusions clearly stated.
Does MBR alone satisfy local discharge and reuse requirements in West Seneca?
It cannot be assumed. The applicable permit, sewer or pretreatment agreement, receiving sewer or water authority, and intended reuse determine whether disinfection, nutrient control, additional polishing, or other unit processes are required. Confirm the final treatment train with the responsible authorities rather than relying on generic MBR effluent claims.
When does a hybrid treatment system make more economic sense?
A hybrid is worth evaluating when the existing biological tank remains valuable and the demonstrated deficiency is FOG capture, solids separation, or polishing. The design check is a written mass balance showing what pretreatment removes, what the MBR or clarifier polishes, and how the combined train meets the same performance and cost basis as a full MBR.
