What MBBR Can Achieve for Monosodium Glutamate Wastewater
MBBR is a technically credible biological option for monosodium glutamate wastewater, particularly for ammonium removal. A laboratory-scale two-stage MBBR was tested on pretreated MSG wastewater at 23–29°C and 2–3 mg/L dissolved oxygen. In the associated synthetic wastewater work, ammonium removal reached 99%, with effluent below 1 mg NH4+-N/L, while influent ammonium was increased to 400 mg NH4+-N/L. These results support a pilot and design basis, not an off-the-shelf performance guarantee. Full-scale selection must establish wastewater characterization, pretreatment needs, media configuration, hydraulic loading, nitrification requirements, solids separation, and final discharge or reuse limits.
A moving bed biofilm reactor is an aerobic biological process in which microorganisms attach to carrier media and the carriers remain in motion through aeration. For this application, the moving bed provides a surface for nitrifying biomass while mixing keeps the biofilm in contact with the wastewater.
The strongest supplied MSG-specific evidence comes from a 2006 study by Environmental Engineering Science. It used a laboratory-scale, two-stage MBBR to treat synthetic wastewater and pretreated monosodium glutamate wastewater. The reactor operated at 23–29°C and 2–3 mg/L dissolved oxygen. The study reported ammonium removal as high as 99% for the synthetic wastewater, effluent ammonium below 1 mg NH4+-N/L, and synthetic influent ammonium tested up to 400 mg NH4+-N/L.
Those percentages cannot be transferred directly to a full-scale MSG plant. The supplied excerpt does not provide the MSG flow rate, media fill fraction, hydraulic retention time, loading rate, final COD, or complete reactor dimensions. It also does not establish that the synthetic result was reproduced quantitatively on the pretreated MSG wastewater.
For preliminary process development, the study supports investigating a two-stage MBBR design guide for industrial food-processing wastewater. Full-scale procurement still requires site wastewater data, pilot verification and a defined treatment envelope.
Evidence from MBBR Studies and What It Means for MSG Projects
The available studies establish biological MBBR behavior, but only one included pretreated MSG wastewater; the laundry and municipal results are supporting analogies rather than verified MSG performance. The dates also matter: the direct MSG study was published in 2006, while the laundry study followed in 2019.
| Source and date | Wastewater | Scale and configuration | Operating conditions | Reported result | Engineering implication |
|---|---|---|---|---|---|
| Environmental Engineering Science, 2006 | Synthetic wastewater and pretreated MSG wastewater | Laboratory-scale two-stage MBBR | 23–29°C; 2–3 mg/L DO; synthetic influent ammonium tested up to 400 mg NH4+-N/L | Ammonium removal as high as 99% for synthetic wastewater; effluent below 1 mg NH4+-N/L | Direct basis for a two-stage MSG pilot, but not a full-scale guarantee |
| Environmental Engineering Science, 2006 | Pretreated MSG wastewater | Laboratory-scale two-stage MBBR | 23–29°C; 2–3 mg/L DO | Included in the study scope; the supplied excerpt does not state a separate MSG removal percentage | Pretreatment and site-specific performance remain critical qualification items |
| Tanjungpura University, published 2019-01-10 | Laundry wastewater | Kaldnes K1 media; 20% fill; 15-day seeding; 6-, 8- and 10-day treatment periods | At 10 days | BOD 441 to 39.67 mg/L, 91% removal; COD 910 to 56.3 mg/L, 93.81% removal; phosphate 38.24 to 5.31 mg/L, 86.10% removal; surfactant 47.8 to 5.62 mg/L, 88.22% removal | Shows treatment of surfactants and organic load, but its media and timing values are not universal MSG design values |
| University of the Aegean | Municipal wastewater | Laboratory-scale single-stage aerobic batch MBBR; 16 L total volume and 5 L active working volume | Retention times from 0 to 72 hours; ambient conditions | With media: 96.84% COD removal at 72 hours, 99.20% ammonia-nitrogen removal at 24 hours and 92.98% phosphate removal at 24 hours | Supports the contribution of media to nitrification and solids-bearing biological treatment, not MSG performance |
The 2019 laundry study is useful for media-selection questions because it examined Kaldnes K1 carrier media, fill fraction, seeding time and treatment time as variables for further study. It does not establish that the same configuration will treat MSG wastewater. Likewise, the municipal study used a laboratory batch arrangement and municipal feed; its retention times and removal results should not be inserted into an MSG design without matching hydraulic and load conditions.
Accordingly, ask every supplier to classify each performance claim by feed type and evidence source. “99% ammonium removal” is meaningful only when accompanied by the tested wastewater, influent concentration, reactor configuration and operating envelope.

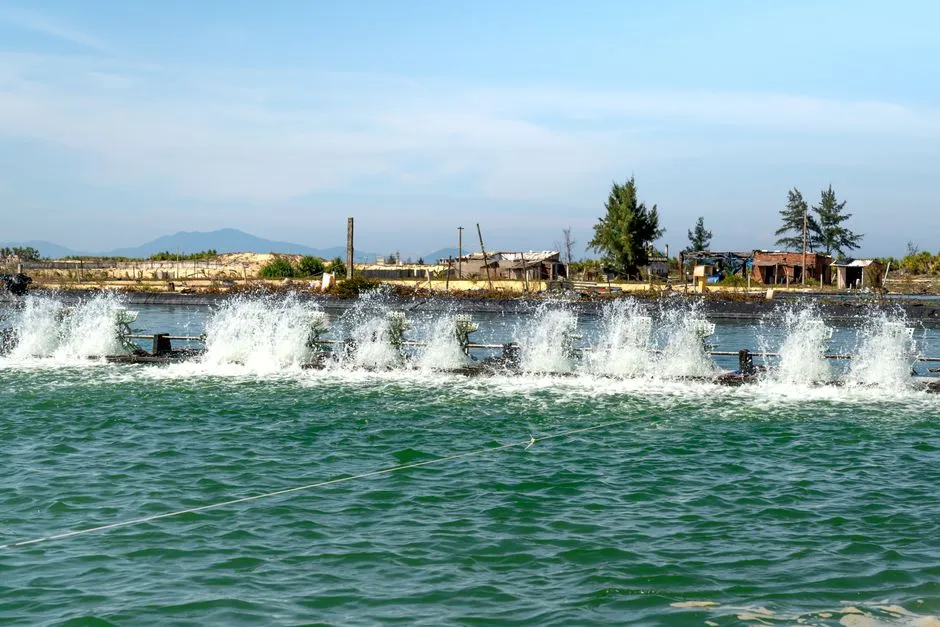

Design a Treatment Train Around the Wastewater
Characterization must precede MBBR sizing because the supplied MSG evidence used pretreated wastewater. The process sequence below protects the biological stage while keeping pretreatment, solids separation and final compliance as explicit design decisions.
- Characterize the source: collect flow, COD, BOD, ammonium, total nitrogen, phosphate, surfactants, pH, temperature, suspended solids, toxicity indicators and production-batch variability.
- Equalize: moderate batch discharges and flow, load and temperature variation before biological treatment.
- Screen and remove solids: remove suspended material, oil and colloids that could interfere with biofilm activity or media movement.
- Adjust chemistry if required: control pH, nutrient balance or another chemical duty identified by characterization.
- Apply staged aerobic MBBR: provide stage-level sampling and define the contribution of each stage to ammonium removal.
- Separate solids: remove detached biomass and settleable carrier-associated solids.
- Polish and monitor: meet the applicable discharge or reuse criteria through separately specified polishing and monitoring.
| Process stage | Buyer-defined requirement | Equipment or evidence to request |
|---|---|---|
| Source characterization | Representative sampling across normal production, peak ammonium, cleaning discharges and seasonal temperature variation | Flow-weighted laboratory results, production records and toxicity information |
| Equalization and solids removal | Prevent shock loads, excessive solids and colloidal material from entering the biological stage | Equalization volume and mixing basis; suitability assessment for DAF pretreatment for MSG wastewater, based on actual oil, solids and colloid characteristics |
| Optional chemical adjustment | Dose only where characterization establishes a controlled pH, nutrient or similar requirement | Chemical demand, control logic, containment and verification |
| Two-stage aerobic MBBR | Demonstrate nitrification within the site’s actual flow, load, temperature and DO envelope | Media selection, stage sizing, aeration calculations and stage-level sampling plan |
| Post-biological separation | Remove biomass and prevent solids carryover to polishing or reuse equipment | Clarifier or filtration duty, solids-return and wasting arrangement, and effluent-solids criteria; assess Lamella clarifier for MBBR solids separation against the required duty |
| Final polishing | Meet the receiving authority or reuse specification without assuming MBBR alone is sufficient | Defined residual pollutants, required polishing technology and monitoring plan |
The Environmental Engineering Science study makes pretreated MSG wastewater a central acceptance condition rather than an optional accessory. A DAF unit is a candidate where characterization shows solids, oil or colloidal separation is required; the supplied research does not establish its suitability for this feed. The same limitation applies to a Lamella clarifier: media alone do not prove that clarification will meet downstream solids or reuse criteria.
Specify the MBBR for Ammonium Removal
A compliant procurement specification should require the supplier to calculate every major parameter from project wastewater data. The study’s operating conditions are comparison anchors, not universal design values.
| Parameter | Required supplier response | Available evidence or missing input |
|---|---|---|
| Wastewater flow | Average, peak and batch-discharge basis | Not supplied in the research |
| Influent ammonium | Normal, peak and design concentrations | Synthetic wastewater tested up to 400 mg NH4+-N/L in the 2006 Environmental Engineering Science study |
| Target ammonium | Required effluent concentration and receiving or reuse basis | Not supplied in the research |
| Temperature | Normal operating range and winter design condition | 23–29°C in the 2006 Environmental Engineering Science study |
| Dissolved oxygen | Stage-specific control setpoint and aeration design | 2–3 mg/L in the 2006 Environmental Engineering Science study |
| Reactor stages | Stage volume, flow distribution, isolation and sampling | Two-stage laboratory configuration in the 2006 Environmental Engineering Science study |
| Media | Type, protected surface area, fill fraction, mixing behavior, biofilm stability, mechanical durability and tank compatibility | Kaldnes K1 at 20% fill in the 2019 Tanjungpura University laundry study; not an MSG design value |
| Hydraulic retention time and loading | Calculated from project flow, load and target performance | Not supplied in the research |
| Nitrification strategy | Alkalinity demand, oxygen supply, biofilm control and end-product handling | Project inputs and pilot confirmation required |
| Solids separation | Clarifier or filtration duty and solids-return and wasting criteria | Project-specific separation criteria required |
Media selection should be treated as an engineering decision, not a catalogue default. Require the supplier to explain how protected surface area, carrier geometry, tank dimensions, aeration pattern and biofilm stability interact. The 2019 Tanjungpura University study’s 20% Kaldnes K1 fill and 15-day seeding belong to a laundry-wastewater experiment and should not be copied into an MSG specification without pilot support.
Aeration must maintain the documented dissolved-oxygen condition during the intended reaction regime while preventing carrier washout and excessive shear. Require a stage-by-stage mass balance explaining what each stage is expected to remove. Outlet-only sampling can conceal unequal performance, inadequate nitrification or solids carryover; provide dedicated sampling points at each stage influent and effluent.
Validate Performance Before Full-Scale Investment
A pilot should test the actual MSG wastewater and production variability rather than reproduce synthetic-water performance. Published percentages provide screening benchmarks, not contractual acceptance limits.
Build a test matrix covering normal production, peak ammonium, low organic load, high organic load, temperature variation and production-cleaning discharges. Where practical, run a side-by-side control so the buyer can quantify the incremental contribution of carrier media within the same wastewater.
Track influent and effluent COD, BOD, ammonium, total nitrogen, phosphate, suspended solids, pH, temperature and dissolved oxygen. Also inspect fill fraction, biofilm condition and media wear. These observations are necessary because changes in carrier distribution, accumulated biomass or media damage can alter treatment independently of influent chemistry.
The relevant comparison benchmarks are source-specific:
- The 2006 Environmental Engineering Science study reported ammonium removal as high as 99% and effluent below 1 mg NH4+-N/L for synthetic wastewater at 23–29°C and 2–3 mg/L DO.
- The 2019 Tanjungpura University laundry study reported 91% BOD removal and 93.81% COD removal after 10 days.
- The University of the Aegean municipal study reported 99.20% ammonia-nitrogen removal at 24 hours with media.
These values are not directly equivalent acceptance criteria. The pilot protocol should define sampling frequency, startup and seeding criteria, analytical methods, hydraulic variation, sampling locations and actions when the influent exceeds the tested envelope. Final acceptance must remain contingent on the plant’s applicable discharge or reuse criteria, which are not supplied in the research and must not be inferred from the studies.
Choose Equipment and a Supplier for Reliable Delivery
Supplier selection should test whether the bidder can integrate biology, hydraulics, aeration, solids handling and controls—not simply reproduce a removal percentage. A complete process offer is more useful than an isolated MBBR package.
| Evaluation area | Information or commitment to request | Bid response to assess |
|---|---|---|
| Design basis | Raw wastewater data, batch variability, pretreatment performance and applicable limits | Assumptions stated without concealment; calculations traceable to site data |
| Source-specific experience | Evidence from pretreated MSG, synthetic, laundry or municipal wastewater | Feed type and operating conditions stated for every performance claim |
| Biological process | Media selection, two-stage contribution, seeding plan and stage-level sampling | Pilot protocol, rationale and measurable acceptance criteria |
| Mechanical design | Reactor geometry, carrier retention, aeration grid, blowers, mixing and washout control | Drawings, calculations, equipment data and maintenance access |
| Solids handling | Clarifier or filtration, solids return, wasting and downstream solids criteria | Defined hydraulic and solids balance |
| Controls | DO, flow, level, aeration, chemical dosing and monitoring | Control narratives, fail-safe operation and alarm requirements |
| Commercial scope | Itemized equipment, installation, civil interfaces, commissioning, training and spares | Clear exclusions, priced options and responsibility matrix |
| Delivery and support | Written lead time, commissioning plan, training and O&M documentation | Binding commitments and identified support responsibilities |
Require a complete process guarantee stating treatment objectives, the tested operating envelope, test methods, sampling responsibilities and the remedy for noncompliance. If a bidder offers only an ammonium-removal percentage, ask which feed and reactor configuration support it. Media claims should identify protected surface area and mechanical design, not simply a product name.
The quotation should itemize reactors, carriers, blowers, aeration grid, pumps, piping, controls, clarification or filtration, electrical work, civil interfaces, commissioning, training and maintenance. Lifecycle questions should cover media inspection, biofilm control, biomass removal, odor management, spare blower availability, instrumentation and operator training. The research provides no market lead-time data, so require written delivery and commissioning commitments without accepting an unsupported “typical” duration.
Use automatic chemical dosing for controlled pretreatment only if characterization establishes a pH-adjustment, nutrient-balancing or similar chemical requirement. The dosing scope should follow the chemistry, not precede it. Broader control requirements can be developed through automation and monitoring guidance for an industrial MBBR.
Frequently Asked Questions
What flow rate and reactor size are required for MBBR treatment of MSG wastewater?
No responsible flow rate or reactor volume can be selected without wastewater flow, ammonium concentration, COD, temperature, target limits and pretreatment performance. The 2006 Environmental Engineering Science study used a laboratory-scale two-stage MBBR at 23–29°C and 2–3 mg/L DO, but the supplied excerpt does not provide full-scale hydraulic sizing. Have the bidder show stage volumes, retention time, loading and aeration calculations from your site data.
How should procurement compare the cost of MBBR treatment options?
MBBR cost depends on flow, treatment objectives, pretreatment, aeration, controls, solids separation, civil works and commissioning. Request an itemized scope with separate prices for reactors, carrier media, blowers, pumps, controls, separation equipment, installation and training rather than relying on a price per reactor. Also ask which items are excluded from the proposed performance guarantee.
Which supplier qualifications matter most for an MSG wastewater MBBR?
Require source-specific MSG evidence, pilot data using representative wastewater, biological-process support, mechanical drawings, aeration calculations, controls documentation, commissioning plans and O&M documentation. Ask whether each performance claim came from pretreated MSG wastewater, synthetic wastewater, laundry wastewater or municipal wastewater; the supplied studies do not establish equivalence among those feeds.
Will the published ammonium-removal percentages guarantee discharge or reuse compliance?
No. Published removal percentages are study results, not site compliance criteria. Final acceptance depends on the receiving authority or reuse specification and the actual plant effluent. Obtain the applicable limits, test the complete treatment train and set acceptance criteria around the required effluent quality under the proposed operating envelope.
