Why Trenton Refineries Are Re-asking the MBR vs CAS Question in 2026
Refinery and terminal wastewater in Trenton carries free and emulsified oils, BTEX, phenols, sulfides, and variable flows from batch desalter dumps and tank-farm operations — a pollutant character that defeats any biological system not preceded by oil removal. NJDEP industrial pretreatment and Delaware River Basin Commission expectations for refinery discharges tightened through 2024–2026, pushing refiners toward effluent TSS and oil limits that legacy CAS was not designed to meet.
Brownfield tank-farm layouts inside Trenton and Mercer County make a second clarifier basin difficult to site, and that siting constraint is the single most common reason an existing CAS operator starts evaluating an MBR skid. A second force is regulatory: any refinery discharging to a local POTW or a Delaware River tributary must satisfy pretreatment limits that are typically stricter than the secondary-treatment ceilings CAS delivers without polishing. A third force is the SERP itself — the Elsevier pharmaceutical-MBR comparison page that previously ranked for this query is currently returning HTTP 404, which leaves a clean opening for a petroleum-specific, Trenton-specific page to outrank the surviving generic explainers.
How Conventional Activated Sludge Treats Refinery Wastewater
CAS uses an aeration tank where microorganisms biodegrade organics, followed by a clarifier that separates sludge by gravity; a portion of the settled sludge is returned to the aeration tank to keep biomass active (AUC Group, 2025). Effluent quality is set by clarifier performance — TSS in the clarifier overflow is the practical ceiling on BOD5 and turbidity leaving the basin. Extended-aeration CAS runs at lower organic loading and longer hydraulic retention, which improves nitrification and reduces sludge yield but enlarges the required tank volume (AUC Group, 2025). The limitation specific to petroleum service is shock loading: an oil or sulfide slug depresses dissolved oxygen across the basin, can wash biomass out of the clarifier, and triggers bulking sludge that the gravity separator cannot capture. Once the clarifier fails, the only practical recovery is to stop feed and re-seed — a downtime event the typical Trenton operator wants to avoid.

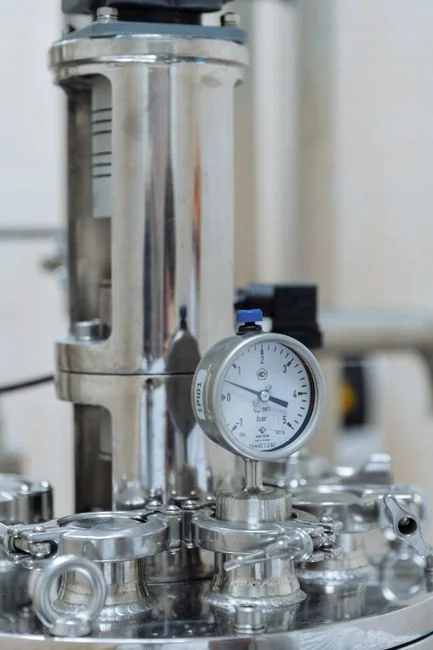

How an MBR Changes the Same Refinery Train

An MBR keeps the activated-sludge aeration tank and replaces the clarifier with submerged PVDF membranes as the solid–liquid separation step (AUC Group, 2025). The integrated MBR membrane bioreactor system from HydropureWater is specified for sub-1 μm filtration; the DF series flat-sheet module specifies a 0.1 μm pore size with an integrated aeration box for continuous membrane scouring, covering 10–2,000 m³/day and a 60% smaller footprint than conventional systems. The mechanism matters: because the membrane tolerates mixed-liquor suspended solids (MLSS) concentrations that would cripple a clarifier, an MBR can hold 2–3× the biomass of a CAS basin, which compresses tankage and absorbs hydraulic and organic fluctuations that would push CAS toward washout (AUC Group, 2025). MBR effluent is near-reuse quality on TSS and turbidity, so downstream polishing — sand filter, activated carbon, or RO if cooling-tower makeup is the goal — becomes optional rather than mandatory. A second practical benefit is decoupled SRT and HRT: the operator can hold high SRT for nitrification and slow-growing hydrocarbon degraders without paying for a larger clarifier.
MBR vs CAS for Petroleum Wastewater: Head-to-Head Comparison
The table below condenses the five parameters a Trenton pretreatment engineer weighs in a real spec review. These comparisons highlight how the MBR's membrane separation replaces the gravity-based limitations of the CAS process.
| Parameter | MBR (submerged PVDF) | Conventional Activated Sludge (CAS) | Source |
|---|---|---|---|
| Solid–liquid separation | Sub-1 μm / 0.1 μm PVDF membrane (DF series) | Gravity clarifier; overflow TSS sets ceiling | HydropureWater product catalog; AUC Group, 2025 |
| Footprint vs CAS with clarifier | ~60% smaller; no separate settling tank | Larger; requires dedicated clarifier basin | HydropureWater product catalog; AUC Group, 2025 |
| Hydraulic / organic load variability | Absorbs fluctuations; high MLSS tolerated | Susceptible to washout and bulking on shock load | AUC Group, 2025 |
| Free oil tolerance | None — DAF required upstream | None — DAF required upstream | Qualitative (standard DAF duty; AUC Group, 2025) |
| Sludge handling | Higher MLSS waste-activated sludge; similar character to CAS WAS; dewatering sizing differs | Clarifier underflow compatible with plate-and-frame filter press | Qualitative — no quantified waste yield in supplied research |
| O&M burden | Adds membrane aeration, periodic in-place chemical cleaning, multi-year membrane replacement | Clarifier rake, scum removal, RAS flow control, polymer | Qualitative — supplied research does not quantify O&M cost for either system |
| Toxic-organics reduction reference | Treatment trains that vary redox conditions and contact sorptive media achieved 86% to over 98% effluent reductions of persistent organics across 45 U.S. WWTPs in 18 states (Chesapeake Bay Program / Tetra Tech, 2019-09) | S2 | |
The 86%–98% toxic-organics reduction range from the Chesapeake Bay Program / Tetra Tech multi-state study is included as an order-of-magnitude reference for what an upgraded biological train can deliver, not as a head-to-head MBR-versus-CAS result (Chesapeake Bay Program, 2019-09). This provides evidence on what tight redox control and sorptive-media contact do for persistent organics — directly relevant when the buyer must defend an MBR or upgraded CAS spec to NJDEP.

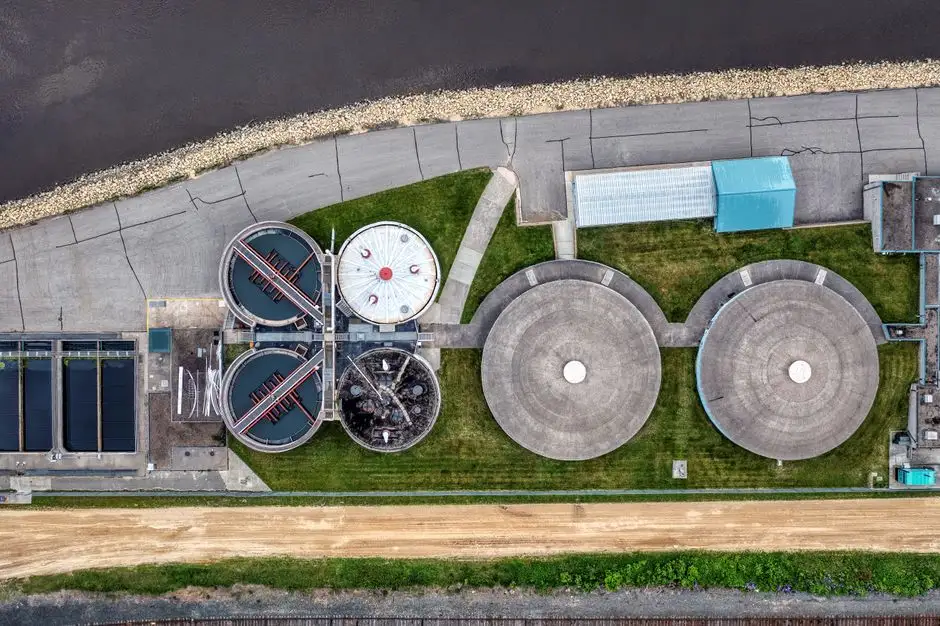

Pretreatment You Cannot Skip: DAF Before Either CAS or MBR

Dissolved air flotation is the standard front-end for petroleum wastewater because micro-bubble flotation reliably lifts free and emulsified oil, FOG, and colloids that would otherwise poison biomass. The DAF oil-removal system from HydropureWater is specified for 4–300 m³/h across 13 standard models, with petrochemical and metalworking applications called out, which is the capacity range a 10–2,000 m³/day refinery train typically maps to. An undersized DAF upstream of an MBR is the most common cause of irreversible membrane fouling in refinery MBR retrofits — the supplied research does not quantify that failure rate, so the buyer should request a fouling case study keyed to the actual refinery influent before signing a PO. The right way to specify the train is to size DAF, equalization, and MBR or CAS as one hydraulic envelope, not as three separate equipment purchases; otherwise the DAF becomes a chokepoint the moment a desalter dumps. For a deeper treatment-front-end discussion, see the DAF or clarifier for petroleum wastewater factory guide.
The Trenton Decision Rule: When CAS Still Wins, When MBR Wins
The decision is rarely "either/or" — it is "what to keep, what to add, and what to retrofit." The table below maps the realistic Trenton retrofit paths against the constraints that actually show up in an RFQ.
| If the constraint is… | Then the practical answer is… | Reason |
|---|---|---|
| Existing CAS aeration basin and clarifier have 10+ years of useful life, oil is already controlled upstream, footprint is not binding | Keep CAS, add or upgrade DAF, tighten clarifier operation | Lowest CapEx; CAS is robust on steady, low-oil streams (AUC Group, 2025) |
| Footprint is constrained by an existing tank farm; no room for a second clarifier | Install an MBR skid on the hardest stream; keep CAS for the rest | ~60% smaller footprint than CAS with clarifier; tolerates higher MLSS (HydropureWater product catalog; AUC Group, 2025) |
| Effluent TSS / oil limits in the local NJDEP industrial pretreatment permit are tightening | Specify MBR (sub-1 μm filtration) with polishing sand filter if needed | MBR effluent is near-reuse quality; downstream polishing becomes optional (HydropureWater product catalog; AUC Group, 2025) |
| Reuse for cooling-tower makeup is on the 3–5 year roadmap | Specify MBR + RO train | Sub-1 μm MBR effluent is a feed that RO can handle without constant CIP |
| Stream is highly variable in flow and oil | MBR (with adequate equalization upstream of DAF) | MBR absorbs hydraulic and organic fluctuations (AUC Group, 2025) |
The CapEx-versus-OpEx trade-off is real but not quantified for 2026 Trenton in the supplied research: MBR typically has higher CapEx on membranes and aeration blowers, while CAS typically has higher ongoing OpEx on clarifier maintenance, polymer, and sludge handling. The buyer should request a 10-year life-cycle cost from each vendor with membrane replacement, energy, polymer, and sludge dewatering as separate line items. For most Trenton retrofits the realistic path is: keep the existing CAS aeration basin, add a DAF pretreatment stage, and either upgrade the clarifier to a membrane cassette or install a parallel integrated MBR membrane bioreactor system on the hardest stream, then size the plate-and-frame sludge filter press for the new waste-activated-sludge volume. Capital-cost context for 2026 is in the MBR cost per m³ 2026 guide and the 2026 MBR market growth outlook.
Frequently Asked Questions
What flow range and oil-loading limits should I specify in an RFQ for a Trenton refinery MBR?
Specify average and peak daily flow in m³/day, maximum free-oil and emulsified-oil concentrations in mg/L at the DAF outlet (not at the refinery boundary), expected BTEX and phenol loads, and the MLSS range the bidder must hold. Demand a fouling case study on a comparable refinery stream and a guaranteed membrane life in years. The supplied research does not provide a numeric oil-loading ceiling for MBR service, so treat any vendor-quoted ceiling as a request for a written guarantee tied to chemical-cleaning frequency.
Which suppliers actually bundle DAF + MBR + sludge dewatering for a 10–2,000 m³/day refinery train, and what is the realistic 2026 lead time?
Short-list vendors that build all three skids in-house rather than reselling third-party membranes, because the controls and interlocks between DAF, equalization, MBR, and the filter press are where refinery retrofits fail. The supplied research does not publish 2026 lead times, so request a written schedule with engineering submittal, fabrication, FAT, ship, install, and commissioning milestones, and penalize slippage against that schedule. Ask for a single point of accountability across the train; the cheapest line-item bid is rarely the cheapest installed cost.
Does an MBR effluent meet typical NJDEP industrial pretreatment limits for TSS and oil & grease, and what downstream polishing is still required?
Sub-1 μm MBR effluent typically drops TSS well below the secondary-treatment ceilings that NJDEP pretreatment permits enforce, and oil & grease is essentially zero when the upstream DAF is correctly sized (HydropureWater product catalog; AUC Group, 2025). What still may be required depends on the local POTW's discharge limits: a sand filter for residual TSS protection, carbon for trace organics, or RO if the permit path moves toward reuse. Confirm against the actual permit text and the local authority's most recent enforcement letters before locking the train.
How often do MBR membranes need chemical cleaning and replacement in a refinery duty, and what is the typical 2026 membrane life?
Operating practice on refinery MBRs is a maintenance clean on a 1–4 week cycle and a recovery clean on a 3–12 month cycle, with membrane element replacement driven by transmembrane pressure rise rather than a calendar. The supplied research does not quantify 2
