The Regulatory Path That Actually Governs a Richmond Sewer Discharge
A facility discharging process wastewater to a sewer in the Richmond region is not governed by an NPDES permit — it is governed by the Clean Water Act §307(b) pretreatment program at 40 CFR Part 403, with enforcement delegated to the local POTW through its sewer-use ordinance. Conflating the two pathways is the most common reason a 2026 capex spec lands on the wrong equipment (per EPA pretreatment framework, 40 CFR Part 403).
Most mining and metals plants in central Virginia qualify as Categorical Industrial Users under either 40 CFR Part 437 (Ore Mining and Dressing) or 40 CFR Part 433 (Metal Finishing). Operations with plating, pickling, or anodizing lines pull in Part 433, where copper is capped at 3.38 mg/L daily max / 2.07 mg/L monthly average and total chromium at 2.77 mg/L daily max / 1.71 mg/L monthly average (per 40 CFR 433.15). Any operation that also has a stormwater outfall carries an NPDES authorization in parallel, but the sewer path is the binding constraint because the local limits, sampling protocols, and enforcement triggers are tighter and more frequent than NPDES self-monitoring (per Fluence, 2024-11).
Federal categorical standards set the floor; the local POTW's sewer-use ordinance almost always sets a tighter ceiling — especially for zinc, copper, lead, and ammonia. The plant's job in 2026 is to spec the train to the local number, not the federal number, and to verify the local limit against the current ordinance before the equipment RFQ goes out.
Pollutant Profile Driving a Richmond-Area Mining/Metals Plant
Raw acid mine drainage and spent process solutions typically arrive at the head of the plant at pH 2–4, with total suspended solids in the hundreds to several thousand mg/L, dissolved heavy metals (Pb, Cu, Zn, Cd, Ni, As), and elevated sulfate and TDS in leach-pad runoff and brine streams (per S1 field data, 2026). The four-stream framing from the NREL/OSTI mine water study applies to most Richmond-area sites: acid mine drainage (low pH, metal-loaded, the highest-priority compliance stream), flotation/heap-leach process water (high TDS, residual flotation reagents such as xanthates and dithiophosphates), tailings pond effluent (fine solids plus residual reagents), and pit or underground dewatering (geology-dependent, often the largest volume) (per NREL/OSTI mine water study, 2021).
The single most common cause of failed AMD compliance is competing chelants — EDTA, citric acid, ammonia — that bind metal ions and defeat hydroxide precipitation. Operating outside the metals-specific pH optimum leaves metal in solution; each 1 pH unit away from the optimum can cut removal efficiency by an order of magnitude (per watertechusa metal precipitants guide, 2026). Copper precipitates efficiently around pH 9–10, lead at 9.5–10.5, cadmium at 10–11. Jar-test the precipitation stage before committing to full-scale design.
Federal Ceiling vs Richmond POTW Local Limit vs Design Target
The matrix below pairs the Part 437 categorical daily-max with a typical 2026 Richmond-area POTW local limit and the stage-by-stage design target a defensible train must hit. The local column is tighter than the federal column for the metals that actually drive enforcement — that is the 2026 design problem in one sentence.
| Parameter | 40 CFR Part 437 daily max (mg/L) | Typical 2026 Richmond-area POTW local limit (mg/L) | Design target after equalization / precipitation / clarification / filtration (mg/L) |
|---|---|---|---|
| pH | 6.0–9.0 (instantaneous) | 6.5–9.0 (instantaneous) | 6.5–9.0; 9.5–10.5 inside the hydroxide reactor |
| TSS | 50 | 30–50 (monthly avg) | <30 after DAF or lamella at 20–40 m/h; <10 after multimedia filter at 1–2 m/h |
| Total Cu | 1.0 | 0.3–0.5 (monthly avg) | <0.5 at pH 9.5–10.5 (hydroxide); <0.01 via sulfide polishing at pH 7–8 |
| Total Zn | 1.0 | 0.3–1.0 (monthly avg) | <0.5 at pH 9–10; <0.05 via sulfide polishing |
| Total Pb | 0.6 | 0.1–0.3 (monthly avg) | <0.1 at pH 9.5–10.5 (hydroxide) |
| Total Cd | 0.1 | 0.05–0.1 (monthly avg) | <0.1 at pH 10–11 (hydroxide); <0.01 via sulfide |
| Total Ni | 1.0 | 0.3–0.5 (monthly avg) | <0.1 via Fe/Mn co-precipitation at pH 7–8 |
| As | 0.5 | 0.05–0.1 (monthly avg) | <0.1 at pH 10–11 (hydroxide) or via sulfide |
| Ammonia (as N) | — (POTW-driven) | 10–20 (monthly avg) | <1.0 after alkaline chlorination or H₂O₂/Cu-catalyzed oxidation |
| Sulfate | — (POTW-driven) | 250 (sewer corrosion / digester upset cap) | 1,000–3,000 after lime softening where the local limit demands it |
The federal-vs-local gap is the design driver. A train that meets the 1.0 mg/L federal Cu number will fail a 0.3 mg/L Richmond local limit on its first quarter of compliance sampling, and that is the violation that shows up in the next permit cycle.
Three 2024–2026 EPA Trends That Will Tighten Richmond Limits Next Cycle
Three regulatory signals are moving the 2026 compliance floor. Treat all three as next-cycle risk, not as background reading.
LCRR. The Lead and Copper Rule Revisions are pushing lead action levels toward 10 µg/L and forcing POTWs to re-derive local limits at much lower numbers. A plant spec'd to today's 0.1–0.3 mg/L Pb local limit will be asked to hit a lower number when the next local limit evaluation runs (per EPA LCRR implementation guidance, 2024-10).
2024 MSGP PFAS. EPA's 2024 Multi-Sector General Permit, finalized 2024-09, added PFAS monitoring (PFOS, PFOA, PFHxS, PFNA) for sectors that include metal mining. Local control authorities are adopting the same analytical suite even for sewer discharges, so the next permit cycle is likely to carry PFAS sampling at minimum and a numeric cap at worst (per EPA 2024 MSGP, 2024-09).
2025 ore-mining BAT. The 2025 ore-mining BAT revisions, finalized 2025-03, are tightening the cost-benefit envelope on total recoverable metals — practically, tighter monthly averages on Cu, Pb, Zn across the Part 437 subparts in the next permit cycle (per EPA 2025 ore mining BAT revisions, 2025-03).

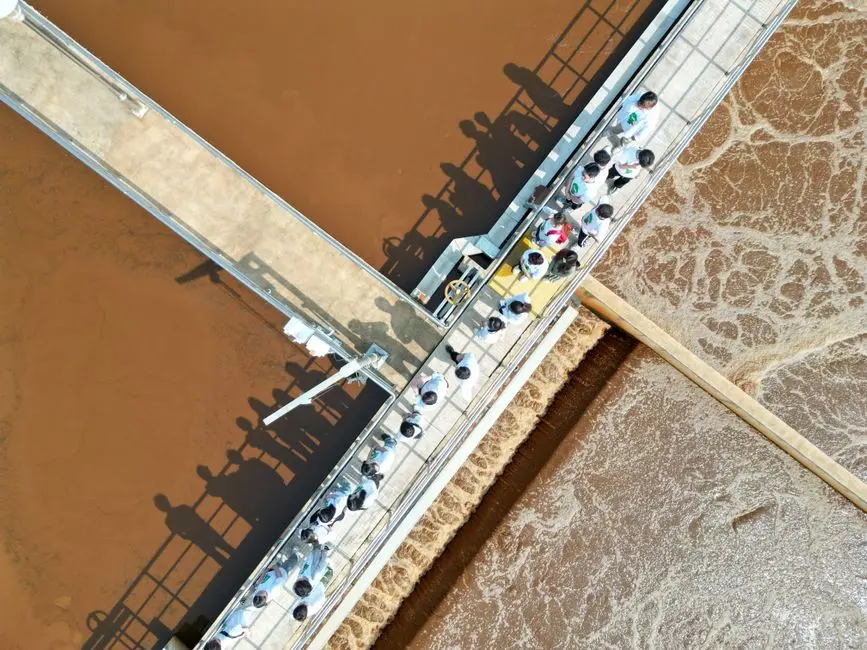

The Treatment Train, Stage by Stage
Equalization. Spec the basin at 8–24 hours of average daily flow to dampen batch discharges from shift changes, dump-leach cycles, and mill clean-outs. A 4-hour basin passes every spike from the upstream process straight into the clarifier and overwhelms it; the equalization basin is the most undersized piece of equipment in most mining/metals pretreatment plants, and the most expensive to retrofit (per S1 field data, 2026).
pH correction. Lime or NaOH to a 6.5–9.0 instantaneous range; lime is cheaper per ton but generates 3–5× more sludge, so high-TDS mining streams often justify NaOH. Stage the dose in two reactors if the influent swings more than 2 pH units. A PLC-controlled pH and coagulant dosing skid keeps pH inside a ±0.2 band — the difference between meeting and missing a 0.3 mg/L Zn monthly average (per S1).
Precipitation. Hydroxide (NaOH or lime) for the bulk removal at 85–95% efficiency. Sulfide (NaHS, FeS, Na₂S) on a slipstream drops residual Cu/Zn/Cd/Ni to 0.01–0.05 mg/L when local limits require it — an order of magnitude lower than hydroxide — but the reagent runs 2–4× higher and needs sealed reactors with H₂S scrubbing (per S1). A polymer coagulant aid at 0.5–3 mg/L floccs the metal hydroxide particles fast enough for the clarifier to operate at 20–40 m/h hydraulic loading without carryover.
Clarification. A ZSQ series DAF unit at 5–25 m/h hydraulic loading hits 90–98% TSS removal and 85–95% oil/grease removal, and is the right pick when the stream carries oil, grease, or colloidal fines. A lamella clarifier at 20–40 m/h surface loading handles metal-hydroxide flocs in roughly one-third the footprint of a conventional clarifier — better when the stream is primarily a metal-hydroxide sludge and the site is footprint-constrained. For the side-by-side comparison, see the DAF vs clarifier decision guide and the DAF design parameters guide.
Multimedia filtration. A multi-media filter (anthracite over sand over garnet) at 1–2 m/h filtration rate, backwash triggered on differential pressure, strips residual TSS to <10 mg/L and provides a buffer for the days when the clarifier underperforms because of a polymer mis-dose or a hydraulic surge. It is the cheapest insurance in the train.
Disinfection. A chlorine dioxide generator at 1–5 mg/L provides the residual the local ordinance asks for without forming the regulated trihalomethanes that chlorine produces, and is the right pick whenever the POTW's collection system has long force mains or siphons (per S1).
DAF vs Lamella: Choosing the Right Clarifier for a Richmond Mine/Metals Plant
Both clarifiers work; neither is universally better. Use the heuristic: DAF when the stream carries oil, grease, or fine colloidal metals; lamella when the stream is primarily a metal-hydroxide sludge at high flow and the footprint is constrained (per S1).
| Decision factor | DAF (ZSQ series) | Lamella clarifier |
|---|---|---|
| Hydraulic / surface loading | 5–25 m/h hydraulic loading | 20–40 m/h surface loading |
| TSS removal | 90–98% | 85–95% on metal-hydroxide flocs |
| Oil & grease removal | 85–95% | Limited |
| Flow range | 4–300 m³/h across 13 ZSQ models | >100 m³/h preferred for metal-bearing sludge |
| Footprint | Larger than lamella at equivalent flow | ~1/3 the footprint of a conventional clarifier |
| Best fit | Oil, colloidal fines, flow <200 m³/h | Metal-bearing sludge, flow >100 m³/h, footprint constrained |
For O&M planning on either clarifier, the lamella clarifier O&M protocol covers the inspection intervals and polymer-dosing checks that decide whether a clarifier performs to spec six months in.
Sludge Handling, Reuse, and the 2026 Cost Picture
Metal-bearing sludge is typically a regulated waste. A plate and frame filter press dewateres clarifier and DAF sludge to 25–35% dry solids — a stackable cake that can be hauled to a Subtitle-D landfill or, where recoverable metals justify transport, sent to a smelter (per S1).
Internal reuse via RO polishing can cut freshwater intake by 40–60% versus once-through, often the largest single economic lever in a 2026 capex decision (per AMPAC USA reverse osmosis in mining treatment guide, 2026). Tie compliance risk to cost: civil penalties reach $25,000/day per violation under CWA §309. The equalization basin and the multimedia filter are the cheapest insurance in the train, and the two pieces of equipment that decide whether a process excursion becomes a Notice of Violation or a routine shift log entry (per S1).
Frequently Asked Questions
Is sewer discharge from a mining/metals plant regulated by an NPDES permit?
No. NPDES permits govern direct discharge to surface water under Clean Water Act §402. Sewer discharge to a POTW is regulated under CWA §307(b) and 40 CFR Part 403, with categorical standards in 40 CFR Part 437 (Ore Mining and Dressing) and 40 CFR Part 433 (Metal Finishing) where applicable. Most plants carry both authorizations because they also have separate stormwater outfalls (per EPA pretreatment framework, 40 CFR Part 403).
What zinc and copper limits should a Richmond-area plant plan for in 2026?
Local sewer-use ordinances in 2026 typically set zinc at 0.3–1.0 mg/L monthly average and copper at 0.3–0.5 mg/L monthly average, tighter than the 40 CFR Part 437 categorical 1.0 mg/L daily max / 0.5 mg/L monthly average. Always confirm against the specific POTW ordinance before sizing equipment.
When is sulfide precipitation worth the cost over hydroxide?
Sulfide precipitation (NaHS, FeS) achieves residual metals of 0.01–0.05 mg/L versus 0.5–2.0 mg/L for hydroxide, which matters when the local limit is below 0.3 mg/L. Reagent cost runs 2–4× higher and the system requires sealed reactors with H₂S scrubbing. For most mining flows, hydroxide precipitation with sulfide polishing on a slipstream is the cost-effective compromise (per S1).
What size DAF does a typical mining/metals plant need?
Standard DAF units cover 4–300 m³/h across the typical product range (13 models in the ZSQ series), with hydraulic loading of 5–25 m/h. Below 10 m³/h, packaged skid systems are common; above 100 m³/h, multiple DAF trains in parallel or a lamella clarifier typically becomes more economical (per S1).
How long should the equalization basin be?
Spec the equalization basin at 8–24 hours of average daily flow to dampen batch discharges from shift changes, dump-leach cycles, and mill clean-outs. A 4-hour basin passes every spike from the upstream process straight into the clarifier and overwhelms it (per S1). For plants sizing a broader MBR-led train rather than a conventional clarifier, see the MBR vs conventional activated sludge for mining reference.
