Wastewater Requirements When GM Acquires a Malaysia Plant: 2026 Compliance Guide

Why a GM Plant Acquisition in Malaysia Triggers a Full DOE Re-Permit

Operator liability under the Environmental Quality Act 1974 (Act 127) attaches to the entity operating a plant on the date effluent leaves the site, not to the entity that held the original permit when it was first issued. Section 34A binds the new owner the moment a share purchase closes, regardless of whether the seller's Department of Environment (DOE) file is administratively tidy (per HydropureWater 2026-02). The seller's discharge permit does not auto-transfer with the share purchase; General Motors must re-apply, submit engineering plans, complete an Environmental Impact Assessment (EIA) for prescribed activities, and pass DOE site inspection before the acquired plant can lawfully discharge under the new owner's name. Operating without a valid permit under the new operator — even for the weeks between signing and re-issuance — is not a defensible position.

The materiality for a 2026 Malaysia acquisition is anchored in GM's own published footprint. The 2022 Water Security CDP response (reporting year 2021) puts GM at 25,340 ML/yr total water withdrawal across a 29-country manufacturing presence, with approximately 146,000 employees and over 100 U.S. locations alone (per GM 2022 Water Security CDP, S3). This is a company whose enterprise cannot absorb a Section 25 enforcement event as administrative noise — and Section 25 carries a fine of up to RM 100,000 plus RM 1,000/day continuing after a Director General notice. Equally important, the same disclosure states that only 5 GM facilities (under 3.5%) sit in water-stressed areas, and those sites already operate zero liquid discharge (ZLD) for paint pre-treatment of vehicle bodies and other manufacturing operations. That posture sets an internal reuse standard the acquired ETP must align with, even if the Malaysian site itself is not in a stressed catchment — because the buyer's audit lens will apply GM's global standard, not the seller's local precedent.

Two compliance signals frame the timeline. The 2020 ZLD direction for high-risk sectors and the 2027 circular-economy signal for industrial parks together imply a 60% reuse target as the safe minimum to avoid stranded capex; the BMW Malaysia compliance reference (S4) places the same anchor against the same instruments. Parallel to that, Selangor and Johor are piloting real-time effluent monitoring in 2026, which moves Integrated Environmental Quality Information System (IEQIS)-ready PLC/SCADA from a future option to a near-term design requirement (per HydropureWater 2026-02). The deal team should read the re-permit trigger as the point where engineering, regulatory, and IT workstreams must all start in parallel, not sequentially.

What GM's Process Profile Means for the New Influent Envelope

GM's direct-use water is concentrated in pre-treatment of vehicle bodies prior to painting, weld cooling, machining, and powerhouse operations (per GM 2022 Water Security CDP, S3). That profile is the chemistry mix the new ETP must hit, and it is dominantly paint-shop and metalworking, not cathode-coating. Paint-shop wastewater carries high COD and BOD, suspended paint solids, solvent residues, and zinc phosphate from the phosphate pre-treatment stage; metalworking fluids contribute oil and grease, nickel, and zinc from plating rinses. The design weight is therefore on TSS, FOG, Zn, and Ni capture, not on LiPF₆-derived fluorides or NMP from cathode slurry.

The only public Malaysian industrial influent dataset in widespread engineering use is the 2007 Chemkimia design basis for a Subang air-conditioning plant. Three raw-water grabs taken on 04/12/07 and 05/12/07 (two batches) returned: pH 9.02–9.06, COD 740–850 mg/L, BOD₅ 280–310 mg/L, TSS 86–110 mg/L, O&G 28–34 mg/L, Cu 0.18–0.36 mg/L, Ni 0.21–0.23 mg/L, Mn 1.65–2.34 mg/L, B 8.46–12.4 mg/L, Fe 2.54–2.66 mg/L, and phenol 0.1–0.2 mg/L (per HydropureWater 2026-02). The dataset must be read honestly: it is an air-conditioning plant, not an automotive plant, and it does not capture paint solids, zinc phosphate, or plating rinses. An ETP sized only against that baseline will under-design on TSS, Zn, and Ni. If any battery-adjacent line is later in scope, the design must additionally address fluorides from LiPF₆ electrolyte, NMP from cathode slurry, TMAH from photoresist, and Cu from current-foil etching — a chemistry mix the parallel battery-line wastewater treatment design reference works through in detail. For the core GM case, the influent envelope is the automotive table below.

The envelope column is the design intent for a Malaysian automotive plant; the Chemkimia column is the published reference. The gap between them is the under-design risk if the deal team treats the 2007 dataset as a paint-shop surrogate.

Standard B and Standard A: The Numerical Envelope GM Must Hit

Standard B under the Environmental Quality (Industrial Effluent) Regulations 2009 (IER 2009) is the binding numerical envelope for industrial discharges upstream of water intakes and the more sensitive catchments, and it is the limit set in the 2007 Chemkimia design basis (per HydropureWater 2026-02). Reproduced against that dataset, the parameters are: pH 5.5–9.0, COD ≤100 mg/L, BOD₅ (20°C) ≤50 mg/L, TSS ≤100 mg/L, O&G ≤10 mg/L, mercury 0.05 mg/L, cadmium 0.02 mg/L, hexavalent chromium 0.05 mg/L, copper 1.0 mg/L, nickel 1.0 mg/L, zinc 2.0 mg/L, and boron 4.0 mg/L. Standard A is stricter — BOD 20 mg/L — and applies to discharges into the most sensitive catchments; if the acquired site sits upstream of a water intake, Standard A is the floor.

The broader inland-water framework sets slightly different boundaries: BOD ≤50 mg/L, COD ≤100 mg/L, SS ≤50 mg/L, NH₃-N ≤15 mg/L, pH 6.0–9.0, temperature <40°C, and O&G ≤10 mg/L. The operating rule for the deal team is that the regulation sets the floor, not the ceiling — the DOE will impose site-specific conditions inside the issued permit, and the ETP must be designed to land inside the stricter of Standard B and any site-specific condition likely to be imposed on a paint-shop and metalworking process change. Compliance is verified through quarterly 24-hour composite sampling at STANDARDS MALAYSIA-accredited labs under MS ISO/IEC 17025, with electronic submission via IEQIS (per HydropureWater 2026-02).

The DOE Permit Sequence GM Must Run Before Closing

The DOE permit sequence is fixed and non-negotiable: pre-application consultation, submission of engineering plans, EIA for prescribed activities under the prescribed activities order, DOE site inspection, license issuance, and time-limited renewal with periodic reassessment (per HydropureWater 2026-02). Any change in process profile, throughput, or waste-stream character — which is what an automotive plant acquisition represents — is a permit re-issuance event, not a transfer.

Two activities routinely extend the timeline. First, EIA scope: a paint shop or high-throughput metalworking line is more likely to attract a full EIA than a discrete process addition. Second, the prior compliance history of the acquired site, which DOE will pull before issuing a transfer — a Section 25 history is materially slower to re-permit. A full EIA typically adds 4–9 months to the critical path, which means the engineering workstream must start inside the 6–12 month M&A runway, not after signing (per HydropureWater 2026-02). The 2026 horizon also includes Selangor and Johor pilot real-time effluent monitoring, which signals a near-term move to continuous compliance verification; specifying IEQIS-ready PLC/SCADA now is cheaper than retrofitting.

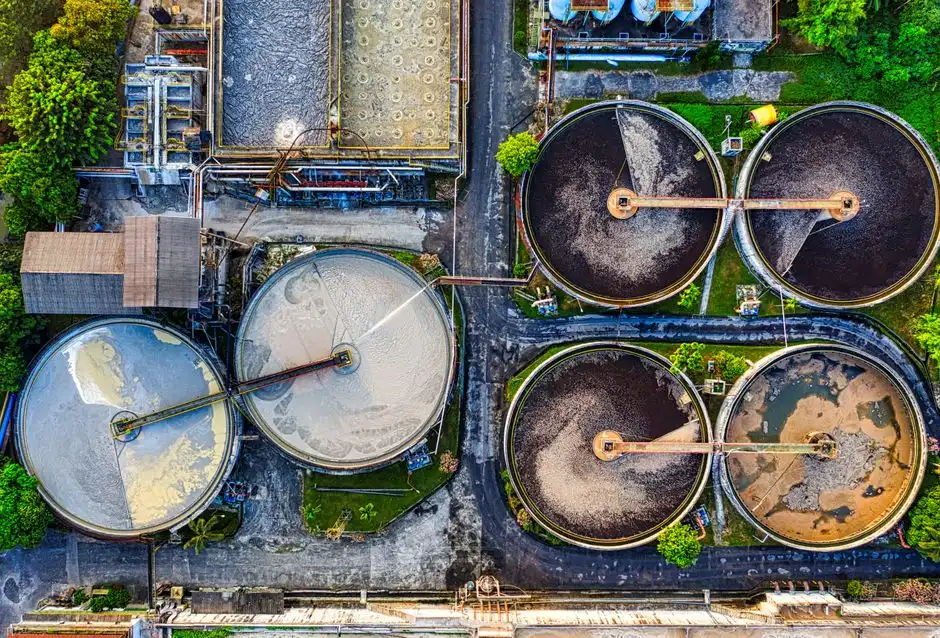

ETP Train Design for a GM Paint-Shop and Metalworking Effluent

The Chemkimia reference train is a defensible skeleton for a paint-shop and metalworking effluent: equalization sump → oil & grease trap → coagulation (pH-corrected) → flocculation → dissolved air flotation (DAF) → biological aeration → sedimentation → activated carbon filter → continuous microfiltration (0.2 µm) → sludge thickener → filter press (per HydropureWater 2026-02). The design-duty numbers are 85–88% COD removal, 85% BOD removal, 63–90% O&G removal, pH correction from ~9 into the 5.5–9.0 window, and selective removal of boron and manganese to land inside the heavy-metal envelope. DAF is the workhorse for FOG and floatable TSS, with clarification rates reported up to 97% on fats, oils, greases, and suspended solids.

For a GM paint-shop and metalworking waste stream, the train has to be extended. Zinc phosphate removal is best handled via coagulation pH control targeted to the 8.0–9.0 band where Zn precipitates as zinc hydroxide. Nickel and zinc removal uses hydroxide precipitation and, where the tighter site-specific cap demands it, ion exchange polishing. Paint solids are captured via the DAF system with a lamella clarifier upstream to reduce the surface-loading rate on the float cell. Activated carbon handles solvent residues from the paint shop, and a PLC-controlled chemical dosing skid is required to keep coagulant and pH-correction reagent stoichiometry inside the band the downstream biology needs. When footprint is constrained and effluent SS must land below 10 mg/L — which the broader framework's 50 mg/L limit practically demands — an integrated MBR membrane bioreactor is the standard upgrade path. Sludge dewatering targets ~22–28% dry solids via a plate-and-frame filter press, with inland disposal prohibited and cake going to a licensed facility (per HydropureWater 2026-02).

If a cathode or coating line is later added, the train extends further: Ca²⁺ precipitation for F⁻ to <10 mg/L before any RO stage, acclimated biology or AOP for TMAH and amines, and either precipitation or electrolytic recovery for copper. For the core GM case, the equalization–DAF–biological–polishing train is the engineering baseline; for a battery-line future, the battery-line wastewater treatment design reference lays out the additional stages.

Penalty Exposure and the Compliance-Audit Reality

Two EQA 1974 sections frame the enforcement risk. Section 25 covers pollution of inland waters — reservoirs, lakes, rivers, streams, subsurface water — and carries a fine up to RM 100,000, imprisonment up to 5 years, or both, plus a further fine up to RM 1,000/day for every day the offence continues after a Director General notice requiring cessation has been served (per HydropureWater 2026-02). Section 29 raises the ceiling for Malaysian waters — extending 12 nautical miles from shore — to RM 500,000 and imprisonment up to 5 years; that fact pattern is rare for a landlocked auto plant, but the Section 25 exposure is routine for any facility discharging to a stormwater drain or receiving catchment. Repeat-offence risk under IER 2009 includes license revocation (per HydropureWater 2026-02).

The audit reality is the harder constraint. DOE conducts regular and unannounced audits, so the ETP must be designed to pass on any given day, not just on the quarterly 24-hour composite sampling date. Sampling must be at STANDARDS MALAYSIA-accredited labs under MS ISO/IEC 17025, with electronic submission via IEQIS. The practical translation is that the deal team should size chemical dosing, biological capacity, and sludge handling to handle the worst shift, not the average shift, because the inspector does not give advance notice.

CAPEX Bands and the 6-12 Month Pre-Closing Workstream

The numbers below are planning bands, not quotes. They exclude site work, civil works, and contingency, and they should be re-quoted against the final 3-shift influent characterization. Equalization plus a DAF system train plus an MBR or SBR biological stage anchors the lower end of the budget. Ca²⁺ precipitation and sludge handling add a middle band when any fluoride-bearing process is in scope. Electrolysis-based metal recovery (vendor-side, RARELOOP-class units) is a 2026 forward-looking option, not yet a baseline cost item. A reverse osmosis polishing train closes the envelope for water-reuse and brings the design inside the 60% reuse target that the 2020 ZLD direction and the 2027 circular-economy signal together imply (per HydropureWater 2026-02).

Two forward-looking rules to design in from day one. First, the 2020 ZLD direction for high-risk sectors and the 2027 circular-economy signal for industrial parks mean a 60% reuse target is the safe minimum to avoid stranded capex. Second, vendor selection should require IEQIS-ready PLC/SCADA, a PLC-controlled chemical dosing skid with documented OPEX in MYR, a rotary mechanical bar screen sized to the plant's solids load, and MS ISO/IEC 17025-compatible sampling ports. Pre-closing workstreams to authorize now: 3-shift influent characterization, ETP gap analysis against GM's process profile, IEQIS-compatible PLC/SCADA spec, MS ISO/IEC 17025 sampling port layout, and sludge handling protocol — dewatered cake to a licensed facility, no inland disposal. For the deal-team reading list, the Ford Malaysia plant acquisition compliance guide lays out the same sequence from a parallel OEM angle, and the filter press vs screw press cost analysis covers the dewatering-side tradeoff in detail.

Frequently Asked Questions

Does the seller's DOE discharge permit transfer with the share purchase?

No. Under EQA 1974, liability follows the operator, so the new owner must re-apply for a DOE discharge permit, submit engineering plans, complete an EIA where the activity is prescribed, and pass DOE site inspection before the acquired plant can lawfully discharge under the new owner's name (per HydropureWater 2026-02).

What are the binding Standard B limits GM must design to?

Under Standard B, the binding values are pH 5.5–9.0, COD ≤100 mg/L, BOD₅ (20°C) ≤50 mg/L, TSS ≤100 mg/L, O&G ≤10 mg/L, with heavy-metal caps including Hg 0.05 mg/L, Cd 0.02 mg/L, Cr(VI) 0.05 mg/L, Cu 1.0 mg/L, Ni 1.0 mg/L, Zn 2.0 mg/L, and B 4.0 mg/L. Site-specific permit conditions may tighten any of these, and Standard A (BOD 20 mg/L) applies to discharges into the most sensitive catchments (per HydropureWater 2026-02).

What is the maximum fine for a Section 25 EQA 1974 offence?

Under Section 25 of the EQA 1974, the maximum fine is RM 100,000 with imprisonment up to 5 years, plus a further RM 1,000/day for every day the offence continues after a Director General notice. Section 29 raises the ceiling for Malaysian waters to RM 500,000 and imprisonment up to 5 years. Repeat-offence risk under IER 2009 includes license revocation (per HydropureWater 2026-02).

How long does a full EIA add to the re-permit timeline?

A full EIA typically adds 4–9 months to the critical path, with EIA scope and the acquired site's prior compliance history as the two main timeline extenders. The engineering workstream must start inside the 6–12 month M&A runway, not after signing (per HydropureWater 2026-02).

What ETP train is the defensible baseline for a paint-shop and metalworking plant?

Equalization + DAF + biological (SBR or MBR) with MBR upgrade where effluent SS must land below 10 mg/L, plus zinc phosphate and Ni/Zn removal stages, activated carbon for solvent residues, and a plate-and-frame filter press for sludge dewatering to ~22–28% dry solids. Inland disposal of cake is prohibited — it must go to a licensed facility.
