Why Vonore Chemical Plants Need a Compliance-First Technology Choice in 2026
For chemical, polymer, and resin plants in the Vonore/Hiwassee industrial corridor, the choice between dissolved air flotation and a lamella clarifier is a permit decision first and an equipment decision second. Most facilities in this corridor discharge either to the Vonore POTW or to tributaries feeding the Tellico Reservoir and the lower Hiwassee/Tennessee River system, which means 40 CFR Part 414 subparts 414.60 through 414.90 — the OCPSF (Organic Chemicals, Plastics, and Synthetic Fibers) category — set the binding effluent numbers whether the permit is an indirect-discharge pretreatment permit with technically based local limits (TBLLs) or a direct-discharge NPDES permit with watershed-quality overlays. OCPSF daily-maximum TSS limits typically fall in the 100–300 mg/L range, and oil and grease is commonly capped below 50 mg/L (per EPA 40 CFR Part 414 subpart structure). Anything that misses those numbers in the acceptance test becomes a consent-order problem in 2026, not a tweak on the back end.
The reason this matters in Vonore specifically: chemical influent is not food-plant or municipal primary sludge. OCPSF streams in this corridor carry surfactant-stabilized emulsions, latex carryover, solvent slugs, pH swings from 1 to 13 between batch discharges, and TDS from 5,000 to 30,000 mg/L (HydropureWater field data, 2026). A municipal-grade gravity clarifier simply does not have the bubble-flotation mechanism to lift light, sub-100 µm emulsified solids, and that mismatch is the root cause of failed acceptance tests. The rest of this article maps that mismatch to a defensible 2026 equipment file — influent signature → decision rule → pilot scope → retrofit-or-greenfield call. For broader context on the chemical-stream envelope, the chemical wastewater COD removal guide covers the downstream train once the primary step is locked in.
DAF vs Clarifier: How Each Technology Actually Works on Chemical Wastewater
Dissolved air flotation is a physicochemical separation: a side-stream of clarified effluent is pressurized to 4–8 atm in a packed-column saturator (packed-column designs reach 85–95% air-dissolution efficiency versus 70–80% for unpacked vessels, per waterandwastewater.com), then injected into the flotation tank's contact zone where depressurization nucleates a cloud of 20–70 µm microbubbles. Those bubbles attach to flocculated particles and float them to the surface for skimming. The HydropureWater ZSQ DAF system operates in this envelope; industrial references such as DAF Corp's FC Maximizer, designed for 500 GPM at 2,000 ppm TSS loading, demonstrate 92–98% TSS removal with 2–4% DS thickened sludge (per DAF Corp product data). Hydraulic loading on a DAF sits at 0.5–2.0 gpm/ft² (~1.2–4.9 m³/m²·h), and the air-to-solids (A/S) ratio is the primary tuning knob, governed within 0.005–0.060 ml air per mg of solids (per waterandwastewater.com).
A lamella or conventional clarifier relies entirely on gravity settling. A lamella uses 60° inclined plates spaced at 50–80 mm to multiply the effective settling area inside a compact footprint, achieving surface loading of 20–40 m/h versus 1–3 m³/m²·h on a conventional basin (per HydropureWater lamella clarifier product spec). The HydropureWater high-efficiency sedimentation tank (lamella clarifier) works on this principle. The mechanism is purely gravitational — particles must overcome drag and settle against the upflow velocity. On a stable, low-FOG, dense settleable stream a lamella performs; on a chemical stream carrying emulsified droplets below 50 µm or surfactant-stabilized colloids, the particles effectively do not settle, and the unit becomes a flow-through basin that fails Part 414 daily-max TSS and oil & grease simultaneously.
The polymer/coagulant dependency is the second decision point and the one procurement engineers most often underestimate. Optimized coag-floc lifts DAF TSS removal from 50–60% (no chemistry) to 85–95% — the chemistry choice matters more than the equipment brand (per waterandwastewater.com). On OCPSF streams, specify an optimized coagulant (alum, PAC, or ferric) plus a cationic flocculant at 5–20 lb/ton dry solids, delivered through a HydropureWater polymer and coagulant dosing skid as part of the same acceptance envelope — not as an add-on.

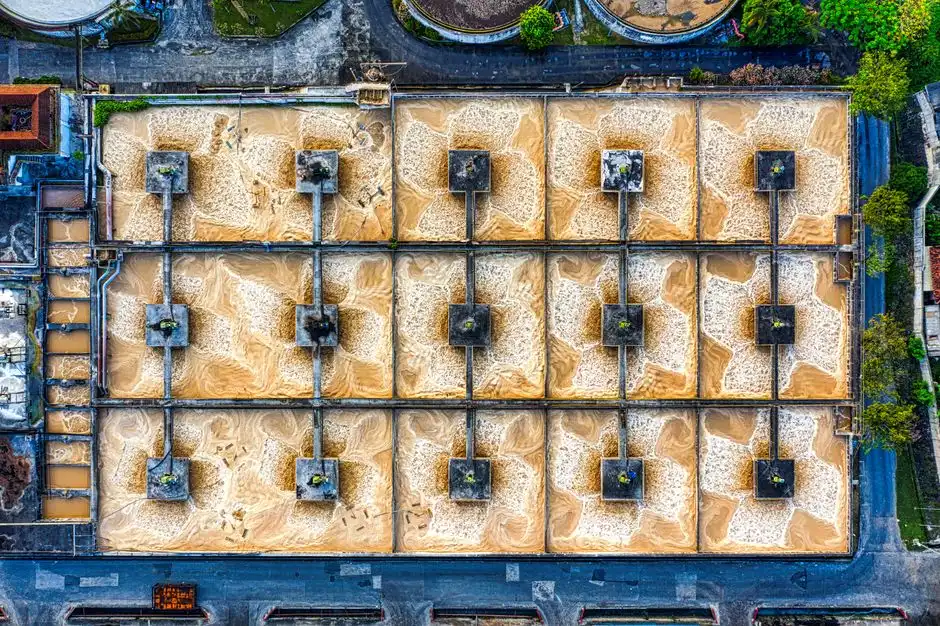

The 2026 Vonore Decision Matrix: DAF or Clarifier by Influent Signature
The four-branch rule below lets a procurement team shortlist equipment in a single meeting. The branches are mutually exclusive and tied to the failure mode the influent will trigger if you guess wrong.
| Branch | Influent Signature | Primary Unit | Downstream Step |
|---|---|---|---|
| 1 | FOG > 50 mg/L OR emulsions present OR surfactants OR TSS > 500 mg/L | DAF (e.g., ZSQ DAF system) | Biological (MMBBR/MBR) or media filter if Part 414 BOD/COD limits apply |
| 2 | FOG < 50 mg/L AND TSS < 300 mg/L AND no surfactants AND dense settleable solids | Lamella clarifier | Sand filter or cartridge for residual TSS |
| 3 | High TSS + emulsion + water-reuse goal | DAF primary | Lamella or sand filter as polish to 5–15 NTU subnatant for reuse |
| 4 | Existing clarifier in place, modest FOG, capex-constrained retrofit | Existing clarifier + DAF recycle retrofit | Same downstream polish as full DAF |
Upstream of any of these branches, a HydropureWater GX rotary mechanical bar screen with 2–6 mm aperture protects the DAF recycle pump and the lamella plate pack from rags, plastics, and agglomerated resin — this is a 2026 standard at chemical-plant headworks, not an option. If your plant runs an adjacent semiconductor-style process train, the Plano semiconductor DAF vs clarifier guide documents a parallel decision envelope for comparison.
Side-by-Side Parameter Table: DAF vs Lamella vs Conventional Clarifier
This is the screenshot-ready comparison for the vendor-evaluation file. Absolute capex and opex figures vary by tank material, footprint, and degree of automation; the relative tiers below are engineering ranges, not quotes.
| Parameter | Dissolved Air Flotation (DAF) | Lamella Clarifier | Conventional Clarifier |
|---|---|---|---|
| TSS removal (chemical influent) | 85–98% with optimized coag-floc; 92–98% on FC Maximizer at 2,000 ppm loading | 50–70% | 40–60% on chemical influent; <50% on emulsions |
| Oil & grease removal | High; effective down to emulsified droplets | Poor; free oil sheets, emulsified oil passes through | Poor; same mechanism failure as lamella |
| Footprint (per 100 GPM) | 5–12 m² | 5–12 m² | 25–50 m² |
| Hydraulic loading | 0.5–2.0 gpm/ft² (~1.2–4.9 m³/m²·h) | 20–40 m/h | 1–3 m³/m²·h |
| Polymer dose | 5–20 lb/ton dry solids, cationic | 0–5 lb/ton dry solids (often none) | 0–5 lb/ton dry solids (often none) |
| Stable pH window | 4–11 with pre-coagulation | 6.5–8.5; deflocculation outside this band | 6.5–8.5 |
| Subnatant turbidity | 5–15 NTU industrial; 2–5 NTU membrane pretreatment | 20–50 NTU typical on chemical influent | 30–60 NTU typical |
| Capex tier (relative) | Moderate–High (skid systems 48–500 GPM widely available) | Low–Moderate (especially retrofit into existing basins) | Low–Moderate (large civil footprint) |
| Opex tier (relative) | Moderate (energy for pressurization + polymer) | Low | Low |
| Ideal influent | FOG > 50 mg/L, emulsions, latex, TSS > 500 mg/L, surfactant-laden streams | Low-FOG, low-surfactant, TSS < 300 mg/L, dense settleable solids | Same as lamella but with footprint to spare |
The polymer row is the one that gets underestimated most often. The dose column drives the chemistry CAPEX as much as the tank does, and the dose is locked in only by jar testing on real wastewater — never on a vendor default. For polymer-handling integration, the HydropureWater polymer and coagulant dosing skid should be specified alongside the DAF skid so dose control is part of the same acceptance envelope.
Failure Modes That Decide the Technology on Vonore Chemical Streams
Influent signature, not equipment brand, determines whether the unit passes or fails the acceptance test. Three failure modes dominate on Vonore OCPSF streams. First, free oil above ~200 ppm saturates the bubble surfaces in a DAF and prevents floc attachment — the unit "oils out" and the float becomes a free-oil blanket that skims poorly and re-emulsifies in the sludge hopper. Second, surfactant above the critical micelle concentration competes for the air–water interface and suppresses bubble-to-particle attachment, dropping DAF removal toward the 50–60% chemistry-less floor; the same condition makes a clarifier useless because the colloids never settle. Third, pH swings from 1 to 13 between batch discharges deflocculate a clarifier blanket and carry TSS into the overflow; on a DAF, the same swing is recoverable with pre-coagulation inside the 4–11 pH stable window (per waterandwastewater.com). Temperature above 35–40°C reduces air solubility in the saturator and weakens float — worth modeling on any stream with hot process condensate. These four failure modes are the reason Branch 1 of the decision matrix is the default for most Vonore OCPSF plants: DAF tolerates the swings; a clarifier does not.
The 2026 Pilot Protocol That Protects a Six-Figure Capex
A 4–8 week continuous pilot on a 48–100 GPM mobile skid is the cheapest insurance on a six-figure equipment decision. Request a mobile unit — DAF Corp's RC UniMax pilot at 80–100 GPM and the FC-60 pilot at 48 GPM are typical reference skids (per DAF Corp), and trailer-mounted mobile DAFs from suppliers such as WesTech can typically be brought online within a single day depending on site readiness. Run the unit on real wastewater, not a synthetic; composite-sample influent and effluent across at least one full production cycle that includes a batch-discharge event. Jar tests in parallel at 0.5×, 1×, 1.5×, and 2× the expected polymer/coagulant dose lock in the chemistry; tune A/S ratio within 0.005–0.060 ml/mg and record the response surface across the dose grid.
| Acceptance Parameter | Target | Test Method |
|---|---|---|
| TSS (POTW discharge) | <100 mg/L or to specific local limit | EPA Method 160.2 composite, 24-hr |
| Oil & grease | <50 mg/L (confirm against your Part 414 subpart) | EPA Method 1664 |
| Subnatant turbidity (membrane/reuse) | 2–5 NTU | Nephelometric, daily |
| Subnatant turbidity (general pretreatment) | 5–15 NTU | Nephelometric, daily |
| A/S ratio operating point | Documented within 0.005–0.060 ml/mg | Rotameter + flow log |
| Polymer dose | 5–20 lb/ton dry solids, cationic (jar-test confirmed) | Jar test + dose log |
Define these acceptance criteria in writing before the pilot starts, and specify a performance bond or liquidated-damages clause tied to them during the acceptance test. This is 2026 procurement best practice that costs the vendor little but protects a six-figure DAF capex from a generic quote (per waterandwastewater.com procurement guidance). For an adjacent corridor reference, the EV/auto DAF vs clarifier guide walks through a parallel pilot envelope on a different influent signature.

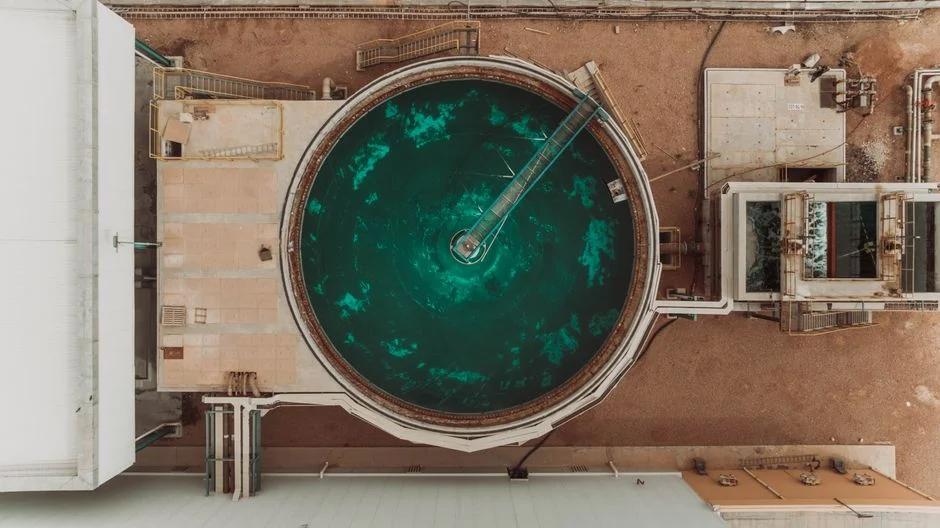

Retrofit vs Greenfield: When an Existing Clarifier Can Be Upgraded With DAF
For Vonore plants with an installed clarifier and capex pressure in 2026, the documented retrofit path is a DAF recycle and micro-bubble generator tied into the existing basin (per DAF Corp). The retrofit lifts a 50% TSS-removal clarifier into the 80%+ range at moderate cost versus a full DAF unit, and the civil work is limited to the saturator skid, recycle pump, and bubble-generator manifold. The catch: the retrofit is justified only when the existing basin can hold the contact zone, the sludge hopper geometry, and the skimmer flight without modification. If any of those need rebuild, the civil cost erases the capex saving and a greenfield skid-mounted DAF — sized against the same 48–500 GPM envelope that serves most OCPSF plants — is usually the cleaner 2026 answer.
Frequently Asked Questions
Is DAF or a clarifier the right primary for OCPSF wastewater in Vonore in 2026?
DAF, for the majority of OCPSF streams in the Vonore/Hiwassee corridor. If the influent carries FOG above 50 mg/L, surfactant-stabilized emulsions, latex carryover, or TSS above 500 mg/L, DAF at 85–98% TSS removal is the correct primary. A lamella clarifier is the right call only on low-FOG, low-surfactant streams with TSS below ~300 mg/L and dense settleable solids — and even then it is often the polishing step downstream of a DAF rather than the primary.
What bubble size should a 2026 DAF specify for chemical wastewater?
Target 20–40 µm. Modern micro-bubble generators from suppliers such as DAF Corp deliver this range consistently, and the bubble-to-particle size ratio of ~0.5–1.0 is the window where collision and attachment efficiency peak (per waterandwastewater.com). For sub-50 µm emulsified droplets, a 20–40 µm bubble outperforms the older 50–70 µm generation on both TSS removal and subnatant clarity.
Can a lamella clarifier meet 40 CFR Part 414 daily-max TSS and oil & grease limits on its own?
Rarely, on chemical influent. A lamella on a stable, low-FOG, settleable-solids stream can reach the 100–300 mg/L TSS daily-max range that some Part 414 subparts allow, but it cannot reliably hit oil & grease limits or polish to the 5–15 NTU range that downstream biological or membrane steps require. The standard compliance-grade train is DAF primary, with biological or media filtration as polish — the lamella, if used at all, sits between them as a sludge thickener or polishing step.
What polymer dose should a Vonore plant plan for on a DAF?
Plan for 5–20 lb of cationic polymer per ton of dry solids, then optimize on-site with jar tests (per waterandwastewater.com). On OCPSF streams with high TDS or surfactant load, the dose tends toward the upper end of that range; the response is nonlinear, so jar tests at 0.5×, 1×, 1.5×, and 2× the expected dose are worth the half-day they take.
What size DAF skid covers a typical Vonore chemical plant?
DAF Corp systems span 48 to 11,000 GPM (per DAF Corp); most chemical plants in the Vonore/Hiwassee corridor fall in the 50–500 GPM range, which is well served by skid-mounted units. Pilot skids at 48 GPM (FC-60) and 80–100 GPM (RC UniMax pilot) are the right scale to validate chemistry and hydraulics before committing to a full-scale unit, and mobile trailer units are available for fast deployment during the pilot phase. For the digital-twin layer that supports the 2026 acceptance envelope, the digital twin wastewater treatment plant guide documents how to tie the pilot response surface to full-scale operating controls.
