Why Heber Springs' POTW Sets the Pretreatment Bar
The Heber Springs Water and Wastewater Utility receives all sanitary wastewater from the City of Heber Springs and Eden Isle, treats it through Dissolved Air Flotation plus UV disinfection and screening, then discharges the effluent to the Little Red River, according to the Utility's own About page. DAF is the Utility's primary solids-and-FOG removal step; there is no conventional activated-sludge aeration basin downstream of it. Operators report test results and sanitary sewer overflows to ADEQ as required, and the Utility maintains a Fats, Oils, and Grease (FOG) program, coordinating the maintenance of grease and oil interceptors connected to the collection system. A dedicated Sewer Crew performs CCTV inspection, smoke testing, dye testing, and high-velocity cleaning of sewer mains, and blockages traced to industrial FOG are billable to the source.
For an industrial user (IU) tying into that collection system, the implication is concrete: the receiving plant has limited biological polishing capacity. A pretreatment train that lets emulsified oil, TSS, or settleable solids reach the Utility's DAF risks pass-through violations, FOG program enforcement, and direct cost recovery for sewer cleaning. A Tier-1 EV or auto component plant must remove the bulk of oil, suspended solids, and metals upstream — typically to single-digit mg/L oil and TSS — before discharge.
Heber Springs sits in Cleburne County, Arkansas, and the Utility's outfall is on the Little Red River, an impounded reach of Greers Ferry Lake. Heber Springs' economy is anchored in part by tourism around the lake, which raises the political and regulatory cost of any IU-driven pass-through event. The Utility's WWTP, per its About page, is operated by licensed Wastewater Treatment Operators under ADEQ oversight, with the WWTP Manager and head operator directly accountable to ADEQ for noncompliance reporting.
The 40 CFR Part 403 Framework: Categorical vs. Local Limits
Pretreatment standards are pollutant discharge limits that apply to industrial users (IUs) that discharge indirectly to a POTW, defined at 40 CFR 403.3(j) as an Industrial User of Indirect Discharge (IUIUD), per the EPA's pretreatment program. The framework has two stacked layers: categorical standards promulgated by EPA under 40 CFR Subchapter N for specific industry categories (for example, 40 CFR Part 433 for metal finishing, 40 CFR Part 444 for automotive parts), and local limits developed by the POTW itself.
Local limits are site-specific numeric or narrative discharge limits — including BMPs — developed under 40 CFR 403.5(c) to protect the POTW from pass-through (a discharge that exits the POTW in concentrations or quantities that cause a violation of the POTW's NPDES permit) and interference (a discharge that disrupts POTW operations or sludge processes), per the EPA's local-limits guidance. EPA identifies the POTWs required to develop local limits and provides guidance on calculating maximum allowable headworks loadings, identifying pollutants of concern, and performing annual reviews plus periodic reevaluations. Local limits, once developed and approved, are enforceable as pretreatment standards by both the POTW and EPA.
In Arkansas, ADEQ Regulation 18 implements the federal 40 CFR 403 program; the actual permit for an IU in Heber Springs is issued through the Utility's pretreatment ordinance with ADEQ oversight. For an EV/auto plant, the practical compliance path is: identify the applicable 40 CFR subcategory, request the Utility's current local limits and headworks loading allocation, then design the pretreatment train so the discharge at the point of connection to the collection system sits below both the categorical ceiling and the local limit — with margin.

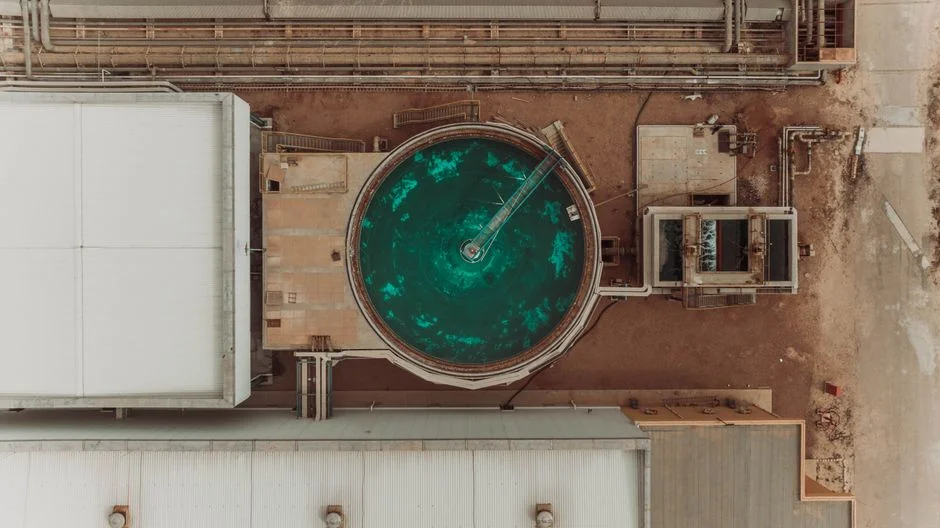

Auto-Plant Waste Stream Characterization
EV and auto assembly plants generate five distinct wastewater streams that have to be characterized and segregated before any unit operation is selected. The table below summarizes typical parameter ranges drawn from industry practice; site-specific values must be confirmed by sampling.
| Stream | Key Pollutants | Typical Concentration Range | Primary Treatment Target |
|---|---|---|---|
| Body-in-white rinsewater (stamping, weld shop) | TSS, oil & grease, Zn (galvanizing), Fe | TSS 200–1,500 mg/L; Zn 5–50 mg/L; O&G 50–500 mg/L | TSS <100 mg/L; Zn <2 mg/L at discharge |
| E-coat / electrodeposition rinsewater | COD, anionic paint resin, low VOC | COD 200–800 mg/L; TSS up to 200 mg/L | COD <300 mg/L; TSS <50 mg/L |
| Phosphate conversion coating | Total phosphorus, free fluoride, low pH | TP up to 100 mg/L; F⁻ 10–50 mg/L; pH 2–5 | TP <5 mg/L via chemical precipitation; neutralize pH |
| Machining coolant & parts washer | Emulsified oil, surfactants, trace metals | O&G 1,000–10,000 mg/L; COD 5,000–30,000 mg/L | Break emulsion, DAF, then biological |
| Battery gigafactory black-mass wash water | Li, Co, Ni, graphite fines, low pH | Ni/Co 10–200 mg/L; TSS 500–5,000 mg/L | pH adjust, hydroxide or sulfide precipitation, polish TSS |
Body-in-white rinsewater is the largest volumetric stream at a stamping or weld shop and carries the zinc signature from galvanized steel that drives local limits in most auto-supplier jurisdictions. E-coat rinsewater is lower in VOC than older solvent-borne paint systems but still generates a high-COD anionic resin load that does not break easily in a DAF alone. Phosphate conversion-coating baths run hot and acidic, and fluoride becomes a categorical concern at the 40 CFR 433 metal-finishing limits. Machining coolants arrive as stable oil-in-water emulsions at 1,000–10,000 mg/L O&G and must be chemically broken before DAF. Battery gigafactory black-mass wash water — generated during cathode-active-material recovery — is a newer stream that most receiving POTWs do not yet have headworks allocation for; it usually needs pH adjustment, hydroxide or sulfide precipitation for nickel and cobalt, and a polishing stage to meet a sub-10 mg/L TSS target.
Building the Pretreatment Train
A compliant pretreatment train for an EV/auto plant in Heber Springs sequences unit operations so that the heaviest load is removed first and the most sensitive polishing step sees the cleanest feed. The seven stages below are written as a P&ID narrative an engineer can drop into a process flow diagram.
Stage 1 — Source segregation. FOG-rich streams (machining coolant, parts washer, e-coat drag-out) must be kept separate from phosphate- and metal-bearing streams (conversion coating rinse, black-mass wash) to avoid cross-loading the chemical precipitation stage with organics that consume coagulant.
Stage 2 — Oil/water separation. A corrugated-plate interceptor or API separator removes 60–80% of free oil ahead of DAF, protecting the air-saturation system from rag layers and reducing coagulant demand.
Stage 3 — Dissolved air flotation. DAF micro-bubble flotation handles emulsified oil, TSS, and FOG in a 4–300 m³/h flow envelope; the DAF micro-bubble flotation units (ZSQ series) cover 13 standard models sized for factory-floor pretreatment skids. Hydraulic residence time is typically under 30 minutes, with 90%+ TSS and oil removal on conditioned feed.
Stage 4 — Equalization and pH adjustment. A surge tank with air or mechanical mixing homogenizes flow and neutralizes acid/alkaline streams; PLC-controlled coagulant and pH adjustment dosing skids deliver caustic or acid on demand from pH probe feedback.
Stage 5 — Biological treatment. Where the discharge ceiling demands it, an MBR membrane bioreactor for COD/BOD polishing delivers sub-1 μm filtration in roughly 60% of the footprint of a conventional activated-sludge basin with a separate clarifier.
Stage 6 — Chemical precipitation and polishing. An inclined-plate lamella clarifier for metal and phosphorus polishing settles hydroxide or sulfide floc at 20–40 m/h surface loading, with internal sludge recirculation reducing coagulant consumption by up to 30%.
Stage 7 — Disinfection. For process effluent that must be disinfected before sewer discharge, a chlorine dioxide generator (ZS series) sized from 50 g/h to 20,000 g/h provides on-site oxidant generation without the chlorinated byproducts of bulk chlorine.

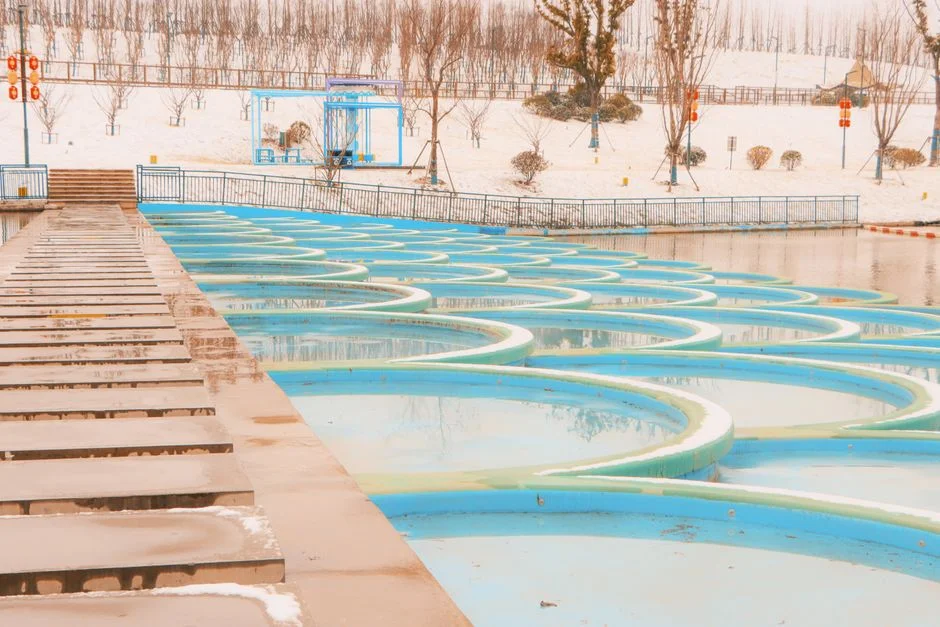

DAF vs. Lamella Clarifier: Picking the First Solids-Stage
The first solids-removal stage sets the load on everything downstream. For an EV/auto plant, the choice is almost always between a DAF unit and a lamella clarifier, and the right answer depends on what is in the water rather than what is cheapest to buy.
| Criterion | DAF (Dissolved Air Flotation) | Lamella Clarifier |
|---|---|---|
| Best feed | Oily, FOG-heavy, low-density floc | High-density inorganic floc (metal hydroxides, phosphate) |
| Removal mechanism | Micro-bubble flotation of light-phase contaminants | Gravity settling of dense floc on inclined plates |
| Typical TSS removal | 90%+ on conditioned feed at <30 min HRT | 80–95% on precipitated-metal feed |
| Surface / hydraulic loading | 5–25 m/h hydraulic, depending on model | 20–40 m/h surface loading on plates |
| Footprint | Larger per m³/h, but tanks are shallow | Compact — 60–80% smaller footprint than conventional clarifier |
| Chemical demand | Coagulant + polymer for emulsion break | pH adjust + precipitant (lime, NaOH, sulfide) |
| Sludge character | Floated float, 3–8% dry solids | Settled sludge, 1–4% dry solids |
DAF wins wherever the stream carries emulsified oil or light FOG, because flotation pulls contaminants upward against gravity rather than waiting for them to settle. Lamella wins wherever the stream carries dense inorganic floc — metal-hydroxide or phosphate precipitates — because inclined plates pack a lot of settling area into a small footprint. Many EV/auto plants run DAF then lamella in series: DAF strips oil and TSS from the raw waste, lamella polishes the metal-bearing stream after precipitation. Skid-mounted, PLC-controlled, factory-floor pretreatment packages are the norm for Tier-1 auto suppliers, and the relevant reference design for similar transportation-equipment plants is laid out in the DAF vs clarifier selection guide for transportation equipment factories.
Sludge Handling and Compliance Documentation
Residuals are where pretreatment projects most often overrun budget and schedule. DAF float and lamella underflow must be dewatered to 15–22% cake solids before off-site disposal, with a plate-and-frame filter press for sludge dewatering available in 1–500 m² filtration area with manual, hydraulic, or PLC control. Cake at 20% DS passes the paint-filter test and meets most landfill disposal criteria; below 15%, hauling costs dominate.
Documentation under 40 CFR 403 is not optional. Significant Industrial Users must file baseline monitoring reports within 180 days of discharge, 90-day compliance reports on a recurring schedule, and slug control plans describing prevention and containment of accidental releases. Self-monitoring reports (SMRs) typically include flow, pH, TSS, O&G, and any categorical pollutant on the permit schedule, with sampling at the point of connection to the collection system. The Utility reevaluates local limits annually, and parameters tighten over time as headworks loading data accumulates; design the pretreatment train with 20–30% headroom on both flow and load so the next reevaluation does not trigger a capital expansion. For a side-by-side compliance playbook covering a parallel industry, the 40 CFR 403 pretreatment compliance playbook for chemical plants walks through the same SMR and slug-control workflow.
Frequently Asked Questions
What pretreatment framework applies to an EV/auto plant discharging to the Heber Springs Utility?
Federal 40 CFR Part 403 categorical standards apply where a subcategory fits (e.g., 40 CFR 433 metal finishing, 40 CFR 444 automotive parts), with site-specific local limits added by the Utility under 40 CFR 403.5(c). ADEQ Regulation 18 implements the federal program in Arkansas, and the actual permit is issued through the Utility's pretreatment ordinance with ADEQ oversight.
What treatment scheme does the Heber Springs WWTP use to process received wastewater?
Per the Utility's About page, the Heber Springs WWTP treats all received sanitary wastewater with Dissolved Air Flotation plus UV disinfection and screening, then discharges the effluent to the Little Red River, with operators reporting test results and SSOs to ADEQ as required.
Why does the Heber Springs Utility operate a FOG program, and what does it mean for an industrial user?
The Utility maintains a Fats, Oils, and Grease program and coordinates grease and oil interceptor maintenance across the collection system to prevent sewer blockages. For an IU, the practical impact is that emulsified oil and FOG reaching the collection system trigger enforcement, sewer-cleaning cost recovery, and pass-through liability under 40 CFR 403.3(p).
What is the first-stage choice between DAF and a lamella clarifier for an automotive wastewater train?
DAF is selected for oily, FOG-heavy streams because micro-bubble flotation removes light-phase contaminants in under 30 minutes; lamella is selected for dense inorganic floc such as metal-hydroxide or phosphate precipitates because inclined plates settle at 20–40 m/h surface loading in a compact footprint. Many EV/auto plants run DAF then lamella in series.
