Pretreatment for Transportation Equipment Plants Near Oconto, WI (2026 Guide)

Why Oconto, Wisconsin Transportation-Equipment Plants Face a Different Compliance Picture

Transportation equipment plants near Oconto, Wisconsin meet pretreatment limits by designing a five-step train — screening, equalization (8–24 h HRT), dissolved air flotation (5–20 m/h surface loading), PLC-controlled chemical dosing to a pH window of 6.0–9.0, and lamella polishing — and by demonstrating compliance at the manhole under 40 CFR Part 403 local limits enforced by the Oconto Falls Municipal Utilities POTW and the Wisconsin DNR.

The controlling authority is not EPA Region 5 directly; it is the Oconto Falls Municipal Utilities (OFMU) Wastewater Department, which operates the POTW that receives industrial flow from the surrounding transportation-equipment corridor (per ofmu.org, Wastewater Department). Wisconsin DNR oversees POTW pretreatment programs in the state under EPA's 40 CFR Part 403 delegation, and the binding numbers are the site-specific local limits OFMU derives and enforces under 40 CFR 403.5(c) — not a federal categorical standard. EPA is explicit that "local limits are site-specific and can be numeric or narrative effluent discharge limits, including BMPs" (per EPA, "Pretreatment Standards and Requirements-Local Limits," 2026-01), so a Wisconsin engineer's job is to read the OFMU limit letter line by line before sizing a single basin.

Two failure modes drive limit stringency. Pass-through, defined at 40 CFR 403.3(p), is a discharge that exits the POTW into waters of the United States in quantities or concentrations that, alone or in conjunction with other sources, cause a violation of the POTW's NPDES permit. Interference, defined at 40 CFR 403.3(k), is a discharge that inhibits or disrupts the POTW, its treatment processes, or its sludge processes and is a cause of an NPDES or sludge-disposal violation. Pass-through is about the receiving water; interference is about the plant. Both can be triggered without ever violating a federal categorical standard, which is exactly why the local limit letter — not a 40 CFR subchapter N–S table — is the controlling document.

The receiving-water context tightens the math. OFMU discharges to the Fox River watershed, which drains to Green Bay and ultimately the Great Lakes basin. Phosphorus and metals limits at Fox River POTWs are typically more conservative than at inland Wisconsin facilities because of Great Lakes basin concerns under the Great Lakes Water Quality Agreement, and OFMU's local limit letter will reflect that.

The Waste Streams a Truck-Body, Trailer, or Marine-Fabrication Shop Actually Generates

A typical transportation-equipment plant in northeastern Wisconsin generates six to ten discrete waste streams that converge on the pretreatment system, and each contributes a different pollutant family. The table below distills industry-typical loadings for the streams most often seen in truck-body, trailer, off-highway, and marine-fabrication operations; confirm with site sampling before sizing equipment.

Marine-fabrication and heavy off-highway shops near Oconto skew toward higher metals loading and FOG than light automotive assembly because of thicker steel sections, more welding and grinding dust, larger phosphate baths, and frequent in-process oil quenching. Flow is rarely steady: a single batch of spent coolant dumped at end of shift can swing hourly influent by a factor of three to five (per the Houma engineering guide, applied to Wisconsin E-coat and phosphate lines). That ratio is the case for equalization in any Wisconsin plant — without 8–24 h of HRT, a single batch event will reach the manhole as a slug and trip an interference violation regardless of how well the rest of the train is running.

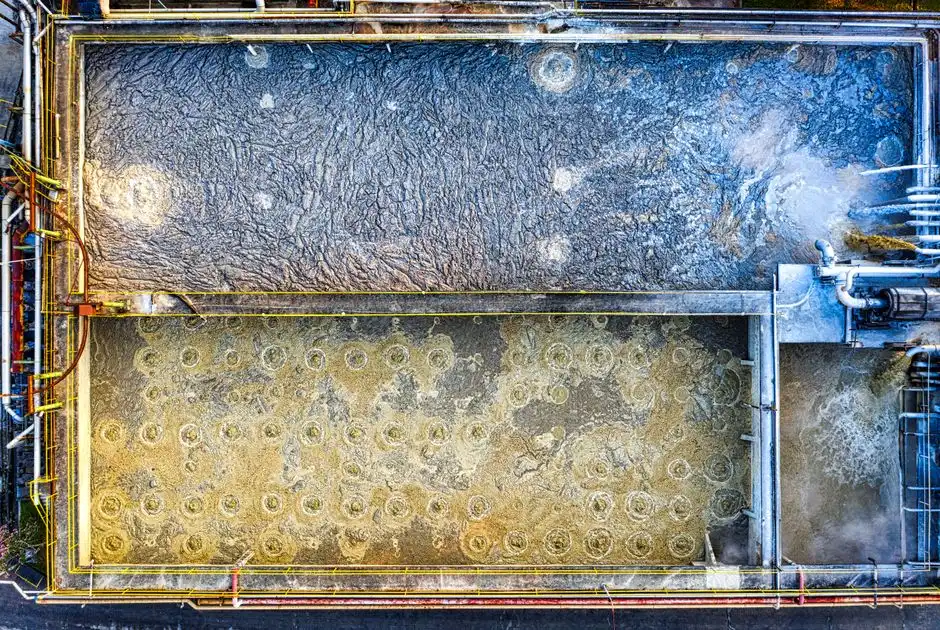

The Five-Step Process Train That Holds Up Across Wisconsin Transportation-Equipment Sites

The sequence that has held up across transportation-equipment sites is screen → equalize → float → dose → polish. Each step has a defensible operating window an engineer can hand to a vendor without overstating vendor-specific performance.

Step 1 — Screening. A rotary mechanical bar screen with 3–10 mm bar spacing protects downstream pumps and DAF nozzles from welding wire, grit, and parts-washer rag stock. Below 3 mm, blinding becomes chronic in a fab shop; above 10 mm, the DAF recycle pump sees the consequences.

Step 2 — Equalization. Size the basin for the 3–5× batch swings and for cold-weather winter HRT. Northeastern Wisconsin surface operations routinely see sub-zero air temperatures, and a basin without a cover or heat-tracing will ice over and shift viscosity enough to upset the DAF air-to-solids ratio. Insulate, cover, or bury; do not pretend the climate is Houma.

Step 3 — Dissolved air flotation. A ZSQ series DAF sized to 5–20 m/h surface loading and 0.02–0.06 lb air/lb solids handles the emulsified oil and FOG that dominate truck-body and trailer fabrication waste streams. Recycle rates of 20–30% are typical when influent O&G runs 200–5,000 mg/L.

Step 4 — PLC-controlled chemical dosing. Stage coagulant and flocculant on a single skid and hold the pH window at 6.0–9.0 for zinc, nickel, and trivalent chrome precipitation. Outside that window, metals solubilize rather than settle, and the lamella polish downstream becomes a polishing step on raw wastewater.

Step 5 — Lamella polishing. A high-efficiency sedimentation tank at 20–40 m/h surface loading drops residual TSS before the manhole and protects the POTW's sludge quality. For a parallel on how the same train plays out in a different basin, see the parallel Mount Pleasant, SC guide for transportation-equipment pretreatment.

DAF vs. Lamella Clarifier: Which Workhorse Fits a Northeastern Wisconsin Shop?

The most common equipment decision in a 2026 retrofit is whether to anchor the train on a DAF or a lamella clarifier. The honest answer is that the two technologies solve different problems; the matrix below maps influent character to unit-operation choice.

DAF wins on emulsified oil and FOG, which dominate truck-body and trailer fabrication waste streams; typical DAF oil removal is 90–95% on O&G 200–2,000 mg/L influent (Zhongsheng field data, 2026). Lamella wins on space-constrained retrofits and on lower sludge volume when oil is already skimmed upstream; a lamella clarifier running 20–40 m/h fits in roughly a quarter of the basin footprint of a comparably rated DAF.

A hybrid train is common in larger Wisconsin heavy-equipment plants: a coarse API or CPI separator upstream of the DAF to knock down free oil, then DAF for emulsified oil, then lamella polish. For most single-shift northeastern Wisconsin operations running one E-coat line and one parts washer, a single DAF unit followed by a small lamella polish is the cost-effective baseline. For a head-to-head on flotation versus sedimentation in a sister industry, see the Muncie, IN DAF-vs-clarifier buyer's guide.

The Local Limit Letter, BMR, and Slug-Control Plan: Documentation That Closes the Loop

Compliance is provable only if the monitoring point, frequency, and method are documented before the first sample is collected. The monitoring point is the point of connection to the POTW's collection system (per EPA, 2026-01), which is the manhole or sampling port the OFMU inspector will visit. Use grab samples for parameters that change on the timescale of minutes — pH and temperature, both of which most local limit letters require as a grab. Use 24-hour flow-weighted composites for daily mass loadings of TSS, O&G, total metals, and COD. The two methods answer different questions; the report template should keep them separate rather than collapsing both into a single daily number.

Under 40 CFR 403, significant industrial users are typically required to submit a Baseline Monitoring Report (BMR) when they first discharge a new process stream and a 90-day compliance report on a recurring cycle, plus a slug-control plan and BMP audit on the schedule the POTW imposes. The BMR is the document that anchors the local limit letter to actual measured loadings, and it is the first artifact an OFMU inspector will request during a 403.18 inspection. A slug load — a one-shot release of low-pH rinse water or a concentrated coolant dump — is the most common way an otherwise compliant plant trips an interference violation, and it is exactly the kind of event a properly sized equalization basin and a written slug-control plan are designed to absorb.

BMPs typically required by the local limit letter include spill containment at chemical storage, dead-end pipe flushing, and floor-cleaning practices. Recordkeeping must be granular enough to support RCRA "cradle-to-grave" documentation if any waste stream is ever diverted off-site for treatment (per prosservices.com, 2026), which means retaining manifests, waste profiles, and analytical data for at least three years and longer if a Wisconsin rule requires it. For a parallel on metals-focused documentation in a similar regulatory frame, see the Fort Atkinson fabricated metals pretreatment guide.

What Must Never Go Down the Oconto Falls Sewer: RCRA, Manifests, and the Licensed-Hauler Rule

Some streams at a transportation-equipment plant should never enter the POTW, regardless of how well the pretreatment train is running. Any liquid waste that exhibits a hazardous characteristic — ignitability, corrosivity, reactivity, or toxicity — or is listed as a specific hazardous waste under RCRA must be managed as hazardous waste from the point of generation (per prosservices.com, 2026). Common triggers are spent solvents above characteristic thresholds, acid or caustic cleaning solutions above the corrosivity limit (pH ≤ 2 or ≥ 12.5), and heavy-metal-bearing rinse waters that exceed the Toxicity Characteristic Leaching Procedure limits for lead, cadmium, or chromium.

Those streams go out on a licensed hazardous-waste transporter under the EPA Uniform Hazardous Waste Manifest (EPA Form 8700-22), which tracks the waste "cradle-to-grave" and keeps the generator on the hook for downstream mishandling. Treating a sewer discharge as a risk transfer is a misread of the liability chain. The right call, in plain terms, is to keep the sewer for process wastewater the plant can treat to local limits, and to haul the rest. Spills and slug discharges that reach the collection system must be reported immediately to Oconto Falls Municipal Utilities and the Wisconsin DNR; the Wisconsin Spill Hotline (1-800-943-0003) and the OFMU Wastewater Department are the two numbers a plant EHS manager should have posted at the load-out.

Frequently Asked Questions

Who is the controlling POTW for transportation-equipment plants near Oconto, Wisconsin?

The controlling POTW is Oconto Falls Municipal Utilities, which operates the wastewater treatment plant serving the Oconto Falls area under Wisconsin DNR oversight and EPA's 40 CFR Part 403 delegation (per ofmu.org, Wastewater Department). The binding numbers are the site-specific local limits OFMU derives and enforces under 40 CFR 403.5(c), not a federal categorical standard.

What is the difference between pass-through and interference under 40 CFR Part 403?

Pass-through, at 40 CFR 403.3(p), is a discharge that exits the POTW in quantities or concentrations that cause a violation of the POTW's NPDES permit. Interference, at 40 CFR 403.3(k), is a discharge that inhibits or disrupts the POTW, its treatment processes, or its sludge processes and is a cause of an NPDES or sludge-disposal violation. Pass-through is about the receiving water; interference is about the plant.

What is the standard five-step pretreatment train for a Wisconsin transportation-equipment plant?

The reliable sequence is screening (3–10 mm bar spacing) → equalization (8–24 h HRT) → dissolved air flotation (5–20 m/h surface loading, 0.02–0.06 lb air/lb solids) → PLC-controlled chemical dosing to a pH window of 6.0–9.0 for metals precipitation → lamella or multi-media polishing (20–40 m/h surface loading). Each stage is sized to a specific pollutant family rather than a single "all-in-one" treatment.

When is a BMR or slug-control plan required?

Under 40 CFR 403, significant industrial users are typically required to submit a Baseline Monitoring Report (BMR) when they first discharge a new process stream and a 90-day compliance report on a recurring cycle. A written slug-control plan is required when the local limit letter flags slug potential — typically any batch process with a 3–5× swing in hourly influent loading, which covers most E-coat and parts-washer operations.

When must a waste stream be hauled by a licensed transporter instead of discharged to the sewer?

Any waste that exhibits an RCRA hazardous characteristic — ignitability, corrosivity, reactivity, or toxicity — or is listed as a specific hazardous waste must be managed off-site under EPA Form 8700-22 (Uniform Hazardous Waste Manifest) by a licensed hazardous-waste transporter. Spent solvents above characteristic thresholds and acid or caustic cleaners above the corrosivity threshold are the usual triggers; the sewer is for process wastewater the plant can treat to local limits, and a licensed hauler is for everything else.
