What Sludge Age Control Automation Actually Does
Sludge age control automation uses online sensors (MLSS, NH₄-N, or DO probes) feeding a PLC to continuously adjust waste activated sludge (WAS) flow and maintain a target solids retention time, typically 3–30 days depending on process variant. Compared with manual wasting — which the 2025 Hach Water Insights case study reports consumes roughly two operator-hours per day at a small UK plant (Hach, 2025-09-23) — automated SRT control holds the F/M ratio near 0.05–0.15 kg BOD/kg MLVSS·d and stabilizes nitrification above the minimum SRT of 7–10 days required at 15°C for the typical Nitrosomonas/Nitrobacter community.
Three retention terms get conflated on plant floors and need to be separated before any control loop is designed. Hydraulic retention time (HRT) is V/Q — the average time a drop of water spends in the tank, normally 4–8 hours in conventional activated sludge. Solids retention time (SRT) is the average time a biomass particle stays in the system and is the variable that actually selects which microbial populations survive. Food-to-microorganism ratio (F/M) is the substrate loading rate per unit biomass, expressed in kg BOD/kg MLVSS·d. HRT responds to flow; SRT responds to wasting. Automating SRT means automating wasting, not flow.
The mass balance that ties them together is SRT = V·X / (Qw·Xw + Qe·Xe), where V is aeration volume (m³), X is MLSS in the reactor (kg/m³), Qw is waste flow (m³/d), Xw is waste solids concentration (kg/m³), Qe is effluent flow (m³/d), and Xe is effluent suspended solids (kg/m³). Xe is normally small enough to drop, which is why the simplified textbook form SRT ≈ V·X / Qw·Xw works in practice. When that ratio drifts low, nitrifiers wash out and ammonia climbs; when it drifts high, biomass accumulates, DO crashes in the center of the floc, and filamentous organisms take over. Both failure modes — bulking sludge at SRT > 25 days and pin floc at SRT < 3 days — show up in the effluent TSS long before the lab numbers move.
The Three Control Strategies Engineers Actually Use in 2026
No single SRT control loop fits every plant. The three strategies in service today differ in sensor cost, response time, and which failure mode they protect against, and the choice should be made before any RFQ goes out. The table below compares the three on the dimensions a process engineer actually weighs during specification.
| Parameter | MLSS-based | F/M-based | Ammonia-based (indirect) |
|---|---|---|---|
| Primary sensor | Suspended-solids probe in aeration tank | Influent flow + BOD + MLVSS | Online NH₄-N in effluent or basin |
| Setpoint range | 2,000–4,000 mg/L conventional; 6,000–10,000 mg/L in MBR systems operating at 6,000–10,000 mg/L MLSS | 0.05–0.15 kg BOD/kg MLVSS·d conventional; 0.03–0.08 extended aeration | 0.5–2.0 mg/L NH₄-N at basin outlet |
| Capital cost (5,000–50,000 m³/d) | USD 15,000–35,000 | USD 40,000–90,000 | USD 30,000–70,000 |
| Sensor maintenance burden | Low — clean every 2–4 weeks | High — BOD probe is the weak link | Medium — reagent replacement 1–3 months (colorimetric) |
| Response time to load change | Slow (hours) — biomass integrates load | Fast (10–30 min) — direct F/M feedback | Medium (15–60 min) — ammonia integrates recent nitrifier activity |
| Best fit | Small municipal plants with steady load (Hach case study profile) | Variable-load industrial plants (food, pulp, pharma) | Plants where effluent ammonia is the binding permit constraint |
| Key weakness | Cannot distinguish active biomass from inert TSS | Online BOD analyzers are maintenance-intensive | Reagent cost and analyzer fouling in high-MLSS mixed liquor |
MLSS-based control is the cheapest and what the 2025 Hach case study describes — a sludge age controller on a small UK works where the loop simply wastes down to a target suspended-solids setpoint. It works because the load is diurnal but predictable, and the operator's job shifts from "measure MLSS in the jar, then walk to the WAS valve" to reviewing a trend. F/M-based control closes the loop on actual substrate loading, which is why it dominates in industrial plants where BOD swings 3:1 across a shift; the cost is the influent BOD analyzer, which is the single most serviced instrument in this configuration. Ammonia-based control is technically indirect SRT control — it holds the nitrifier population constant by keeping residual ammonia in a narrow band, which implicitly maintains the 7–10 day minimum SRT at 15°C required for complete nitrification. A broader MBR vs MBBR for industrial plants comparison is useful here because MBR's higher MLSS pushes the ammonia probe closer to its fouling limit and changes the maintenance math.
Instrumentation You Cannot Skip
The PLC is only as good as the signal it sees. Five instruments form the minimum useful set for any of the three control strategies; specifying them by range, accuracy, and service interval up front prevents the procurement scramble that follows a vague "online MLSS probe" line item. A sludge thickener installation and commissioning job sitting downstream of the WAS line is also a useful moment to verify that the thickened-solids signal the loop assumes is actually correct.
| Instrument | Range | Accuracy | Output / protocol | Service interval |
|---|---|---|---|---|
| MLSS sensor (optical or ultrasonic) | 0–15,000 mg/L | ±2–5% of reading | 4–20 mA or Modbus RTU | Clean every 2–4 weeks; wipe test monthly |
| NH₄-N probe (ion-selective or colorimetric) | 0–100 mg/L NH₄-N | ±3% or ±0.2 mg/L (whichever greater) | 4–20 mA, Modbus, or Profibus | Reagent replacement 1–3 months (colorimetric); membrane 6 months (ISE) |
| DO probe (membrane galvanic or optical) | 0–10 mg/L | ±0.1 mg/L | 4–20 mA | Membrane cap 6 months; electrolyte 3 months |
| WAS flow meter (mag or Coriolis) | 0–50 m³/h typical | ±0.5% of reading | 4–20 mA, HART | Annual calibration; liner inspection 5 yr |
| Influent flow + BOD (F/M strategy only) | Flow: 0–full scale; BOD: 0–500 mg/L | Flow ±1–2%; BOD ±5% (correlation-based) | Modbus/Profibus | BOD probe cleaned weekly; correlation re-fit quarterly |
Signal conditioning is the detail that separates a working install from a year of nuisance alarms. In plants with VFD-driven aerators and WAS pumps, the 4–20 mA loops should be shielded, grounded at one end, and the analog input cards isolated — a 50/60 Hz common-mode noise of even 30 mV at the PLC terminal turns into ±150 mg/L jitter on the MLSS reading, which the PID will interpret as a real deviation. A 24 VDC loop-powered transmitter is more forgiving than a 2-wire device in this environment, and online industrial wastewater monitoring sensors in general share the same grounding rules, so the same panel layout works for ammonia, zinc, and nitrate probes if they ever share a cabinet.
PLC Control Logic: A Worked Example
The loop below is the minimum viable SRT controller for an MLSS-based strategy on a 20,000 m³/d conventional plant. It uses a single MLSS probe, a motorized WAS valve, and a PID block with a deadband to prevent the pump from chattering against the setpoint.
- Acquire MLSS: read the 4–20 mA loop from the probe every 60 s; apply a 5-point moving average to suppress aerator noise.
- Compare to setpoint: if filtered MLSS > setpoint + deadband (typically 200–500 mg/L above target), call for wasting; if MLSS < setpoint − deadband, close the WAS valve.
- PID adjust valve position: error = MLSS − setpoint; output drives the control valve from 0–100%. Tune to bring MLSS back to setpoint in 30–60 minutes — Kp around 2–5 %/mg/L, Ti 5–15 min, Td 0 for most loops (Zhongsheng field data, 2026).
- Apply slew rate limit: cap valve travel at 5–10% per minute to prevent hydraulic shock on the secondary clarifier and avoid resetting the entire settled-sludge blanket in under 5 minutes.
- Sample at mismatched frequencies intentionally: MLSS every 1–5 min, ammonia every 5–15 min, WAS flow continuous. Faster sampling without filtering creates oscillation; slower sampling loses the loop's ability to respond to a real excursion.
Three alarm conditions should be hard-wired independent of the PID so a sensor failure does not silently drive the plant out of control. High-MLSS alarm at > 6,000 mg/L in a conventional basin (bulking risk, DO crash imminent); low-MLSS alarm at < 1,500 mg/L (washout, nitrification lost within one SRT); high-NH₄-N alarm at > 5 mg/L at the basin outlet (nitrification failing — either SRT has slipped below 7 days or toxicity has hit the biomass). The PLC should latch the high-MLSS and low-MLSS alarms and require operator acknowledgement, while the NH₄-N alarm should also trigger an automatic increase in WAS setpoint to recover SRT.

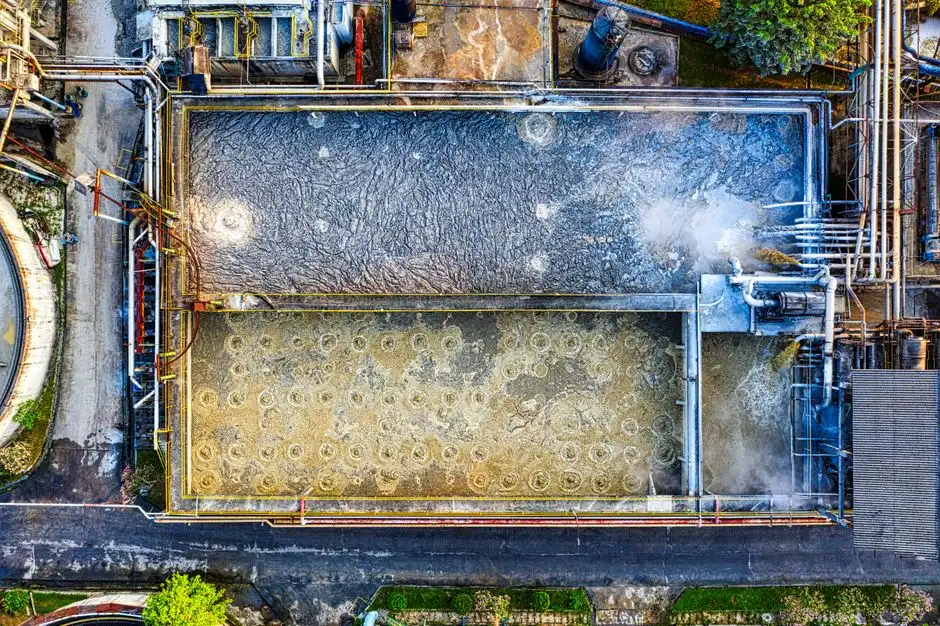

Retrofit Economics: What a 2026 Installation Actually Costs
A 2026 retrofit on a 5,000–50,000 m³/d plant lands in the USD 25,000–80,000 range for the control panel, two to four sensors, the WAS flow meter, and commissioning — the lower end for MLSS-based only, the upper end for F/M or ammonia-based. OPEX runs USD 2,000–4,000/yr in sensor consumables, plus roughly 0.3 FTE of operator oversight against the ~1.0 FTE that manual wasting typically absorbs on a plant this size. The labor component is the easiest line to defend to a plant manager.
| Line item | Manual wasting (baseline) | Automated SRT control |
|---|---|---|
| Operator time on wasting | ~2.0 hr/day (Hach, 2025-09) | ~0.3 hr/day (trend review, alarm response) |
| Annual labor @ USD 25/hr fully loaded, 250 operating days | USD 12,500/yr | USD 1,875/yr |
| Sensor consumables | USD 0 (lab TSS only) | USD 2,000–4,000/yr |
| Permit excursions (nitrification washouts) | 2–4 events/yr typical | 0–1 events/yr |
| CAPEX (one-time, amortized over 10 yr) | 0 | USD 2,500–8,000/yr equivalent |
| Net annual savings | — | USD 6,000–10,000/yr cash + avoided fines |
| Payback period | — | 12–24 months |
The non-cash line matters more than the cash line once nitrification is the binding constraint. Stable SRT produces a consistent MLVSS/MLSS ratio, which in turn means polymer dose on the downstream belt press or centrifuge stops drifting with the wasting schedule — typically a 5–15% polymer reduction in dewatering (Zhongsheng field data, 2026). Fewer permit excursions translate directly into avoided fines, which on US municipal plants run USD 10,000–50,000 per event under NPDES. Pairing the SRT controller with PLC-controlled chemical dosing skids on the polymer line is the natural follow-on upgrade and amortizes the panel work across two process improvements.
Frequently Asked Questions
What is the minimum SRT for nitrification at typical temperatures? Minimum SRT for complete nitrification is approximately 7–10 days at 15°C, 4–6 days at 20°C, and 2–3 days at 25°C, using the standard 1/µmax safety-factor approach (factor 1.5–2.5 applied to the nitrifier maximum specific growth rate per EPA nitrification design guidance).
Can I run SRT control on a probe alone, without a flow meter on the WAS line? No. The PLC must know the actual wasted mass flow (Qw·Xw) to close the mass balance; controlling only on MLSS without measuring Qw produces a control loop that drifts whenever pump head or sludge concentration changes, and SRT becomes unknowable in real time.
How often should the MLSS probe be calibrated against a lab TSS? Wipe and clean every 2–4 weeks, perform a single-point calibration against a lab TSS every 30–60 days, and full two-point calibration quarterly — drift on optical MLSS probes typically runs 3–8% per month in mixed liquor with high fouling tendency (Zhongsheng field data, 2026).
What SRT should I target for a conventional activated sludge plant treating domestic wastewater? 5–10 days for carbonaceous BOD removal only, 7–10 days at 15°C for full nitrification, and 20–30 days for extended aeration with combined nitrification-denitrification and sludge stabilization.
