What a Containerized MBR STP Actually Delivers in Athens
A containerized MBR is a "plug-and-play" package in which the tanks, blowers, membranes, and controls ship from the factory as a single tested unit, with the entire assembly housed inside an ISO freight container (Dynatec Systems, 2025). On rocky Attica sites where excavation is expensive and slow, on camp plots where civil works must be finished inside a tight mobilization window, and on hotel retrofits that cannot shut down a wing for months, the container form factor removes most of the civil-work risk that delays a conventional buried activated-sludge plant. The container also brings mobility: a seasonal hotel, a multi-phase refugee camp, or a construction-worker village can be relocated when the project ends.
Because the membrane stage is the final solid–liquid separation, the permeate is documented to fall well below the typical BOD, TSS, TKN, and ammonia discharge thresholds that municipal and Greek environmental authorities enforce, and it is consistently low enough for non-potable reuse such as landscape irrigation and toilet flushing (Dynatec Systems, 2025). The same source notes that the membrane acts as an absolute microbial barrier, removing filamentous-bacteria carry-over and sludge-bulking failures that plague conventional clarifiers. That decoupling of effluent quality from hydraulic surge is what makes MBR a defensible choice for Mediterranean diurnal peaks. The performance envelope, however, is conditional: a containerized MBR only delivers those numbers when it is correctly sized to the actual population, flow, and load on the Athens site, which is the focus of the rest of this guide. Where an integrated skid is required, a factory-tested package such as the HydropureWater integrated MBR membrane bioreactor system matches this delivery model.
Sizing Step 1 — Define the Design Population and Occupancy Profile
Every downstream number rests on a single decision: how many people the plant actually serves, and how they use water. Permanent residential blocks in Athens have a stable census — apartments, gated communities, and hotels can be counted from unit counts and an agreed occupancy rate (typically 2.3–2.8 persons per apartment for family housing, 1.4–1.8 for studios, 1.6–2.0 for hotels at full occupancy). Camps are different: refugee reception centres, construction-worker villages, student dormitories, and seasonal staff accommodation all have a nominal bed count that is rarely the operating count, with shift changes, weekend churn, and seasonal peaks driving the real hydraulic load. The sizing engineer must obtain, in writing, the bed count, the planned peak occupancy, the shift pattern, and a list of on-site water users — kitchens, laundry, infirmary, showers, vehicle wash, swimming pool backwash — because each one shifts the per-capita figure the supplier will assume.
The single most common Athens sizing error is treating the connected population as the design population. A 200-bed camp with a nominal 200 L/c·d design allowance and only 80% average occupancy still has to handle the morning shower surge from 200 people. The sizing memorandum must fix the design population explicitly, separate it from the connected population, and identify which occupancy case (average, peak summer, peak shift change) drives each unit-process calculation. Until that is signed off, no equipment selection is final.
Sizing Step 2 — Convert Population to Average Daily Flow
Once the design population and per-capita flow are fixed, average daily flow follows directly: Qavg = population × per-capita flow. For a Greek residential project, the per-capita figure is normally taken from the project's water utility or the design guideline issued for the municipality; for a camp with shared sanitation blocks, on-site kitchens, and laundry, the per-capita figure is set higher than for apartments because showers and laundry dominate the diurnal curve. Where the client can produce measured water bills from an existing similar facility, those numbers replace the assumed per-capita value.
Unit conversion is a routine source of error when European and US documents meet on the same datasheet. The IDA Water Security Handbook sets out the conversions an engineer actually needs: 1 m³ = 1,000 L = 264.2 US gallons; 1 MIGD = 4,546 m³/d; 1 MGD = 3,785 m³/d (IDA Water Security Handbook 2019, published 2019-05-08). Apply L/c·d × population, divide by 1,000 to reach m³/d, and round up to the supplier's nearest standard containerized MBR size band — typically 25, 50, 100, 200 m³/d for ISO-container packages. The rounded value is the average daily flow the supplier will guarantee against, so document the rounding rule in the memorandum. A common mistake at this stage is to treat Qavg as the hydraulic basis for the membrane tank; it is not. Qavg is the basis for the biological design; the membrane tank is sized to peak flow, addressed in the next step.
Sizing Step 3 — Apply a Peaking Factor for Diurnal and Wet-Weather Flow
Undersized MBR packages almost always fail at the membrane tank, not the bioreactor, because the designer sized to the average day. Mediterranean residential patterns and camp shower blocks both produce sharp morning and evening peaks that can be 2.0–2.5× the average hourly flow for apartments, and often higher for camps where an entire cohort moves through a shared sanitation block at once. The peaking factor must be selected with the client's operating schedule in hand, not from a textbook default, and the resulting peak hourly flow is the value that drives membrane area and pump selection.
In Athens, infiltration and inflow (I/I) depend on the network. A camp on a brand-new dedicated sewer has negligible I/I; a hotel retrofit tied into an aging combined sewer can see significant I/I during the autumn rains that drive Attica's wet season, and that load arrives at the MBR on top of the diurnal peak. Confirm the network class with the client and add a documented I/I allowance to the peak flow. The good news for MBR is that the membrane step decouples effluent quality from hydraulic surge, so the plant absorbs the peak without spilling biomass the way a conventional clarifier would (Dynatec Systems, 2025). The chosen peaking factor and the I/I assumption both go into the sizing memorandum, because they define the supplier's hydraulic guarantee.
Sizing Step 4 — Bioreactor Volume, MLSS and HRT Targets
Reactor volume is the first physical constraint the container imposes, so it must be checked before the membrane selection. For a well-designed submerged MBR treating municipal-strength sewage, the hydraulic retention time at average daily flow is typically 6–8 hours; longer for high-strength camp wastewater with kitchen and laundry contributions. Mixed-liquor suspended solids in the 8,000–12,000 mg/L band support the long sludge retention times and recalcitrant degradation that the bioreactor is documented to deliver (Dynatec Systems, 2025). Volume follows from V = Qavg × HRT, with the F:M ratio and SRT verified against the membrane supplier's operating envelope.
For Athens projects with any prospect of water reuse, biological nutrient removal matters: the membrane is a physical barrier, not a nitrogen or phosphorus reactor. A small anoxic zone upstream of the aerated MBR basin delivers denitrification, and a chemical-dosing stage for metal-salt precipitation of phosphorus can be added because the membrane stage can meet low phosphorus limits when paired with coagulant dosing (Dynatec Systems, 2025). These decisions are recorded in the table below as parameters the sizing memorandum must lock down before bid.
| Parameter | Typical MBR Range for Athens Residential / Camp | Source |
|---|---|---|
| HRT at Qavg | 6–8 h municipal strength; longer for high-strength camp | Engineering practice; not stated numerically in supplied research |
| MLSS | 8,000–12,000 mg/L (submerged MBR) | Dynatec Systems, 2025 (qualitative description of long SRT operation) |
| SRT | Long (recalcitrant degradation documented) | Dynatec Systems, 2025 |
| Reactor zoning | Anoxic + aerated for TN removal; coagulant dosing for low TP | Dynatec Systems, 2025 (membrane meets low P with metal salts) |
For the membrane module itself, the DF series flat-sheet PVDF membrane modules are the reference component the rest of the calculation uses.
Sizing Step 5 — Membrane Area, Flux and Container Footprint
Membrane area is the second physical constraint the container imposes. Required area is A = Qpeak ÷ design flux, where Qpeak is the peak hourly flow in m³/h and flux is in L/m²·h. Sustainable flux for flat-sheet PVDF modules in municipal-strength sewage is generally held in the lower half of the supplier's rating to keep fouling and cleaning intervals manageable; the exact figure is taken from the module datasheet, not from a generic textbook default. The DF series flat-sheet module range covers 80–225 m² per module, producing 32–135 m³/d per module, and the engineer selects an integer number of modules to meet the daily flow with one module kept as a standby or for in-service cleaning.
Container fit is the final check before the package can be ordered. A 20 ft ISO container is roughly 6 m long with about 2.5 m internal height; a 40 ft container is roughly 12 m long. The package must accommodate not only the bioreactor and membrane tank volumes but also the fine screening upstream — typically a rotary bar screen such as the GX series rotary mechanical bar screen — plus blowers, permeate and sludge pumps, CIP ports, a control kiosk, and access for membrane replacement. The out-of-basin configuration is documented to allow future addition of membrane skids without replacing the bioreactor (Dynatec Systems, 2025), which matters for camps expected to grow and for hotels with phased renovations.
| Parameter | DF Series Module Range | Source |
|---|---|---|
| Membrane area per module | 80–225 m² | Module product description (DF series) |
| Daily output per module | 32–135 m³/d | Module product description (DF series) |
| Configuration | Out-of-basin; retrofit-friendly | Dynatec Systems, 2025 |
| Container envelope | 20 ft or 40 ft ISO; allow space for screening, blowers, kiosk | Engineering practice; not stated numerically in supplied research |
Where permeate disinfection is required for reuse, a HydropureWater chlorine dioxide generator is one option for adding a log-reduction step downstream of the membrane.

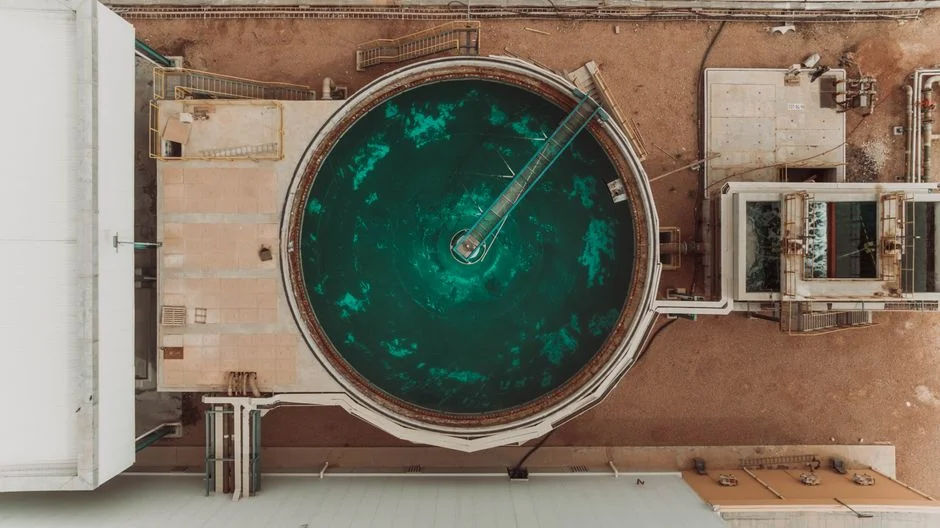

Worked Sizing Example for a 300-Person Athens Camp
Inputs agreed with the client: 300 residents, per-capita flow 150 L/c·d, peaking factor 2.5, HRT 7 h, design flux 20 L/m²·h, and a target of one standby membrane module. Qavg = 300 × 150 = 45,000 L/d = 45 m³/d. Peak hourly flow Qpeak = (45 ÷ 24) × 2.5 = 4.69 m³/h. Reactor volume V = 45 × (7 ÷ 24) = 13.1 m³ at average flow, rounded up to fit a standard 20 ft ISO envelope with allowance for anoxic zoning.
Required membrane area A = 4.69 × 1,000 ÷ 20 = 234.5 m². With modules in the 80–225 m² range, the engineer selects two modules to cover 234.5 m² with margin and to keep one module available for cleaning rotation. Container fit: a 20 ft ISO can house the bioreactor, membrane skid, blowers, a fine screen, and a small control kiosk for a 45 m³/d camp; a 40 ft ISO is the safer envelope if kitchen-waste pretreatment, a buffer tank for the shower peak, or a chemical dosing skid for phosphorus removal is added. The supplier's commissioning protocol should confirm turndown at low occupancy, because the camp may run at 60–80% of design population for parts of the year; a turndown plan is part of the deliverable, alongside the sizing memorandum, and follows the same logic as a wastewater plant commissioning duration guide.
Greek and EU Compliance Checklist for the Sizing Memorandum
Greek authorities transpose the EU Urban Waste Water Directive 91/271/EEC into national law, and the discharge and reuse limits that apply depend on the receiving environment and the size of the agglomeration. The sizing memorandum must record which limit set the package is designed to meet, because the MBR permeate is documented to fall well below the typical BOD, TSS, TKN, and ammonia limits, and the membrane itself acts as an absolute bacterial barrier (Dynatec Systems, 2025). For a project with a reuse end use — landscape irrigation, toilet flushing, or restricted agricultural reuse — the memorandum must also confirm the log-reduction requirement and the disinfection stage that delivers it; chemical or UV disinfection downstream of the membrane is the usual configuration.
Where a phosphorus limit applies, the memorandum must include a metal-salt coagulant dosing skid, because the membrane stage is documented to meet low phosphorus limits only with the supplemental addition of metal salts (Dynatec Systems, 2025). The supplier's deliverable list should include the P&ID, GA drawings, control philosophy, commissioning protocol, and an O&M manual in Greek or English, all referenced back to the same sizing inputs. For projects that mirror the Athens workflow in a different EU jurisdiction, the same five-step method applies, as shown in the Hamburg containerized MBR sizing guide; the regulatory envelope, not the hydraulic math, is what changes between cities. The same workflow applied to a West African context is covered in the Accra containerized MBR sizing guide.
Frequently Asked Questions
What is a realistic budget envelope for a containerized MBR sized to a 300-person Athens camp?
The supplied research does not provide a quotation or unit price for containerized MBR systems, so no defensible figure can be stated. Request itemised bids from at least two suppliers, each broken down by container count, membrane modules, blowers, screening, control panel, dosing skids, commissioning, and shipping to Athens, then compare on the same line items before negotiating.
How do I select a supplier who can sign off the sizing memorandum with a Greek authority?
Ask each bidder for a reference list of EU installations of comparable size, a sample sizing memorandum from a similar project, and evidence that the proposed MBR permeate is documented to meet the BOD, TSS, TKN, and ammonia limits you will be held to (Dynatec Systems, 2025). Confirm in writing that the supplier will issue the P&ID, GA drawings, control philosophy, and commissioning protocol in the language the approving authority requires.
What is the right hydraulic retention time for a high-strength Athens camp wastewater?
For municipal-strength sewage, MBR design typically targets 6–8 hours of HRT at average daily flow; high-strength camp wastewater with kitchen and laundry contributions is held at the longer end of that range. The exact figure is project-specific, so confirm with the supplier once the per-capita load and kitchen/laundry contributions are fixed.
Who owns the sizing if the supplied package does not perform?
The sizing memorandum is a shared deliverable: the engineer fixes the design population, per-capita flow, peaking factor, and target effluent quality, and the supplier guarantees the package against those inputs. If the package underperforms, the cause is either a deviation from the agreed inputs at the site or a supplier-side equipment fault, and the contract should specify which party carries each risk before the PO is issued.
