The 2026 verdict for Lubbock mining and metals plants
For a Lubbock mining or metals project, compare flotation and settling from oil, solids, dissolved pollutants, peak duty and the actual permit. A DAF-plus-lamella layout is not automatically required and is not proven compliant by a generic 437 reference. Separate site-water and winter-design inputs from the legal limit matrix.
What 40 CFR 437 actually requires in 2026
Part 437 is Centralized Waste Treatment of covered off-site wastes, not Ore Mining and Dressing; 437.30 is its organics subcategory. It is also incorrect to say oil and grease is absent from 437: for example,437.21 BPT for covered CWT oils treatment lists 127 mg/L daily and 38.0 mg/L monthly average. These are not universal mining or sewer limits. Establish actual 434/436/440 or other coverage, source status and discharge route, and extract the relevant permit or pretreatment requirements.
How DAF and clarifiers actually work in a metals stream
A DAF unit floats solids using micro-bubbles generated from a pressurized recycle stream. Clarified water is drawn off the DAF outlet, pressurized to approximately 6 bar (87 psi), and saturated with air in a packed saturation vessel. When the saturated recycle is depressurized back into the flotation tank at atmospheric pressure, dissolved air comes out of solution as 30–50 µm bubbles (per EPA 625/1-75-003a, 1975). Those bubbles attach to chemically conditioned floc and lift it to the surface, where a skimmer sweeps the float into a sludge trough; clarified water exits below the float blanket and heavy settleable solids drop to a bottom sediment compartment. A dissolved air flotation system follows exactly this flow path. A clarifier, by contrast, relies on gravity sedimentation. A conventional rectangular or circular tank runs at just 1–2 m/h surface loading, which is why its footprint runs 5–8 m² per m³/h. A lamella clarifier (also called an inclined-plate settler or high-rate sedimentation tank) stacks inclined plates inside a compact tank to multiply effective settling area, pushing surface loading to 20–40 m/h and cutting footprint by roughly an order of magnitude. Three governing rules decide which mechanism wins. First, the floc-density rule: chemically conditioned floc with specific gravity above 1.05 settles readily. Second, the FOG rule: free oil and grease do not settle in a clarifier's residence time — they exit in the overflow. Third, the cold-weather rule: micro-bubble nucleation kinetics slow 20–30% at 5°C versus 20°C (HydropureWater field data, 2026), so a 10–15% sizing margin on the recycle pump and saturation vessel is prudent for plants that run through a Lubbock winter. Colloidal fines and emulsified oil pass straight through a clarifier's residence time; they need either micro-bubbles (DAF) or polymer bridging plus a CPI to be removed.
Side-by-side comparison for a Lubbock metals line
This is the matrix to screenshot and hand to a non-technical CFO. The rows are what a procurement lead in West Texas actually asks about, not food-processing FOG defaults.
| Parameter | DAF | Lamella clarifier | Conventional gravity clarifier |
|---|---|---|---|
| TSS removal on dense Fe(OH)₃ / Al(OH)₃ floc | 90–95% (per Ecologix 2026, 95% in food plant reference) | 85–92% on well-conditioned floc | 70–85% on FOG-free streams |
| FOG / emulsified oil capture | >90% (per Ecologix 2026, 95% in food reference) | Near zero without upstream CPI | Near zero |
| Footprint per m³/h | 0.2–0.4 m² | 0.3–0.6 m² | 5–8 m² (HydropureWater field data, 2026) |
| Surface loading | n/a (float mechanism) | 20–40 m/h on plate area | 1–2 m/h |
| CAPEX multiplier (lamella = 1.0x) | 1.5–2.5x (HydropureWater field data, 2026) | 1.0x | 0.7–0.9x equipment, but huge civil/building cost |
| OPEX per m³ | 8–15 kWh/m³ + chemistry (HydropureWater field data, 2026) | Scraper drive only (~0.1–0.3 kWh/m³); up to 30% coagulant savings via sludge recycle | Scraper drive only (~0.1–0.3 kWh/m³) |
| Cold-weather (<10°C) performance | Moderate — slower bubble nucleation; size 10–15% margin on recycle | Low — freezing risk in unheated sludge hopper | Low — same freeze risk; larger vault |
| Sludge dryness | Float 4–8% DS — easier dewatering | Underflow 2–5% DS | Underflow 1–3% DS |
The head-to-head verdict: DAF wins on FOG, colloidal fines, footprint, and float dryness; lamella wins on CAPEX for FOG-free streams at very high flow; the conventional clarifier loses on footprint and is rarely the 2026 answer. A reference high-efficiency lamella clarifier plate pack delivers the 20–40 m/h band that keeps the lamella column competitive in the first place.

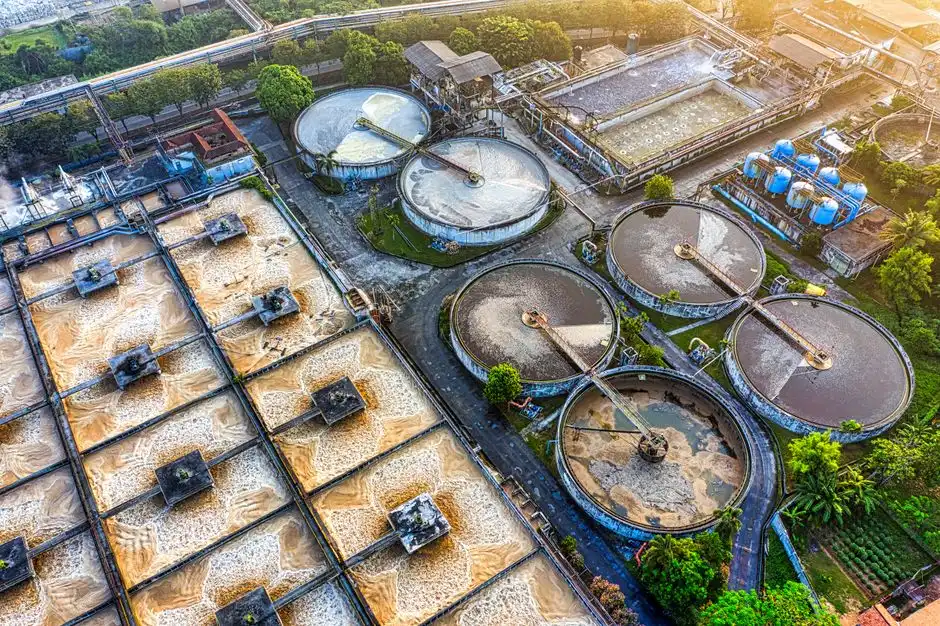

Lubbock-specific cost and footprint math
The headline CAPEX ratio for 2026: a DAF runs 1.5–2.5x a comparable lamella at equal flow (HydropureWater field data, 2026). That ratio narrows quickly once civil work, excavation, and footprint-driven building costs are added. For a 100 m³/h stream, the footprint gap is roughly 30 m² for a DAF versus 45 m² for a lamella versus 600 m² for a conventional clarifier (per HydropureWater field data, 2026). In cold, space-rich sites outside the Lubbock metro, the lamella fits cheaply and the DAF premium holds. Inside the Lubbock metro or near the Reese Technology Center, every square meter of heated, lit, and insulated building is expensive, and the DAF's smaller vault wins on total installed cost — the lamella's 600 m² conventional counterpart is essentially uninsurable. OPEX narrows the gap further. Both technologies use coagulant and polymer; the lamella saves up to 30% on coagulant via sludge recycle, but DAF produces a thicker float at 4–8% DS that dewaters more easily in a downstream filter press versus lamella underflow at 2–5% DS. The DAF's air compressor and recirculation pump are real line items — typically 8–15 kWh per m³ treated — but they are a known, scalable cost. The 2026 cost band is defensible when either unit is paired with an automatic chemical dosing skid to hold the dose tight against variable influent, and a downstream plate-and-frame filter press sized to either the DAF float or the lamella underflow. The same cost logic maps to the broader sludge thickening cost reduction 2026 guide, and the ESG-driven closed-loop water-reuse targets have made clarifier replacement a board-level decision in 2026 rather than a maintenance line item.
| Cost line item (100 m³/h baseline) | DAF | Lamella | Conventional clarifier |
|---|---|---|---|
| Footprint | ~30 m² | ~45 m² | ~600 m² |
| Equipment CAPEX multiplier | 1.5–2.5x | 1.0x | 0.7–0.9x equipment only |
| Civil / building cost driver | Low (small vault, no heat-trace beyond saturation line) | Moderate (insulated hopper + heat-trace) | High (large vault, full excavation, full heating) |
| Energy | 8–15 kWh/m³ | 0.1–0.3 kWh/m³ | 0.1–0.3 kWh/m³ |
| Coagulant savings via sludge recycle | None | Up to 30% (HydropureWater P10) | None |
| Float / underflow dryness | 4–8% DS | 2–5% DS | 1–3% DS |
Three Lubbock plant scenarios to anchor the decision
Assumed scenario 1 —250 m³/h without oil. At a trial 30 m/h surface loading, the simple area calculation is 8.33 m². Verify effective plate-area convention, settling/solids loading and peak-flow margins with the supplier. A below 30 mg/L TSS target must be established from the actual project and demonstrated, not attributed to a universal 437 mining envelope.
Scenario 2 — Mixed-metals finishing with cutting-oil emulsions, 80 m³/h. Combined process wastewater runs 100–300 mg/L TSS, copper and zinc precipitates, and 50–200 mg/L emulsified cutting oil from the maintenance shop. DAF primary is non-negotiable — a clarifier would discharge the emulsified oil straight to the TPDES outfall and trip the daily-maximum envelope on oil-and-grease as well as TSS. A small lamella follows as polish for residual TSS to give margin against the daily-maximum metals limits. The 80 m³/h flow sits mid-band on a standard DAF with no custom-engineering markup, and the same hybrid logic is documented in the adjacent Lima mining 2026 factory guide for cross-reference.
Assumed scenario 3 — intermittent 15 m³/h mine water. Verify storage, startup and turndown as well as site-temperature protection for pumps, instruments and sludge handling. Neither an unverified bubble-rate percentage nor a generic pump margin establishes winter performance or permit compliance. Include the actual worst-duty conditions in acceptance testing.
Frequently asked questions
Does 40 CFR 437 require a DAF or a clarifier?
Determine the applicable process category and route before specifying equipment. 437 only governs covered CWT activities and its individual subcategories and route provisions differ. Test precipitation and separation against every actual target; neither flotation nor a lamella-only layout guarantees compliance by its name.
How do I size a lamella for a Lubbock metals stream with dense Fe(OH)₃ or Al(OH)₃ floc?
For dense Fe(OH)₃ or Al(OH)₃ floc, design at 20–30 m/h on the plate-pack projected area. Drop to 10–15 m/h for fine silica or low-density floc. The published 20–40 m/h range is for clean, well-conditioned hydroxide floc only; cold-weather sites like Lubbock should pick the lower end of the band and add a 10–15% sizing margin for winter viscosity (HydropureWater field data, 2026).
Can a DAF unit run through a Lubbock winter?
Yes, but the saturation vessel and recycle line should be insulated or heat-traced. Micro-bubble nucleation kinetics slow by roughly 20–30% at 5°C versus 20°C (HydropureWater field data, 2026), so a 10–15% sizing margin on the recycle pump and saturation volume is prudent for plants that run through winter. For broader cold-climate framing the Vancouver 2026 factory guide walks through the same margin logic at a different temperature baseline.
Can a lamella clarifier handle this stream alone?
Yes, for taconite-concentrator-style FOG-free streams. Add a DAF polish step only if colloidal fines start bleeding through or if a maintenance shop discharge adds intermittent oil that the lamella cannot capture. Without that polish, daily-maximum oil-and-grease excursions on a TCEQ TPDES permit are the failure mode.
Why is a DAF so much smaller than a conventional clarifier?
A DAF at 0.2–0.4 m² per m³/h is roughly one-twentieth the footprint of a conventional clarifier at 5–8 m² per m³/h and about half the footprint of a lamella at the same flow. For a 100 m³/h stream, that is the difference between 30 m² and 600 m² of clarifier footprint (HydropureWater field data, 2026) — and inside the Lubbock metro the 600 m² vault is the line item that erases most of the DAF CAPEX premium.
