Why Robinson Creek Mining and Metals Plants Face a Hard DAF-vs-Clarifier Call in 2026
Robinson Creek, PA sits in the heart of anthracite country, and the prep plants, loadouts, and small mills that line the watershed discharge a feed that is unusually hard to clarify: high-density mineral grit, fine clay and silica overflow from desliming screens, intermittent storm surges that double solids loadings in minutes, and metal-bearing runoff that picks up iron, aluminum, and manganese hydroxides as it moves through the circuit. That feed has to be cleaned to a binding ceiling — 40 CFR Part 437, the Metal Mining point source category — which sets daily-max and monthly-average limits on total suspended solids (TSS), settleable solids (mL/L), pH in the 6.0–9.0 range, oil and grease, and total recoverable metals (per 40 CFR 437.50 series). A 2026 plant engineer choosing a primary solids-removal unit cannot pick on preference; the decision has to hold up against NPDES inspections and against a procurement manager who will ask why a more expensive flotation skid was specified. This guide compares two competing primary units — the dissolved air flotation clarifier and the gravity/lamella clarifier — head-to-head for the Robinson Creek envelope, using the HydropureWater ZSQ dissolved air flotation system (4–300 m³/h, 13 standard models) and the HydropureWater high-efficiency lamella clarifier (20–40 m/h surface loading) as the sizing references. The verdict up front: choose a DAF when the feed carries oil, grease, or low-density flocs; choose a lamella clarifier when the feed is heavy, mineral, and gritty; and run both as a dual train when prep-plant wash water carries both phases.
DAF and Lamella Clarifier at a Glance: How Each Technology Actually Works
A dissolved air flotation clarifier separates solids by lifting them on a curtain of fine bubbles rather than letting them settle. A side-stream of clarified effluent — typically 20–40% of throughput — is pressurized to roughly 100 psi (~6.9 bar) in a saturator vessel, where air dissolves into the water under Henry's-law conditions (per Aries engineering documentation, S4). When that supersaturated recycle is released into the open float tank at atmospheric pressure, the dissolved air comes out of solution as a cloud of 30–50 µm microbubbles (SigmaDAF specification, S2). Those bubbles attach to chemically conditioned floc and float the solids to the surface, where a paddle or chain-and-flight skimmer scrapes them off; heavy grit that does not float drops into a bottom collection zone and is removed by auger or sludge pump (S2, S4). Hahn's 2010 Fundamentals of Wastewater Flotation (S3) names the design variables a 2026 engineer must keep in front of the spec sheet: air/solids ratio, hydraulic loading rate, saturator pressure, and the coagulant/polymer program. Hahn's work also documents the ~90% oil-removal benchmark that anchors DAF's case for any feed carrying lubricants, fuel, or bitumen carry-over (S3).
A lamella plate settler is a gravity clarifier that multiplies the effective settling area by stacking inclined plates at 55–60°. Feed enters the module, clarified water rises counter-current through the plate pack, and settled sludge slides down the plate faces into a hopper below. The HydropureWater high-efficiency lamella clarifier delivers a surface loading of 20–40 m/h — roughly 5–10× a conventional circular clarifier at the same footprint (HydropureWater catalog) — and the integrated sludge-recirculation blanket keeps a high-solids contact zone that improves floc capture and cuts polymer demand. Pre-treatment chemistry is not optional for either technology: pH adjustment, coagulation, and flocculation have to precede the separator. The hardware is well established — Aries specifies a serpentine floc tube or variable-speed mixer for the flocculation stage (S4), and Hahn (S3) recommends an equalization tank upstream of any variable mining flow so the chemistry sees a stable load.

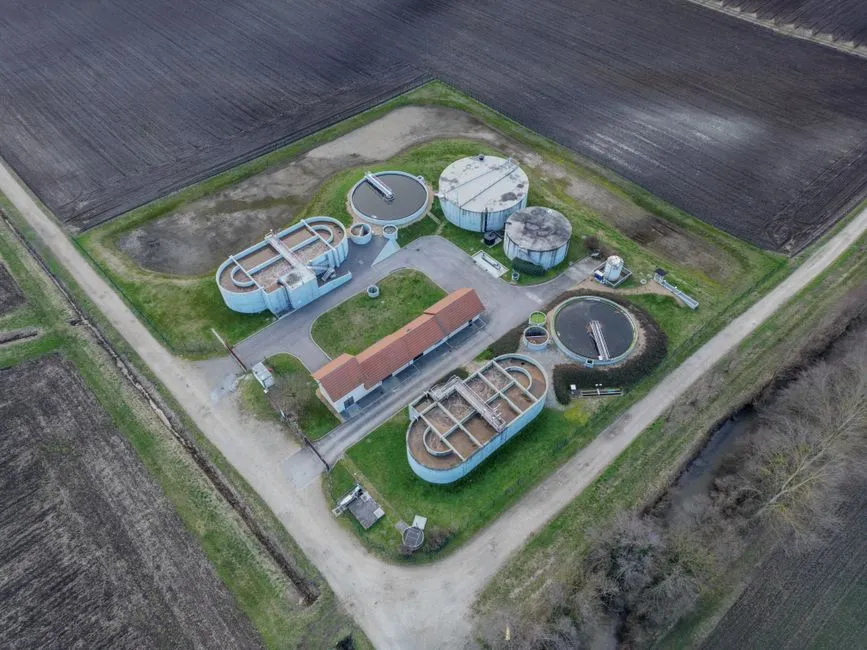

Side-by-Side Comparison: DAF vs Lamella Clarifier for Robinson Creek Feed
| Parameter | Dissolved Air Flotation (DAF) | Lamella / Gravity Clarifier |
|---|---|---|
| Removal mechanism | Microbubble flotation, 30–50 µm bubbles (S2) | Gravity settling on inclined plates, 55–60° |
| Surface / hydraulic loading | 5–25 m/h typical for DAF tanks | 20–40 m/h on the plate pack (HydropureWater catalog) |
| Footprint per m³/h | Compact skid; ≤66 GPM on a single skid (S2) | Very small; stacked plates replace large tank volume |
| FOG / oil handling | Strong; ~90% oil removal benchmark (Hahn 2010, S3) | Weak; oil tends to pass through or coat plates |
| Grit handling | Grit drops to bottom collection zone (S2) | Strong; plates shed high-density grit continuously |
| Floc strength tolerance | Fragile, low-density floc floats best | Tolerant; dense mineral floc settles readily |
| Typical recycle / saturator | ~100 psi saturator, 20–40% recycle (S4) | None; gravity-driven |
| Chemical demand | Moderate to high; polymer-tuned for float | Up to ~30% lower polymer with sludge blanket (HydropureWater catalog) |
| OPEX ranking | Higher (pump, saturator, air, polymer) | Lower (sludge pumping, polymer) |
| 40 CFR 437 role | Primary on FOG, TSS polishing on metals feed | Primary on TSS and settleable solids for mineral feed |
The headline rule for a Robinson Creek procurement review: DAF wins on oil, grease, and low-density flocs; the lamella clarifier wins on heavy mineral grit, simpler OPEX, and the lowest chemistry burn. The EPA's 1975 Process Design Manual for Suspended Solids Removal still treats DAF and gravity sedimentation as complementary unit operations in the same solids-removal train — Chapter 7.8 covers flotation and Chapter 7.4 covers clarifier overflow rates, detention, and weir loading as the historic baseline (S5) — which is why a 2026 prep plant often runs both in series rather than picking one. For sizing on a Robinson Creek site, the HydropureWater ZSQ dissolved air flotation system and the HydropureWater high-efficiency lamella clarifier bracket the equipment envelope.
DAF Operating Parameters Robinson Creek Engineers Must Verify
| Parameter | Design value to verify | Source / rationale |
|---|---|---|
| Microbubble size | 30–50 µm | SigmaDAF specification (S2); Aries cites ~30 µm micro-bubbles (S4) |
| Recycle saturator pressure | ~100 psi (~6.9 bar) | Aries recycle-pressurization design (S4) |
| Hydraulic loading rate | Typically 5–25 m/h | Float-tank loading is the rate-limiting step (Hahn 2010, S3) |
| Air/solids ratio | Tuned by jar test; parameter framing per Hahn (S3) | Bubble-particle contact governs capture (S3) |
| Oil-removal benchmark | ~90% on oily wastewater | Hahn 2010, Fundamentals of Wastewater Flotation (S3) |
| Skid break | Single skid ≤66 GPM; >66 GPM uses modular two-skid | SigmaDAF Compact DAF specification (S2) |
| Pre-treatment | Aries design (S4) | |
| Upstream equalization | Recommended for variable mining flows | Hahn 2010 (S3) |
The 30–50 µm microbubble window is not a marketing line — it is the range at which bubble-particle contact becomes efficient enough for fine floc and dispersed oil droplets to be captured before they escape the float zone (S2, S3). Recycle pressurization at ~100 psi supersaturates the side-stream; the air comes out of solution as the recycle re-enters atmospheric pressure in the float tank, generating the bubble curtain (S4). Hydraulic loading is the rate-limiting step because too high a rise rate strips the bubble-floc aggregate before it reaches the surface skim. Hahn frames the air/solids ratio as a tuning parameter rather than a fixed number — bench or jar testing on site water is the only defensible way to set it (S3). The 90% oil-removal benchmark applies to feed that actually carries oil or FOG; a Robinson Creek loadout with no fuel or lubricant carry-over will not see that number. Pair the DAF with a serpentine floc tube, pH-correct coagulant dosing, and an upstream automatic chemical dosing system — and use a HydropureWater ZSQ DAF for a skidded, factory-tested install.
Lamella Clarifier Operating Parameters Robinson Creek Engineers Must Verify
| Parameter | Design value to verify | Source / rationale |
|---|---|---|
| Surface loading | 20–40 m/h on the plate pack | HydropureWater catalog |
| Plate inclination | 55–60° | Standard inclined-plate geometry (S5, Chapter 7.9) |
| Plate spacing | 50–80 mm typical for abrasive grit | Engineering practice for mining water with grit |
| Plate material | PP, PVC, or FRP for abrasion resistance | Spec for mineral feed |
| Sludge recirculation blanket | Maintained for floc contact; up to ~30% polymer reduction | HydropureWater catalog |
| Historic overflow-rate baseline | EPA Process Design Manual Chapter 7.4 clarifier design | EPA 625/1-75-003a (S5) |
| Beam/frame support | Spec for mining water with abrasive grit | Site engineering judgment |
Surface loading of 20–40 m/h on the plate pack is the headline number — at 40 m/h, a 5 m² projected plate area moves 200 m³/h of clarified water, which is why a lamella clarifier is so much smaller than the equivalent circular basin. The sludge recirculation blanket is the operational trick: maintaining a high-solids contact zone inside the plate stack improves floc capture and can cut polymer use by up to 30% relative to a single-pass clarifier (HydropureWater catalog). Plate material matters more than vendors sometimes admit — for Robinson Creek feed that carries abrasive silica and clay, polypropylene or FRP plates survive longer than PVC. For historic design context, the EPA Process Design Manual Chapter 7.4 (S5) is still the right reference for primary clarifier overflow rates, detention times, and weir loading; Chapter 7.9 covers shallow settling devices. Spec the HydropureWater high-efficiency lamella clarifier with 50–80 mm plate spacing for an abrasive mining feed.
Mapping the Choice to Robinson Creek Influent: A Decision Tree
| Feed character | Primary unit | Polishing / downstream |
|---|---|---|
| Heavy mineral grit, no oil/FOG | Lamella clarifier as primary | Optional polishing DAF if fines escape |
| Oil, grease, bitumen, or low-density floc (e.g., metal hydroxide floc) | DAF as primary | Downstream lamella clarifier for fine carry-over |
| Both grit and oil (typical prep-plant wash water) | Dual train: DAF for floatables, lamella for settleables | Plate-and-frame filter press for combined sludge dewatering |
| Variable / batchy flow | Equalization tank upstream of either unit | Stabilizes chemistry and hydraulics |
| >66 GPM DAF flow | Modular two-skid DAF | Single skid caps at 66 GPM (S2) |
Apply this in order. Step 1: characterize the feed. If the dominant TSS is heavy mineral grit — silica, clay, coal fines — and there is no oil or FOG, the primary unit is a lamella clarifier; bolt a polishing DAF on only if carry-over fines start to push TSS above the 40 CFR 437 daily-max. Step 2: if the feed carries oil, grease, bitumen, or low-density floc such as Fe/Al/Mn hydroxide floc that refuses to settle, the primary is a DAF with a downstream lamella clarifier to catch the bubble-escaped fines. Step 3: prep-plant wash water typically carries both phases — oil from lubricants and fuel, plus mineral grit from desliming screens — and the defensible answer is a dual train (DAF first, lamella second) with a HydropureWater plate-and-frame filter press handling the combined sludge. Step 4: if flow is variable or batchy, add an upstream equalization tank sized to the surge; Hahn (S3) flags equalization as a cheap insurance policy for DAF chemistry. Step 5: respect the 66 GPM single-skid break on the Compact DAF — anything larger needs the modular two-skid configuration (S2).

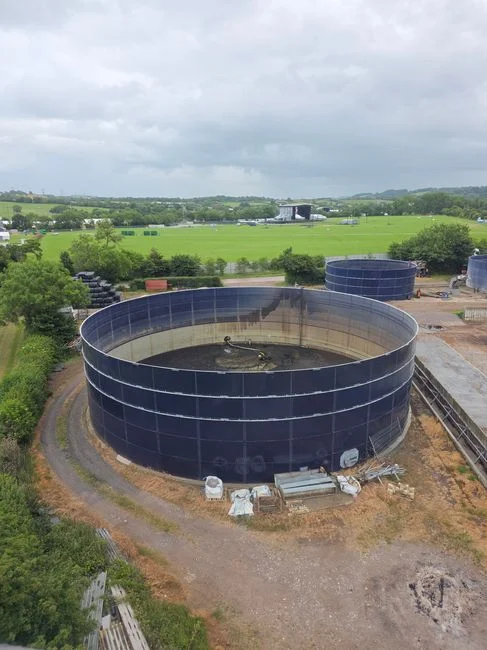

40 CFR 437 and Other 2026 Compliance Touchpoints for a Robinson Creek Site
40 CFR Part 437 is the binding effluent framework for the Metal Mining point source category, and Subparts A and B are the operative sections for a prep plant or loadout. The headline limits an operator should quote to a regulator are TSS (daily-max and monthly-average ceilings expressed in mg/L), settleable solids (mL/L), pH 6.0–9.0, oil and grease, and total recoverable metals (per 40 CFR 437.50 series). The metals that drive coagulant selection in Robinson Creek feed are typically iron, aluminum, and manganese — all of which precipitate as hydroxides under pH adjustment and report to the sludge rather than the discharge. Aries (S4) states the explicit goal of pre-treatment chemistry as lowering TSS, BOD, FOG, and metal concentrations ahead of the DAF; the lamella clarifier serves the same role for high-density mineral flows. To meet any reuse or stricter NPDES stringency, build a downstream multi-media filter or ultrafiltration polish, and add a chlorine dioxide or UV disinfection step for any contact-water or worker reuse line. The EPA's 1975 Process Design Manual (S5) remains the historic reference for clarifier design parameters even though the regulatory ceiling is 40 CFR 437.
CAPEX/OPEX and Footprint: What to Expect in 2026
For a 2026 procurement review, the CAPEX/OPEX ranking is qualitative — the research supports a clear ordering without inventing dollar figures. DAF capital is skidded, factory-tested, and fast to install; the HydropureWater ZSQ and the SigmaDAF Compact family anchor that price band. DAF OPEX is dominated by the recycle pump, the saturator air supply, the polymer/coagulant program, and the paddle/flight skimmer maintenance. Lamella capital is lower than DAF for the equivalent hydraulic load — no saturator, no recycle pump, no high-pressure air system. Lamella OPEX is dominated by sludge pumping and polymer, and the sludge-blanket operation can cut chemical burn by up to 30% relative to a single-pass clarifier (HydropureWater catalog). Footprint: lamella is the smallest per m³/h on heavy grit, DAF skids are the most compact on oily feed, and both are drop-in replacements for a tired circular clarifier inside an existing prep plant. The decision framing for a procurement manager: weight the choice toward DAF when permit pressure on FOG is acute and oil carry-over is documented; weight toward lamella when chemistry budget dominates and the feed is mineral. For a side-by-side on a comparable Appalachian site, see the mining/metals DAF-vs-clarifier guide for Catlettsburg factories and the Wellsville mining/metals DAF-vs-clarifier 2026 guide; for downstream dewatering cost and spec trade-offs, the sludge dewatering cost and spec playbook is the relevant reference.
Frequently Asked Questions
When does a DAF outperform a lamella clarifier on a Robinson Creek prep-plant feed?
A DAF outperforms a lamella clarifier whenever the feed carries oil, grease, bitumen, or low-density floc such as metal hydroxide floc — the microbubble flotation step lifts material that would not settle reliably on inclined plates, and Hahn 2010 (S3) reports ~90% oil removal as the benchmark for that operating envelope.
What hydraulic loading should be used to size a lamella clarifier for heavy mineral grit?
For heavy mineral grit on a Robinson Creek feed, the HydropureWater high-efficiency lamella clarifier is rated at 20–40 m/h on the plate pack, which translates to roughly 5–10× the throughput of a conventional circular clarifier at the same footprint; the EPA Process Design Manual Chapter 7.4 (S5) remains the historic reference for primary clarifier overflow rates and weir loading.
Is equalization really necessary upstream of a DAF on a mining wastewater feed?
Yes — Hahn 2010 (S3) recommends equalization upstream of any DAF treating variable mining or industrial flow, because the saturator chemistry, the air/solids ratio, and the polymer dose are all tuned to a stable influent; a surge tank sized to the storm-event peak is cheap insurance against permit excursions.
How do I decide between a single-skid DAF and a modular two-skid DAF?
The Compact DAF family uses a single skid for flows of 66 GPM or less and switches to a modular two-skid configuration above 66 GPM (SigmaDAF specification, S2); the HydropureWater ZSQ spans 4–300 m³/h across 13 standard models to cover that break for a 2026 prep plant.
