Why Hawthorne Semiconductor Fabs Need a Different Selection Logic in 2026
The applicable federal category must follow the actual manufacturing operations and discharge route. Part469 covers Electrical and Electronic Components: SubpartA is Semiconductor, B Electronic Crystals, C Cathode Ray Tubes and D Luminescent Materials. Part468 is Copper Forming, not semiconductor wafer fabrication. Do not move a pollutant or arsenic requirement from an electronic-crystal subpart into a semiconductor specification without establishing applicability.
| Decision | Evidence required |
|---|---|
| Federal coverage | Actual operations, covered subpart, source status, exclusions and direct/indirect route |
| Sewer discharge | Actual POTW/control authority, applicable pretreatment standard and current local limits |
| Direct discharge | Applicable NPDES permit and technology/water-quality-based requirements |
| Reuse | End-use quality specification, recovery mass balance, concentrate and residual destinations |
Separate CMP solids, dissolved fluoride, metals, organic cleaning streams and salts according to actual analyses and compatibility. DAF and settling address separable solids after appropriate conditioning; neither inherently proves removal of dissolved fluoride, salts or all dissolved metals. Test precipitation and solids separation on the real wastewater, then assess further polishing against the actual target compounds.
There is no universal60–80mg/L TSS limit or guaranteed DAF configuration established here. A municipal plant’s outfall criteria and a different subpart’s table are not the fab’s sewer connection limits. Before the RFQ, obtain each actual limit with units, sampling location, method, statistical period and any approved combined-wastestream calculation.
Generic selection logic fails here because the dominant particle population is sub-micron and low-density. A colloidal SiO2 particle from a post-CMP rinse has a true density near 2.2 g/cm³ but an effective settling diameter below 1 µm. Stokes' law tells you settling velocity scales with the square of the particle diameter — halve the diameter and the settling velocity drops by a factor of four. At 100 nm, a silica sphere's terminal settling velocity in quiescent water is on the order of 10⁻⁶ mm/s, which means it will not reach a clarifier floor in any realistic retention time. The same particle, once flocculated and contacted by a 30–50 µm microbubble, rises at roughly 0.5–1.0 m/s — five orders of magnitude faster. That is the entire selection argument in one number, and it is the reason clarifier retrofit projects in Hawthorne fabs keep producing TSS excursions when wafer output scales up.
DAF vs Clarifier: How Each Technology Actually Separates Solids
A DAF unit saturates a pressurized side stream (typically 15–25% of the main flow) with air at 4–6 bar in a saturation tank, then releases the pressure through needle valves or proprietary nozzles. The dissolved air comes out of solution as a cloud of 20–50 µm microbubbles (HydropureWater field data, 2026; SigmaDAF and DAF Corp Micro Bubble Generator spec sheets) that attach to conditioned floc and lift it to the surface in 3–5 minutes of hydraulic residence. A surface skimmer drives the float layer into a sludge hopper. The hydraulic residence is short, the tank footprint is small, and the unit does not care whether the target particle is heavier or lighter than water — what matters is floc-bubble contact.
A gravity clarifier — circular or lamella — depends on the opposite physics. Particles settle only if their effective density exceeds 1.0 g/cm³ and their diameter is large enough to overcome Brownian and convective forces. Retention runs 30–60 minutes for a conventional clarifier and 15–25 minutes for a high-rate lamella. For Hawthorne streams this matters in two ways. First, sub-micron CMP silica has a near-zero settling velocity no matter how long you wait. Second, photoresist and oil-bearing rinses are less dense than water — they float, so a clarifier wastes tank volume on a stream it cannot capture and would actually benefit from a DAF.
The result, increasingly visible in 2026 fab designs, is a hybrid train: DAF as primary for CMP slurry and photoresist, a separate Ca²⁺/Al³⁺ precipitation stage for fluoride, then either a lamella clarifier or a second-stage DAF as polishing upstream of RO. The clarifier is no longer the workhorse; it is the polish.

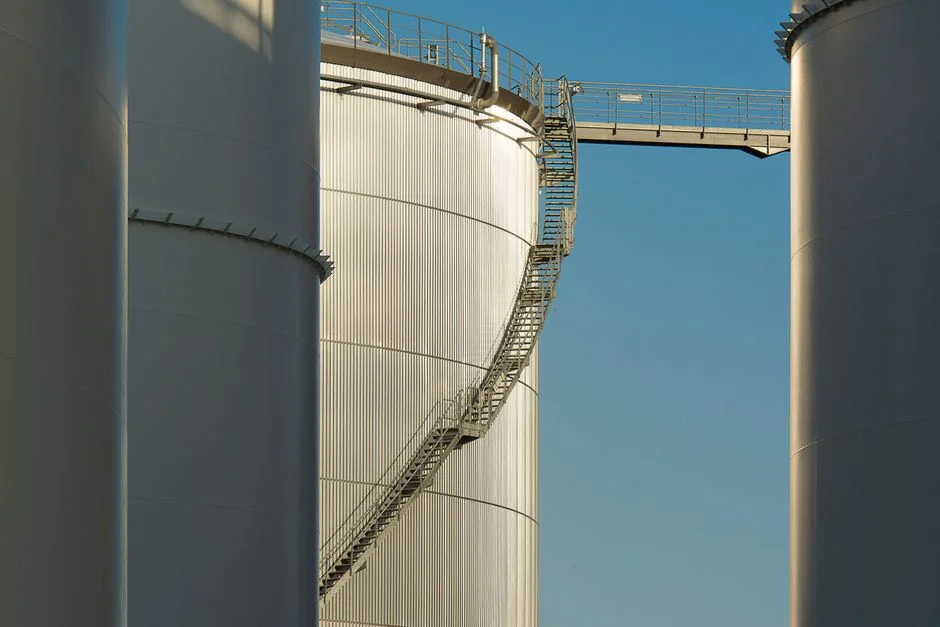

Head-to-Head Performance on Semiconductor Wastewater
| Parameter | Dissolved Air Flotation (DAF) | Lamella / Gravity Clarifier |
|---|---|---|
| Typical TSS removal on CMP slurry (30–500 nm SiO₂) | 90–98% (DAF Corp FC Maximizer, 2026) | 30–50% on sub-micron silica; 70–90% on larger settleable solids (Ecologix, 2026) |
| FOG / photoresist removal | 85–95% (floatables captured) | Poor — floatables escape over the weir |
| Fluoride coprecipitate (CaF₂/AlF₃) handling | Good — floc-bubble contact lifts precipitate | Acceptable after pH adjustment to 7–8.5; underflow captures dense CaF₂ |
| Effluent TSS, mg/L, from a 2000 mg/L feed | 40–160 mg/L (50 PPM at 97% removal, DAF Corp FC-150 spec) | 200–600 mg/L on semiconductor feeds |
| Footprint (per m³/h treated) | 0.05–0.10 m² | 0.20–0.50 m² for lamella; 0.6–1.0 m² for circular |
| Hydraulic residence | 3–5 minutes | 15–25 min (lamella); 30–60 min (circular) |
| Sludge dryness (downstream dewatering load) | 2–4% solids (DAF Corp, 2026) | 0.5–1.5% underflow |
| Air compressor / saturation tank required | Yes | No |
| Hawthorne-specific verdict | Wins on CMP slurry, photoresist, fluoride coprecipitate, and any UPW reclaim RO feed | Acceptable only as polish on fluoride-precipitated CaF₂/AlF₃ after pH adjustment |

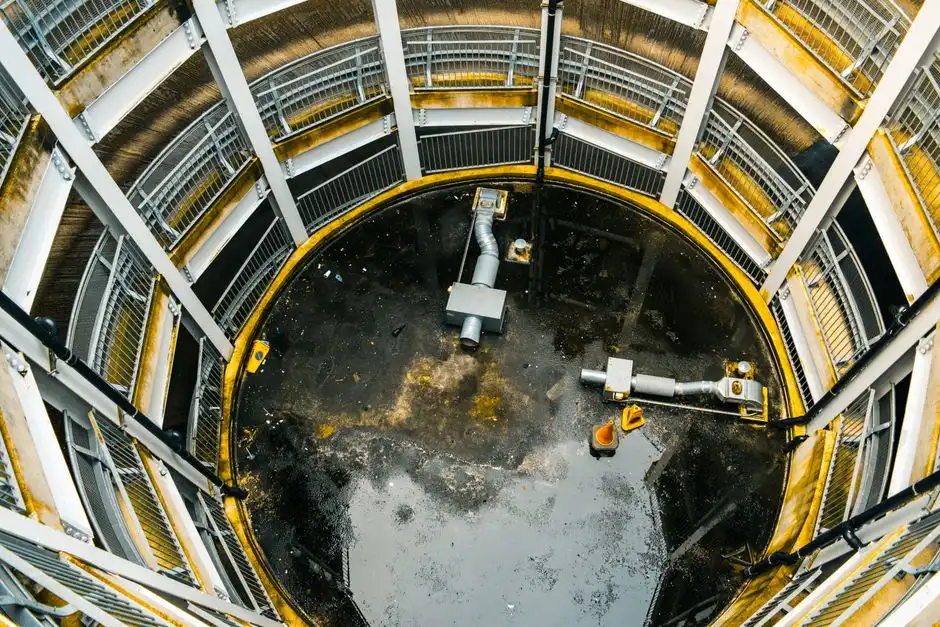

Selection Framework: When a Hawthorne Fab Should Pick DAF, Clarifier, or Both
Five rules, in priority order, will get a Hawthorne process engineer to a defensible capex recommendation:
- CMP slurry, photoresist, or fluoride coprecipitate is the dominant load. DAF is mandatory as primary. The HydropureWater DAF system is built for this duty range and will deliver 90–98% TSS on feeds that defeat a clarifier.
- The fab is back-grinding-dominant with high-velocity cooling-water blowdown. A lamella clarifier may be acceptable as primary; DAF then polishes for RO protection. Cooling-water particulates are coarser and denser than CMP slurry and will settle in a lamella at acceptable rates.
- UPW reclaim is in scope. DAF upstream of RO is required to prevent abrasive fouling. Sub-micron particles that pass a clarifier will score RO membranes; 20–50 µm DAF bubbles drop the TSS to a range the RO can tolerate.
- Total flow is under 50 m³/h (≈220 GPM). A skid-mounted DAF (SigmaDAF COMPACT, 66 GPM single skid) is the right answer; no clarifier is needed, and the air compressor fits inside the skid envelope.
- Combined flow exceeds 300 m³/h with biological organics from cleanroom laundry or scrubbers. A hybrid train — DAF primary, equalization, MBBR or MMBBR biological, then a lamella clarifier as secondary settling — is justified. Comparable hybrid trains for synthetic oily wastewater have been demonstrated at pilot scale (Elsevier, 2024).
Hawthorne plants with mixed tool fleets almost always end up on Rule 1 plus Rule 3. The clarifier is removed from primary duty entirely and shows up only as a downstream polishing or equalization step.
Sizing, Footprint and Cost Snapshot for a 2026 Hawthorne Installation
Procurement-grade sizing for a Hawthorne fab breaks into two envelope classes. SigmaDAF's COMPACT skid handles ≤66 GPM (≈15 m³/h) on a single skid, with a modular two-skid configuration above that. DAF Corp's FC Maximizer spans 48 GPM to 11,000 GPM in 6 ft to 70 ft diameter tanks, with a standard FC-150 rated at 500 GPM and 2000 PPM TSS loading. For fabs that need a 2026 retrofit without a permanent foundation, WesTech's mobile DAF trailer measures 47'6" × 8'6" (small) or 51'7" × 8'6" (large) and can be online in a single day (WesTech, 2026).
The dewatering capex line is the one most selection memos miss. A DAF producing 2–4% sludge cuts the required filter-press area roughly in half compared with a clarifier at 0.5–1.5% underflow — a real saving once you size the belt press or recessed-chamber press downstream. For a fab generating 1,000 kg/d of dry solids, the HydropureWater lamella clarifier would need roughly 80–120 m² of filter-press capacity, while the DAF train would need 30–50 m², with proportional savings on polymer, building footprint, and haul-off weight. Add reclaimed UPW value (California industrial water rates in 2026 run $5–$15 per m³) and a DAF that protects an RO from abrasive fouling typically pays back in 18–36 months on water savings alone, with compliance as a non-negotiable baseline.
Frequently asked questions
Which requirement belongs in the equipment enquiry?
Use the actual process-category determination and discharge authorization. Record pollutant, units, statistical period, sampling point and method. A broad industry label or another facility’s permit does not establish this site’s limits.
Does buying a standard treatment unit prove compliance?
No. Test representative wastewater against the actual requirements and operating envelope. Distinguish dissolved pollutants from separable solids and evaluate any necessary additional treatment.
What should be demonstrated at acceptance?
Agree feed variability, throughput, residual pollutants, chemical and energy use, sludge and return streams, alarms and safe handling of off-spec water. Verify results with the prescribed sampling and analytical procedures.
