Why the DAF vs Clarifier Question Is Different in Anacortes
Anacortes is one of the densest refinery clusters on the US West Coast, with the March's Point complex combining a large topping/cracking refinery, a deep-water marine terminal that handles ship ballast and crude trans-shipment, and a renewable diesel/biomass-to-biodiesel facility that shares the same outfall basin. That duty mix produces a wastewater envelope that swings between hot desalter brine at 60–80 °C and cold Fidalgo Bay ballast at 8–14 °C, with oil concentrations spanning 50 mg/L to 5,000 mg/L on the same day (per EPA 2019 Detailed Study of the Petroleum Refining Category, EPA 821-R-19-008, 2019-09). The regulatory anchor is 40 CFR Part 419, whose named BAT/BPT train runs equalization → API or baffle oil/solids removal → biological (activated sludge, aerated lagoons, oxidation ponds, trickling filters) → polishing pond or sand/dual-media/multimedia filter (40 CFR Part 419; ELG last revised 1985 for BAT phenols and chromium per the 2019 EPA study).
Cold seawater pulls two ways on equipment selection. Higher dissolved-air solubility (Henry's law) lets a saturator hold 70–100 mg/L of air at lower recycle, but rising viscosity damps the rise velocity of both bubbles and oil droplets, so cold-weather performance of a clarifier degrades faster than that of a DAF. On a tight March's Point pad, a DAF at 5–30 m³/m²·h (40–50 with plate packs) needs roughly one-third the footprint of a conventional clarifier rated at 1–2 m³/m²·h (clean technology post source, 2026-08). The verdict up front: DAF belongs in the oily-water slot, lamella clarifier belongs in the polishing or secondary-clarifier slot — they are not interchangeable stages.
How a DAF Actually Treats Oily Refinery Wastewater
A industrial DAF system inverts the separation vector used in a clarifier. Pressurized recycle water is saturated with air at 4–6 bar in a packed or venturi saturator; saturation efficiencies of 80–95% are typical, which gives a dissolved-air concentration of 70–100 mg/L. Recycle is normally 20–40% of forward flow (often 30%), and the design window for the air-to-solids ratio is 0.005–0.06 mL air per mg of suspended solids (clean technology post source, 2026-08). When the pressurized recycle flashes through a pressure-release valve at the DAF inlet, it generates a "white water" plume of 10–100 µm microbubbles that attach to oil droplets, floc, and suspended solids.
Buoyant agglomerates rise at 5–15 m/h, forming a thick float that a surface skimmer removes. On refinery duty the feed window is 50–5,000 mg/L of oil, almost always after an upstream API or CPI separator; within that window DAF delivers >95% FOG removal and 40–60% BOD reduction ahead of biological treatment (clean technology post source, 2026-08). Chemical conditioning is non-optional on real refinery streams: ferric chloride or polyaluminum chloride as coagulant plus an anionic or cationic polymer flocculant, dosed from an automatic coagulant and polymer dosing skid, breaks emulsions from desalter surfactants and stabilizes sulfide-rich floc. The float is also thicker than clarifier underflow — typically 2–6% solids versus 0.5–2% — which directly reduces downstream dewatering load on a sludge dewatering filter press.
Because the mechanism is buoyancy, not Stokes settling, a DAF is comparatively tolerant of low-temperature, low-density-contrast streams. Operators should still run jar tests on every new feedstock or emulsion package — emulsifier slugs from coker wash water, for example, can shift the optimum pH and polymer dose by a full unit within hours.

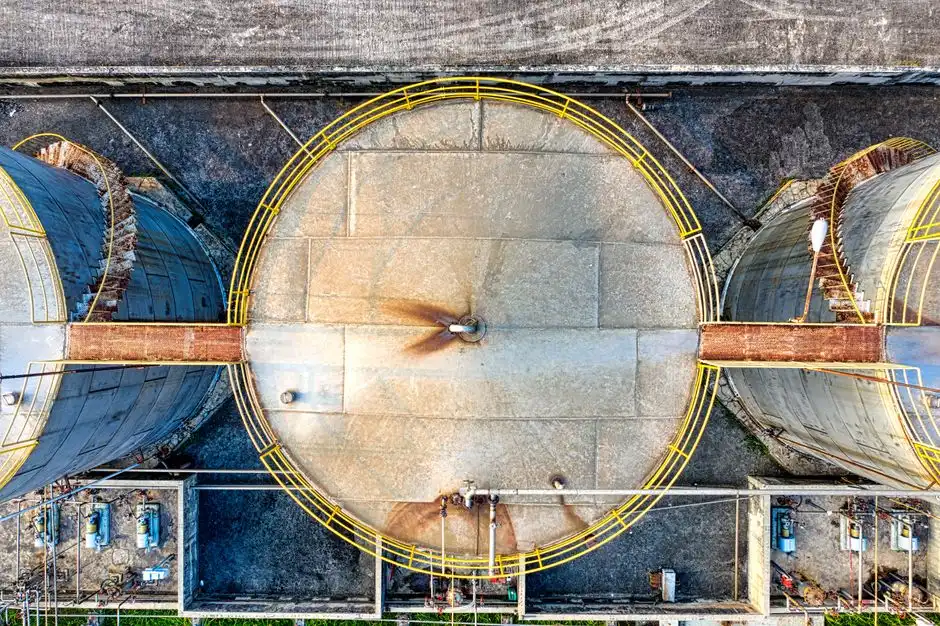

How a Clarifier (API, Conventional, and Lamella) Treats the Same Stream
Three clarifier archetypes appear on a 2026 P&ID for an Anacortes plant. The API oil-water separator is the workhorse first stage for very high free-oil streams (desalter effluent, ballast, slop): horizontal flow at low velocity with 30+ minutes retention typically removes 60–80% of free oil but essentially nothing emulsified (40 CFR Part 419 names API or baffle-plate separators as the BPT oil/solids step). A conventional circular clarifier runs gravity settling of TSS at 1–2 m³/m²·h and is the workhorse secondary clarifier downstream of biological aeration. A lamella clarifier stacks inclined plates at 55–60°, multiplying the effective settling area to 20–40 m³/m²·h in the same plan footprint and, with sludge recirculation over a hopper, can cut polymer consumption by up to 30% (HydropureWater product spec).
Conventional clarifiers struggle on emulsified oil because the droplet density approaches water and the viscosity penalty at 8–14 °C slows Stokes rise. Once oil is already low (under ~50 mg/L) and TSS dominates, the conventional or lamella clarifier pulls ahead of DAF on chemical cost and energy per pound removed. An API separator followed by a DAF followed by a lamella polishing clarifier is a complementary train, not a redundant one — each stage solves a different problem. For guidance on keeping the polymer conditioning stage tuned across seasons, the Flocculant Dosing Unit Maintenance Guide: 10-Step Protocol + Data walks the 10-step checks that protect floc quality on cold Fidalgo Bay feedwater.
DAF vs Clarifier for Petroleum Wastewater: Parameter Comparison
For a peer reviewer, the table below condenses the head-to-head data points that drive equipment selection on Anacortes streams. DAF numbers are drawn from full-scale refinery and produced-water piloting (clean technology post source, 2026-08); clarifier numbers are the same source plus HydropureWater product specification for the lamella unit.
| Parameter | DAF (incl. high-rate with plates) | Conventional Clarifier | Lamella Clarifier |
|---|---|---|---|
| Oil removal efficiency | >95% FOG, handles free + emulsified oil in 50–5,000 mg/L window | 60–80% free oil; poor on emulsified | Comparable to DAF on TSS, weaker on free oil |
| TSS removal | 70–90% with polymer; 40–60% BOD reduction upstream of biology | 50–70% | 70–90% with sludge recirculation |
| Hydraulic loading (m³/m²·h) | 5–30 standard, 40–50 with plate packs | 1–2 | 20–40 |
| Footprint vs. duty | ~1/3 of a conventional clarifier at equal flow | Reference baseline | ~1/2 of a conventional clarifier |
| Typical retention time | 20–40 min | 2–4 h | 30–60 min |
| Energy intensity | Recycle pump + air compressor dominate (kWh/m³ highest of the three) | Low (mostly sludge rake) | Low (passive plates, small recycle pump) |
| Chemical demand | Coagulant + polymer, jar-test driven | Polymer optional; coagulant rare | Polymer only; up to 30% savings with sludge recirculation |
| Sludge solids % | Float 2–6% | Underflow 0.5–2% | Underflow 1–3% |
| Best position in train | After API/CPI, before biology (primary oil removal) or as multimedia-filter prescreen | Secondary clarifier after activated sludge | Secondary or tertiary polishing; biological-sludge thickener |
Two numbers deserve attention from a downstream-cost perspective: the 2–6% DAF float versus 0.5–2% clarifier underflow, and the energy penalty on the DAF recycle pump. The float number is what makes a DAF attractive to pair with a sludge dewatering filter press — half the volume, similar dryness target. The energy penalty is why a lamella clarifier is the right polishing stage once oil is already low.

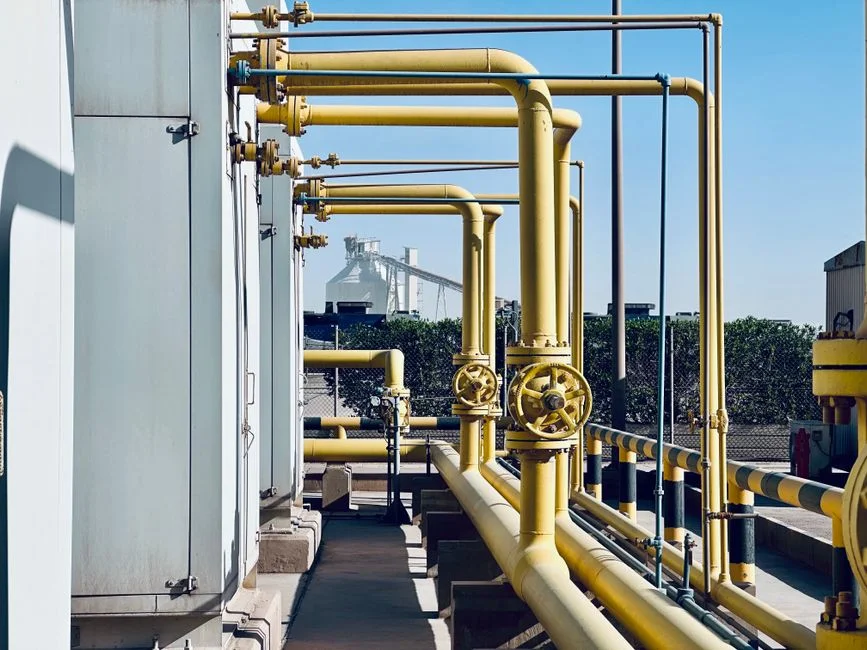

Matching the 40 CFR Part 419 Treatment Train
40 CFR Part 419 names the BAT/BPT end-of-pipe train verbatim: equalization and storm-water diversion → oil and solids removal (API separator or baffle-plate separator) → carbonaceous waste removal using biological treatment (activated sludge, aerated lagoons, oxidation ponds, trickling filters, or combination) → effluent polishing following biological treatment (polishing ponds or sand, dual-media, or multimedia filter) (per EPA 2019 Detailed Study, EPA 821-R-19-008, 2019-09). The regulated parameters are BOD5, TSS, COD, oil and grease, phenolic compounds, ammonia, sulfide, and total chromium. For indirect discharges, PSES/PSNS numbers across subparts A–E are 100 mg/L each for oil and grease and ammonia (as N), with PSNS adding 1 mg/L total chromium (40 CFR Part 419.10–419.50; EPA 2019 study).
DAF substitutes cleanly at two points in the named train. First, as a high-rate replacement for the API separator when the feed carries emulsified oil or surfactant-stabilized FOG — the API cannot reach the 100 mg/L PSES O&G floor on those streams. Second, as a polishing prescreen before multimedia filtration, where thick float protects the filter media from blinding. The lamella clarifier slots in as the secondary clarifier after activated sludge, and as a tertiary TSS polisher where biological-sludge carryover is the limiting discharge parameter. Subparts A (topping) and B (cracking) cover the Anacortes duty mix; ballast water allowances under Subpart A are explicitly defined, which matters for any plant that receives ship water at the marine terminal (per 40 CFR Part 419.10).
Decision Matrix: Which Should Your Anacortes Plant Specify in 2026?
Map the influent oil band, TSS band, and flow rate to the primary, secondary, and polishing stage. The matrix below is the version an engineer can lift directly into a 2026 specification memo.
| Influent Oil | Influent TSS | Flow regime | Stage 1 (oil/solids) | Stage 2 (biology) | Stage 3 (polish) |
|---|---|---|---|---|---|
| >500 mg/L or emulsified oil present | Any | Any | API or CPI → DAF | Activated sludge or MBBR | Multimedia filter + lamella clarifier |
| 50–500 mg/L, mostly free oil | 100–500 mg/L | Steady | DAF | Activated sludge | Lamella clarifier |
| 50–500 mg/L, variable | 100–500 mg/L | Surge (ballast, desalter) | Equalization + DAF (oversized saturator) | Activated sludge with equalization | Lamella clarifier |
| <50 mg/L, TSS-dominated | 200–1,000 mg/L | Any | Lamella clarifier (with sludge recirculation) | Already past biology | Multimedia filter |
| Cold-weather override: winter <10 °C | — | Any | Oversize saturator to 6 bar, consider enclosed/insulated DAF | Insulate aeration basin | Lamella clarifier inside |
| Tight plot override: March's Point pad < ~250 m² for primary | — | Any | Skip API, go high-rate DAF with plate packs (40–50 m³/m²·h) | Compact MBBR | Lamella clarifier |
For a 2026 spec, the rule is: oil >500 mg/L or emulsified oil present → API or CPI first, then DAF, then biology. Oil 50–500 mg/L → DAF directly, then biology. Oil <50 mg/L and TSS-dominated → lamella clarifier into biology. The same logic is reflected in the companion DAF vs clarifier guide for petroleum plants in Nashville, with cooler Gulf-coast operating temperatures substituted for the Pacific Northwest envelope.
Capital, Footprint, and Operating Cost Considerations
Treat all cost figures as 2026 US West Coast order-of-magnitude ballparks for budgeting, not firm quotes. A packaged DAF skid runs roughly 2–4× the capital of an equivalent conventional clarifier of the same hydraulic capacity, but at about one-third of the plan footprint (HydropureWater field data, 2026). A lamella clarifier sits between the two on CAPEX per m³/h, and its small footprint is the decisive argument on a constrained March's Point pad. Energy is dominated by the DAF recycle pump and air compressor; a lamella clarifier is largely passive, so OPEX favors the lamella once oil is already below ~50 mg/L. On the chemical line, a lamella with sludge recirculation can cut polymer consumption by up to 30% versus a single-pass clarifier (HydropureWater product spec); a DAF almost always needs both a coagulant and a polymer, sized from jar testing. For precise pricing and a defensible OPEX number, request an RFQ with a side-by-side pilot run on a 4–6 week rental DAF and a jar-tested lamella — that is the next action item for a 2026 project, not a desktop estimate. The related Power Plant Wastewater Characteristics and Treatment: 2026 Engineering Guide walks a similar CAPEX/footprint comparison for the power-generation duty cycle, which is useful when the biofuel side-stream shares a common outfall.
Frequently Asked Questions
Is DAF or a clarifier better for refinery oily wastewater?
DAF is the right primary stage on streams with 50–5,000 mg/L of free and emulsified oil, delivering >95% FOG removal and 40–60% BOD reduction in roughly one-third the footprint of a conventional clarifier (clean technology post source, 2026-08). A lamella clarifier is the right secondary or polishing stage after biology, where TSS, not oil, is the limiting parameter.
What does 40 CFR Part 419 actually require for the BAT train?
EPA's 2019 Detailed Study (EPA 821-R-19-008) restates the named BPT/BAT train as equalization → API or baffle-plate oil/solids removal → biological treatment (activated sludge, aerated lagoons, oxidation ponds, trickling filters, or combination) → polishing pond or sand/dual-media/multimedia filter. Regulated parameters are BOD5, TSS, COD, oil and grease, phenols, ammonia, sulfide, and total chromium; PSES/PSNS for indirect discharges are 100 mg/L O&G and 100 mg/L ammonia-N, with PSNS adding 1 mg/L total chromium.
What oil concentration range can a DAF handle?
Modern refinery DAF units are designed for the 50–5,000 mg/L oil window, almost always downstream of an API or CPI separator that knocks out gross free oil. Within that window, properly conditioned DAF routinely exceeds 95% FOG removal and reduces BOD by 40–60% before biological treatment (clean technology post source, 2026-08).
How does sludge from a DAF compare to clarifier sludge for dewatering?
DAF float typically runs 2–6% solids versus 0.5–2% for a clarifier underflow (clean technology post source, 2026-08), which roughly halves the volume sent to a plate-and-frame filter press for the same dry-tonnage target. A sludge dewatering filter press paired with a DAF is therefore a more compact dewatering train than one paired with a conventional clarifier.
How long does piloting and full-scale procurement take for a 2026 refinery project?
Plan a 4–6 week on-site DAF rental pilot with concurrent jar testing for the lamella stage; allow 8–12 weeks for vendor data, RFQ, and engineering review; then 16–24 weeks for fabrication and delivery of a packaged DAF skid on the US West Coast. Any project targeting mechanical completion in late 2026 should freeze the specification by Q2 to keep the schedule defensible.
