Why Mandan Factories Need a DAF-Led ETP in 2026

A factory in Mandan, North Dakota typically needs a packaged ETP whose core is a 4–50 m³/h DAF (dissolved air flotation) system operating at 3–5 bar saturation pressure, paired with automatic chemical dosing and (in most cases) downstream biological polishing. The DAF stage removes 95%+ of total suspended solids (TSS) and floatable oil & grease (FOG) and 92–97% of COD before the effluent reaches the City of Mandan Water Reclamation Facility, satisfying EPA 40 CFR 403 General Pretreatment limits enforced by the local POTW (per 40 CFR 403.5 categorical standards and NDDEQ Program 33 implementation).

Two regulatory drivers shape every equipment decision in this market. First, EPA 40 CFR 403 General Pretreatment Standards prohibit any industrial user from discharging wastewater that interferes with POTW operations, passes through untreated to receiving waters, or violates categorical limits under 40 CFR Parts 405–471. The City of Mandan Water Reclamation Facility administers this program locally, with the standard industrial surcharge ceilings sitting at pH 5–11, oil & grease ≤100 mg/L, and TSS ≤250 mg/L for non-categorical industrial users. Second, NDDEQ's pretreatment delegation under Program 33 means any new or expanded discharge requires a permit coordination step before construction can start.

Mandan-specific loadings make a DAF the obvious front end. The city's industrial base is dominated by food processing (a Cargill-adjacent agrifactory cluster along the Burlington Northern corridor), oil & gas services supporting the Bakken field, light manufacturing, and agricultural processing — all of which match the S1 DAF-suitability industries (food, chemicals, petrochemical, paper). These waste streams share three traits that defeat gravity clarification alone: high free and emulsified FOG, variable hydraulic loading from batch CIP cycles, and TSS that swings with seasonal throughput. A 2026 DAF engineering specs and decision framework walkthrough confirms DAF as the primary separation workhorse for this loading profile.

Step 1 — Characterize the Influent Before Sizing Any Equipment

Equipment selection fails when influent characterization is skipped, and in Mandan the swing between summer process water and winter brine carryover makes grab samples especially misleading. A plant engineer needs at least seven parameters measured across a representative week before specifying a DAF, lamella, or MBR train:

  • Average and peak flow in m³/h, with diurnal curves captured at 15-minute intervals.
  • TSS by Method 2540D — expect 500–3,000 mg/L in raw food-processing effluent and 200–800 mg/L in oil & gas service water.
  • FOG by Method 1664 (HEM) — typically 100–1,500 mg/L in food and rendering waste, often >2,000 mg/L in tank-bottom and refinery wastewater.
  • COD/BOD₅ ratio — a BOD₅/COD ratio above 0.5 indicates a readily biodegradable stream suited to downstream biological polishing; below 0.3 means the stream needs physico-chemical treatment first.
  • pH and temperature — Mandan winter influent routinely drops below 5 °C, which halves biological kinetics and pushes the design toward DAF-first / biological-second.
  • Surfactant load (MBAS) — high surfactant emulsifies FOG and dictates whether the DAF needs a coagulant/polymer pre-train.
  • Seasonal swing — spring thaw brings 2–3× normal flow from outdoor processing areas; the equalization basin must be sized against this peak, not the annual average.

Use a 7-day composite sampler (Hach AS950 or equivalent) rather than grab samples for any batch-discharge operation; a single grab can miss a CIP dump by 6–8 hours. Run jar tests in parallel with the sampling campaign to confirm coagulant (typically PAC at 50–150 mg/L) and flocculant (anionic PAM at 1–5 mg/L) doses before locking the chemical skid design.

DAF vs Lamella Clarifier vs MBR — Which Technology Fits a Mandan Plant?

DAF vs Lamella Clarifier vs MBR — Which Technology Fits a Mandan Plant?

DAF is not always the right front end. The decision hinges on FOG fraction, footprint, and the target effluent quality. The matrix below compares the three primary separation options on the metrics a Mandan plant engineer actually specs against:

Parameter DAF (ZSQ series) Lamella Clarifier MBR (membrane bioreactor)
TSS removal 90–95% 70–85% >99% (to <1 mg/L)
FOG removal 90–95% 40–60% (poor on emulsified oil) 95%+ as biological side-effect
COD removal 92–97% with chemical dosing 50–70% 95–99%
Hydraulic loading 5–25 m/h 20–40 m³/m²·h surface loading 0.5–1.5 m/h flux-limited
Footprint per m³/h ~0.05–0.1 m² ~0.02–0.04 m² (smallest) ~0.2–0.4 m² (largest)
Saturation pressure 3–5 bar N/A (gravity) N/A (gravity + suction)
CAPEX (relative) Medium Low High
OPEX (relative) Low–Medium Very Low High (membrane replacement, aeration)
Cold-climate suitability High (enclosed, heated saturator) High (no moving parts) Low (membrane flux drops >40% below 10 °C)

Headline numbers (DAF 95%+ TSS removal, 92–97% COD removal, 3–5 bar saturation) are corroborated across the commercial DAF literature and align with the ZSQ-series DAF system performance envelope. Lamella clarifier surface loading of 20–40 m³/m²·h makes it the most compact option, but its 40–60% FOG removal means any emulsified oil slips through to the downstream stage. MBR effluent quality (<1 μm filtration, near-reuse) is unmatched, but MBR alone as a front end for FOG-heavy industrial waste fouls membranes within weeks — its correct role in this matrix is as a polish step downstream of a DAF or lamella. The decision rule: high FOG/emulsified oil → DAF first (see DAF vs clarifier for petroleum wastewater for the Bakken-adjacent case study); high TSS with low FOG → lamella clarifier first; ultra-low effluent BOD/TSS target → add an MBR polishing stage after primary separation.

Sizing a DAF for a Mandan Factory — The 4–50 m³/h Band

DAF sizing uses four parameters: hydraulic loading rate (5–25 m/h on the effective flotation area), hydraulic retention time (20–40 minutes), air-to-solids ratio (0.005–0.06 kg air per kg TSS), and recycle ratio (20–50% of forward flow pressurized and returned through the saturator). A 25 m³/h system with a 30-minute retention time needs roughly 12.5 m² of effective flotation area and a saturator sized for 5–12 m³/h of recycle at 4 bar.

The Zhongsheng ZSQ catalog covers 13 standard models across 4–300 m³/h. For the small-to-mid Mandan industrial base — a single-shift food processing line, a light-manufacturing wash bay, an oil & gas service-water treatment skid — the relevant sub-bands are:

Flow band Typical ZSQ model class Footprint (L × W, m) Typical Mandan application
4–10 m³/h ZSQ-5 / ZSQ-10 ~3.0 × 1.2 Small food processor, single CIP line
10–25 m³/h ZSQ-15 / ZSQ-25 ~4.5 × 1.5 Mid food plant, light manufacturing wash water (common default for a 1-shift operation)
25–50 m³/h ZSQ-30 / ZSQ-50 ~5.5 × 2.0 Large food plant, oil & gas service-water train, agrifactory rendering
50–100 m³/h ZSQ-80 / ZSQ-100 ~7.0 × 2.5 Multi-line food processor, regional dairy
100–300 m³/h ZSQ-150 / ZSQ-200 / ZSQ-300 ~9.0 × 3.0+ Large industrial campus, pretreatment for membrane reuse

A 25 m³/h DAF is the most common default for a Mandan-area 1-shift food processing line because it absorbs the 2–3× diurnal peak from CIP dumps without breaching the 25 m/h hydraulic loading limit, while staying inside a single 40 ft ISO container for shipment to site. The DAF advantage set that matters in this band: high TSS/FOG removal in a single stage, compact footprint that fits inside an existing building envelope, and a 30–60% reduction in sludge load on any downstream biological or filtration stage (per the S1 DAF technology brief).

The Supporting Equipment Chain Around the DAF

The Supporting Equipment Chain Around the DAF

A DAF in isolation fails within months because the upstream, side-stream, and downstream units were never specified. Four equipment blocks sit around the flotation tank and each one is non-optional for a Mandan plant:

  • Upstream screening: a rotary mechanical bar screen (GX series, 2–6 mm aperture) catches rags, plastics, and fibrous debris from food and agrifactory waste. Without it, the DAF's surface skimmer rag-ups and the float sludge becomes un-pumpable within 60–90 days.
  • Side-stream chemical dosing: an automatic chemical dosing skid delivers coagulant (PAC or alum at 50–150 mg/L), flocculant (anionic PAM at 1–5 mg/L), and pH adjusters under PLC control. Skid-mounting the dosing panel keeps the installation footprint tight and lets the chemical curves track flow-proportionally.
  • Downstream polishing: a lamella clarifier for residual TSS at 20–40 m³/m²·h, or an MBR if the target is reuse-quality effluent for cooling-tower makeup or boiler feed.
  • Sludge handling: a plate and frame filter press dewatering the DAF float to a 25–35% dry-solids cake, handleable for off-site disposal under NDDEQ solid-waste rules. See also DAF configuration for tank bottom water for a related sludge-handling pattern.

Cold-Climate and Remote-Service Design for North Dakota Sites

A DAF spec that works in Texas will freeze in Mandan. Three design rules apply specifically to North Dakota sites with design ambient temperatures down to −30 °F (−34 °C):

Enclosure and heat tracing. Specify enclosed DAF tanks with insulated walk-in enclosures rated for the site design temperature. The saturator vessel, recycle line, and chemical dosing lines all need heat-traced, insulated piping to prevent freeze-up during a polar vortex. Without this, the saturator's pressure relief can stick and the recycle pump loses prime within 12 hours of a −20 °F ambient.

Remote telemetry and PLC. A PLC with 4G/NB-IoT remote telemetry lets a system integrator in a warmer state pull trends, push setpoint changes, and clear faults during the worst of winter. The data logger selection guide for 2026 covers the spec language for cellular telemetry, Modbus TCP bridging, and alarm escalation paths that survive a North Dakota winter.

Biological stage protection. Any biological stage downstream of the DAF — whether a moving-bed biofilm reactor, a sequencing batch reactor, or an MBR — needs heated basins (maintained >10 °C), heat exchangers on the mixed-liquor recycle loop, or a winter-bypass to equalization so that sub-5 °C temperatures don't stall nitrification. MBR flux drops >40% below 10 °C, which is why the DAF-first/biological-second arrangement is preferred in this climate.

Factory-tested skid delivery is the second-order cold-climate win. Skid-mounted, factory-tested DAF and dosing skids shorten on-site build time to 1–2 weeks, which matters in North Dakota's short May–October construction season. Pouring concrete and erecting buildings in January is a non-starter; arriving with a tested skid in late May is the difference between a 2026 startup and a 2027 startup.

2026 Deployment Checklist for a Mandan Factory ETP/DAF Project

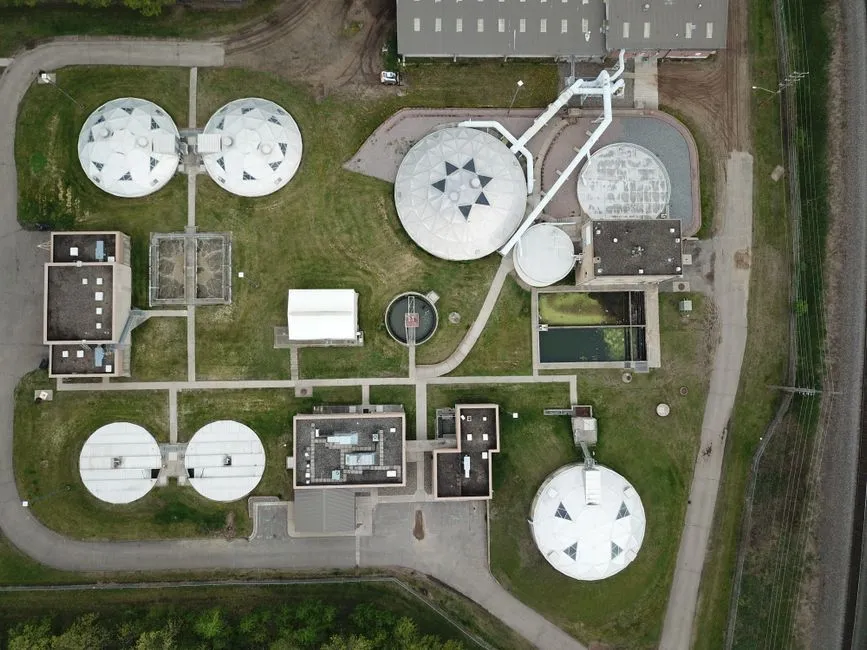

2026 Deployment Checklist for a Mandan Factory ETP/DAF Project

Ten steps, in order, for a 2026 ETP/DAF project in Mandan:

  1. Influent sampling campaign — 7-day composite at 15-minute intervals, with parallel grab samples for FOG spikes during CIP cycles.
  2. Treatability testing — jar tests on the composite to confirm coagulant/flocculant dose and pH adjustment range.
  3. Technology selection — apply the DAF / lamella / MBR decision matrix against the measured FOG fraction and target effluent quality.
  4. Sizing calculation — hydraulic loading × retention time × air-to-solids ratio, with a 1.5× safety factor on peak flow.
  5. NPDES / pretreatment permit confirmation — file the NDDEQ Program 33 coordination request and confirm City of Mandan Water Reclamation Facility acceptance limits before placing the equipment order.
  6. Vendor RFQ — issue the request for quotation against the matched ZSQ-series DAF system model and the supporting dosing / screen / filter-press skids.
  7. Skid delivery and installation — confirm the factory test report, then ship to site for a 1–2 week install window.
  8. Commissioning — saturator tuning, chemical curve calibration, and 72-hour performance test against the design TSS / FOG removal targets.
  9. Operator training — 2-day on-site training covering jar testing, polymer make-down, and PLC alarm response.
  10. 90-day performance verification — third-party sampling against the 40 CFR 403 categorical limits, with results filed to NDDEQ and the City of Mandan.

A typical DAF + dosing + screen packaged train for the 4–50 m³/h band sits in the low-to-mid six figures USD depending on materials of construction (304 vs 316 stainless) and the level of enclosure/heat-tracing required for a North Dakota site. For model-specific CAPEX and delivery timing, request a sized quotation with the 7-day composite dataset. Cross-reference the 2026 DAF engineering specs and decision framework as the deep-dive reference for the next design review. For flow-rate-matched ZSQ model selection, send the influent dataset and the target effluent quality to the Zhongsheng engineering team for a sized recommendation.

Frequently Asked Questions

What size DAF does a small food processing plant in Mandan typically need?

A 1-shift food processing line in Mandan with a single CIP dump per shift usually falls in the 10–25 m³/h band, mapped to a ZSQ-15 or ZSQ-25 model with a ~4.5 × 1.5 m footprint. This delivers 95%+ TSS removal and 90%+ FOG removal at 3–5 bar saturation pressure.

Does a DAF system meet EPA 40 CFR 403 General Pretreatment Standards on its own?

For non-categorical industrial discharges into the City of Mandan Water Reclamation Facility, a properly sized DAF with coagulant/flocculant dosing can meet the local limits of pH 5–11, oil & grease ≤100 mg/L, and TSS ≤250 mg/L without downstream biological treatment. Categorical industries (40 CFR Parts 405–471) usually require a biological or membrane polish step to hit the lower end of their specific limits.

How does a DAF perform in North Dakota winter conditions below −20 °F?

An enclosed, heat-traced DAF with an insulated saturator maintains 95%+ TSS removal and 92–97% COD removal in sub-zero ambient conditions, provided the saturator vessel and recycle lines are heat-traced and the plant room is kept above 40 °F. Biological stages downstream of the DAF need separate basin heating to stay above 10 °C for stable kinetics.

What is the difference between a DAF and a lamella clarifier for industrial wastewater?

A DAF removes 90–95% of FOG and 90–95% of TSS using 3–5 bar pressurized air microbubbles, while a lamella clarifier settles 70–85% of TSS via inclined plates at 20–40 m³/m²·h surface loading and removes only 40–60% of FOG. Choose DAF for emulsified oil and FOG-heavy streams; choose lamella for high-TSS, low-FOG streams where footprint and CAPEX dominate the decision.

Do I need a pretreatment permit from NDDEQ before installing a DAF in Mandan?

Yes. Any new or expanded industrial discharge to the City of Mandan Water Reclamation Facility requires a pretreatment permit coordination step with NDDEQ under Program 33, plus a construction review by the City's pretreatment coordinator. Equipment ordering should follow, not precede, the permit coordination letter to avoid a redesign if local limits change.
