Why a Pfizer-Scale API/Formulation Expansion Changes the ETP
A brownfield API or formulation expansion changes the character of the stream hitting the pharma wastewater treatment train. Pfizer-grade operations run two distinct effluent regimes in parallel: API synthesis generates high-COD, low-pH, solvent-bearing liquor (often above 10,000 mg/L COD at the source), while formulation cleaning generates surfactant-rich, trace-API wash water at moderate COD but with violent pH swings between CIP caustic cycles and acidic rinse steps. Mixing these into one equalization tank without segregation is the most common root cause of biological upset in retrofits (S1, pharmaguddu.com).
Antibiotic API residues are now under active discharge scrutiny as part of wider antimicrobial resistance (AMR) programs, and ISO 14001 operational-control audits routinely pull ETP trend data. The ETP must turn a mixed, inconsistent stream into a uniform, compliant stream that meets both conventional limits and a tightening list of API-specific targets — before any of it is reused, discharged, or sent to a hazardous-waste sludge handler.
The 2026 Influent Envelope Pfizer Must Design For
The design basis below is what an EHS manager should hand to a process engineer before any P&ID work starts. API synthesis streams sit at the upper end of the COD band; formulation streams sit lower but with wider pH and surfactant variability. Treat this envelope as a worst-case operating window, not an average.
| Parameter | Typical Range | Notes for 2026 Design |
|---|---|---|
| COD | 1,000–10,000+ mg/L | API lines biased to upper band; >10,000 mg/L common for solvent-bearing streams (S1) |
| BOD/COD ratio | 0.4–0.6 | Lower ratio (<0.4) indicates hard, solvent-laden API liquor that resists biological oxidation |
| pH | <2 to >11 | Solvent recovery returns acidic; CIP/caustic returns alkaline — must be neutralized before biology |
| Conductivity / TDS | 3,000–15,000 µS/cm | Elevated from API salt streams; affects RO recovery sizing |
| Trace organics | Methanol, acetone, DCM, acetonitrile; surfactants; APIs including antibiotics | Drives the case for activated carbon and advanced oxidation downstream |
| Flow variability | 2–4× diurnal swing | Batch releases from API campaigns drive peak flows; equalization sized for 8–24 hr of average flow |
Equalization volume is the first number to over-spec on a retrofit. If the existing tank was sized for a single-shift formulation line, an API campaign will eat that buffer in a single batch dump (S1).
Treatment Train for a Pfizer-Grade Pharmaceutical ETP
The standard pharmaceutical ETP train is screening → equalization → neutralization → coagulation/flocculation → biological degradation → tertiary polishing. Each stage below carries an operating band a designer can lift directly into a Basis-of-Design document.
| Stage | Key Parameter | Design Band |
|---|---|---|
| Screening & grit | Bar screen opening | 6–10 mm primary, fine screen downstream to protect membranes |
| Equalization | HRT | 8–24 hr; pre-aeration to prevent septicity in API streams |
| Neutralization | pH correction | Two-stage (acid then alkali); target 6.5–7.5 before biology |
| Coagulation-flocculation | Dosing | Handled via an automatic chemical dosing skid; upstream of lamella clarifier for sludge thickening |
| Biological stage | HRT / SRT | HRT 12–48 hr; SRT 5–15 days; MBBR or MBR membrane bioreactor system preferred for footprint and API tolerance (S1) |
| Tertiary polishing | Configuration | MBR → activated carbon (trace API / solvent polish) → industrial RO system for reuse; UV or chlorination for disinfection |
Neutralization is the single most failure-prone unit in the train, as incomplete or inconsistent pH correction is the leading cause of downstream biological upset (S1, pharmaguddu.com). Two-stage correction with online pH monitoring on both legs is non-negotiable for a Pfizer-tier ETP. For the AAO biological configuration that often sits under the MBR cassette, see this AAO process working principle reference.
API Stream vs Formulation Stream: How the Trains Diverge
The API and formulation streams are not interchangeable, and blending them untreated is the single most common source of chronic biological instability in brownfield retrofits.
| Aspect | API Synthesis Stream | Formulation Stream |
|---|---|---|
| COD range | 5,000–10,000+ mg/L | 1,000–3,000 mg/L |
| pH character | Acidic (solvent recovery) | Alkaline (CIP/caustic washes) |
| Key contaminants | Residual solvents; API intermediates; antibiotic residues | Surfactants; trace actives; cleaning agents |
| Recommended pre-treatment | Air or steam stripping for solvents; dedicated equalization | DAF system for emulsified cleaners before biology |
| Rejoin point | After neutralization, upstream of biological stage | After DAF, upstream of biological stage |
If the expansion adds more than 30% API capacity, plan a parallel high-strength line with its own equalization and stripping; if it is formulation-led, prioritize a DAF cell and surfactant-tolerant biology (S1). A similar logic applies across adjacent sectors — for comparison, see this FMCG plant expansion ETP sizing reference.

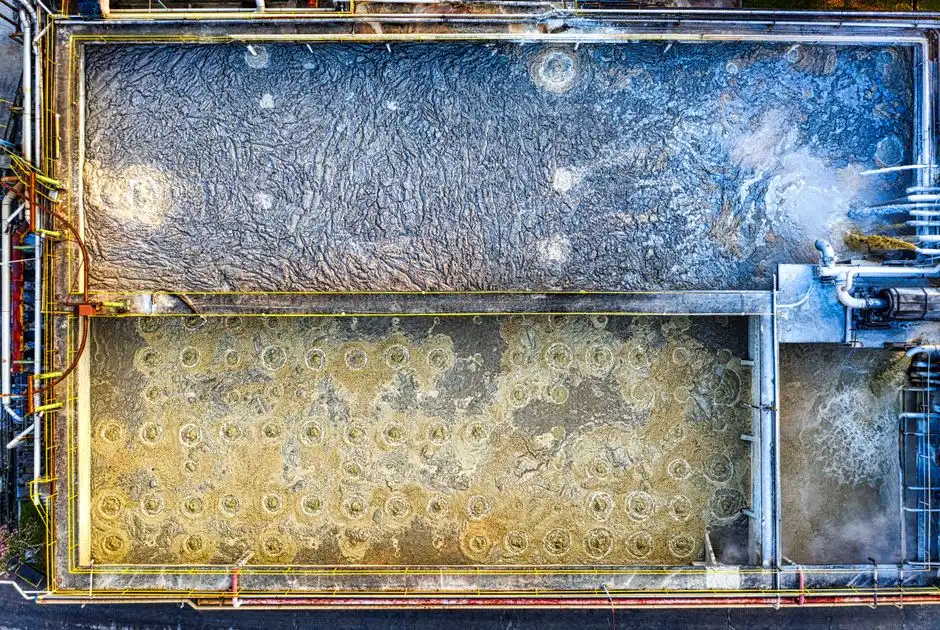

2026 Discharge Limits and the AMR Compliance Layer
Conventional consent parameters — BOD <30 mg/L, COD <250 mg/L, TSS <100 mg/L, pH 6.5–8.5 — remain the floor per typical national pollution control board ranges. Antibiotic API residues are now under active discharge scrutiny as part of wider AMR programs, with environmental risk assessments increasingly required for site permits (S1, pharmaguddu.com).
The default 2026 polishing block for an antibiotic line is advanced oxidation (O₃, O₃/H₂O₂, or UV/H₂O₂) followed by granular activated carbon (GAC), with RO downstream if reuse is targeted. Residual solvents — methanol, acetone, acetonitrile — are typically capped at low mg/L levels even where generic COD is compliant, which is why GAC is rarely optional. Pharmaceutical sludge is classified as hazardous in many jurisdictions; dewatering via a plate-and-frame filter press to a dry solids content above 30% is the typical disposal-prep target, with the cake routed to a licensed hazardous-waste incinerator or secured landfill.
Retrofit vs Greenfield: Decision Framework for 2026
For a Pfizer-tier brownfield, the default answer is a hybrid approach of keeping what works, swapping the bottleneck, and adding a polishing skid. Use the following logic before opening a greenfield capital request.
Retrofit when: existing equalization can be extended to hit the 8–24 hr HRT band, the biological tank carries at least 20% spare HRT capacity, and the new AMR polishing block can be added downstream as a skid (an MBR cassette swap, an ozone skid, or a GAC vessel train). Greenfield when: design flow rises above 2× current capacity, influent COD shifts above 10,000 mg/L consistently, or the site cannot meet the new antibiotic API discharge limits without a full train replacement. Hybrid (most common): retain primary biology, swap to an MBR cassette or add a membrane skid, and add advanced oxidation plus RO for water reuse. A 5-year CAPEX lens typically shows the polishing train paying back in 3–5 years at high-volume sites through reduced raw-water intake and lower discharge fees (Zhongsheng field data, 2026).
Frequently Asked Questions
What COD range should a Pfizer-grade pharmaceutical ETP be designed for in 2026?
Design for 1,000–10,000+ mg/L COD, with API synthesis lines biased to the upper band and formulation cleaning streams sitting lower but with wider pH and surfactant variability. This envelope is the standard basis for both greenfield and brownfield pharma ETP sizing (S1, pharmaguddu.com).
What HRT and SRT does the biological stage of a pharma ETP need?
Hydraulic retention time of 12–48 hours and a sludge age (SRT) of 5–15 days are the typical design bands for a pharmaceutical biological stage. MBBR or MBR configurations are preferred over conventional activated sludge for footprint and API tolerance (S1).
How do API and formulation wastewater streams differ in treatment?
API synthesis streams are high-COD, low-pH, and solvent-rich, requiring dedicated equalization and often an upstream stripping or solvent-recovery step. Formulation streams are surfactant-bearing with trace actives and moderate COD, and benefit from DAF pre-treatment to remove emulsified cleaners before the biological stage. Blending them untreated is a common cause of biological upset.
Why is advanced oxidation becoming standard for pharma ETPs in 2026?
Antibiotic API residues are under increasing discharge scrutiny as part of wider antimicrobial resistance (AMR) programs, and environmental risk assessments are now tied to site permits. Ozone-based or UV/H₂O₂ advanced oxidation, followed by granular activated carbon, is the default 2026 polishing configuration for antibiotic API lines (S1).
