DAF system design for starch wastewater centers on a 5–20 m/h hydraulic loading rate, a 0.02–0.06 air-to-solids ratio, and PAC coagulation at 50–200 mg/L. Properly applied, DAF lifts 70–90% of TSS and 30–50% of COD before the anaerobic stage.
Why DAF System Design for Starch Wastewater Differs from Generic Specs
Starch effluent carries 3,000–6,000 mg/L TSS and 5,000–15,000 mg/L COD at pH 4.0–6.0 and 40–55°C, with near-neutral-buoyancy colloids that a generic DAF spec under-treats by 20–30 percentage points. A tailored design lifts 70–90% of TSS and 30–50% of COD ahead of the anaerobic stage.
Starch plant effluent leaves the process as a milky, fibrous, near-boiling stream that a generic DAF spec from a vendor catalog will under-treat. Typical starch wastewater carries 3,000–6,000 mg/L TSS, 5,000–15,000 mg/L COD, pH 4.0–6.0 and 40–55°C. It also carries dissolved proteins and fine fiber fragments that resist settling for hours (per EPA food-industry characterization data; cross-checked against the starch wastewater characteristics and treatment overview).
Colloidal starch granules have near-neutral buoyancy and stabilized surface charges, so a plain gravity clarifier only achieves 30–40% TSS removal. Most of the load rides through to the biological stage, which then has to be sized 2–3× larger than necessary.
A properly designed DAF unit lifts 70–90% of TSS and 30–50% of COD by attaching 10–100 μm micro-bubbles to destabilized flocs. The mechanism is the classic one described in standard DAF references: air dissolved under pressure is released at atmospheric pressure, and the released bubbles adhere to the suspended matter (Wikipedia). Performance still beats the 95% headline figure used by generalist DAF vendors on paper, because starch streams are unusually strong — 5–15 kg COD/m³ versus 1–3 kg COD/m³ for typical food-processing effluent.
Positioned as the primary clarification step, a DAF cuts 60–80% of the load on the downstream anaerobic reactor (UASB or IC), which directly shrinks biological CAPEX and aeration energy. DAF is not a polishing step in a starch plant — it is the first real separation node, and it must be sized for starch chemistry, not generic food-industry numbers. That is the single most important framing when defending a DAF spec to a procurement manager.
Core DAF Design Parameters for Starch Effluent
Starch effluent sits at the high-solids end of the DAF duty envelope, so the design numbers diverge from the 20–25 m/h hydraulic loading rate (HLR) used for general industrial wastewater. The parameters below are what should appear on a starch-plant P&ID and the equipment data sheet.
| Parameter | Starch DAF range | Notes |
|---|---|---|
| Hydraulic loading rate (HLR) | 5–20 m/h | Use 8–12 m/h for wheat/cassava; 12–20 m/h for cleaner potato streams |
| Air-to-solids ratio (A/S, mass basis) | 0.02–0.06 | 0.03–0.04 typical; 0.05–0.06 for fibrous wheat starch |
| Recycle ratio | 20–50% of influent | 30% is a defensible default for 4,000–5,000 mg/L TSS |
| Saturation pressure | 4–6 bar | Dissolves 40–60 g O₂/m³ water in the recycle stream |
| Flotation chamber retention | 15–30 min | 20 min covers most starch duties |
| Surface overflow rate (SOR) | 5–15 m³/(m²·h) | Effective surface area = flow / SOR |
| Micro-bubble size | 10–100 μm | Generated by eductor or needle-valve white-water injectors in 304 SS for starch plant corrosion conditions |
| Skim speed | 0.5–1.0 m/min | Higher for fibrous streams to avoid float re-entrainment |
Effective flotation surface area is the single most important output of this section. For a 50 m³/h stream at SOR 8 m³/(m²·h), the chamber footprint works out to 6.25 m² — about 2.5 m × 2.5 m rectangular, or 2.8 m diameter circular. The recycle saturator is sized for 30% of influent (15 m³/h in this example) with a 4–6 bar recirculation pump and a packed saturator tower or in-line eductor. Eductor-only designs are cheaper but achieve only 60–70% saturation efficiency, so the A/S ratio has to climb toward 0.05 to compensate (HydropureWater field data, 2026).
Chemistry Specific to Starch: Coagulants, Flocculants and pH
DAF chemistry on starch effluent is not optional — it is the difference between 45% and 85% TSS removal. The treatment train runs in three steps: pH correction, coagulant dose for colloid destabilization, then a high-molecular-weight anionic flocculant to grow the bubble-attaching floc.
Start with pH adjustment to 6.5–7.5 using NaOH (preferred for tight control) or lime (cheaper but adds sludge). Starch plant effluent commonly arrives at pH 4.0–6.0, and FeCl₃ loses 30–40% of its destabilization power below pH 6.0 — a frequent reason new DAFs underperform on starch streams. Coagulant dose is 50–200 mg/L polyaluminum chloride (PAC) or 100–300 mg/L FeCl₃, with a rapid mix at 100–200 rpm for 30–60 s. PAC is usually the better choice on starch because it works across a wider pH band and adds less chloride to the recycled process water.
Overdosing above ~250 mg/L PAC re-stabilizes the colloids and breaks the DAF — a common commissioning mistake on starch plants. Operators often chase the dose upward before realizing the direction is wrong. A jar-test series on your own effluent before commissioning prevents both errors.
Flocculation uses 1–5 mg/L of an 8–12 MDa anionic polyacrylamide at 20–40 rpm for 10–20 min. Cationic PAM blinds within hours on negatively charged starch colloids and should be avoided even though vendor reps will often suggest it for "food waste." The floc is intentionally optimized for TSS and fiber-bound organics; dissolved starch and small proteins pass through to the downstream anaerobic reactor, where they belong. Dosing accuracy matters — feed the coagulant and flocculant through an automatic coagulant and flocculant dosing skid with flow-paced control, not a hand-adjusted dosing pump.
Rectangular vs Circular DAF for Starch Plant: Which Configuration Wins?
Layout is the first decision after the design numbers are locked. For starch plants, the choice is driven by available floor area, fiber loading, and the flow band on the equipment data sheet.
| Criterion | Rectangular DAF | Circular DAF |
|---|---|---|
| Typical flow band | 50–300 m³/h (high end of dissolved air flotation system range) | 4–80 m³/h (lower end of range) |
| Footprint | Long and narrow; suits existing process halls and rectangular tank farms | Compact radial footprint; suits tight sites and modular skids |
| Skimmer type | Cross-belt or chain-and-flight skimmer; handles fibrous debris from wheat and cassava starch | Rotating scoop skimmer; best on low-fiber streams such as refined potato starch |
| Hydraulic distribution | Better at flows above 150–200 m³/h; longer residence-time distribution | Excellent below 50 m³/h; radial weirs simplify flow split |
| Material of construction | 304 or 316 SS recommended for hot, slightly acidic starch effluent; epoxy-coated CS acceptable for non-food zones | Same SS options; circular tanks more common as factory-fabricated packages |
| CAPEX per m³ at high flow | Lower (shared wall, longer but cheaper per m² of surface area) | Higher (radial design uses more steel per m²) |
| Best fit | Wheat or cassava starch plants with fibrous effluent, retrofit into existing buildings | Potato starch or smaller specialty lines, greenfield modular installations |
For most wheat-starch plants in the 50–150 m³/h band, the rectangular configuration wins on fiber handling and on cost per cubic meter of surface area. A circular unit is the right answer only when the site forces a tight footprint or the effluent has been pre-fibered to below 200 mg/L suspended fiber.

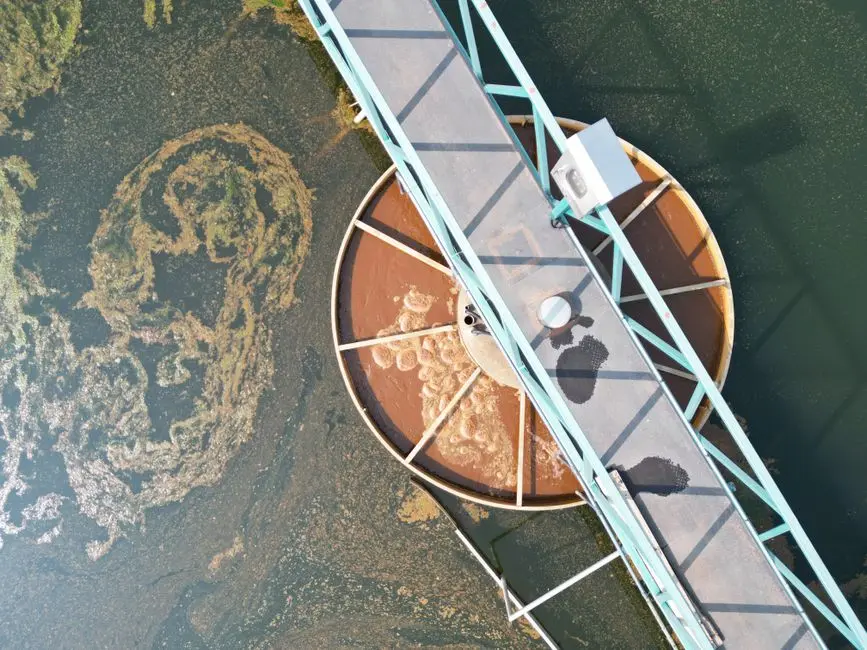

Pretreatment Upstream and Biological Treatment Downstream
DAF is one node in a sequence, and its performance collapses if the nodes around it are wrong. Upstream, install a GX series rotary fine screen at 1–3 mm aperture plus a grit chamber. Fibers, husks and sand that pass these units accumulate in the flotation tank, blind the eductors and force weekly shutdowns for manual cleaning. A 4–8 hour flow-equalization buffer tank is mandatory on starch lines, because washing, gluten recovery and dewatering centrifuges discharge in batches. Without it, the DAF sees 3× peak flows every shift and the float blanket washes over the effluent weir.
Downstream, DAF effluent feeds an anaerobic reactor (UASB for flows under 100 m³/h, IC reactor for higher flows), which removes 70–85% of the COD that the DAF left behind — primarily dissolved starch and proteins. A polishing aerobic stage (SBR or MBBR) follows for residual COD, ammonia and any color breakthrough. The companion page on starch wastewater characteristics and treatment 2026 uasb daf mbr design details that biological train end to end.
Two UASB facts justify the DAF investment upstream. According to UASB design guidance, these reactors are typically suited to dilute waste streams with TSS around 3% and particle size above 0.75 mm, so suspended fiber and colloids must be stripped first (Wikipedia).
DAF Float Sludge Dewatering Starch Industry Checklist
The DAF float leaves the flotation tank at 3–5% dry solids and is dewatered on a plate-and-frame filter press for the DAF float sludge to a 25–35% DS cake. Commissioning procedures are covered in the filter press installation and commissioning guide.
For the wider sludge balance — thickening, transport and disposal economics — the Starch Wastewater Sludge Treatment Process: 2026 Engineering Guide extends this section with full-plant numbers.
Wheat Starch Wastewater DAF Sizing Example: 50 m³/h Plant
The numbers below are the kind a project engineer copies into an equipment data sheet and defends in a client meeting. Inputs: 50 m³/h average influent, COD 8,000 mg/L, TSS 4,500 mg/L, pH 5.5, temperature 45°C, fibrous wheat-starch effluent.
- Hydraulic sizing. Pick HLR 10 m/h and SOR 8 m³/(m²·h) as the design point. Effective flotation surface area = 50 / 8 = 6.25 m², easily met by a 2.5 m × 2.5 m rectangular chamber or a 2.8 m diameter circular unit.
- Recycle and air. Recycle ratio 30% gives 15 m³/h through the saturator at 5 bar, dissolving roughly 50 g O₂/m³. A/S ratio = (15 × 50 / 1,000) / (50 × 4.5 / 1,000) ≈ 0.033 — within the 0.02–0.06 design band and conservative for wheat starch.
- Chemistry. 150 mg/L PAC dosed into a rapid-mix chamber at 150 rpm for 45 s, then 3 mg/L anionic PAM (10–12 MDa) at 30 rpm for 15 min. NaOH dose to correct pH from 5.5 to 7.0 (typical 80–120 mg/L on wheat-starch effluent).
- Predicted effluent. TSS 700–900 mg/L (80–85% removal), COD 4,500–5,500 mg/L (35–45% removal). The dissolved fraction passes to the UASB at an organic loading rate of 8–12 kg COD/m³·day for a 50 m³/h stream — well within the 10–15 kg COD/m³·day design range for starch UASBs.
- Footprint and CAPEX. Packaged rectangular unit, saturator, chemical skid and control panel: roughly 30 m² total floor area. Budget a CAPEX envelope of USD 45,000–85,000 for a packaged Dissolved Air Flotation (DAF) System — DAF class, 304 SS — consistent with the catalog flow band of 4–300 m³/h and 2026 stainless-steel pricing (HydropureWater field data, 2026).
That package is what DAF system design for starch wastewater delivers. The procurement manager gets a defined surface area, a defined chemistry dose and a predicted effluent quality. The biology team gets a UASB loading rate it can sign off on, and the budget line survives review.
Who This Guide Is For and Next Step
Starch-plant project engineers, EPC process designers and procurement managers specifying primary clarification for wheat, cassava or potato lines are the audience here. A different page fits if your stream is domestic sewage or a dilute food effluent under 2,000 mg/L TSS. To turn the sizing table and worked example into a scoped quotation, send the stream data for a DAF quote — flow, COD, TSS, pH and temperature are enough for a first pass.
Frequently Asked Questions
What starch wastewater DAF hydraulic loading rate should the design use?
Use 5–20 m/h, with 8–12 m/h as the default for wheat and cassava streams and 12–20 m/h for cleaner potato effluent. The upper end sits below the 20–25 m/h used for general industrial DAF because of the higher solids flux on starch lines (per starch wastewater characteristics and treatment overview). At 50 m³/h and SOR 8 m³/(m²·h), that loading implies roughly 6.25 m² of effective flotation surface.
Which flocculant works on starch — anionic, cationic, or non-ionic?
Anionic polyacrylamide at 8–12 MDa, dosed at 1–5 mg/L, is the working choice on starch effluent. Cationic PAM blinds within hours on negatively charged starch colloids and should be avoided. Non-ionic polymer works but is rarely the most cost-effective option at starch pH 6.5–7.5.
What removal efficiency can a DAF realistically achieve on starch wastewater?
Plan on 70–90% TSS removal and 30–50% COD removal on properly coagulated starch effluent. The 95% figure quoted by generalist DAF vendors applies to dilute food streams below 2,000 mg/L TSS. On 4,000–5,000 mg/L starch streams the realistic ceiling is 85–90% TSS.
What is the downstream biological step after a starch DAF?
An anaerobic reactor is the standard downstream step: UASB for flows under 100 m³/h, IC reactor above, taking 70–85% of the remaining dissolved COD. An aerobic polishing stage (SBR or MBBR) follows for residual COD, ammonia and color breakthrough. The full train is detailed in the downstream anaerobic + aerobic biological treatment guide.
Rectangular or circular DAF for a wheat starch plant?
Rectangular wins for wheat starch, because the effluent carries 500–1,500 mg/L suspended fiber that a chain-and-flight skimmer handles reliably. A circular scoop skimmer re-entrains fiber at flows above ~50 m³/h. Choose circular only when the site forces a compact radial footprint or the stream is a refined, low-fiber potato line.
What polyaluminum chloride dose for starch DAF is typical?
A polyaluminum chloride dose of 50–200 mg/L covers most starch streams, delivered into a rapid mix at 100–200 rpm for 30–60 s after pH correction to 6.5–7.5. Stay below roughly 250 mg/L: above that, PAC re-stabilizes the colloids and float quality collapses. Verify the setpoint with jar tests on your own effluent before commissioning.
