Start with the wastewater, not the equipment name
A Pune factory usually needs a DAF system when its effluent contains oil and grease, suspended solids, colloids or other floatable contaminants; a full ETP is needed when biological treatment is required. A combined ETP–DAF train is often appropriate when both types of pollution must be removed. DAF uses pressurized air to form micro-bubbles that lift solids and oil droplets for skimming, while an ETP can add primary, secondary biological and tertiary treatment stages. Final selection should be based on representative wastewater tests, peak flow, discharge route, reuse requirements and the applicable consent conditions—not on the product label alone.
The first procurement step is a short wastewater screening exercise, not a request for a catalogue. Characterise the factory wastewater by its dominant contaminants: free oil, emulsified oil, suspended solids, colloids, pH, biodegradable organics and dissolved salts. These characteristics indicate whether the objective is primarily clarification, biological treatment or a sequence that handles both. A discharge route must also be fixed early: discharge to a sewer or receiving body, internal reuse, process reuse, or a zero-liquid-discharge application. Obtain the applicable consent or pretreatment conditions before selecting equipment; a generic statement that a system follows CPCB wastewater treatment guidance is not a substitute for the project’s written compliance basis.
Collect representative samples across normal production, cleaning cycles and peak discharge periods, and record both average and peak wastewater flow. A DAF must be selected against hydraulic demand and contaminant loading, not merely against the daily wastewater volume. The process hierarchy is a useful reference: primary treatment combines physical and chemical methods, secondary treatment uses aerobic or anaerobic biological processes, and tertiary treatment provides final cleaning before release, as described in a 2025 Quora technical answer on the aquagreentechs.com source.
Remember that DAF can be the physical clarification component inside an ETP. A DAF catalogue alone does not establish that a complete ETP has been specified. The buyer should first identify the treatment objective, then define the process train and only then select equipment.
| Screening item | Information to obtain | Decision it informs |
|---|---|---|
| Dominant contaminants | Representative laboratory analysis covering oil and grease, suspended solids, pH, organics and relevant dissolved parameters | DAF, biological ETP or combined treatment |
| Hydraulic duty | Average flow, peak flow, operating hours and equivalent flow shifts | Equipment sizing and equalisation |
| Discharge or reuse route | Consent conditions, sewer-pretreatment requirements or required reuse water quality | Treatment objectives and final polishing |
| Operation boundary | Civil work, utilities, controls, sludge handling and local commissioning support | Supplier and quotation scope |
Match the dominant contaminant to the treatment objective
DAF is a physico-chemical clarification process in which fine bubbles attach to particles and increase their flotation rate. The mechanism is straightforward: a portion of the water is pressurized, air dissolves under pressure, and the pressurized stream enters the flotation tank. As pressure falls, the air forms fine bubbles that attach to suspended solids and oil droplets. The resulting froth is skimmed, leaving clarified water for further treatment or discharge, as described by aquagreentechs.com in its DAF system overview. The same commercial source identifies efficient clarification, oil and grease removal, and suspended-solids reduction as DAF capabilities.
For free oil, emulsified oil, grease and other floatable material, DAF is the relevant physical process to evaluate. An industrial DAF system for oil, grease and suspended solids can be considered where the objective is clarification before discharge or before a defined downstream process. Chemical conditioning may still be needed for emulsions or unstable colloids, so the quotation should distinguish the DAF package from any dosing system.
Suspended solids and colloidal material point toward DAF as a clarification option, although the required solids loading and removal duty must come from site data. Commercial evidence from aquagreentechs.com specifically identifies suspended-solids reduction and efficient clarification, but it does not establish a removal percentage applicable to every factory. A lamella clarifier is another physical separation choice where inclined-plate settling is appropriate; the high-efficiency sedimentation tank option should be compared where floatable oil and FOG are not the dominant concern.
Biodegradable dissolved organics require a biological stage. Aerobic or anaerobic biological wastewater treatment should be assessed according to the waste characteristics and process objectives, because physical flotation does not replace biological oxidation or anaerobic treatment. For mixed effluent, a defensible sequence is physical separation, chemical conditioning where needed, DAF clarification, downstream biological polishing and tertiary treatment where the final route requires it.
The refinery case illustrates why sequence matters. A 2025 Quora technical answer describes emulsified oil coating biological microbes and impairing oxygen transfer in refinery effluent treatment. In that case, DAF acts as a protective clarification barrier before the biological stage. This is an industry-specific mechanism, not proof that every mixed industrial effluent requires the same arrangement.
| Dominant characteristic | Primary process to evaluate | Engineering question |
|---|---|---|
| Free or emulsified oil, grease and floatable solids | DAF, with chemical conditioning where required | Can the selected DAF handle the measured oil, FOG and solids loading? |
| Suspended solids or colloids | DAF or another solids-separation process | Which clarification method best fits the waste and required downstream condition? |
| Biodegradable dissolved organics | Aerobic or anaerobic biological treatment | What biological process and controls are required by the wastewater analysis? |
| Mixed contaminants | Physical or chemical stage, DAF, biological stage and optional tertiary treatment | Does the complete train protect downstream biology and meet the final route? |

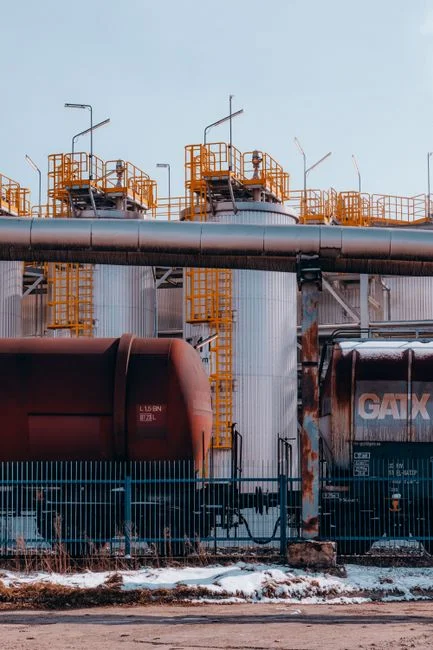

Choose DAF, ETP, or a combined treatment train
A DAF is the logical starting point when the treatment objective is removal of oil, grease, floatable solids and suspended solids without a biological requirement. A full ETP is the logical starting point when biological treatment is required for dissolved and biodegradable organics, or when the specified treatment train includes primary, secondary and tertiary stages. A combined ETP–DAF train is appropriate when floatable contaminants must be removed before biological treatment and when discharge or reuse requires additional stages.
An ETP is not a synonym for one machine. It may combine primary physical and chemical treatment, secondary aerobic or anaerobic biological treatment and tertiary polishing before discharge. DAF is a physico-chemical clarification system in which fine air bubbles attach to particles and increase their flotation rate. The commercial comparison in the DAF versus sedimentation comparison can help a buyer frame the physical-separation choice, but it does not remove the need to define the complete ETP scope.
Compare quotations on scope rather than slogans. A standalone DAF offer should state its treatment duty, equalisation assumptions, chemical conditioning, skimming, sludge route and controls. A complete ETP offer should identify primary treatment, biological treatment, clarifiers, aeration, sludge handling, tertiary treatment and commissioning. A combined offer should explain where DAF sits in the train and how its performance supports the downstream biological stage. This is a more reliable comparison than treating “low maintenance” or “chemical savings” as guaranteed outcomes; aquagreentechs.com lists these as commercial DAF claims, not project guarantees.
The available DAF catalogue lists 13 standard models spanning 4–300 m³/h, according to the supplied 2026 product information. Treat that as a catalogue check, not a selection. The correct model must be chosen using the factory’s flow, wastewater analysis, operating schedule and treatment objective. The DAF versus IAF comparison is relevant if a supplier proposes an alternative flotation arrangement, but the procurement decision should remain tied to the required duty.
| Purchasing comparison | Standalone DAF | Full ETP | Combined ETP–DAF |
|---|---|---|---|
| Process scope | Physico-chemical clarification | Primary, biological and optional tertiary treatment | DAF clarification integrated with the broader ETP |
| Principal pollutants addressed | Oil, grease, floatable solids and suspended solids | Biodegradable organics plus physical and chemical treatment needs | Floatable contaminants before biological treatment, with final treatment as required |
| Biological capability | Not inherent in the DAF unit | Included when specified | Included |
| Sludge handling | Skimmings and chemical residuals must be addressed | Biological sludge and primary sludge must be addressed | DAF skummings and biological sludge must be addressed |
| Operator and maintenance scope | Clarifier, pumps, air system, skimming, controls and dosing where applicable | Broader chemical, biological, mechanical and instrumentation scope | Integrated operation and maintenance across both systems |
| Reuse suitability | Only if clarified water meets the defined end use or proceeds to polishing | Depends on the specified treatment and polishing stages | Can support reuse when the full train meets the required quality |
Design the DAF and ETP around the factory duty
Equipment sizing starts with the factory’s real duty, not the catalogue headline. Specify average and peak wastewater flow, operating hours, equivalent flow shifts and expected production expansion. The catalogue range of 4–300 m³/h across 13 standard DAF models is useful for identifying a preliminary scale band, but capacity selection still requires representative wastewater data and the duty basis. A plant that runs several shifts or receives concentrated cleaning discharges should not be sized from a diluted daily average.
For DAF enquiries, request the solids and FOG loading information, representative wastewater analyses, recycle-ratio details, flotation pressure, skimming arrangement, controls and materials of construction. Confirm how equalisation, chemical dosing, sludge collection and pump duties are included. Chemical dosing should be treated as part of process performance, not an accessory line item; the automatic chemical dosing system can be evaluated when continuous, controlled dosing is required.
For an ETP, request the complete treatment train, hydraulic and process calculations, blower and pump duties, chemical dosing, aeration, clarifier, sludge handling, disinfection, automation and commissioning tasks. Specify civil-work boundaries, electrical requirements, utility connections and operator-training obligations. Equalisation and pretreatment may be necessary to control shock loads, suspended solids, pH and contaminants that could overload downstream equipment.
Sludge must appear in the project scope. A DAF produces skummed material, while an ETP may generate biological and chemical sludge; the buyer should define storage, dewatering, disposal or approved reuse. The plate-frame filter press is one dewatering option to evaluate, but the selected route must match the sludge characteristics and available handling route.
For industrial wastewater reuse, define the required water quality and end use before selecting UF, RO or MBR equipment. An MBR wastewater treatment for industrial effluent reuse or an RO water purification system may provide a polishing stage, but neither replaces necessary oil, solids and biological treatment. Use the 2026 DAF spare-parts and consumables cost guide to identify operating inputs that should be requested during quotation.
| Design package | Minimum information to request |
|---|---|
| Hydraulic basis | Average and peak flow, operating schedule, future expansion and equalisation basis |
| Process basis | Representative analyses, contaminant loading, treatment objectives and applicable consent conditions |
| Mechanical and controls | Pump, blower, skimming, dosing, automation, materials and utilities |
| Residuals | Sludge or skum quantity, storage, dewatering and disposal route |
| Delivery and handover | Civil interfaces, installation, commissioning, training, maintenance and local support |

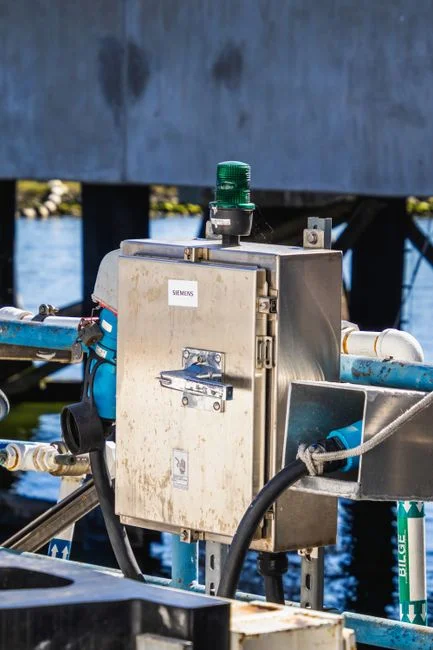

Build a supplier brief that exposes the real scope
A comparable quotation starts with the same defined scope. Ask the supplier whether the offer is a DAF unit, a complete ETP, an ETP with DAF clarification, or only selected equipment within a larger treatment train. The 2026 DAF unit engineering specifications and decision framework is a useful reference for structuring that enquiry, but the buyer must still attach site-specific wastewater, flow and compliance information.
Request the process flow diagram, equipment list, guaranteed duty points, control philosophy, electrical requirements, civil-work boundaries and utility consumption. Ask how the supplier will size the system using representative wastewater testing, peak flow, future expansion and the applicable discharge, reuse or sewer-pretreatment conditions. Any performance claim should identify the duty point, influent basis and test method rather than relying on a general removal percentage.
Check local service capability for installation, operator training, commissioning, preventive maintenance and spare-parts support in Pune. A DAF equipment supplier and an engineering provider capable of delivering a complete ETP are not automatically equivalent. The latter must also manage civil interfaces, controls, biological process integration, sludge handling, commissioning and local support.
Commercial suppliers state that their DAF systems are designed around CPCB guidelines and industrial wastewater treatment standards, as noted by daskjalmart.com in the supplied DAF commercial evidence. Buyers should request the exact design basis and applicable consent conditions in writing. “CPCB compliant” is not a substitute for identifying the applicable category, consent conditions, sewer requirements or reuse specification.
For price comparison, request a broken-down quotation covering equipment, civil work, installation, commissioning, controls, chemicals, spares, sludge handling, utilities, operator support and maintenance. Commercial claims of low maintenance and chemical savings should be treated as vendor claims to evaluate, not guaranteed project outcomes. A supplier should explain the design assumptions behind each operating-cost line.
Make the final selection with a decision tree
The final decision follows the treatment objective and the evidence from the factory. If the objective is oil, grease and solids removal without a biological requirement, evaluate a DAF clarification system. If the objective includes biological treatment of biodegradable organics, evaluate an ETP with the appropriate biological process. If both floatable contaminants and biological treatment are present, evaluate DAF upstream of biological treatment or a complete ETP incorporating DAF.
If reuse is the objective, define the required quality and add an appropriate polishing train after the core ETP or DAF stage. Before approving the route, confirm representative test data, peak-flow basis, sludge handling, utility needs, controls, local service support and regulatory applicability.
| If the factory requirement is… | Then evaluate… | Before approval, obtain… |
|---|---|---|
| Oil, grease and suspended-solids removal without biological treatment | Standalone DAF clarification, with conditioning if required | Representative analysis, hydraulic duty, skum route and required clarification performance |
| Treatment of biodegradable dissolved organics | ETP with aerobic or anaerobic biological treatment | Organic loading, process calculations, aeration or gas handling, controls and sludge management |
| Floatable contaminants plus biodegradable organics | DAF before biological treatment, or a complete ETP incorporating DAF | Process flow, downstream protection basis, chemical demand and complete duty points |
| Industrial wastewater reuse | Core treatment followed by the polishing required for the end use | Reuse quality specification, treatment train, recovery requirements and residual management |
Frequently Asked Questions
How much does an industrial DAF or ETP cost in Pune?
The supplied research does not provide a universal cost formula, standard DAF price or universal discharge limit. A quotation must be tied to wastewater analysis, average and peak flow, treatment objectives, site conditions, civil work, sludge handling and utility requirements. Request a scope breakdown rather than comparing headline equipment prices. It should also distinguish initial capital items from consumables, maintenance, operator support and future replacement needs.
How should a buyer size a DAF for factory wastewater?
Ask the supplier to demonstrate the sizing calculation using representative wastewater samples, contaminant loading, average flow, peak flow, operating hours and future expansion. The catalogue range of 4–300 m³/h across 13 standard DAF models is a screening reference, not a selection rule. Confirm recycle ratio, flotation pressure, skimming arrangement, equalisation, chemical dosing and controls in the technical offer.
How do I distinguish a DAF supplier from a complete-ETP supplier?
A DAF equipment supplier may offer a clarification package, while a complete-ETP provider should offer an integrated process train with primary treatment, biological treatment, clarifiers, sludge handling, tertiary treatment where required, controls, civil interfaces and commissioning. Ask for the process flow diagram, equipment list, duty points and local service responsibilities. A quotation for selected equipment should not be described as a complete ETP.
What compliance checks should be completed before approving a treatment system?
Obtain the applicable consent, discharge or sewer-pretreatment conditions and the required reuse-water quality in writing. Ask the supplier to state the exact compliance and design basis; a general claim that equipment follows CPCB wastewater treatment guidance does not establish project-specific applicability. Also confirm sludge and skum handling, because a compliant clarified-water outlet does not remove the residual-management obligation.
