Why Pre-Treatment Matters: The Cost of Shock Loads in Industrial Wastewater
Inadequate pre-treatment causes over 60% of biological system failures in industrial facilities due to sudden spikes in Total Suspended Solids (TSS) and Fats, Oils, and Grease (FOG). These "shock loads" overwhelm downstream aerobic and anaerobic digesters, leading to biomass washout, effluent non-compliance, and significant operational downtime. According to EPA 2023 data, industrial facilities with inadequate primary separation are three times more likely to face discharge violations and associated legal penalties.
Consider the case of a large-scale food processing plant in Hangzhou. The facility originally relied on a conventional sedimentation basin for pre-treatment. However, during high-production cycles, FOG levels would spike to over 400 mg/L, exceeding the settling capacity of the clarifier. This resulted in grease carryover that blinded the downstream aeration diffusers, forcing a plant-wide shutdown for cleaning every 45 days. After replacing the sedimentation unit with a ZSQ series DAF systems for industrial wastewater pre-treatment, the plant reduced equipment downtime by 40% and maintained effluent FOG levels consistently below 20 mg/L.
The primary goals of pre-treatment are to remove 70-98% of TSS and FOG before the wastewater enters biological stages. Adhering to ISO 16075-1:2020 benchmarks, effective pre-treatment protects sensitive infrastructure like MBR systems for downstream biological treatment from irreversible fouling. By stabilizing influent quality, plant managers can ensure predictable performance even during seasonal production peaks or cleaning cycles.
How DAF and Sedimentation Work: Separation Principles Explained
Gravity-based sedimentation requires a hydraulic retention time (HRT) of 2 to 4 hours, whereas Dissolved Air Flotation (DAF) achieves similar or superior separation in 10 to 30 minutes. The fundamental difference lies in the physics of separation: sedimentation relies on negative buoyancy (sinking), while DAF utilizes positive buoyancy (floating).

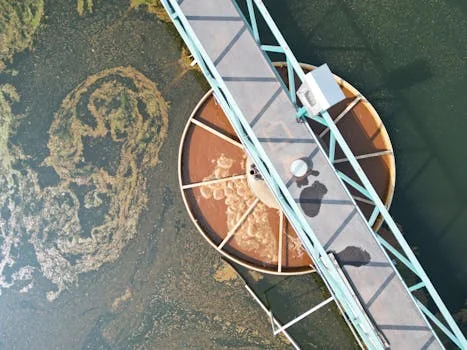

Sedimentation functions like letting sand settle in a glass of water. It is most effective for particles with a specific gravity significantly higher than 1.0. In a typical clarifier, wastewater enters a basin where the velocity is reduced, allowing solids to settle to the bottom. These systems generally operate with surface loading rates of 1-2 m/h and basin depths of 3-5 meters. For improved efficiency in smaller footprints, engineers often specify lamella clarifiers for compact sedimentation, which use inclined plates to increase the effective settling area.
Dissolved Air Flotation (DAF) works by attaching microbubbles (30-100 µm diameter) to suspended solids and oil droplets, effectively making them lighter than water. This is achieved by dissolving air into a pressurized recycle stream (typically 4-6 bar) and releasing it into the flotation tank. The resulting air-to-solids (A/S) ratio is critical for performance. DAF is particularly effective for low-density solids that would otherwise remain suspended in a gravity clarifier for hours. Both methods require precise chemical dosing for coagulation and flocculation to aggregate fine particles into larger, removable flocs.
| Feature | Sedimentation (Clarifier) | Dissolved Air Flotation (DAF) |
|---|---|---|
| Driving Force | Gravity (Density > Water) | Buoyancy (Microbubbles) |
| Retention Time (HRT) | 2 - 4 Hours | 10 - 30 Minutes |
| Particle Target | Heavy, dense solids (sand, grit) | Light solids, FOG, algae, fibers |
| Surface Loading Rate | 0.5 - 2.0 m/h | 5 - 15 m/h |
| Operational Complexity | Low (Few moving parts) | Moderate (Compressors/Pumps) |
Head-to-Head Comparison: DAF vs Sedimentation Across 6 Key Parameters
Dissolved Air Flotation (DAF) achieves TSS removal rates between 90% and 98%, consistently outperforming conventional sedimentation which typically ranges from 70% to 90% in industrial applications. This efficiency gap is even more pronounced in FOG removal, where DAF captures up to 95% of oils compared to the 50-70% seen in gravity systems (per EPA 2023 benchmarks).
1. Removal Efficiency: DAF is the superior choice for "difficult" solids like emulsified oils, proteins, and organic fibers. Sedimentation is highly effective for heavy inorganic matter but struggles with buoyant organic loads common in food and textile processing.
2. Footprint: Because DAF operates at much higher surface loading rates, it requires only 1/3 to 1/5 of the land area of a clarifier. For a flow rate of 100 m³/h, a DAF unit might occupy 50 m², whereas a traditional clarifier would require approximately 200 m².
3. Chemical Consumption: An IWA 2024 study suggests that DAF can reduce coagulant use by 20-30% compared to sedimentation. The rapid flotation mechanism is less dependent on the formation of large, heavy flocs, allowing for efficient capture with smaller, tighter floc structures.
4. Energy Consumption: Sedimentation is more energy-efficient, consuming only 0.1-0.2 kWh/m³ for sludge scrapers and pumps. DAF requires 0.3-0.5 kWh/m³ due to the energy needed for air saturation and recycle pressurization (DOE 2023 data).
5. Sludge Characteristics: DAF produces a much thicker sludge, typically 3-5% solids, because the surface skimming process removes water more effectively. Sedimentation sludge is often 1-2% solids, which significantly increases the volume and cost of downstream sludge dewatering costs.
6. Operational Flexibility: DAF systems can be powered on and reach steady-state performance in minutes, making them ideal for batch production. Sedimentation basins require hours to stabilize and are prone to "short-circuiting" during sudden flow increases.
| Parameter | DAF Performance Data | Sedimentation Performance Data |
|---|---|---|
| TSS Removal Rate | 90% - 98% | 70% - 90% |
| FOG Removal Rate | 90% - 95% | 50% - 70% |
| Sludge Solids % | 3.0% - 5.0% | 1.0% - 2.0% |
| Energy Use (kWh/m³) | 0.3 - 0.5 | 0.1 - 0.2 |
| Chemical Savings | High (20-30% less) | Standard |
When to Choose DAF: Ideal Applications and Wastewater Characteristics
Wastewater streams with Fats, Oils, and Grease (FOG) concentrations exceeding 100 mg/L require DAF technology to ensure 90-95% removal efficiency and prevent downstream system fouling. This makes DAF the industry standard for meat processing, dairy production, and petrochemical refining, where oils naturally float or remain emulsified.
DAF is also the preferred choice for wastewater containing low-density solids, such as algae, paper fibers, or microplastics, with a density less than 1.05 g/cm³ (cite IWA 2024 study). In these scenarios, gravity settling is too slow to be practical. DAF is the go-to solution for urban industrial parks where land costs are high. Its compact nature allows for indoor installation or containerized mobile units.
For facilities utilizing high-performance biological systems, DAF provides critical insurance. By maintaining effluent TSS below 50 mg/L, DAF protects MBR integrated wastewater treatment membranes from premature fouling. The ability of DAF to handle variable hydraulic loads also makes it ideal for plants that operate on a single shift or have frequent wash-down cycles that create sudden flow surges.
When to Choose Sedimentation: Cost-Effective Solutions for Dense Solids
Industrial wastewater containing heavy, inorganic solids with a specific gravity greater than 1.2 g/cm³ is most efficiently treated via sedimentation in high-rate clarifiers. This includes applications in mining, sand washing, metal finishing, and primary municipal treatment where the primary goal is the removal of grit, sand, and metal precipitates that settle rapidly.
Sedimentation offers a lower total cost of ownership for large-scale operations (flow rates >500 m³/h) where land is available and the influent quality is relatively stable. Because it has fewer moving parts—typically only a slow-moving bridge scraper—maintenance requirements are significantly lower than DAF systems that require air compressors, saturation tanks, and high-pressure pumps. For plants with limited technical staff, the simplicity of a clarifier is a major operational advantage.
Recent innovations in advanced sedimentation technologies for industrial wastewater, such as ballasted sedimentation using microsand, have bridged the performance gap. These systems can achieve TSS removal rates of 80-95% while maintaining the low energy profile of gravity settling. Sedimentation remains the benchmark for "passive" treatment where energy conservation is the primary driver of the procurement decision.
Cost Comparison: CAPEX, OPEX, and ROI for DAF vs Sedimentation
The capital expenditure (CAPEX) for a DAF system processing 100-500 m³/h typically ranges from $150,000 to $500,000, which is 20-40% higher than traditional sedimentation basins of equivalent capacity. However, the higher initial investment is often offset by the significantly lower costs associated with sludge management and land use.
Operational expenditure (OPEX) for DAF ranges from $0.10 to $0.20 per m³ treated, factoring in energy and chemicals. Sedimentation OPEX is lower, at $0.05 to $0.15 per m³. However, DAF produces a sludge that is 2-3 times more concentrated. According to WEF 2022 sludge management guidelines, this concentration reduces disposal volumes by up to 60%, potentially saving a facility tens of thousands of dollars annually in hauling fees. Using a plate and frame filter press on DAF sludge is much more efficient than on dilute clarifier sludge.
In high-FOG industries, DAF typically provides a return on investment (ROI) within 2 to 4 years. For instance, a textile plant in Zhejiang Province saved $80,000 per year in OPEX by switching to DAF. The savings were realized through a 25% reduction in chemical dosing systems for wastewater pre-treatment and the elimination of fines related to BOD carryover into the municipal sewer.
| Cost Factor (100 m³/h system) | DAF Estimate | Sedimentation Estimate |
|---|---|---|
| CAPEX (Equipment + Install) | $150,000 - $250,000 | $100,000 - $180,000 |
| Energy Cost (Annual) | $12,000 - $18,000 | $3,000 - $6,000 |
| Sludge Disposal (Annual) | $20,000 - $35,000 | $45,000 - $70,000 |
| Chemical Costs (Annual) | $15,000 - $25,000 | $20,000 - $35,000 |
| Estimated ROI | 2 - 4 Years | 5 - 7 Years |
Compliance and Downstream Treatment: How Pre-Treatment Affects Your Entire System
Efficient pre-treatment via DAF can extend the operational lifespan of downstream Membrane Bioreactor (MBR) systems by up to 30% by maintaining effluent TSS levels below 50 mg/L. Modern environmental regulations, such as the EPA 2023 NPDES guidelines, are increasingly focused on stringent TSS and FOG limits for industrial direct discharge. DAF provides a higher safety margin to meet these limits, especially when dealing with emulsified contaminants that sedimentation cannot capture.
Beyond standard pollutants, DAF is proving more effective at removing emerging contaminants like microplastics and PFAS precursors. An IWA 2024 study noted that the microbubble attachment mechanism is uniquely suited to capturing hydrophobic particles that do not settle easily. This is becoming a critical compliance factor for industries under scrutiny for "forever chemicals."
Finally, the choice of pre-treatment dictates the entire sludge management strategy of the plant. DAF’s ability to produce thickened sludge directly from the flotation tank reduces the load on secondary thickeners and dewatering equipment. As sludge disposal regulations tighten globally, minimizing the volume of waste generated at the pre-treatment stage is a strategic necessity for long-term compliance and cost control. For more on integrated system design, see our guide on MBR systems for downstream biological treatment.
Frequently Asked Questions
What is the main difference between DAF and sedimentation?
DAF uses microbubbles to float light solids and oils to the surface for skimming, while sedimentation relies on gravity to settle dense solids to the bottom. DAF is significantly faster, requiring only 10-30 minutes of retention time compared to 2-4 hours for sedimentation.
Which method is better for high-FOG wastewater?
DAF is the superior choice for high-FOG (Fats, Oils, and Grease) wastewater, achieving 90-95% removal. Sedimentation is inefficient for oils as they tend to float or remain emulsified, leading to carryover and downstream fouling.
How much space does DAF save compared to sedimentation?
DAF typically requires only 20-30% of the footprint of a traditional sedimentation basin. This makes it ideal for facilities with limited land or those looking to expand capacity within an existing building.
What are the operating costs for DAF vs sedimentation?
DAF has higher energy costs ($0.10-$0.20/m³) due to the air saturation system. However, it often has lower total OPEX because it uses fewer chemicals and produces thicker sludge, which significantly reduces disposal and dewatering costs.
Can sedimentation be used for pre-treatment before MBR systems?
While sedimentation can be used, DAF is generally preferred for MBR pre-treatment. DAF’s higher TSS and FOG removal efficiency provides better protection for the membranes, reducing the frequency of chemical cleanings and extending membrane life.
