Separate the Wastewater Sources Before Choosing Equipment
A data center in Koeln generally needs two treatment concepts: one for sanitary wastewater and one for cooling-tower blowdown. Cooling blowdown is concentrated by evaporation, increasing the risk of silica, calcium carbonate and calcium sulfate scaling, so source segregation, chemistry control and pretreatment must precede reuse. IDE Tech reports that conventional brackish-water reverse osmosis is typically limited to 75–80% recovery before scaling becomes unmanageable. A high-recovery concept can add controlled salt precipitation; one industrial application operated at around 95% recovery and reduced permeate silica to about 1 mg/L. The final Koeln route requires verified site water data, reuse targets, receiving conditions and applicable approvals.
Start with a data center water balance rather than an equipment list. Each stream has a different destination and treatment logic. Sanitary sewage requires biological treatment and disinfection; cooling-tower blowdown is a concentrated industrial-water stream that may be reusable. Keeping them combined would obscure the chemistry that determines equipment selection and unnecessarily raise treatment requirements.
IDE Tech describes the underlying evaporative-cooling mechanism in its 2026 article, Data Centers’ Water Reuse: Cooling Tower Blowdown: heat is rejected by evaporation, dissolved salts and minerals remain in the circulating water, and operators periodically purge part of that water to control scaling and corrosion. The purge is the blowdown stream.
| Stream | Required engineering record | Preliminary treatment route |
|---|---|---|
| Sanitary sewage | Flow, loading, temperature, pH, contaminant and disinfection requirements | Biological treatment and disinfection |
| Cooling-tower blowdown | Flow profile, cycles of concentration, silica, hardness, alkalinity, sulfate, conductivity, pH and chemical residuals | Chemistry control, pretreatment, membrane treatment as justified, then reuse or discharge |
| Chiller and heat-exchanger drains | Origin, temperature, glycol, oil, corrosion products and episodic discharge pattern | Equalization and source-specific treatment |
| Process wastewater | Batch composition, chemicals, temperature and containment requirements | Segregated characterization and treatment |
| Fire-water tests | Test frequency, additive inventory, duration and release route | Retention and treatment or controlled discharge |
| Laboratory drains | Waste class, chemical inventory and sampling method | Segregated collection and appropriate treatment |
| Rainwater | Roof materials, runoff quality, seasonal flow and discharge route | Site-specific assessment and controls |
For every stream, document average and peak flow, seasonality, operating hours, chemicals used, temperature, pH, conductivity, hardness, silica and possible contaminant sources. The supplied research does not establish Koeln sewer limits, groundwater-protection rules or site-specific discharge conditions. Those conditions must be obtained from the responsible authorities and receiving utility rather than inferred from the related cooling-tower blowdown treatment guide or the 2026 data-center wastewater treatment planning guide.
Treat Cooling Blowdown as a Controlled Industrial Stream
Cooling-blowdown treatment should proceed from the cooling-water operating strategy to the final destination: control cycles of concentration and blowdown frequency, manage scaling constituents, protect downstream equipment, and produce water suitable for the intended makeup or discharge route. Equipment selection cannot precede that sequence because the required recovery and product quality depend on how the cooling system will operate.
Evaporation leaves most dissolved constituents in the circulating water, progressively increasing their concentration. IDE Tech’s 2026 cooling-blowdown article identifies silica, calcium carbonate and calcium sulfate as sparingly soluble salts that can reach scaling thresholds in cooling-tower blowdown. The practical risk is not simply high conductivity. It is the combination of concentrate chemistry, temperature, pH, concentration factor and residence time that determines precipitation, membrane fouling and chemical demand.
The cooling tower makeup-water source also matters. Water supplied from the municipal network, an abstraction well or another source may have a different baseline chemistry, so the final blowdown composition cannot be calculated from source-water quality alone. Include the chemical programme in the water balance: cooling and corrosion-control products alter pH, alkalinity, conductivity and residual concentrations, while contamination events can change feed quality quickly.
IDE Tech states that conventional brackish-water reverse osmosis is often limited to 75–80% recovery before scaling becomes unmanageable. This is a comparison point, not a universal Koeln design value. Recovery beyond that range may require additional process stages, booster pumping, recirculation or controlled precipitation. The associated risks include scale formation, increased chemical consumption and unstable operation.
Before selecting an industrial RO system for data-center water reuse or an industrial water-softener system, require site data for silica, calcium hardness, alkalinity, sulfate, conductivity, pH and treatment-chemical residuals. The supplied sources do not provide Koeln blowdown values. If those data are unavailable, treatment chemistry, recovery and equipment sizing remain unresolved.
Choose a UF and RO Treatment Train for Reuse
A practical reuse train begins with source control and equalization, followed by clarification or media filtration where required, ultrafiltration, reverse osmosis, post-treatment and storage before controlled return to the cooling system. Each stage has a defined function: equalization stabilizes the feed, pretreatment protects the membranes, RO removes dissolved salt, and post-treatment makes the permeate compatible with the cooling-water specification.
Ultrafiltration should be selected from the actual feed condition rather than included automatically. A hollow-fiber UF system for cooling-blowdown pretreatment can remove bacteria, colloids and suspended solids before RO, while media filtration may be required to protect UF or provide the specified SDI condition. The multi-media filter for staged solids removal is therefore an option, not a default.
The supplied product information states that HydropureWater’s hollow-fiber UF systems operate at 2,000–40,000 L/h, use 0.03-micron PVDF membranes, accept turbidity up to 300 ppm, remove bacteria, colloids and suspended solids without chemicals, and include automatic backwash and air scour. These are stated product characteristics, not Koeln site-performance guarantees. Final hydraulic loading must be selected from verified feed flow, temperature and fouling data.
The supplied industrial RO product information states recovery rates up to 95%, automated PLC control and minimal chemical consumption. A 95% headline is not a design basis. IDE Tech’s 2026 industrial example operated a brine desalter at around 95% recovery and reduced permeate silica to about 1 mg/L, but it also used controlled precipitation and dynamic membrane operation. It demonstrates a chemistry-aware high-recovery concept; it does not guarantee equivalent performance in Koeln.
| Design input | Why the supplier needs it | Decision enabled |
|---|---|---|
| Required permeate quality and reuse duty | Distinguishes cooling makeup from other process uses | Product specification and post-treatment |
| Feed and concentrate chemistry | Identifies silica, carbonate, sulfate and fouling limits | Recovery, antiscalant and cleaning strategy |
| Average and peak flow | Determines equalization and hydraulic loading | UF and RO train sizing |
| Feed temperature | Affects membrane performance and water chemistry | Flux, correction and materials review |
| Storage turnover and reuse profile | Prevents excessive residence time or contamination | Tank, return-pump and control design |
| Available footprint and services | Sets physical and maintenance constraints | Equipment arrangement and access |
| Cleaning and redundancy strategy | Addresses membrane availability and maintenance | Trains, spares and operating controls |
Require the bidder to define the system boundary, feed basis and recovery calculation. Membrane and filter consumables should be specified through the RO and UF membrane and filter-element package requirements, including compatibility with the selected chemistry and cleaning strategy.
Compare Discharge, Partial Reuse and High-Recovery Reuse
The treatment objective must be chosen before bids are compared because discharge, partial reuse and high-recovery reuse impose different guarantees and operating risks. A discharge-led design begins with characterization and confirmation of the applicable sewer or receiving-water conditions. It should specify treatment to the confirmed limits, but the supplied research provides no Koeln-specific numerical limit, so no generic concentration value should be inserted into the tender.
Partial reuse uses RO permeate for selected cooling-makeup duties while retaining a controlled residual stream. This can reduce freshwater demand without committing the facility to full closed-loop recovery. The design must still define what happens to the residual, whether the cooling chemistry can accept the permeate directly, and whether the reduction in makeup water offsets membrane, pumping, chemical and solid-handling costs.
High-recovery reuse requires a different concentrate-management strategy. In the MAXH₂O configuration described by IDE Tech in 2026, RO permeate is reused as cooling makeup and the concentrate enters a fluidized-bed reactor. Scaling inhibitors are deactivated, allowing silica, calcium carbonate and other salts to precipitate onto seed material for withdrawal as a solid stream. This is a process precedent, not a generic configuration that can be copied without a site-specific mass balance and solids-handling plan.
| Decision pathway | Freshwater reduction | Principal engineering issues |
|---|---|---|
| Discharge-led treatment | Limited; depends on the selected route | Applicable limits, monitoring, receiving capacity and treatment reliability |
| Partial reuse | Intermediate, depending on the reuse duty | Residual discharge, cooling compatibility and operating complexity |
| High-recovery reuse | Potentially greater within the validated water balance | Scale precipitation, concentrate volume, solid production, energy and sensitivity to feed chemistry |
Compare all three routes against permitted-discharge risk, freshwater reduction, concentrate volume, solid-waste production, energy demand, footprint, operating complexity and sensitivity to incoming water chemistry. The related data-center treatment framework and engineering guide to data-center blowdown treatment provide useful comparative structure, but their locations do not supply Koeln requirements.
Energy and carbon must be assessed with the same care as water savings. The 2026 Open Engineering preprint, Reclaiming Cooling: Wastewater Reuse as a Strategic Resource for Data Center Water Management, found that its wastewater scenario had about twice the global warming potential of the freshwater case, with treatment energy accounting for roughly 80% of the difference. That result applies to the studied treatment and operating assumptions; it is not a Koeln emission factor, but it is a strong reason to request site-specific energy data.

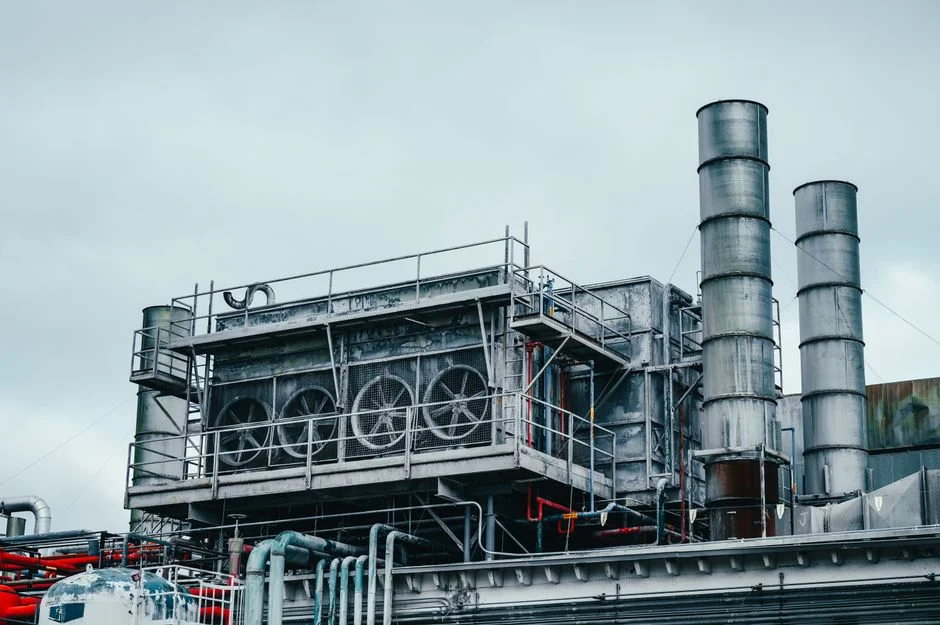

Check the Koeln Compliance and Water-Security Constraints
Early compliance work should identify the responsible Koeln authorities and the receiving utility for the exact site. Request current discharge or sewer conditions, monitoring requirements, water-abstraction constraints and any groundwater-protection considerations applying to the proposed discharge, abstraction and reuse arrangements.
The supplied evidence does not contain a Koeln permit schedule or numerical discharge limits. It addresses general reuse, cooling-blowdown chemistry and life-cycle effects rather than the legal requirements of a particular Koeln site. Accordingly, neither a generic German limit nor a limit from another city should be adopted without written confirmation from the relevant authority or utility.
Document the project constraints that could change the preferred route: freshwater availability, sewer capacity, receiving-water quality, land availability, grid carbon intensity and local planning requirements. A route that maximizes recovery is not automatically the lowest-risk or lowest-carbon solution. A partial-reuse system may be preferable if it fits the available floor area, uses a simpler concentrate route and avoids unnecessary treatment steps.
The 2026 Open Engineering result supports an energy and carbon assessment because treatment energy materially changed the wastewater scenario’s environmental performance. Keep the assessment within the study’s scope: it compared defined treatment trains for data-center water management, not a Koeln installation. Local electricity conditions, treatment loads, freshwater infrastructure and reuse credits must be incorporated before making an investment decision.
Prepare a permit-compliance matrix for every stream. It should identify the destination, treatment unit, monitoring point, required record, responsible operator and response to an exceedance. This is more useful than a general compliance statement because it links sampling, controls and operating decisions to the actual water balance.
The packaged sewage-treatment planning guide and effluent-treatment buyer guide show how source documentation and acceptance testing can be organized, but neither establishes the applicable Koeln conditions.
Build a Vendor Package That Enables an apples-to-apples comparison
A common vendor data package prevents bids from being compared on headline recovery or nominal flow alone. Include the source register, measured flow curves, water analyses, cooling-cycle targets, intended reuse duties, confirmed permit conditions, available utilities, footprint constraints and proposed acceptance tests.
Each bidder should state guaranteed feed flow, product flow, recovery basis, permeate quality, reject flow, utility consumption, chemical demand, cleaning frequency, controls scope, redundancy and the final solid or concentrate-management route. Ask for the automatic chemical-dosing package to identify chemical functions, control interlocks, storage requirements and operating response, rather than treating dosing as an accessory line item.
Define whether recovery is calculated around RO alone or the complete treatment plant. A headline recovery rate is not comparable unless the system boundary, feed basis, operating hours and product destination are stated. The bidder should also identify how the selected treatment parts, valves and filter-media package supports maintainability, isolation and replacement.
| Commercial and technical check | Required response |
|---|---|
| Flow and recovery | Guaranteed feed and product flows, calculation basis and operating envelope |
| Water quality | Permeate, reject and reuse-water guarantees with measurement methods |
| Concentrate and solids | Complete mass balance, destination and storage requirements |
| Operations | Utility demand, chemical demand, cleaning, redundancy and fault response |
| Controls | PLC scope, instruments, interlocks, alarms, data logging and operator interface |
| Acceptance | FAT, SAT and site performance-test criteria |
| Service | German support access, training, membrane availability and spare-parts strategy |
The FAT should cover equipment function, instrumentation, interlocks, alarms and controls. The SAT should verify installation, utilities, drainage and integration. The site performance protocol should measure flow, recovery, permeate conductivity, silica, turbidity, pressure, leakage, automatic controls, alarms and stability over the agreed operating period.
Request energy and water impacts using the Open Engineering method. Its 2026 preprint found that the UF+RO reuse scenario used over five times the energy of the freshwater case, partly balanced by higher cycles of concentration that reduced blowdown and chemical consumption. This is a benchmark for the vendor response, not a Koeln guarantee.
Confirm service coverage, operator training, membrane access and spare-parts strategy in writing. No delivery time should be accepted until it is confirmed in the bid and tied to the approved technical scope.

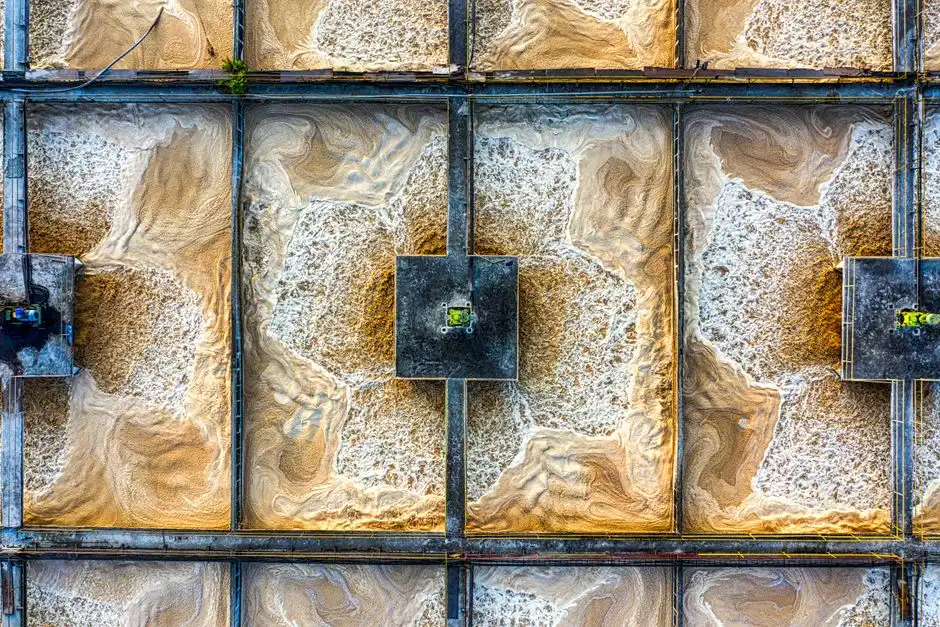

Commission and Monitor the Complete Water Balance
Commission each unit from clean baseline conditions. Verify valves, flow instruments, conductivity and temperature compensation, level control, membrane or filter operation, backwash, alarms, data logging and fail-safe responses. Confirm that automatic sequences operate correctly under loss of power, instrument failure and abnormal feed conditions rather than only under normal conditions.
Run a coordinated test with the cooling plant. Measure actual blowdown, makeup demand, permeate return, residual discharge, cycles of concentration, chemical consumption and each major input and output in the data center water balance. This test must show that the treatment system supports the intended cooling duty and that the predicted water savings are physically achievable.
Trend silica, hardness, alkalinity, sulfate, conductivity, pH, turbidity, differential pressure and normalized permeate flow. Relate those trends to recovery, cleaning intervals and reuse performance. Stable feed chemistry and membrane operation are essential to high recovery; a single acceptable laboratory result is not evidence of long-term performance.
Use the operating trends to update the treatment objective. Rising differential pressure, declining normalized flow or changing silica behavior may indicate fouling, scaling, feed variability or control drift. Each condition should have an identified response that protects the cooling loop and does not shift an untreated load to another destination.
Set a periodic review of municipal approvals, reuse assumptions, product specifications and expansion plans. Trigger operator retraining or revision of the treatment objective when the cooling configuration, source-water chemistry, permit conditions or equipment performance changes. Close the loop by recording corrective actions and verifying their effect in subsequent operating data.
Frequently Asked Questions
What treatment capacity does a data center in Koeln need?
Size the plant from the measured source flows and the intended reuse duty, not from a generic flow formula. Separate average and peak flow, define which cooling-makeup duty the permeate will serve, establish required product quality and recovery, and obtain representative feed analyses. A supplier should then size equalization, UF, RO, storage and pumping around those inputs, including cleaning and maintenance conditions.
How should equipment suppliers be selected for cooling-blowdown reuse?
Require guaranteed feed and product flow, a stated recovery calculation, permeate-quality guarantees, reject-management details, FAT and SAT criteria, controls scope, reference projects, German service support and consumables availability. The engineering guide to data-center blowdown treatment provides a useful planning reference, but the supplier must demonstrate that its proposed system fits the verified Koeln feed chemistry and reuse destination.
What should a buyer include in the treatment budget?
Compare total operating and lifecycle cost rather than equipment price alone. Request energy, chemical, membrane, cleaning, solid-disposal, maintenance, instrumentation and replacement-cost estimates against the freshwater and discharge baseline. The 2026 Open Engineering preprint shows that treatment energy can materially alter the environmental footprint of reuse, so energy assumptions should be explicit and site-specific. Request quotations against the same system boundary; no defensible price can be stated without feed flow, analyses, duty, recovery target and utility conditions.
What compliance information is required before selecting a Koeln treatment route?
Confirm the exact site, discharge destination and current requirements from the responsible Koeln authority and receiving utility. Obtain written sewer or discharge conditions, monitoring requirements, abstraction constraints and any applicable groundwater-protection conditions. The supplied research does not provide a Koeln-specific numerical limit, so a concentration value should not be used for equipment guarantees until it has been confirmed.
Are the 75–80% and 95% recovery figures guaranteed outcomes?
No. IDE Tech’s 2026 article presents 75–80% as the typical limit of conventional brackish-water RO and approximately 95% recovery as an industrial high-recovery application involving controlled salt precipitation. They are decision benchmarks, not guarantees for a Koeln installation. Final recovery must follow the site water balance, scaling analysis, product-quality requirement, concentrate-management route and supplier guarantee.
