What Wastewater Does a Prayagraj Data Center Actually Need to Treat?
A Prayagraj data center generally needs a source-specific treatment train: remove solids and control biological load from wastewater, then polish water for cooling-tower makeup through filtration, UF and usually RO; segregate concentrate for permitted disposal or further concentration. Blowdown treatment must control TDS, hardness, silica and treatment-chemical residues. India’s 2025 reuse rules require bulk users consuming more than 5,000 litres per day to increase wastewater treatment and reuse, while BEE’s 2023 District Cooling Guidelines encourage treated wastewater for cooling-tower makeup where feasible. Begin by reducing evaporation, then size the treatment system from measured flows and complete water chemistry—not a generic package capacity.
Cooling-tower blowdown is the periodic purge required because evaporation concentrates dissolved salts and minerals in the circulating water. It is therefore a concentrated process stream, not interchangeable with sanitary sewage. A data center should keep sanitary sewage, staff wastewater, process wastewater, cooling-tower blowdown, heat-rejection wastewater and closed-loop liquid-cooling coolant in separate balances until their quality, destination and treatment needs are established. Closed-loop coolant is a technical fluid whose chemistry and contamination risks must be assessed; it should not automatically be blended with blowdown or sewage.
IDE reports that a 100-megawatt data center can mean up to 2 million litres of water per day, but that figure is a scale indicator rather than a design flow. The project team should record each source’s flow, temperature, pH, TDS, hardness, silica, suspended solids, chloride, treatment chemicals, biological indicators and intended reuse or disposal route. A source-control program can also support ozone-based water-tank disinfection where it has been validated for the relevant stream.
| Stream | Primary concern | Design implication |
|---|---|---|
| Sanitary and staff wastewater | Organic load, pathogens and nutrients | Route separately through biological treatment and disinfection before the final reuse or discharge decision. |
| Process wastewater | Variable contaminants depending on the process | Characterize each source before deciding whether it can enter a recovery train. |
| Cooling-tower blowdown | TDS, hardness, silica, chemicals and biological material | Use filtration, chemistry control and membrane treatment where the chosen reuse objective requires it. |
| Heat-rejection wastewater | Source-dependent temperature and chemistry | Establish whether it is a reusable stream, a concentrated purge or a discharge stream. |
| Closed-loop coolant | Coolant formulation, degradation products and contamination | Assess separately; do not assume it is wastewater or blend it with other streams. |
Start With the Cooling and Water Balance
Consumptive water use is the water removed by evaporation, drift, blowdown and other losses; water circulating within a closed loop is not automatically consumption. Schneider Electric reports that closed-loop direct-to-chip systems can recirculate more than 95% of their coolant, with relatively small maintenance and leak losses. Cooling architecture must therefore be evaluated before the treatment plant is sized, not after the mechanical design is fixed.
Genesis Water Technology reports that a cooling tower operating at 4 cycles of concentration may send approximately 25–30% of its makeup water to blowdown. This is an operating consequence of concentrating the circulating water to control scaling and corrosion, not a universal flow allowance. The actual fraction depends on evaporation, drift, makeup quality, treatment chemicals and permitted cycles of concentration.
- Model current and future rack density, cooling architecture and heat-rejection requirements.
- Calculate evaporation, drift, blowdown and other consumptive losses by operating mode.
- Establish makeup-water quality, cooling chemistry, peak demand and expansion phases.
- Compare freshwater demand with the cooling-water reuse potential of each non-potable source.
- Use the resulting water balance to size treatment, storage and pumping.
Water Usage Effectiveness should not be the only metric. Schneider Electric notes that WUE does not distinguish potable from recycled water, so source, consumption and discharge should also be reported. For a Prayagraj project, this distinction should include whether the facility depends on potable municipal water, groundwater, harvested water, treated wastewater or another identified source.
Build a Stream-by-Stream Treatment Train
Sanitary and staff wastewater require biological treatment and disinfection before any non-potable reuse or discharge route. The selected process should align with the final use and applicable reuse requirements; the treatment objective is not complete until the receiving application and its water-quality acceptance criteria are known.
Cooling-tower blowdown requires source characterization before process selection. Genesis Water Technology reports typical TDS of 1,200–6,000 mg/L and suspended solids of 10–50 mg/L, together with scaling minerals, biocides, corrosion inhibitors and biological material. In practical terms, filtration should protect downstream equipment; ultrafiltration is appropriate where suspended solids, colloids and biological load are principal concerns; reverse osmosis is the appropriate barrier where dissolved salts, hardness and silica must be reduced for cooling reuse.
Genesis Water Technology states that UF normally operates at 10–30 psi with 90–95% recovery, while RO operates at 150–400 psi and typically delivers 50–85% recovery for blowdown. These are technology operating characteristics, not guaranteed project values. Feed chemistry, temperature, scaling risk and recovery determine the actual performance.
Where its membrane configuration and feed load are suitable, hollow-fiber ultrafiltration pretreatment can provide solids removal and automatic backwash and air scour. An industrial RO system for cooling-water reuse should be selected only after permeate quality, concentrate chemistry and feed-specific recovery are confirmed; the stated recovery rate of up to 95% is not a substitute for that design review.
A PLC-controlled chemical dosing system belongs within a controlled pretreatment and cooling-chemistry strategy. Legacy chromate, high-phosphate and biocide residues need a specific compatibility review because concentrated treatment chemicals can foul membranes and affect reuse or discharge acceptance.
| Treatment stage | Primary function | Decision required |
|---|---|---|
| Source control and segregation | Prevents incompatible streams from mixing | Define each source and prohibit blending until chemistry is approved. |
| Filtration | Reduces suspended solids and protects equipment | Select media or membrane from measured solids, flow and backwash constraints. |
| Ultrafiltration | Controls particulates, colloids and biological load | Confirm feed compatibility and the required recovery and cleaning regime. |
| Reverse osmosis | Reduces dissolved salts, hardness and silica | Set permeate target, recovery, concentrate route and scale-control strategy. |
| Disinfection and storage | Controls biological risk before use or discharge | Define contact conditions, residual management and protected storage. |
Choose Between Reuse, Compliant Discharge and ZLD
Cooling-tower makeup reuse, compliant discharge and zero liquid discharge are different engineering objectives, not interchangeable descriptions of a treatment package. Reuse seeks maximum internal water value; discharge treatment seeks to meet a permit; ZLD seeks to eliminate liquid waste through concentration, evaporation and crystallization. Their energy, chemical, maintenance and residual-handling requirements differ.
For data centers, cooling-tower makeup reuse is generally the preferred balance between conservation and process complexity. Genesis Water Technology reports 60–85% typical recovery for this route and typical RO permeate TDS of 10–50 mg/L. The permeate must still be checked against the facility’s cooling-water chemistry, blending plan and corrosion and scaling limits.
ZLD is justified where discharge is prohibited or water scarcity is severe, but it adds thermal, crystallization, solids-handling and maintenance complexity. Genesis Water Technology’s mechanical vapor compression benchmark is 95–98% recovery with distillate below 10 mg/L TDS; this is a concentrate-treatment option, not a substitute for upstream pretreatment. It may be considered through electrodialysis system equipment evaluations, but equipment selection must follow the concentrate and reuse objectives rather than precede them.
IDE identifies a conventional brackish-water RO limitation of approximately 75–80% recovery before scaling becomes unmanageable. Its documented MAXH₂O Brine Desalter application operated at around 95% recovery and produced permeate with about 1 mg/L silica. That is a real application result, not a blanket guarantee for Prayagraj feed water; the same result cannot be assumed without site chemistry and a dedicated process design.
No overseas capital or operating-cost range should be imported into a Prayagraj budget as a local price. Obtain quotations for equipment, membranes, energy, chemicals, sludge, brine disposal and operator labor, using the selected flow, recovery, duty cycle and residual route as the commercial basis.
| Route | Primary objective | Main design burden | Key acceptance basis |
|---|---|---|---|
| Cooling-tower makeup reuse | Recover blowdown for internal cooling use | Water quality, membrane fouling and scale control | Permeate quality, recovery, cooling acceptance and concentrate disposal |
| Compliant discharge | Meet site-specific discharge conditions | TDS reduction, chemical residuals and permit compliance | Written consent conditions and monitoring protocol |
| Zero liquid discharge | Eliminate the liquid residual stream | Thermal duty, crystallization and solid-waste handling | Liquid balance, salt quality, waste route and operating availability |
Protect Reliability with a Chemistry-Aware Design
Calcium carbonate, calcium sulfate and silica are the principal sparingly soluble compounds that can constrain cooling-tower blowdown treatment and membrane recovery. IDE identifies these compounds as the scaling challenge in CTBD reuse. A design that raises cycles of concentration without controlling their saturation can transfer the problem from the cooling tower to the membrane system.
Genesis Water Technology states that membrane feed should be filtered below 10–15 microns and chemically conditioned to prevent scaling. That requirement should be tied to the selected membrane and feed chemistry, not applied as a generic pretreatment specification. Biocide, corrosion-inhibitor and scale-inhibitor compatibility also needs review because these substances concentrate in blowdown and can foul membranes or create discharge-compliance problems.
Where suspended-solids reduction and downstream membrane protection are required, a multi-media pretreatment filter can form part of the train, subject to its media configuration, filtration criteria and backwash design. The equipment package should also include a defined replacement and cleaning plan for cartridges, filters and membrane elements; the membrane and filter-element supply strategy should address lead time, storage conditions and equivalent alternatives.
- Require power redundancy for pumps, controls and membrane skids serving continuous cooling.
- Provide leak detection and isolation points that do not interrupt unrelated cooling loops.
- Define membrane cleaning triggers from normalized permeate flow, differential pressure and salt passage.
- Confirm local access to replacement elements, media, cartridge filters and critical instruments.
- Include spare-element availability, service response and operator training in the reliability case.
For unfamiliar failure modes, membrane fouling and recovery troubleshooting provides a useful diagnostic structure, but the project warranty should remain tied to the actual blowdown chemistry and operating envelope.
Plan Permissions, Reuse and Residual Disposal in India
Schneider Electric reports that 2025 rules require bulk users consuming more than 5,000 litres per day to increase wastewater treatment and reuse. This is a national policy signal, not a substitute for project-specific confirmation of applicability, implementation dates and the responsible authority in Uttar Pradesh or Prayagraj.
The policy direction is consistent across reuse, ZLD, rainwater harvesting and groundwater recharge. Schneider Electric cites BEE’s 2023 District Cooling Guidelines as encouraging treated wastewater for cooling-tower makeup where feasible and describes Rajasthan’s 2025 data centre policy as incorporating recycling, ZLD, rainwater harvesting and groundwater recharge. Those references support early planning, but they do not establish a Prayagraj effluent limit or reuse specification.
The client should identify the applicable state and local authorities, consent conditions, discharge route, groundwater considerations, reuse application and responsibility for downstream users. Each stream needs a permit matrix that states the proposed destination, treatment objective, acceptance criteria, monitoring parameters, sampling method and responsible operator.
Do not insert a numerical effluent or reuse limit from overseas practice. Instead, request written criteria from the relevant authorities and downstream users. The research supports a water-resilience concern: Schneider Electric reports that India has about 18% of the world’s population but only 4% of its freshwater resources. That makes source selection and reuse a facility-resilience issue, not only an environmental metric.
| Consent item | Information to obtain | Project output |
|---|---|---|
| Applicable authority | State, local and any downstream utility or user | Named approval route and responsible party |
| Reuse | Application, quality criteria and operating responsibility | Written acceptance conditions |
| Discharge | Destination, permitted parameters and monitoring obligations | Consent-specific treatment objective |
| Groundwater | Site context and any recharge or extraction conditions | Documented constraints in the water balance |
| Concentrate and solids | Authorized handler, transport and final destination | Residual-management plan with cost responsibility |

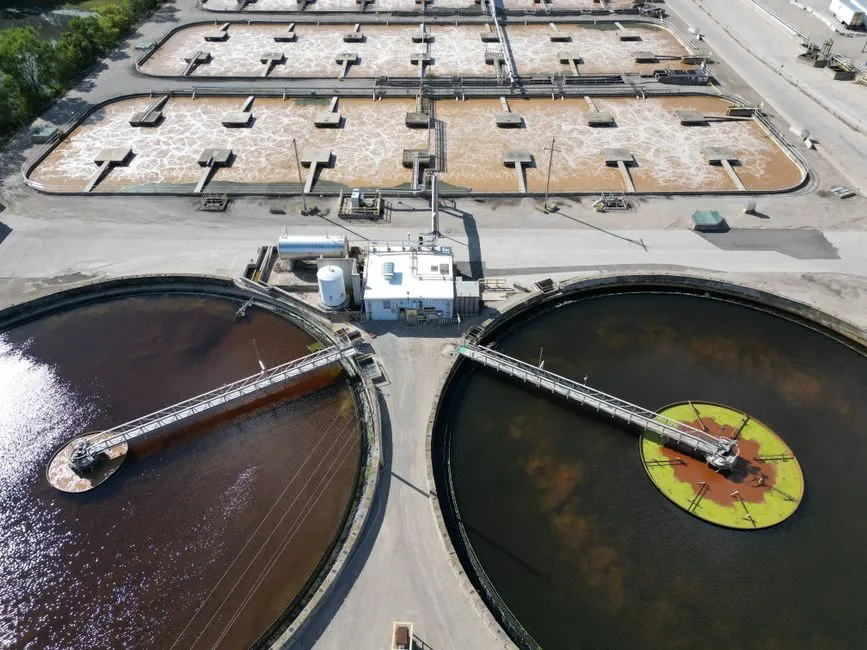

Size, Procure and Commission the System
Equipment sizing should start with representative operating data for every stream, not facility megawatts or a vendor’s nominal package flow. The tender should specify variability, sampling locations, sample preservation and laboratory methods, as well as peak and minimum flows, recovery, redundancy, future expansion and the selected cooling-water quality target.
- Complete a source-segregated water balance and collect representative chemistry.
- Fix the reuse, discharge or ZLD objective and obtain written acceptance criteria.
- Size pretreatment, UF, RO, storage and pumping for the selected duty and expansion case.
- Compare at least two implementation routes: lower-recovery reuse with conventional RO and a higher-recovery chemistry-managed design.
- Evaluate the whole life cycle, including energy, chemicals, membrane replacement, cleaning, sludge, brine, solids and labor.
- Hold factory and site acceptance tests against written guarantees and operating procedures.
Require guarantees for permeate quality, recovery, availability, membrane flux, cleaning intervals, chemical consumption, power demand and concentrate quantity. A high nominal recovery without a defined feed envelope is not a useful guarantee. The treatment-parts, valves and filter-media package should be checked for compatibility, local availability and lifecycle support rather than treated as a generic spares list.
Open Engineering’s 2026 LCA provides a scenario-specific caution: treatment energy represented roughly 80% of the GWP difference in the evaluated wastewater-reuse case, while the study reported an indirect water penalty of approximately 0.93 L/m³, less than 0.1% of direct displacement benefit. These are not universal values for a Prayagraj installation, but they support a tender comparison of water savings against treatment energy and chemical inputs.
Frequently Asked Questions
What will cooling blowdown treatment cost for a data center in Prayagraj?
The supplied research does not support a reliable 2026 local price. Request itemized quotations for pretreatment, UF, RO or ZLD equipment, membranes, energy, chemicals, cleaning, operators, sludge, brine and final solids disposal. The quotation must state the design flow, feed chemistry, operating hours, recovery, concentrate route and replacement assumptions so that vendors quote the same scope.
How should a blowdown-treatment supplier be selected?
Check demonstrated experience with the proposed cooling-tower blowdown chemistry, feed-specific recovery and permeate guarantees, and local service capability. Require references, proposed membrane or process warranties, cleaning-interval commitments, spare-element availability and a defined factory and site acceptance test. A generic recovery percentage without the feed envelope is not a sufficient selection criterion.
Can the facility size treatment from its megawatt capacity?
No. IDE’s figure of up to 2 million litres per day for a 100-megawatt data center is a scale indicator, not a design basis. Size from measured source flows, peak and minimum demand, cooling architecture, cycles of concentration, feed chemistry, intended recovery, redundancy and expansion phases.
What compliance information is needed before choosing reuse or discharge?
Obtain written, site-specific criteria from the applicable Uttar Pradesh or Prayagraj authorities and any downstream reuse user. Keep reuse requirements separate from discharge conditions, and document the destination, water-quality specification, monitoring obligations, concentrate route, groundwater constraints and responsible operator for every stream.
