What a Multi Media Filter Design Calculation Has to Deliver
A defensible multi media filter design calculation converts a stated influent flow and a chosen filter bed speed into a vessel diameter, resolves the media bed into ordered layers by specific gravity, and converts that geometry into a procurement-ready media bill of materials with a defined backwash envelope. For industrial water treatment, Lenntech notes that multi-media filters retain particles down to 10–25 µm before backwashing becomes necessary, which sets the performance target the calculation has to support (lenntech.com).
Memphis CIVL 1101 adds that multimedia filters (anthracite over sand) are preferred over single-media designs in advanced or tertiary wastewater duty because the larger pore volume gives more storage for floc, so the calculation must distinguish single-media from dual or triple-media cases (ce.memphis.edu). Lenntech also warns that the 50 m/h figure occasionally quoted for filter bed speed applies to private swimming pools and is not recommended for industrial duty (lenntech.com) — any industrial datasheet that quotes 50 m/h as a service flow should be rejected. A complete sizing sheet specifies bed speed, vessel diameter, bed depth, per-layer media mass, freeboard, and the backwash flow rate, and the underlying HydropureWater multi-media filter for water treatment datasheet should carry each of those fields.
Step 1: Choose the Filter Bed Speed from Feed Quality
Vertical filter bed speed is the service flow per unit of filter cross-sectional area, expressed in m/h, and it is the primary input in the sizing chain because every downstream number — vessel diameter, bed expansion during backwash, and the frequency of the backwash cycle — is sensitive to it. Lenntech's industrial band is 10–25 m/h, sitting inside an overall recommended range of 10–30 m/h, with the lower end used as total suspended solids rise (lenntech.com). The engineering reason to slow down for dirty feeds is given by Lenntech directly: higher flow rates can prevent particles from adhering to the media granules or can dislodge particles that were previously retained (lenntech.com). Where feed TSS is unknown, the calculation should be re-run at both ends of Lenntech's industrial band and the more conservative (slower) bed speed adopted until the client confirms the influent quality — choosing 25 m/h on an unverified feed is the most common source of an MMF that fails its first SDI test downstream of the vessel.
Step 2: Calculate Vessel Diameter from Flow and Bed Speed
The vessel diameter follows directly from the cross-sectional area needed to pass the design flow once the bed speed is fixed. The working formula is D = √(4Q / (π × v)), where Q is the design flow in m³/h, v is the chosen bed speed in m/h, and D is the minimum internal diameter in metres. Lenntech's online calculator solves the same relationship for a round MMF, taking filter bed speed as the input and returning the diameter (lenntech.com). The diameter returned by the formula is a minimum; in practice the engineer rounds up to the next standard vessel size, recomputes the actual bed speed against the rounded diameter, and records both numbers on the datasheet so that the bed-speed band is documented rather than implied. The diameter must also keep the bed speed inside Lenntech's 10–25 m/h industrial band for the chosen flow — a vessel that pushes the bed speed above 25 m/h on the design flow is under-sized, even if the diameter is a "standard" size.
Step 3: Set Bed Depth and Layer Split by Specific Gravity
Bed depth H is normally taken from Starke's standard band of 0.6–1.0 m, varying with media type and application (starkefiltermedia.com). At this point the calculation translates one H number into the actual garnet, sand, and anthracite stack that will be loaded into the vessel. Memphis CIVL 1101 defines the dual-media filter as coarse anthracite over fine sand, with the multimedia concept extending that pattern into more layers (ce.memphis.edu). Starke states the ordering rule explicitly: media are layered by specific gravity, with heavier media such as garnet at the bottom and lighter media such as anthracite at the top (starkefiltermedia.com). Starke's worked example for a 1 m bed in a 1 m diameter vessel shows a 1 m bed split into an anthracite cap, a sand middle, and a garnet base, with each layer chosen for size and density to enhance turbidity removal and extend filter run time (starkefiltermedia.com). The supplied research does not specify exact per-layer thickness ratios, so the engineer should request the supplier's media datasheet and optimise layer thicknesses so the finest media sits where the bulk of floc is captured — that ratio is a supplier input.

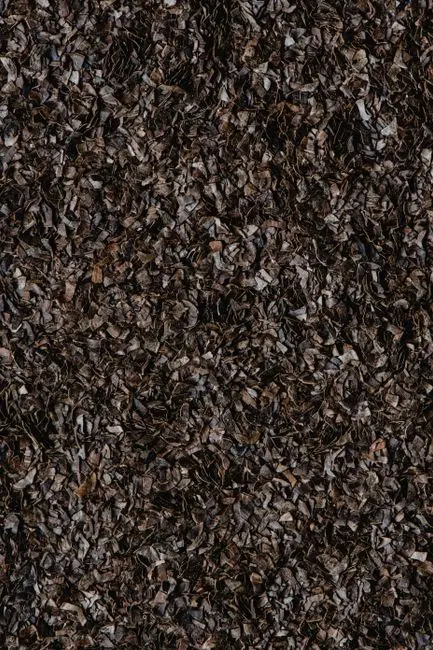

Step 4: Convert Bed Volume to Media Mass and Add Freeboard
Starke's media volume formula gives the bed volume: V = π × (D/2)² × H, with D and H in metres and V in m³ (starkefiltermedia.com). Starke walks through the same arithmetic in its example: a 1 m diameter vessel with a 1 m bed gives V = π × 0.25 × 1 = 0.7854 m³ (starkefiltermedia.com). Volume converts to mass through each layer's bulk density; Starke uses 1,600 kg/m³ for sand in the example, giving a media weight of 0.7854 × 1,600 ≈ 1,256.64 kg, rounded to about 1,300 kg of sand for that vessel (starkefiltermedia.com). The same calculation is applied per layer, substituting each media's own bulk density, so the datasheet ends up with three (or more) mass figures that sum to the total media load — these are the numbers that drive the procurement order against the bulk filter media and pressure-vessel consumables schedule. Starke also specifies 30–40% freeboard above the media bed, the empty space required so the bed can expand during backwash without media loss (starkefiltermedia.com). Because expansion is largest for the lightest top layer, freeboard is sized for anthracite, and the backwash flow rate that fluidises that layer must be specified in the same datasheet row as the freeboard.
Worked Example: 20 m³/h Industrial MMF Sizing
The end-to-end calculation chain is best shown as a single worked example. Design inputs: design flow Q = 20 m³/h, target vertical bed speed v = 15 m/h — the mid-range of Lenntech's 10–25 m/h industrial band and a defensible default for a moderate-TSS industrial feed where TSS has not yet been confirmed. Cross-sectional area A = Q / v = 20 / 15 ≈ 1.333 m², so the minimum diameter D = √(4A / π) ≈ 1.30 m, rounded up to the next standard pressure-vessel size once the fabricator's size list is in hand. Bed depth H is set to 1.0 m, at the top of Starke's 0.6–1.0 m band to give a longer filter run between backwashes. The table below consolidates the full calculation; per-layer thicknesses are placeholders pending the media supplier's datasheet.
| Parameter | Symbol | Value | Source / basis |
|---|---|---|---|
| Design flow | Q | 20 m³/h | Project input |
| Vertical filter bed speed | v | 15 m/h | Mid-range of Lenntech's 10–25 m/h industrial band (lenntech.com) |
| Cross-sectional area | A | ≈ 1.333 m² | A = Q / v |
| Minimum vessel diameter | D | ≈ 1.30 m | D = √(4A / π), round up to next standard size |
| Bed depth | H | 1.0 m | Starke 0.6–1.0 m band (starkefiltermedia.com) |
| Bed volume (full H) | V | ≈ 1.33 m³ | V = π × (D/2)² × H (starkefiltermedia.com) |
| Anthracite layer (top, lightest) | V / mass | Layer share × V; mass via bulk density | Starke layering by specific gravity (starkefiltermedia.com) |
| Sand layer (middle) | V / mass | Layer share × V; mass via bulk density (≈1,600 kg/m³ example, Starke) | Starke (starkefiltermedia.com) |
| Garnet layer (bottom, heaviest) | V / mass | Layer share × V; mass via bulk density | Starke (starkefiltermedia.com) |
| Freeboard | — | 30–40% of bed depth above media | Starke 30–40% freeboard rule (starkefiltermedia.com) |
| Backwash flow | Qbw | Sized to fluidise anthracite layer | Stated alongside freeboard; exact value is a supplier input |
The engineer should request four inputs before issuing the datasheet: peak instantaneous flow, confirmed influent TSS, feed temperature, and the downstream process (typically RO or UF) so the MMF is sized to the SDI target required. Compatibility with the next stage determines the success of the MMF; for downstream polishing trade-offs the engineer should cross-reference an ion exchange vs RO comparison for downstream polishing, and for siting and procurement context the effluent treatment plant engineering and procurement guide covers how MMF datasheets are reviewed at plant level. The vessel itself should be specified against the HydropureWater multi-media filter for water treatment product family so the pressure rating, internals, and automated backwash valve package are consistent with the calculated freeboard and backwash flow.
Frequently Asked Questions
How do I pick the right filter bed speed for an industrial MMF?
Start inside Lenntech's 10–25 m/h industrial band, use the lower end as influent TSS rises, and re-run the calculation at both ends of the band until the client confirms the actual TSS (lenntech.com). The 50 m/h figure sometimes quoted applies to private pools and is not appropriate for industrial duty.
What freeboard and backwash flow should I specify on the datasheet?
Starke specifies 30–40% freeboard above the media bed so the bed can expand during backwash without media loss, and the backwash flow rate that fluidises the top (lightest) layer must be stated in the same row (starkefiltermedia.com). The exact backwash flow depends on the anthracite grade and feed temperature, so the media supplier should be asked to confirm it before procurement.
How do I avoid an MMF that fails the downstream RO or UF SDI target?
Treat the MMF as a pretreatment guard for the next stage: the bed speed choice inside Lenntech's 10–25 m/h band, the per-layer media specification, and the backwash flow must all be set so the vessel delivers a stable SDI to the RO or UF skid downstream. Confirm the downstream SDI target with the membrane supplier before finalising the MMF datasheet, because raising the target later usually means re-doing the bed-speed selection rather than tweaking a valve.
What should I check before awarding the media and vessel supply contract?
Ask the media supplier for per-layer thickness ratios, bulk densities, and backwash expansion data for the specific anthracite, sand, and garnite grades being offered, and ask the vessel supplier to confirm that the standard size above the calculated minimum diameter still keeps the bed speed inside Lenntech's 10–25 m/h industrial band at the design flow (lenntech.com; starkefiltermedia.com). Without those two confirmations, a "standard" vessel can push the bed speed above band and the media stack can be loaded into a vessel whose freeboard is wrong for the lightest layer.
