Where the Energy Goes in a DAF System
Two loads dominate the electrical footprint of a DAF system: the pressurization pump that feeds either the recycle or the full-flow stream, and the air compressor that charges the saturator. Tank agitation drives and skimmer motors are minor in comparison, so any energy-optimization exercise must start at the pump–compressor pair. Saturator pressure directly sets both pump and compressor work, and the academic study on unpacked saturators (Water, 2026) identifies 621 kPa, 18.2 min hydraulic retention time, and 8.5 L/h air flow as the efficiency-maximizing setpoint — pushing past any of these values reduces dissolved-air yield per kWh.
Packed-column saturators reach 85–95% air saturation versus lower values for unpacked vessels (Water and Wastewater, 2026), requiring less compressor throughput for the same dissolved-air mass. An industrial DAF system should be specified first by saturator type and operating pressure, then by configuration, not by tank volume alone.
Beyond the saturator, the contact-zone hydraulic loading and the skimmer duty cycle also feed into the panel-meter reading, but they are second-order compared to pump and compressor kW. A plant engineer should split the electrical bill into a saturator-side term (compressor kW, governed by pressure and air flow) and a contact-zone term (pump kW, governed by recycle percentage and hydraulic loading). Every lever discussed in this article moves one of those two terms.
Saturator Design: Packed-Column vs Unpacked
Packed-column saturators consistently achieve 85–95% air dissolution efficiency; unpacked vessels sit lower (Water and Wastewater, 2026). That 10-percentage-point gap matters because higher saturation efficiency means the compressor can deliver less air mass for the same bubble population in the contact zone, since more of the injected air stays dissolved until depressurization. The academic unpacked-saturator study (Water, 2026) shows that pressure, HRT, and air flow interact — pushing pressure past 621 kPa or shortening HRT below 18.2 min reduces dissolved-air yield per kWh, so right-sizing the vessel matters as much as the type. Temperature affects solubility, and operators running near cold influent conditions should expect lower saturation efficiency from the same vessel than the nameplate claims.
For procurement, the practical implication is to require saturator saturation efficiency as a guaranteed metric — backed by a performance bond or liquidated-damages clause during the acceptance test — rather than a nameplate number. A vendor that quotes 90% saturation but can only demonstrate 78% on the commissioning curve has just handed the plant a 12-percentage-point compressor over-run for the next 20 years. The table below summarizes the saturator-side parameters that should appear in any technical bid.
| Parameter | Packed-column saturator | Unpacked saturator |
|---|---|---|
| Air saturation efficiency | 85–95% (S1) | Lower, vessel-dependent |
| Efficiency-maximizing pressure | 621 kPa reference (S3) | 621 kPa reference (S3) |
| Reference HRT at max efficiency | 18.2 min (S3) | 18.2 min (S3) |
| Reference air flow at max efficiency | 8.5 L/h test condition (S3) | 8.5 L/h test condition (S3) |
| Compressor throughput for equal dissolved air | Lower | Higher |

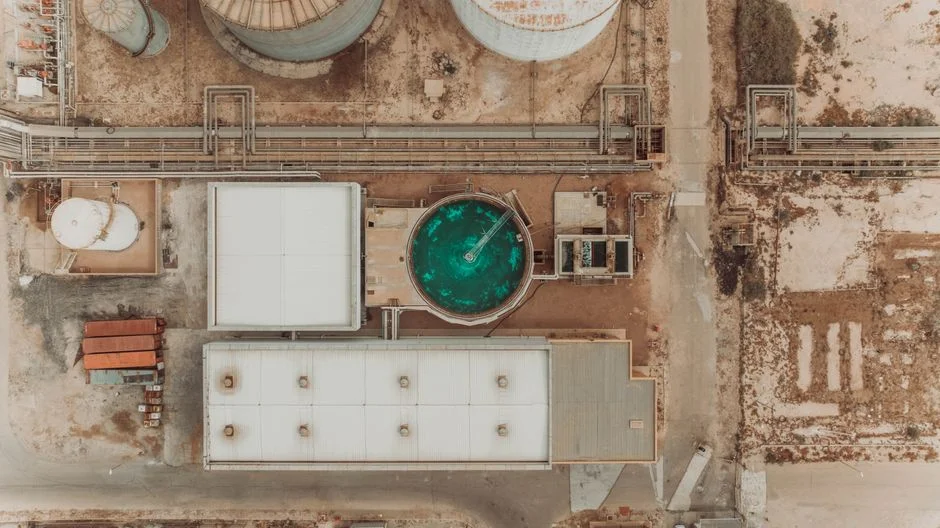

Recycle, Full-Flow, and Partial-Flow: Energy Trade-Offs
Recycle-flow pressurization moves only the treated effluent recycle stream — typically 20–50% of influent — which keeps pump kW low and is gentle on fragile flocs; it is the most common municipal configuration (Water and Wastewater, 2026). Full-flow pressurization moves the entire influent stream before flotation, which gives maximum bubble density and contact efficiency but at the cost of higher pump energy and the risk of shearing fragile flocs; it is suited to high-TSS industrial streams rather than biological sludge. Partial-flow sits in between, with 20–50% of the influent pressurized, and balances floc-shear risk against bubble density — at the cost of more complex flow splitting and control.
The energy decision involves more than just pump kW, as full-flow pressurization can demand a larger compressor to maintain the air-to-solids ratio at high influent TSS. Conversely, a plant that under-pressurizes a high-TSS stream by choosing recycle-flow at 20% will save pump kW but may fail the effluent guarantee, and the resulting re-treatment cycle will burn more total energy than the original full-flow design. The right recycle percentage is set by influent TSS, floc strength, and discharge permit — not by default vendor sizing. Readers comparing configurations can refer to the DAF vs IAF efficiency comparison for context on competing flotation technologies.
| Configuration | Pressurized fraction | Pump kW relative | Floc-shear risk | Best-fit application |
|---|---|---|---|---|
| Recycle flow | 20–50% (treated effluent) | Lowest | Low | Fragile flocs, biological effluent, most municipal (S1) |
| Full flow | 100% (entire influent) | Highest | High | High-TSS industrial streams, maximum contact (S1) |
| Partial flow | 20–50% (influent fraction) | Intermediate | Intermediate | Balance between floc shear and bubble density (S1) |
Air-to-Solids Ratio: The Operator's Energy Knob
Air-to-solids ratio of 0.005–0.060 ml air/mg solids governs bubble attachment efficiency and float-solids quality in DAF thickening service (Water and Wastewater, 2026). Running above the required A/S wastes compressed air: every extra milliliter of air dissolved is compressor kWh that produces bubbles which do not attach to particles because the particle surface is already saturated. The optimal bubble-to-particle size ratio for attachment is approximately 0.5–1.0; bubbles outside that window either miss the particle or carry insufficient buoyancy. For thickening duty, hydraulic loading of 0.5–2.0 gpm/ft² of tank surface area sets the residence time that the A/S ratio is calibrated against.
A/S is the parameter an operator can adjust without touching capital equipment. The right control loop is online subnatant turbidity, not a fixed setpoint: if turbidity sits comfortably below 15 NTU in the industrial pretreatment band, A/S can usually be trimmed toward the lower end of the window, which lowers compressor runtime hour-by-hour. The risk of trimming too aggressively is float-solids instability and carryover of fine solids in the subnatant, so the change should be made against a turbidity trend, not a single reading. For buyers comparing A/S tunability across vendors, the polymer pump selection and dosing guide covers the chemical-side tuning that interacts with A/S.
How Chemistry Lowers Plant-Wide kWh
Optimized coagulation-flocculation upstream of a DAF raises TSS removal from 50–60% (without chemicals) to 85–95% (Water and Wastewater, 2026). That 30-percentage-point jump is a kWh story: less particulate is recycled back to the head of the plant from the DAF subnatant, so the downstream biological or membrane stage sees a lighter load. Cationic polymer at 5–20 lb/ton dry solids upstream of DAFT improves bubble-floc attachment and reduces carryover of fine solids in the subnatant — both of which cut downstream load.
The feedback signal that ties chemical dose to compressor and pump energy is online turbidity in the effluent channel. The subnatant design thresholds are 5–15 NTU for industrial pretreatment and 2–5 NTU for membrane pre-treatment (Water and Wastewater, 2026); when the trend drifts above the band, polymer dose is increased, subnatant quality recovers, and the downstream stage's aeration or pump kW drops. Better subnatant quality reduces loading on any downstream biological or membrane stage, so the kWh saving is plant-wide. An automatic chemical dosing system is the practical enabler for holding that feedback loop steady across shifts.
A Practical Energy Decision Framework
Start from the saturator. Require guaranteed 85–95% saturation efficiency if the plant runs more than 4,000 operating hours per year, because even a 5 percentage-point efficiency gap compounds across runtime into measurable compressor kW. Size the recycle percentage from the influent TSS and the target removal: lower recycle (closer to 20%) when flocs are fragile and TSS is moderate, higher recycle (closer to 50%) or full-flow when high-TSS removal is mandatory. Tune the A/S ratio to the lower end of the 0.005–0.060 ml air/mg window once effluent turbidity is consistently inside the 5–15 NTU industrial band.
Track compressor kWh against flow (kWh/m³) monthly, not just running hours. Energy drift from a fouling saturator or a partial-blocked nozzle shows up on a kWh/m³ trend weeks before it shows up on the effluent turbidity trend, so a panel-meter log is the cheapest diagnostic a plant can run. For a more detailed walkthrough of unit selection, the best DAF unit for industrial wastewater in 2026 guide covers the procurement side. The table below maps each lever to the sub-system it moves and the metric a buyer should track.
| Lever | Sub-system affected | Operating window | Metric to track |
|---|---|---|---|
| Saturator efficiency | Compressor kW | 85–95% packed (S1) | kWh/m³ trend |
| Recycle percentage | Pressurization pump kW | 20–50% recycle, 100% full (S1) | kWh/m³ trend |
| A/S ratio | Compressor runtime per m³ | 0.005–0.060 ml air/mg (S1) | Subnatant turbidity (NTU) |
| Polymer dose | Plant-wide downstream load | 5–20 lb/ton dry solids (S1) | Subnatant turbidity (NTU) |
| Saturator pressure setpoint | Pump + compressor work | 621 kPa reference (S3) | kWh/m³ trend |
Frequently Asked Questions
What is a realistic kWh/m³ target for an industrial DAF system?
A buyer should request an energy duty at design conditions from each vendor — specifically compressor kW and pump kW at the design flow and design A/S ratio — and normalize to kWh/m³ internally. Comparing two bids on that normalized basis is more reliable than relying on a nameplate kW rating.
Should we specify a packed-column or unpacked saturator to minimize energy use?
Packed-column saturators consistently reach 85–95% air dissolution efficiency, while unpacked vessels sit lower (Water and Wastewater, 2026), which lowers compressor throughput for the same dissolved-air mass. The procurement check is to require the saturation figure as a guaranteed metric, with a performance bond covering the acceptance test, rather than as a nameplate number.
How do we choose between recycle-flow and full-flow pressurization for our wastewater?
Choose recycle-flow when flocs are fragile or the stream is biological, and choose full-flow when influent TSS is high and maximum bubble-particle contact is required (Water and Wastewater, 2026). Partial-flow at 20–50% of the influent is the in-between option, at the cost of more complex flow splitting.
What is the single most useful operating signal for trimming DAF energy use?
Online subnatant turbidity is the most actionable signal, because it ties chemical dose, A/S ratio, and saturator health to a single number with design thresholds of 5–15 NTU for industrial pretreatment and 2–5 NTU for membrane pre-treatment (Water and Wastewater, 2026). Operators should trend it continuously and review it alongside
