Why Municipal Sewage Plants Are Specifying DAF Over Primary Clarifiers
DAF units require less space than traditional sedimentation tanks because the float separation step operates in minutes rather than the hours of hydraulic retention a primary clarifier needs, and the compact skid footprint lets a utility add primary clarification inside an existing headworks footprint without new civil works (S1, S5). On the sludge side, floated sludge from a DAF has a density approximately double that of sludge from a traditional sedimentation system, so the downstream digester or dewatering press sees half the volume and the recycle pump around the aeration basin moves less mass (S1).
DAF is widely used as a clarification step in biological plants, and the efficiency of solids removal is high enough to drastically reduce the size of subsequent treatment phases (S1). For municipal duty specifically, DAF aids in the removal of algae, organic matter, and suspended solids before the water proceeds to biological treatment — relevant during warm-weather algal events and FOG (fats, oils, and grease) surges that routinely overload conventional primaries and trigger permit excursions (S4).
How the DAF Process Works: Saturation, Contact, Separation
Water is pressurized in a tank to several atmospheres to dissolve air proportionally to the pressure applied (S4). In municipal systems, that pressure is set in the 3–6 atmosphere range (S1, S4). On pressure release at the inlet to the flotation tank, the dissolved air comes out of solution and forms microbubbles. S1 reports a microbubble diameter of 30–50 µm; S4 reports 30–70 µm — both ranges should be carried in the design basis because bubble sizing drives collision efficiency. Collision efficiency is maximized when the bubble-to-particle size ratio is approximately 0.5–1.0; bubbles that are too small relative to the particle miss the target, while bubbles that are too large carry insufficient buoyancy for small, dense particles (S4). Once attached, the bubble-particle aggregate has a density below that of water, rises to the surface, and forms a float layer that is mechanically skimmed; clarified water exits below the float layer through an effluent control weir (S1, S4).
Core Design Parameters for Municipal Sewage DAF
The table below consolidates the numeric design parameters that govern municipal DAF sizing. Each value is supported by the cited source; treat the ranges as the design envelope, then narrow with jar tests on the actual sewage.
| Parameter | Municipal design range | Source | Engineering note |
|---|---|---|---|
| Saturator pressure | 3–6 atm | S1, S4 | Specify packed-column saturator for 85–95% saturation efficiency rather than unpacked (S4). |
| Hydraulic loading rate | 0.5–2.0 gpm/ft² of tank surface area | S4 | Design near the lower (more conservative) end for raw sewage to retain contact-zone residence time. |
| Air-to-solids (A/S) ratio | 0.005–0.060 mL air per mg solids | S4 | Design at the middle of the range for typical municipal TSS of 150–350 mg/L; verify with jar tests. |
| Microbubble diameter | 30–50 µm (S1) / 30–70 µm (S4) | S1, S4 | Target the lower end of the range for collision efficiency with fragile sewage flocs. |
| Polymer dose | 5–20 lb cationic polymer per ton dry solids | S4 | Required to reach the 85–95% TSS removal range; budget for chemical conditioning. |
| Float blanket depth | 6–8 inches maximum | S4 | Limits nitrogen gas accumulation in the float layer during warm weather and prevents float loss over the weir. |
| Subnatant turbidity | 2–5 NTU (membrane pre-treatment) / 5–15 NTU (industrial pretreatment-grade discharge) | S4 | Pick the target before sizing — membrane protection drives the tighter band. |
Choosing the Right Configuration: Recycle, Full-Flow, or Partial-Flow Pressurization
Three pressurization configurations exist, and the choice is driven by floc fragility, not by bubble density alone. Recycle-flow pressurization sends only the treated effluent recycle stream through the saturator; raw influent enters the contact zone unpressurized, which protects fragile flocs and makes this the most common municipal configuration (S4). Full-flow pressurization puts the entire influent stream through the pressure vessel before the flotation tank — high bubble-particle contact but a shearing risk to fragile flocs, and not recommended for raw sewage or biological sludge (S4). Partial-flow pressurization sends 20–50% of the influent through the saturator with the remainder unpressurized, an intermediate option for plants with variable influent character (S4). For raw municipal sewage, the default specification is recycle-flow pressurization, with a recycle ratio that the engineer must request from the vendor as a saturator-specific curve rather than assume — S4 reports the 20–50% range for partial-flow and the 10–30% recycle figure separately, and the two are not interchangeable.
| Configuration | Pressurized stream | Best fit | Limitation |
|---|---|---|---|
| Recycle-flow | Treated effluent recycle only | Fragile flocs; biological effluent polishing; municipal primary duty | Lower bubble density at the contact zone; slightly larger tank footprint than full-flow |
| Full-flow | Entire influent | High-TSS industrial streams needing maximum bubble-particle contact | Shears fragile flocs; higher pump energy; not suitable for biological sludge |
| Partial-flow | 20–50% of influent | Variable influent character; intermediate bubble density | More complex flow splitting and control than the other two |
The engineer evaluating vendor offerings should ask each supplier which configuration their standard municipal unit ships with, then confirm the saturator is sized for the recycle ratio the utility actually runs — not the optimistic number on the data sheet. A HydropureWater DAF system sized to the recycle-flow configuration is the typical starting point for raw sewage primary duty.
Coagulation and Flocculation: The Performance Lever You Cannot Skip
Surface charge management through coagulation and flocculation upstream of the DAF contact zone is the most powerful tool available to operators for improving solids separation efficiency (S4). Without chemical conditioning, TSS removal from a DAF on raw sewage lands in the 50–60% range; with optimized coagulation and flocculation, the same unit routinely delivers 85–95% TSS removal (S4). The mechanism is straightforward: aluminum or iron coagulants destabilize the typically negative surface charge of sewage particles, and a cationic polymer then bridges those destabilized particles into larger, more bubble-receptive flocs (S4). Because polymer demand shifts with influent TSS, flow, and temperature, a PLC-controlled chemical dosing skid should be specified alongside the DAF rather than added later. Continuous online turbidity sensors in the effluent channel feed back to the coagulant and polymer dosing system; turbidity exceedances above the design threshold trigger dose adjustments before permit compliance is affected (S4). A paired PLC-controlled chemical dosing skid is therefore part of the DAF package, not an accessory.
Sludge Handling: Why DAF Thickens Better Than Gravity
DAF thickening (DAFT) consistently achieves 3–6% total solids (TS) versus 1.5–3.0% TS for conventional gravity thickening — roughly double the concentration, which halves the sludge volume sent to digestion or dewatering (S4). Halving that volume cuts polymer dose at the dewatering press, cuts centrifuge or filter-press energy, and cuts haulage cost for any biosolids disposed off-site. Denser recirculated sludge also saves on recirculation pumping and on the size of the downstream oxidation tank, because a more concentrated underflow carries more mass per unit volume pumped (S1). For municipal plants already using mechanical dewatering, the higher inlet solids concentration from a DAF thickener directly reduces filter press cycle time and increases cake solids, which lowers downstream disposal tonnage. The downstream plate-and-frame sludge dewatering press sizing should be revisited once the DAF thickener is in the flow sheet, because the dewatering unit will run on a thicker feed than the original gravity-thickener design assumed.

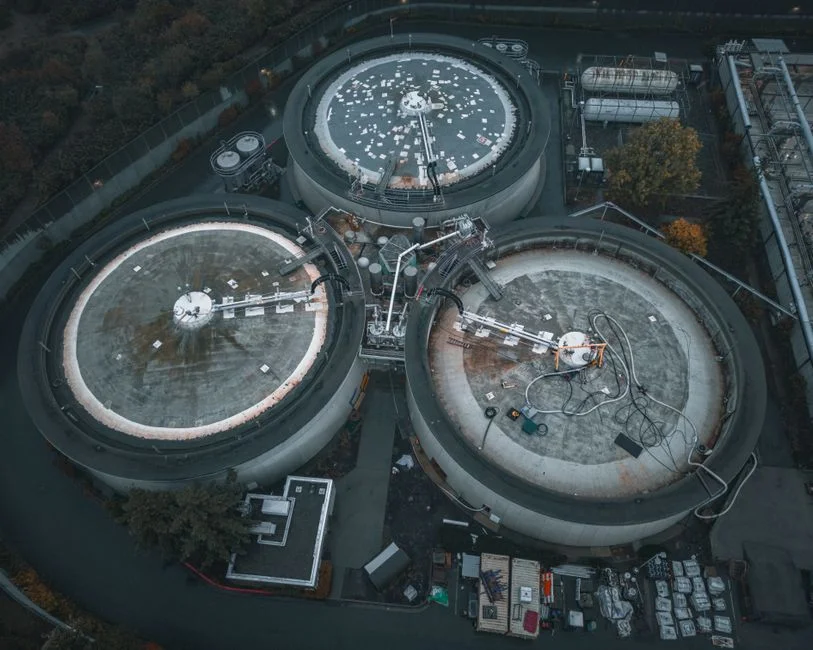

Sizing Your Municipal DAF: From Flow to Tank Footprint
The sizing procedure is a four-step flow-down that converts wastewater flow into tank surface area, then checks the result against the available standard model line. Start with average dry-weather flow (ADWF) and peak wet-weather flow (PWWF); the DAF tank must be sized to the higher of the two once hydraulic loading is fixed, because under-sizing a peak event washes the float blanket off the weir. Apply the 0.5–2.0 gpm/ft² hydraulic loading range from S4 to convert flow to required tank surface area; for raw municipal sewage, design near the lower (more conservative) end of the range to retain residence time for floc contact in the contact zone. Check that a standard model line covers the calculated flow — for example, the verified product catalog shows the standard DAF range covering 4–300 m³/h across 13 standard models (S6), so most municipal plants fall within standard sizing without a custom build. Confirm tank height allows the float blanket to be held below 6–8 inches and still provides a stable subnatant zone below the float (S4); a tank that is too shallow forces a thinner float blanket and risks float loss, while a tank that is too deep wastes civil cost. Finally, cross-check the engineering specifications guide for the chosen model to confirm DN-class inlet, outlet, sludge, and vent connections match the headworks piping — the DAF system data sheet lists DN50 through DN300 connection classes across the model range.
Supplier Selection Checklist for a Municipal DAF
A defensible shortlist for a municipal DAF procurement rests on four checks that protect the utility from suppliers who cannot back their guarantees. First, request validated performance data from comparable reference installations with the same wastewater type, similar TSS loading, and equivalent flow rate (S4); a vendor with no municipal reference plant of similar scale is a red flag. Second, specify saturator type explicitly: packed-column saturators consistently achieve 85–95% saturation efficiency, versus lower efficiency for unpacked vessels, and the choice directly affects air-to-solids ratio headroom (S4). Third, require a performance bond or liquidated damages clause for failure to meet effluent guarantees during the acceptance test — S4 calls this out as a standard procurement specification. Fourth, evaluate total cost of ownership over a 20-year life — capital, chemicals, energy for pressurization, and maintenance parts — which S4 identifies as a more reliable basis for selection than unit price alone. Engineers building the shortlist can anchor the cost side of that analysis with the DAF unit cost and decision framework guide, and tie the procurement into the wider water treatment plant engineering roadmap so the DAF specification aligns with the upstream headworks and downstream dewatering stages.
Frequently Asked Questions
What hydraulic loading rate should I use to size a municipal DAF on raw sewage?
Design in the 0.5–2.0 gpm/ft² range cited in S4, and sit near the lower end of that band for raw sewage primary duty so the contact zone retains enough residence time for fragile flocs to attach bubbles. Confirm with jar tests on the actual mixed-liquor suspended solids profile before finalizing the design.
What air-to-solids ratio and saturator pressure give reliable municipal performance?
Target an A/S ratio of 0.005–0.060 mL air per mg solids (S4) and a saturator pressure of 3–6 atm (S1, S4). Specify a packed-column saturator for 85–95% saturation efficiency rather than an unpacked vessel, and request the saturator-specific recycle curve from the vendor rather than assuming a generic 10–30% recycle figure.
How should I compare DAF vendors on price for a municipal sewage project?
Use total cost of ownership over a 20-year life — capital, chemicals, energy for pressurization, and maintenance parts — rather than unit price alone, per S4. Request itemized chemical consumption projections at design A/S ratio and design hydraulic loading, and require a performance bond or liquidated damages clause tied to the effluent guarantee during acceptance testing.
