Why Fish Processing Wastewater Breaks Conventional Treatment
A fish processing line running filleting, cooking and cleaning simultaneously generates 3–10 m³ of effluent per tonne of product, with oil and grease (FOG) typically ranging 500–2,000 mg/L and COD 3,000–8,000 mg/L (per S2 study, J. Environ. Chem. Eng., 2023). That organic and FOG loading is the reason municipal treatment works struggle when fish plant supernatant is co-discharged — the high oil and grease content "can interfere with treatment operations," as the S2 authors put it. The problem is not just load: it is the physical state of the oil. Cooking, canning, stickwater concentration and surimi rendering all produce emulsified FOG with droplet sizes in the 10–200 µm colloidal band, and those droplets will not separate in a gravity clarifier. They pass straight through primary settling and either coat downstream biology or break through to the receiving water.
Two distinct streams behave differently inside the plant. White-water from filleting, washing and ice melt carries low FOG (often under 200 mg/L) but high suspended solids — blood, scales, flesh particles — and dominates the hydraulic load. Dark-water from cookers, screw presses and stickwater evaporators carries the FOG and the dissolved protein load that drives COD. A well-run fish plant keeps the streams separate at the source, but the DAF unit is sized for the combined blended flow with FOG as the design constraint, not for average TSS. For background on why flotation outperforms gravity on this kind of stream, see the DAF system engineering specifications guide.
Typical Influent Characteristics for a Fish Processing Line
Defensible DAF sizing starts with the influent envelope. The parameter bands below are typical industry values cross-referenced against the S2 pilot study on fish processing wastewater and the S5 poultry-processing baseline (mean COD 5,263 mg/L, TS 3,355 mg/L, per ASABE Appl. Eng. Agric. 28(2):231–236, 2012). Fish lines run hotter and saltier than poultry, but the organic bands sit in the same neighbourhood — a useful sanity check.
| Parameter | Blended fish-line typical | White-water (filleting) | Dark-water (cook/press) | Design note |
|---|---|---|---|---|
| Flow | 3–10 m³ per tonne of product | ~70% of total | ~30% of total | Peak-to-average ratio 2–3× from batch cookers |
| COD | 3,000–8,000 mg/L | 1,500–3,000 mg/L | 8,000–20,000 mg/L | Drives downstream biology load |
| BOD | 1,500–4,000 mg/L | 800–1,800 mg/L | 4,000–10,000 mg/L | BOD/COD ≈ 0.5 |
| Oil & grease | 500–2,000 mg/L | 50–200 mg/L | 2,000–8,000 mg/L | Design constraint for DAF |
| TSS | 800–2,500 mg/L | 1,000–3,000 mg/L | 500–1,500 mg/L | High in white-water, lower in dark |
| Total nitrogen | 100–300 mg/L | 50–150 mg/L | 200–500 mg/L | Mostly organic N / protein |
| Total phosphorus | 30–80 mg/L | 10–30 mg/L | 50–150 mg/L | Bound P rides with FOG |
| Temperature | 25–40 °C | 10–20 °C | 60–95 °C (post-cook) | Cool to <40 °C before DAF for saturation efficiency |
| pH | 6.5–7.5 | 6.8–7.4 | 6.0–7.2 | Adjust to 7.0–7.5 for PAC coagulation |
| Chlorides (brine lines) | 500–5,000 mg/L | 200–1,000 mg/L | 500–5,000 mg/L | Drives stainless wetted-parts choice |
Peak flow is the most under-designed variable in fish-line specifications. A surimi line running two batch cookers 90 minutes apart will deliver roughly 2× average flow for 1–2 hours; a tuna cannery with seasonal peak processing will run 2.5–3× average. The DAF cell must be sized for the peak or paired with a flow-equalisation tank — and the equalisation tank must be sized for at least one batch-cooker volume. For the engineering logic behind that choice, the DAF vs sedimentation comparison walks through the residence-time math.
DAF Design Parameters for Fish Processing Effluent
Specifying a DAF unit for a fish line is not the same exercise as specifying one for TSS-only industrial wastewater. FOG-loaded streams need a slower hydraulic loading rate, a higher recycle ratio, and chemistry that breaks the emulsified oil charge before the bubbles arrive. The numbers in the table below are the working values used in 2026 HydropureWater field specifications for seafood plants, and they are consistent with the operating envelope reported in the S2 fish-line pilot study.
| Design parameter | Fish-line DAF value | Why this number |
|---|---|---|
| Hydraulic loading rate | 25–35 m³/m²·h | Lower than 40–50 for TSS-only streams; gives bubbles time to attach emulsified oil droplets in the 50–200 µm size range |
| Recycle ratio | 20–30% of feed flow | Higher than 10–15% for TSS-only; recycle carries the dissolved air needed to float low-density oil |
| Saturation pressure | 3–6 bar (HydropureWater 2026 spec) | Produces 20–100 µm micro-bubbles — a good size match for 50–200 µm oil droplets |
| Air-to-solids ratio (A/S) | 0.02–0.06 kg air per kg feed solids | Engineer the saturator from this ratio, not just from flow; under-sized A/S leaves floatables in the effluent |
| Hydraulic residence time in cell | 15–25 minutes | Combines floc growth and bubble-contact zones; shorter than 15 min drops FOG removal below 90% |
| Flocculation time (upstream) | 10–20 minutes at 15–25 rpm | Slow mixing grows floc large enough to be lifted by bubbles; high-shear mixing shatters the floc |
| Coagulant dose | Aluminium sulphate or PAC at 50–150 mg/L | Neutralises the negative charge on emulsified oil droplets; PAC preferred at low temperature |
| Flocculant dose | Anionic polyacrylamide at 1–3 mg/L | Bridges destabilised oil droplets and TSS into a 0.5–2 mm floc that bubbles can lift |
| Skimmer surface speed | 0.5–1.0 m/min | Fast enough to remove float before it drains, slow enough to avoid re-entraining the layer |
Two non-obvious points. First, the saturator is the bottleneck of a fish-line DAF: at 25% recycle and 5 bar, the saturator delivers roughly 0.04 kg of dissolved air per kg of feed — within the 0.02–0.06 A/S design band — but only if contact time is at least 90 seconds and the recycle water is clean. Fouled recycle (TSS above ~150 mg/L) nucleates bubbles inside the saturator and collapses the air transfer. Second, chemistry matters more on a fish line than on most industrial DAF applications because the emulsified oil carries a stable negative surface charge; without coagulant, the bubbles slide off and the FOG stays in the effluent. The HydropureWater DAF System is built around a 4–300 m³/h capacity range with 20–100 µm micro-bubbles that match this droplet-size window, and the underlying micro-bubble physics is detailed in the DAF micro-bubble engineering guide.
Expected Removal Rates When the DAF Is Sized Correctly
A correctly sized and chemically conditioned DAF on a fish line delivers predictable, supplier-defensible removal across the four parameters that matter for downstream design. The numbers below are the values the engineer should hold the equipment vendor to, drawn from the S2 pilot study and the S5 poultry-processing baseline for cross-validation.
| Parameter | Influent band | DAF effluent target | Removal % | Source / note |
|---|---|---|---|---|
| Oil & grease | 500–2,000 mg/L | < 50 mg/L | > 95% | S2: DAF "removed nearly all the oil and grease" |
| TSS | 800–2,500 mg/L | 50–200 mg/L | 85–95% | S5 reports 34% TS reduction at pre-DAF screening; full DAF unit hits higher |
| COD | 3,000–8,000 mg/L | 1,500–3,000 mg/L | 40–60% | S2: COD "clearly decreased"; residual needs biology or biochar |
| BOD | 1,500–4,000 mg/L | 700–2,000 mg/L | 45–60% | BOD rides with TSS/FOG removal |
| Total phosphorus | 30–80 mg/L | 15–40 mg/L | 30–50% | P co-precipitates with coagulant-bound float |
| Total nitrogen | 100–300 mg/L | 85–270 mg/L | 5–15% | Mostly organic N; DAF removes the particulate fraction only |
Two design implications. The DAF alone is not enough for COD and phosphorus discharge limits — the residual COD of 1,500–3,000 mg/L still needs a biological stage, and the residual P benefits from a biochar polish column. The S2 work showed spruce biochar loaded P to 0.32–1.38 mg/g in the spent adsorbent while hemp biochar preferentially removed N and COD, with spent-biochar N reaching 9.1–10.5 mg/g. The second implication is operational: coliform reduction is not a DAF function, but a properly designed DAF protects the downstream disinfection stage. In a 2022–2024 upgrade of two seafood processing facilities in Ghana, median coliform counts fell from 920 to 35 MPN/100 mL at one site and from 280 to 9.5 MPN/100 mL at the other — a 96% overall reduction once the full treatment chain (DAF front end plus disinfection) was in place (S4: Life (Basel), 2026, 16(1):107). For context on how DAF fits into a complete industrial selection framework, see the best DAF unit decision framework.
Worked Sizing Example: 100 m³/h Fish Plant DAF
Substitute your own numbers into the same six steps and you have a defensible specification you can hand to procurement.
- Define the blended feed. A filleting plus surimi plant running 70% white-water and 30% dark-water produces a combined feed of 100 m³/h with FOG around 1,200 mg/L, COD 5,500 mg/L, TSS 1,800 mg/L, temperature 30 °C, pH 7.0.
- Set the hydraulic loading rate. At 30 m³/m²·h, the flotation cell surface area is 100 / 30 = 3.3 m². Round up to 4 m² to handle 2× surge from batch cookers without losing float blanket stability.
- Set the recycle ratio and saturator duty. At 25% recycle, 25 m³/h of clarified effluent is pressurised to 5 bar. This delivers ~0.04 kg air per kg of feed solids — inside the 0.02–0.06 A/S design band and enough to float 1,200 mg/L FOG at 95% removal.
- Size the saturator vessel. 25 m³/h × ~2 minutes contact = 0.8 m³ saturator working volume, with a 5 kW recycle pump and a packed saturator tower to maximise air transfer.
- Specify the chemistry train. PAC at 100 mg/L dosed 30 seconds upstream of a 15-minute floc tank at 20 rpm, followed by anionic polyacrylamide at 2 mg/L dosed at the floc-tank outlet. The automatic chemical dosing system should track the feed flow on a 4–20 mA signal so dose tracks FOG load.
- Lay out the floor footprint. The floc tank, float cell, and sludge sump together need roughly 20 m² of floor area, located downstream of a rotary fine screen with 1–2 mm perforations to protect the saturator pump and the skimmer from ragging.
This configuration delivers roughly 50–60% COD removal, >95% FOG removal, and a float sludge at 3–5% dry solids ready for a downstream dewatering stage.
Integration with Downstream Treatment: DAF + Biochar + Biological
DAF is the first step in a fish-line effluent train, not the whole plant. The DAF effluent carries 1,500–3,000 mg/L COD, residual turbidity, and 15–40 mg/L phosphorus — a load that downstream stages must be sized to handle. In the S2 integrated pilot, DAF effluent passed through a hemp and spruce biochar column: hemp biochar preferentially removed N and COD, spruce biochar preferentially removed P, and the spent biochar mixture ended up at N 9.1–10.5 mg/g and P 0.32–1.38 mg/g — concentrations high enough to support a soil-conditioner reuse story that improves the project's economics.
After the biochar polish, the water moves to a biological stage for residual COD and ammonia. An MBR or SBR is the common choice; the MBR integrated wastewater treatment configuration is well-suited to fish plants because the membrane barrier protects the biology from the residual oil that escapes the DAF. DAF float sludge — typically 3–5% dry solids — is dewatered on a plate and frame filter press to 25–35% dry solids for off-site disposal or rendering. Disinfection by UV or chlorine dioxide (S4's Ghana case study used a multi-barrier system that achieved the 96% coliform reduction) closes the train; a chlorine dioxide generator is the standard choice where chlorides from fish brine make chlorine gas dosing operationally risky.

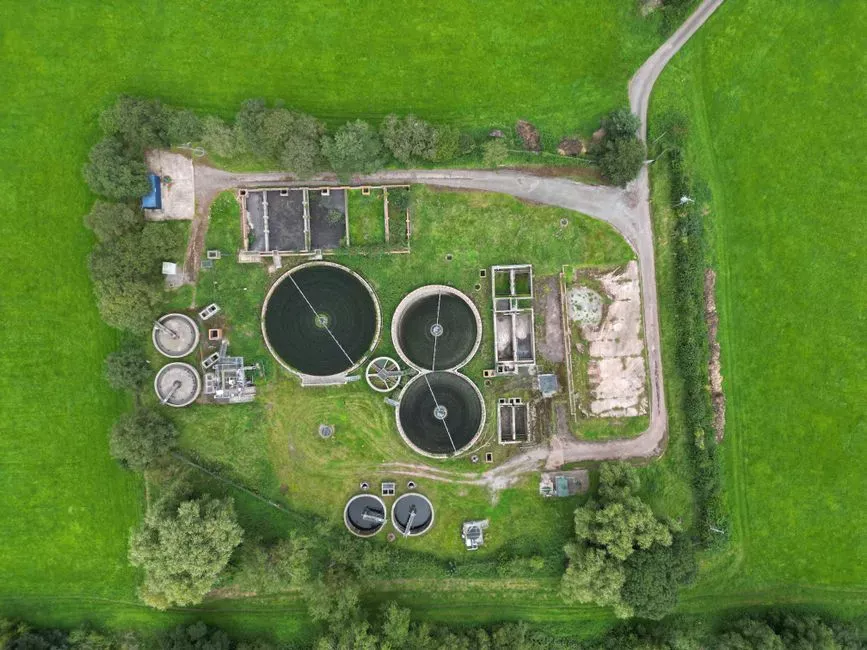

2026 Cost Benchmarks and Decision Framework
Procurement will push back without a defensible cost range. The numbers below are 2026 industrial DAF pricing in USD, drawn from the HydropureWater verified product catalog and cross-referenced against the 2026 DAF cost guide.
| Capacity range | Wetted-parts material | Indicative 2026 CAPEX (USD) | Typical OPEX drivers |
|---|---|---|---|
| 4–50 m³/h | Carbon steel, epoxy-lined | $3,600 – $18,000 | Polymer $0.02–0.05/m³, energy 0.3–0.6 kWh/m³ |
| 50–100 m³/h | Carbon steel, epoxy-lined | $18,000 – $35,000 | Add float-sludge hauling at $20–60/tonne wet |
| 100–300 m³/h | SS304 / SS316 stainless | $35,000 – $50,000+ | SS mandatory above 500 mg/L chlorides; life-cycle cost dominates |
Use the decision rules below to choose between DAF-only and DAF-plus-polish, and to defend material selection:
- If FOG exceeds 500 mg/L or COD exceeds 5,000 mg/L, DAF must precede biology — gravity clarification will not protect the biology.
- If FOG is below 100 mg/L and the discharge target is TSS-only, a lamella clarifier may be cheaper on CAPEX, but DAF still wins on footprint and float-handling.
- If chlorides from fish brine exceed 500 mg/L, specify SS316 wetted parts; carbon steel pits through in 12–18 months in brine service.
- If phosphorus discharge is regulated below 2 mg/L, plan a downstream biochar polish from day one; retrofitting it after the DAF is in operation is more expensive than designing it in.
OPEX is dominated by polymer, energy for the recycle pump, and float-sludge hauling. The 0.3–0.6 kWh/m³ energy figure assumes a properly sized saturator at 5 bar with no air leaks; an over-sized saturator or a saturator running with a leaking pressure-letdown valve will push energy use to 1.0+ kWh/m³ and should be caught in commissioning. Detailed OPEX breakdown including polymer optimisation, energy recovery, and sludge-handling costs is in the 2026 DAF operating cost guide.
Frequently Asked Questions
What hydraulic loading rate should be used for a DAF treating fish processing wastewater?
For FOG-dominant fish lines, design for 25–35 m³/m²·h — lower than the 40–50 m³/m²·h used for TSS-only industrial wastewater. The lower rate gives micro-bubbles enough residence time to attach to emulsified oil droplets in the 50–200 µm size range, which is the fraction that defeats gravity clarification.
What air-to-solids ratio and saturation pressure does a fish-line DAF need?
Target an air-to-solids ratio of 0.02–0.06 kg air per kg of feed solids, delivered by a saturator running at 3–6 bar (5 bar is the typical 2026 design point) with a 20–30% recycle ratio. At those settings the saturator produces 20–100 µm micro-bubbles that match the oil-droplet size distribution and deliver >95% FOG removal.
Can a DAF alone meet discharge limits for a fish processing plant?
No. A correctly sized DAF on a fish line delivers >95% FOG removal, 85–95% TSS removal, and 40–60% COD removal — leaving 1,500–3,000 mg/L COD and 15–40 mg/L phosphorus in the effluent. A biological stage (MBR or SBR) is required for residual COD, and a biochar polish column is the practical add-on if phosphorus discharge is regulated below 2 mg/L. UV or chlorine dioxide disinfection follows the biological stage for coliform control.
What influent FOG concentration makes a DAF mandatory rather than optional?
When FOG exceeds 500 mg/L, DAF must precede any biological stage — emulsified oil coats the biomass and drops dissolved oxygen below viable levels within hours. Below 100 mg/L, the FOG load can sometimes be handled in a fat-trap plus biology configuration, but DAF still wins on footprint, response to peak flows, and float-sludge handling.
Should a fish-line DAF use carbon steel or stainless steel wetted parts?
Specify SS304 for routine service, and SS316 when fish-brine chlorides exceed 500 mg/L. Carbon steel with epoxy lining is acceptable in the 4–50 m³/h capacity range where chloride exposure is intermittent, but in continuous brine service it pits through in 12–18 months — the replacement cost typically exceeds the original SS316 upcharge within the first major maintenance cycle.
