Data Center Wastewater & Cooling Blowdown Treatment in Maputo, Mozambique (2026 Guide)

Why Maputo Is a Strategic Site for a Water-Smart Data Center

A 100 MW hyperscale data center can draw up to 2 million liters of water per day — roughly the daily consumption of a small Mozambican town (IDE, 2026). In the Maputo metropolitan area, that demand lands directly on the Incomáti system, a shared river-aquifer complex already under pressure from the Umbelúzi and Incomáti transfer schemes serving agriculture and the Umbelúzi hydropower corridor. Dry-season allocations to the Maputo municipal system have historically dropped by 20–30%, and the FIPAG distribution network is intermittent enough that most large users already operate on borehole + municipal blending. The site archetype flagged in industry literature — "water-stressed hyperscale" — maps almost exactly onto the Maputo basin, joining the U.S. Southwest, Gulf states, and parts of Southeast Asia (IDE, 2026).

That geography reshapes the regulatory envelope. Mozambican environmental permitting routes large industrial projects through MITADER (Ministério da Terra, Ambiente e Desenvolvimento Rural) via the Agência Nacional de Áreas de Conservação (ANAC) and the Direcção Nacional de Avaliação de Impacte Ambiental, with a baseline EIA under Decree 45/2004 (Regulamento sobre o Processo de Avaliação do Impacto Ambiental) and complementary instruments such as Decree 54/2015 (liquid effluent standards). A 5–100 MW data center is a Category A or B project depending on receiving-water sensitivity and groundwater draw, and the EIA must characterize both intake and discharge chemistry. For Maputo, that typically means pH 6–9, temperature rise <3 °C above ambient at the discharge point, TSS limits tied to receiving-water class, no visible oil or grease, and explicit limits on chloride and total dissolved solids if the receiving pathway is the Espirito Santo estuary rather than the municipal sewer.

Because municipal supply is intermittent, a defensible Maputo plan blends three sources — FIPAG municipal, Incomáti-aquifer well water, and (where available) reclaimed water from the Maputo WWTP (operated on a Build-Operate-Transfer basis with treatment at the level of conventional activated sludge plus polishing). A single-source design will fail at permitting, and a "buy more from FIPAG" design will fail at operations within the first dry season.

The Two Wastewater Streams a Maputo Data Center Must Treat

A Maputo data center produces two chemically distinct wastewater trains that must never be co-mingled upstream of biological treatment. Sanitary/domestic sewage is a low-flow, high-BOD stream: typical generation is ~150 L/person/day, with BOD 200–300 mg/L, TSS 200–250 mg/L, NH₃-N 20–40 mg/L, and the usual fecal coliform load (per EPA domestic wastewater guidelines). It is suited to a packaged A/O or MBR module such as the WSZ series packaged sewage treatment plant, typically buried below the equipment yard to free surface area for the cooling plant.

Cooling tower blowdown (CTBD) is a different animal. As evaporation concentrates the circulating water, the blowdown stream carries elevated TDS, hardness (often 800–1,500 mg/L as CaCO₃ at 4–6 cycles of concentration), silica (40–100 mg/L), residual biocides, phosphonates, corrosion inhibitors, and a pH typically driven to 8.0–9.0 for scale control (IDE, 2026; Water Utility Report, 2026). The volume relationship to make-up is governed by the simple formula blowdown = 1/(CoC − 1) of the make-up flow: at 4 cycles of concentration, blowdown equals 25% of make-up; at 6 CoC it drops to 20% — a 5-percentage-point gain that the industry routinely misreads as a 50% improvement (Genesis Water Technologies, 2026). That misread drives many a sustainability-target failure.

CTBD cannot be sent to the sanitary train. The high TDS, residual oxidizing biocide, and elevated pH will shock the biomass in an MBR or A/O system, and the calcium and silica will precipitate with any iron- or alum-based coagulant used on the sanitary side, blinding the membranes. The two trains should remain hydraulically separate all the way to their respective reuse or discharge points.

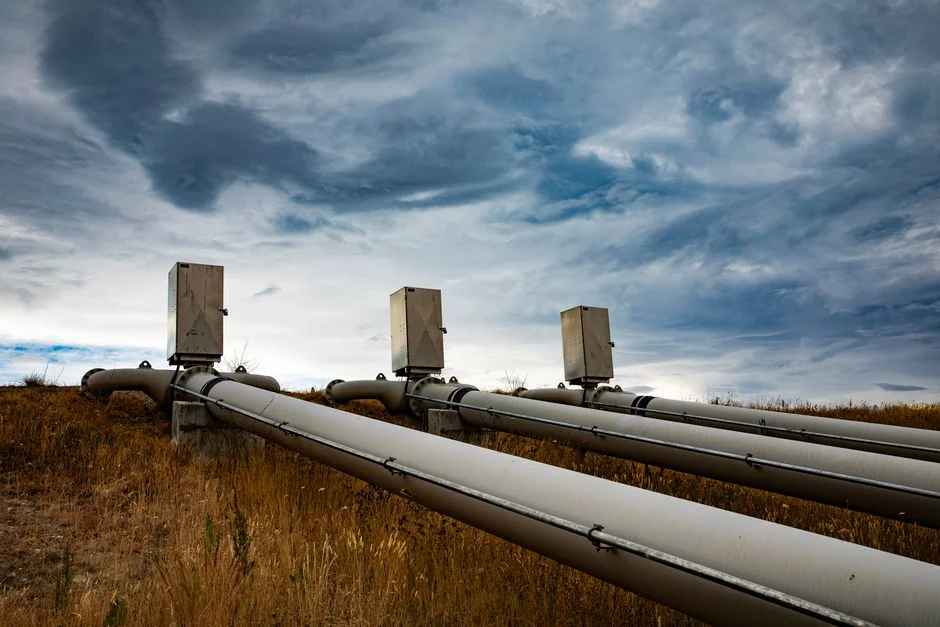

Maputo Source-Water Reality: Salinity, Hardness, and Reclaimed Options

Designing the make-up train requires realistic raw-water numbers, and Mozambique's three practical sources behave very differently across the year. Maputo municipal surface water — drawn from the Umbelúzi transfer and treated at the waterworks feeding the metropolitan network — shows rainy-season turbidity swings of 200–1,000 NTU, with TDS typically 150–400 mg/L, hardness 80–200 mg/L as CaCO₃, and silica 8–20 mg/L. That turbidity envelope is what forces lamella sedimentation or DAF ahead of media filtration rather than a simple two-stage filter train.

Coastal aquifer wells along the Maputo corridor are a different design problem. TDS commonly lands at 1,000–3,000 mg/L, hardness at 300–600 mg/L as CaCO₃, and silica at 15–40 mg/L, with iron and manganese often 1–5 mg/L where the well is shallow and reducing. Those numbers set the scaling envelope for any downstream RO: calcium carbonate, calcium sulfate, and silica saturation indices all sit at or above the conservative design limits, which is why antiscalant selection and recovery targets must be calculated against the well's specific ion balance, not generic templates.

Reclaimed water from the Maputo WWTP is technically available at the plant's discharge point but arrives with elevated NH₃-N (typically 10–25 mg/L), residual BOD (15–30 mg/L), variable conductivity tied to incoming sewage, and intermittent excursions during wet-weather events. Reclaimed water does reduce freshwater dependency but, as the Water Utility Report (2026) emphasizes, it changes the chemistry problem rather than removing it. For Maputo, the practical configuration is: equalize the reclaimed stream, run it through a multi-media filter to drop turbidity below 1 NTU, push it through a multi-media filter followed by UF pretreatment to bring SDI < 3, then feed the RO train — matching the pretreatment envelope that protects RO membranes from particulate and biological fouling.

Pretreatment Train Before the Cooling Tower

The pretreatment train conditions raw water to the point where it can enter the cooling loop without fouling fill, scaling heat exchangers, or carrying biological load into the chilled-water system. For a Maputo project that train maps cleanly to four unit operations plus a disinfection polish.

Step 1 — coagulation and pH adjustment. A PLC-controlled automatic chemical dosing skid sized to the make-up flow handles coagulant (typically polyaluminum chloride at 5–20 mg/L), sulfuric acid or caustic for pH trim, and any antiscalant fed ahead of the RO. Dosing control should track both flow and the inline pH/conductivity signal, not flow alone.

Step 2 — clarification. Either a lamella clarifier or a DAF unit drops the bulk of the suspended solids. The catalog range of 4–300 m³/h covers everything from a 2 MW edge site up to a 50 MW hyperscale build. The choice between lamella and DAF is largely a turbidity argument: lamella wins for the high-particle, high-turbidity rainy-season municipal flow; DAF wins for low-turbidity well water where algae oils or light biological floc are the load.

Step 3 — multimedia filtration. A multi-media filter (anthracite over sand over garnet) brings SDI to ≤ 3 and turbidity below 1 NTU, which is the envelope RO membrane manufacturers require for warranty protection. This stage also acts as a guard filter for the cartridge and RO stages downstream.

Step 4 — softening or antiscalant. Either an industrial softener (sodium-cycle ion exchange) or a dedicated antiscalant dosing pump pushes the calcium and silica down to a regime that supports the chosen cycle target. The trade-off is operational: ion exchange exchanges one dissolved solid (Ca²⁺) for another (Na⁺) and pushes TDS upward, while antiscalant preserves TDS but raises the dissolved organic load in the blowdown. S4's caution applies: aggressive chemical programs raise OPEX and load downstream blowdown, so the choice is project-specific, not universal.

Step 5 — disinfection. A chlorine dioxide generator or a UV unit provides biological control for the cooling loop. ClO₂ is preferred where biofilm control matters more than residual disinfection; UV is preferred where the operator wants to avoid halogenated by-products in the blowdown that would later complicate RO pretreatment or any on-site reuse.

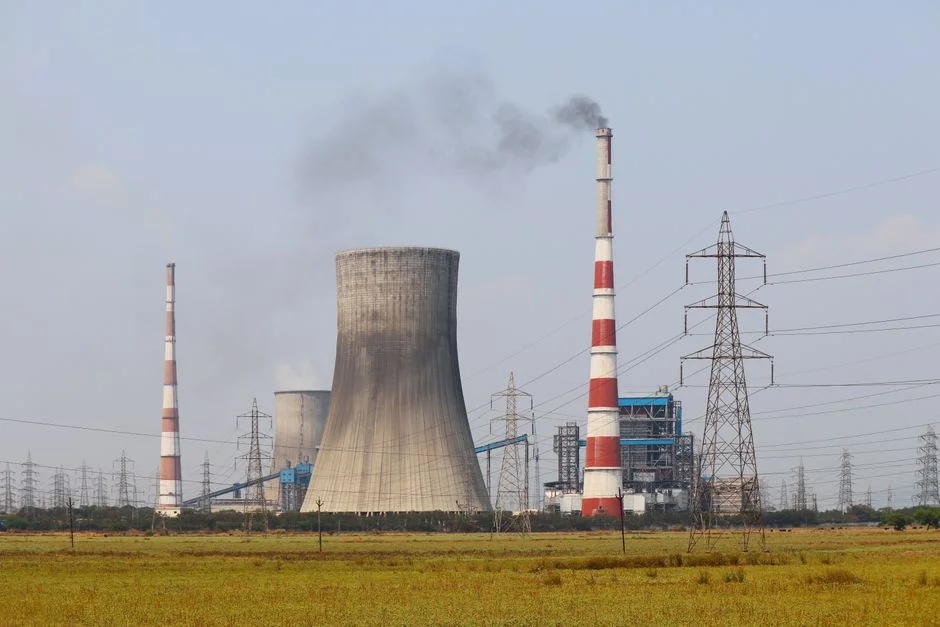

Cooling Tower Blowdown Treatment: Choosing the Recovery Target

The recovery target is the single decision that drives both the CAPEX line and the discharge pathway. Three bands cover the practical options for a Maputo site, and each one maps to a different design envelope.

The default is 75–80% recovery in a single-pass brackish water RO. This is the conventional ceiling beyond which scaling risk, chemical consumption, and cleaning frequency all rise sharply (IDE, 2026). It is the lowest-CAPEX option and the one most easily procured, but it discharges a still-concentrated brine that carries the full silica, calcium, and sulfate load of the CTBD stream — which is exactly the chemistry that pushes the Maputo WWTP toward its industrial-discharge limits.

The mid-tier is 90–96% single-pass recovery using a scale-controlled RO architecture. IDE's PFRO concept and the broader "Pulse Flow" family alternate short production periods with high-velocity flushing events that keep the membrane surface inside the induction phase of crystallization — supersaturation exists, but crystals do not yet nucleate. That gets recovery to 95–96% in a single stage for STP-quality water, well beyond the conventional 70–85% envelope (IDE 2026 brochure, 2026-07). Antiscalant chemistry has to be tight, and clean-in-place design has to account for the higher scaling potential at the concentrate end of the train.

The high end is an integrated precipitation + RO configuration that reaches 95–99% recovery. The MAXH₂O Desalter approach removes silica, calcium carbonate, and other sparingly soluble salts as dense solids in a fluidized bed reactor before they reach the RO, converting the brine problem from a membrane-scaling problem into a solids-handling problem. This is the configuration that supports minimum liquid discharge (MLD) or zero liquid discharge (ZLD) and the one that justifies itself when freshwater cost, discharge-permit pressure, or community pushback makes lower-recovery options untenable.

Decision rule. The recovery target should be set by the conjunction of three variables — local water-stress index, Maputo WWTP discharge permit pressure (or bay/estuary rejection risk), and the marginal cost of municipal make-up water. One variable alone rarely justifies pushing past 90% recovery; all three together usually justify reaching for the MLD envelope. A summary:

The industrial RO system at the heart of any of these configurations should be sized against the make-up flow at the design CoC, with the recovery setpoint tied to the antiscalant projection and verified by a one-week pilot on actual CTBD before procurement.

Discharge Compliance: Maputo WWTP vs Zero Liquid Discharge

The discharge pathway decision is the one that often surfaces late in EIA review and forces late scope changes. There are three practical pathways for a Maputo site, and they have very different compliance burdens.

Sewer discharge to the Maputo WWTP. The utility's industrial discharge contract will typically require pH 6–9, TSS limits in the 200–500 mg/L envelope, temperature below 40 °C at the connection point, no visible oil or grease, and explicit limits on heavy metals and biodegradable load. Pre-equilibrium and flow attenuation are usually required. This is the lowest-regret pathway for a CTBD concentrate that still meets the utility's quality envelope, but it transfers the salinity load to the WWTP, which has no brine-handling capability. Multiple hyperscale sites on a single WWTP catchment can push that utility past its design conductivity in a way the operator cannot easily remediate (Water Utility Report, 2026).

Direct discharge to the bay or estuary. MITADER via MTA requires an EIA and may impose TDS, chloride, sulfate, and thermal-plume limits tied to the Espirito Santo estuary's receiving-water classification. Direct marine discharge is rarely granted for hyperscale data centers anywhere in southern Africa, and a Maputo applicant should not design around it.

ZLD pathway. Concentrate from the high-recovery RO is sent to a sludge dewatering stage — typically a plate-and-frame filter press — followed by a thermal/crystallization step that produces a solid salt cake for off-site disposal. CAPEX-heavy and power-hungry, but it eliminates permit risk entirely.

The reuse pathway — treating CTBD to cooling-tower make-up quality and recycling internally — is the lowest-regret option and aligns with the convergence of opinion across S1, S2, and S4: it cuts both freshwater intake and discharge volume simultaneously. When reuse is feasible at the design CoC, it should be the primary pathway, with sewer discharge as a backup for upsets.

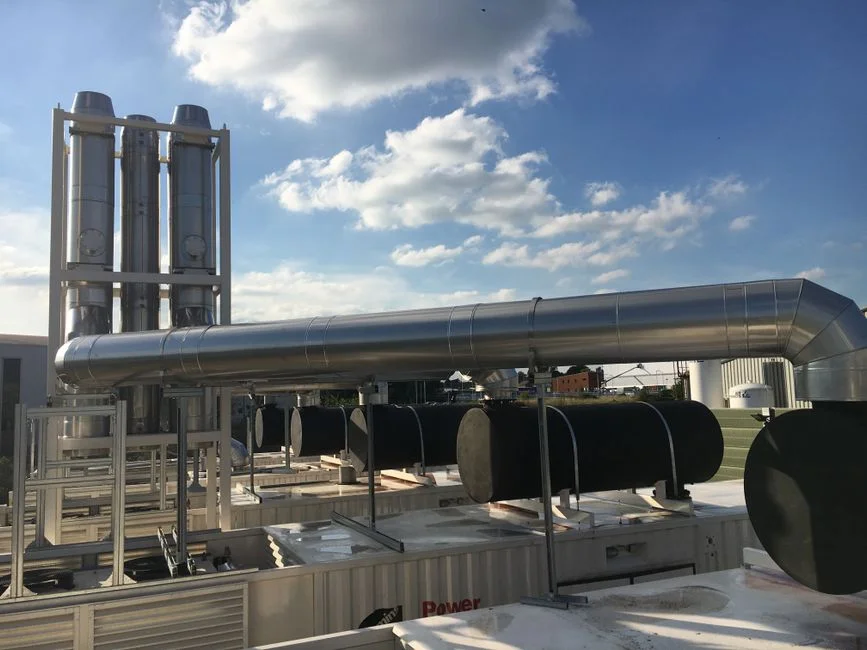

Recommended Treatment Train and Product Map for a 5 MW Maputo Site

Pulling the preceding sections together, a 5 MW Maputo data center at 4 CoC would intake roughly 15 million gallons (≈ 57 million liters) per month and generate about 3.75 million gallons (≈ 14.2 million liters) per month of blowdown. At 80% recovery that returns ~3 million gallons/month to the make-up tank — a 20% net reduction in freshwater draw without changing the cooling concept. The full bill of materials for that envelope, mapped to specific equipment, looks like this.

Make-up train (in order): automatic chemical dosing skid → lamella clarifier or DAF unit → multi-media filter (SDI ≤ 3) → industrial softener or antiscalant dosing → 5 µm cartridge filter → industrial RO system → UV sterilizer or chlorine dioxide generator polish.

Blowdown train: equalization tank → DAF or media filter for residual suspended solids → scale-controlled RO at ~90–95% recovery (with the UF pretreatment guard ahead of it for the recovery band) → permeate blended back to make-up; concentrate routed either to the Maputo WWTP (if the discharge contract accommodates it) or to a plate-and-frame filter press for solids handling before the thermal stage.

Sanitary train: a packaged A/O or MBR module such as the packaged sewage treatment plant sized at 150 L/occupant/day, disinfected with ClO₂ or ozone, with the treated effluent available for irrigation or toilet flush.

Frequently Asked Questions

How much water does a hyperscale data center in Maputo actually need?

A 100 MW facility can draw up to 2 million liters per day for evaporative cooling, on par with thousands of households (IDE, 2026). A 5 MW Maputo site typically lands closer to 1.5–2.0 million liters per day at 4 CoC, which is why a blended municipal, well, and reclaimed water strategy is standard at this latitude rather than a single-source design.

What is the difference between 80% and 95% blowdown recovery for a Maputo data center?

Eighty-percent recovery is the conventional single-pass BWRO ceiling, beyond which scaling risk and cleaning frequency rise sharply (IDE, 2026). Ninety-five to 96% recovery is achievable in a single stage using scale-controlled RO architectures such as PFRO, with the trade-off of tighter antiscalant control and a small CAPEX premium (IDE 2026 brochure, 2026-07).

How do cycles of concentration actually affect blowdown volume?

Blowdown equals 1/(CoC − 1) of the make-up flow: 25% at 4 CoC and 20% at 6 CoC — a 5-percentage-point gain, not the 50% improvement the math initially seems to suggest (Genesis Water Technologies, 2026). That is why pushing CoC alone rarely solves the water problem and why blowdown reuse is the larger lever.

What regulatory pathway governs data center effluent in Mozambique?

Large projects route through MITADER via MTA under Decree 45/2004 (EIA Regulation) and complementary effluent instruments, with the Maputo WWTP's industrial discharge contract governing sewer discharges. The EIA must characterize intake and discharge chemistry, set pH 6–9 and temperature limits, and define TDS/chloride targets if the receiving pathway is the estuary rather than the municipal sewer.

Is the industry actually reusing cooling blowdown at scale?

Yes. AWS is expanding recycled-water use from 24 to more than 120 U.S. data center sites, a shift expected to preserve over 530 million gallons of drinking water annually (AWS via Water Utility Report, 2026). The same chemistry-aware reuse approach is the one that maps most cleanly onto Maputo's water-stress and permit profile.
