Why EV and Auto Plant Wastewater in Cibolo Is a Special Case
Cibolo sits in the San Antonio River Basin, in Guadalupe County, inside the San Antonio River Authority (SARA) service area and within an hour of the I-35 EV supplier cluster feeding Tesla's Gigafactory Texas. Plants here mix stamping, e-coat, phosphate conversion coating, paint booth, and (sometimes) cell formation rinse streams into a single equalisation tank. The combined flow is a moving target: a 4-hour paint-shop dump can swing pH from 5 to 10, push oil and grease (O&G) past 1,000 mg/L, and deliver a slug of zinc and nickel from the conversion-coating rinse. The C/N ratio sits low — frequently below 5 — because paint overspray water and e-coat ultrafiltrate are rich in slowly biodegradable organics but poor in ammonia.
A conventional activated sludge (CAS) clarifier handles this poorly. Sludge washout after a paint dump, Nocardia foaming, and failure to meet TCEQ O&G and total metals limits without polishing are the daily complaints from plant operators in this corridor. The 2026 JCHR comparative review frames the gap bluntly: CAS is "limited by large land requirements, sludge handling issues, and moderate nutrient removal efficiency" — which is the exact operating envelope an EV/auto plant in Cibolo does not have. For a more granular walkthrough of the same comparison in another high-load vertical, the MBR vs CAS for mining wastewater in Coatesville analysis covers the clarifier-washout problem from a different angle.
How MBR and CAS Actually Work — And Why It Matters for Auto Wastewater
Both technologies oxidise organics biologically. The split is in the separation step. In CAS, mixed liquor leaves the aeration basin and falls into a gravity clarifier; floc settleability, controlled by sludge volume index (SVI), determines whether biomass reports to the bottom as return activated sludge or escapes over the weir (Jenkins and Wanner 2014, cited in Mannina et al.). A bad day for SVI is a bad day for compliance.
A membrane bioreactor (MBR) keeps the same biology but replaces the clarifier with a submerged PVDF ultrafiltration membrane, typically rated 0.1–1 μm pore size. The membrane physically retains biomass and almost all suspended solids, so effluent total suspended solids (TSS) routinely runs below 5 mg/L without a polish step. The HydropureWater integrated MBR system uses flat-sheet PVDF modules in this range, configured for the 10–2,000 m³/day band that covers most Cibolo-scale plants.
Three operating parameters drive the MBR advantage for auto wastewater. First, sludge retention time (SRT) — the average age of biomass in the reactor — runs 20–60 days in MBR versus 5–15 days in CAS. Long SRT lets the reactor degrade solvents, surfactants, and certain PFAS precursors that show up in paint and degreasing streams. Second, mixed liquor suspended solids (MLSS) sits at 8,000–12,000 mg/L in MBR versus 2,000–4,000 mg/L in CAS; the higher biomass absorbs shock loads from a shift change or weekend wash without losing the reactor. Third, the food-to-microorganism ratio (F/M) is correspondingly low — typically 0.05–0.15 kg BOD/kg MLSS·day in MBR, versus 0.2–0.5 in CAS — which suppresses the filamentous growth that drives foaming in paint-loaded CAS trains.
The cost of those advantages is membrane fouling. As biofilm and colloids accumulate on the membrane, transmembrane pressure (TMP) rises; operators respond with coarse bubble aeration scouring the membrane surface and with periodic clean-in-place (CIP) using sodium hypochloride (NaOCl) or citric acid (Xiao et al. 2019, cited in Mannina et al.). Flux — the permeate flow rate per unit membrane area — typically runs 15–25 L/m²·h at design for a flat-sheet submerged module. Three terms you will see throughout the rest of this article: SRT (sludge age in days), MLSS (biomass concentration in the reactor, mg/L), TMP (the pressure pushing water through the membrane, kPa or bar), flux (permeate flow per membrane area, L/m²·h), and F/M (kg BOD applied per kg biomass per day).
Side-by-Side Comparison: MBR vs CAS for an EV/Auto Plant
The table below is built for a Cibolo-scale plant in the 200–2,000 m³/day range, drawing on the Mannina et al. plant-wide model benchmark, the JCHR 2026 comparative review, and HydropureWater field data. Where the source is a generic municipal dataset, the table notes the auto-wastewater implication.
| Parameter | CAS (typical) | MBR (typical) | What it means for an EV/auto plant |
|---|---|---|---|
| Effluent COD (mg/L) | 40–80 | <30 | MBR permeate more easily meets reuse targets for cooling-tower make-up |
| Effluent BOD5 (mg/L) | 10–25 | <5 | TCEQ TPDES secondary standard (30 mg/L typical) is met by both; MBR adds margin for slug loads |
| Effluent TSS (mg/L) | 10–30 | <5 | MBR physical barrier removes paint pigment particles a clarifier cannot |
| Effluent turbidity (NTU) | 5–15 | <1 | MBR permeate can feed an RO unit for boiler make-up without intermediate filtration |
| Effluent O&G (mg/L) | 5–15 (with DAF) | <5 (no DAF typically required) | MBR's sub-micron barrier physically rejects emulsified oil droplets |
| Footprint | 1.0× reference | ~0.4× reference (60% smaller) | Frees civil space on brownfield retool sites (HydropureWater catalog) |
| SRT (days) | 5–15 | 20–60 | Longer SRT biodegrades paint solvents and surfactants |
| MLSS (mg/L) | 2,000–4,000 | 8,000–12,000 | Higher buffer against paint-shop slug loads |
| Energy use (kWh/m³) | 0.3–0.6 | 0.5–1.2 (incl. membrane scour) | MBR carries a 0.3–0.6 kWh/m³ membrane-scour load on top of biology |
| CAPEX index (2026) | 1.0× reference | 1.2–1.4× reference | 20–40% premium on membrane modules, cassettes, blowers, CIP skids |
| OPEX index (2026) | Sludge hauling and polymer dominant | Energy and CIP chemicals dominant | Sludge volume is roughly half in MBR at long SRT |
| GHG, direct (kgCO2eq/m³) | 0.85 (Mannina 2020) | 0.91 (Mannina 2020) | MBR's higher energy use offsets the lower sludge-derived emissions |
| Microplastic removal (MP/L) | ~1.0 (Lares et al. 2018) | ~0.4 (Lares et al. 2018) | MBR retains microplastic fibres from booth scrubber water |
| Membrane fouling risk | n/a | Manageable with aeration + CIP | Design assumes 1–2 CIPs per membrane per year (HydropureWater field data, 2026) |
| Texas summer mixed liquor | Nitrification drops above 35°C | Handles up to ~40°C in enclosed tank | Submerged MBR tank shields biomass from direct solar gain |
Two of these rows deserve extra weight for a procurement reader. The Mannina et al. plant-wide model puts direct GHG at 0.85 kgCO2eq/m³ for CAS and 0.91 kgCO2eq/m³ for MBR — almost a wash once you account for sludge handling. The JCHR 2026 review concludes that MBR is preferred for compact sites demanding high effluent quality, while CAS remains the right answer for cost-sensitive large-scale sites. Karim and Mark (2017), cited in Mannina et al., found MBR becomes economically preferable only on a horizon beyond 67 years because the CAPEX premium is amortised; for an auto plant's 15–25-year asset life, that premium is real. The DF series submerged PVDF flat-sheet membrane module is the workhorse component that drives both the footprint saving and the CAPEX premium.
Influent Characterisation: What an EV/auto Plant Sends to the ETP
Engineers selecting between MBR and CAS in Cibolo should first check whether their plant matches the design envelope below. The numbers are drawn from typical EV/auto wastewater surveys and from HydropureWater site visits to Texas auto suppliers in 2025–2026.
- COD 500–3,000 mg/L, with paint-shop dumps pushing the upper end.
- BOD5 200–1,200 mg/L — usually 40–50% of COD, because paint and e-coat contribute a lot of slowly biodegradable material.
- TSS 100–800 mg/L; phosphate from conversion coating 20–200 mg/L as PO4, which matters for struvite control in any downstream biological phosphorus step.
- O&G 50–500 mg/L on average, with intermittent spikes above 1,000 mg/L during a stamping-line wash.
- Total zinc 1–20 mg/L, total nickel 0.5–10 mg/L from conversion coatings; chromium and lead are typically below 1 mg/L but are still reportable under TPDES metals scans.
- pH swings 5–10 across the day.
Paint booth water carries the highest COD and the slowest-biodegradable solvents; e-coat ultrafiltrate carries low-molecular-weight organics and residual pigments. Both are visible to a CAS clarifier as a buoyant, pigmented sludge blanket that never settles cleanly. Battery formation rinse water — where on-site cell production is part of the line — is segregated upstream for nickel, cobalt, lithium, and fluoride removal and is not part of the main MBR/CAS comparison. The design condition that breaks most CAS trains is a 4-hour paint-shop dump; MBR's high MLSS absorbs it with a smaller effluent excursion. A HydropureWater DAF system ahead of either biological stage is the standard pre-treatment for O&G slugs.
Texas Compliance Fit: TCEQ TPDES and San Antonio River Authority
An EV/auto plant in Cibolo discharges either to a SARA POTW under an industrial user permit, or under a TCEQ TPDES multi-sector permit (Texas's analogue of EPA's MSGP) for direct discharge. The typical TPDES limits an auto plant must hit are BOD5 30 mg/L (monthly average), TSS 30 mg/L, O&G 15 mg/L, total metals scan, and pH 6–9. MBR permeate clears those limits without a tertiary polish step; CAS effluent usually needs a DAF or sand filter to clear O&G and TSS reliably, especially after a paint dump.
Local pretreatment limits imposed by SARA are frequently tighter than the TCEQ floor, especially for zinc, nickel, and O&G, because the receiving POTW's biological capacity is sized for residential flows. SARA's industrial user permitting also tends to require a slug-control plan and an O&G management plan. If the plant site sits over the Edwards Aquifer recharge zone, TCEQ's Edwards Aquifer Rule (30 TAC §213) adds architectural and treatment controls that favour enclosed, compact MBR designs over open clarifiers. Direct discharge to Cibolo Creek or its tributaries is generally not permissible for industrial users; ZLD or POTW discharge is the realistic path. Reuse for boiler feed, cooling-tower make-up, or toilet flush is enabled by MBR permeate and is increasingly written into TCEQ reuse expectations — CAS effluent rarely clears reuse turbidity without tertiary treatment. The broader regulatory map for North American buyers is laid out in the 2026 buyer's guide to effluent treatment plants.
CAPEX, OPEX and Footprint: A 10-Year View for a Cibolo-Scale Plant
A typical Cibolo-scale EV/auto plant sits in the 200–2,000 m³/day range — squarely inside the 10–2,000 m³/day envelope of an integrated MBR package. The table below shows the qualitative cost split a procurement engineer should expect in 2026 dollar terms, with no fabricated unit prices.
| Cost driver | CAS plant (200–2,000 m³/day) | MBR plant (200–2,000 m³/day) |
|---|---|---|
| CAPEX premium over CAS baseline | 1.0× reference | 1.2–1.4× reference (membrane modules, cassettes, scour blowers, CIP skid) |
| Civil works and land | Reference area | ~40% of reference area (60% footprint saving) |
| Energy use (kWh/m³) | 0.3–0.6 | 0.5–1.2 (membrane scour 0.3–0.6 of total) |
| Sludge production | Reference volume | ~50% of CAS volume at SRT 30+ days |
| Polymer for clarifier / DAF | Significant | Reduced or eliminated |
| CIP chemicals (NaOCl, citric acid) | None | 1–2 CIPs per membrane per year |
| Tertiary polishing stage | Usually required for O&G and TSS | Often eliminated |
| 10-year net OPEX delta | Baseline | Likely higher per m³, often recovered by lower sludge/polymer and eliminated polishing |
The MBR OPEX delta is often recovered through lower sludge hauling, lower polymer consumption, and the elimination of a separate tertiary polishing stage, but the exact crossover depends on local power tariffs and sludge disposal cost in the San Antonio region (HydropureWater field data, 2026). For a 500 m³/day plant, expect one MBR train of roughly four DF-series modules (80–225 m² each, 32–135 m³/day per module) plus equalisation and screening. A 90-day MBR pilot on real plant wastewater is standard practice in Texas before final design and is often accepted by TCEQ as supporting evidence for the design loading rate; this is a safer basis than a CAPEX number read off a catalogue. The 2026 Copenhagen cost breakdown for industrial buyers covers the same CAPEX/OPEX lens for a colder climate.

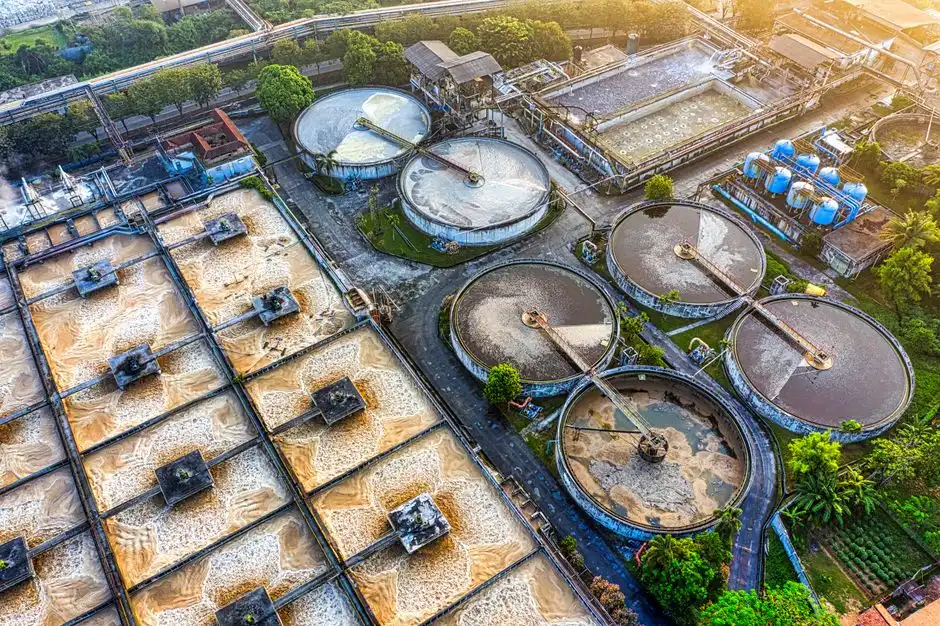

Decision Framework: When to Choose MBR vs CAS in Cibolo
Apply the rules in order. If any condition in the MBR column is true, MBR is the safer pick; if all conditions in the CAS column are true, CAS is defensible.
Choose MBR if any of the following apply:
- Footprint is constrained (brownfield retool, leased land, expansion inside an existing building).
- Effluent must be reused on site for cooling-tower make-up, boiler feed, or toilet flush.
- Influent O&G, metals, or COD swings are large or unpredictable — the typical Cibolo paint-shop profile.
- SARA pretreatment limits or TCEQ Edwards Aquifer requirements are tighter than typical secondary standards.
- The plant must absorb batch discharge from paint or e-coat without clarifier washout.
Choose CAS if any of the following apply:
- Greenfield site with cheap land and no footprint pressure.
- Steady flow above 2,000 m³/day with no significant batch swings.
- The operations team has strong activated-sludge experience and no membrane experience — staffing matters as much as technology.
- CAPEX is the dominant project constraint and 10-year OPEX is not.
- Discharge goes to a SARA POTW that accepts secondary effluent.
A hybrid option exists: keep the existing CAS aeration basin and install a submerged flat-sheet membrane cassette downstream as a polish step. This is the lowest-capex retrofit path when an activated-sludge basin is already in service. A useful rule of thumb: in Texas, if a reuse line is built into the project scope, MBR wins; if the project is strictly a discharge-to-POTW job, CAS is often enough. For the most common Cibolo scenario — a new EV assembly or battery-adjacent plant in the I-35 corridor with on-site reuse and SARA pretreatment limits — the recommendation is MBR, sized as an integrated package with a DAF front-end and a 90-day pilot. CAS is the right answer only for very large, steady-flow component plants with on-site tertiary treatment already planned. For a peer vertical where the same framework applies, the MBR vs CAS for fabricated metals wastewater guide walks through Erie, PA in the same format.
Frequently Asked Questions
What is the main difference between MBR and CAS for auto plant wastewater?
The biology is the same; the separation step is not. MBR uses a 0.1–1 μm PVDF membrane instead of a gravity clarifier, so biomass cannot wash out under a paint-shop slug. MBR delivers higher effluent quality (BOD5 <5 mg/L, TSS <5 mg/L, turbidity <1 NTU) and roughly 60% smaller footprint than a CAS train of equal capacity.
Is MBR always more expensive than CAS?
MBR carries a 20–40% CAPEX premium in 2026 because of membrane modules, cassettes, scour blowers, and CIP skids. OPEX per cubic metre is also higher due to membrane aeration (0.3–0.6 kWh/m³) and CIP chemicals. Sludge production and polymer use are roughly half of CAS, and tertiary polishing is often eliminated — so the OPEX delta is typically recovered over 10–15 years if local power tariffs and sludge disposal costs are at the upper end of the San Antonio range.
What TCEQ limits does an MBR help an auto plant meet?
MBR permeate clears the standard TPDES secondary limits (BOD5 30 mg/L, TSS 30 mg/L, O&G 15 mg/L, pH 6–9) without a polish step, and provides margin against the tighter zinc, nickel, and O&G limits typically imposed by SARA pretreatment. MBR also makes on-site reuse for cooling-tower make-up or boiler feed practical without an RO pre-filter.
How much space does an MBR save versus CAS?
About 60% smaller footprint, per the HydropureWater integrated MBR product specification for the 10–2,000 m³/day range. Most of the saving comes from eliminating the clarifier and operating at much higher MLSS in a smaller aeration basin.
Can a CAS plant be upgraded to MBR without building a new basin?
Yes, by retrofitting the existing aeration basin with submerged flat-sheet membrane modules. The biological side stays put; you add a membrane cassette, a scour blower, a permeate pump, and a CIP skid. Aeration blower sizing and the CIP system design must be reworked, and a fine screening stage (usually 1–2 mm) is added upstream to protect the membranes.
