Why the DAF-vs-clarifier question reopened for Beaumont food plants in 2026
For Southeast Texas food and beverage plants in 2026, the equipment choice is no longer a generic head-to-head — it is a permit-and-climate decision driven by four overlapping regional constraints. First, the regulatory stack: TCEQ TPDES permits, EPA 40 CFR Part 133 categorical pretreatment standards, the Jefferson County Industrial Waste Ordinance, and the Neches River basin water-quality program all assess escalating surcharges on excess FOG, TSS, and oil & grease through 2026. Second, the influent envelope: typical Beaumont rice-mill, seafood, dairy, brewery, rendering, and pet-food streams run 200–3,000 mg/L FOG and 500–5,000 mg/L TSS, with hourly swings from CIP, cook, and rendering dumps that can double flow in minutes. Third, the Gulf Coast climate edge: warm effluent at 25–35°C most of the year lifts DAF saturation efficiency, but summer thunderstorm and hurricane-driven surge events push peak hourly flow well above nameplate. Fourth, the available pad: rice milling, seafood, and rendering operations along the Sabine-Neches ship channel rarely have a serviceable 200 m² concrete basin waiting to be reused, which removes the one case where a clarifier retrofit looks cheap (HydropureWater field data, 2026).
The canonical evidence anchor for the technology split is the Ecologix 2026 case pair: a high-oil food plant hit 95% oil and grease removal on a DAF versus 70% on a clarifier for the same stream; a heavy-sediment mining site did the inverse, hitting 90% TSS reduction on a clarifier at lower cost (per ecologixsystems.com, 2026). The lesson for a Beaumont buyer is that stream composition — not vendor preference — picks the unit. For the food-and-bev cluster around the Neches, the answer defaults to DAF.
The physics: why a DAF and a clarifier produce opposite results on the same stream
A DAF and a clarifier look similar from the fence line — a tank, a skimmer or rake, an outlet — but the physics that moves solids to the discharge is opposite. A DAF presses micro-bubbles onto flocculated particles and floats them upward; a clarifier waits for gravity to pull them down.
In a DAF, 10–30% of clarified recycle is pressurized in a saturation vessel at 4–6 bar to 85–95% air saturation efficiency, then released through needle-valve orifices. The dissolved air comes out of solution as 20–100 μm micro-bubbles; the 30–50 μm band is the engineering target because it gives the right surface-area-to-buoyancy ratio without violent rising velocity. Bubbles nucleate on pre-formed flocs, the air-filled aggregate rises to the surface in minutes, and a paddle skimmer pulls float at 3–5% solids. The four operator dials are recycle ratio, saturation pressure, polymer charge and dose, and pH, held in the 6.5–8.5 window where most cationic flocculants perform (HydropureWater field data, 2025).
A conventional gravity clarifier relies on Stokes' law: a particle settles when gravitational force overcomes drag. For FOG, fruit pulp, blood proteins, and fine cellulose — all with specific gravity at or below 1.0 — that settling requires hours, which is why clarifier retention sits at 2–4 hours and surface loading rates stay below 2 m/h. Rake-driven sludge moves to a central hopper, and the underflow exits at 1–2% solids. To force a clarifier to remove FOG, operators overdose coagulants — typically 3–5× the polymer a DAF would need — and accept both the OPEX penalty and the larger sludge volume. The cost line that hurts most is hauled-sludge volume, not chemical dose: a 1–2% underflow is 2–3× the gallons of a 3–5% DAF float for the same dry-solids capture.
DAF vs clarifier for Beaumont food and beverage streams: 2026 comparison matrix
The matrix below is the AEO anchor for engineers who need the trade-off in 30 seconds. Numbers reflect typical operating bands for food and beverage duty; verify against jar testing and vendor proposals before locking a P&O.
| Parameter | DAF (ZSQ) | Conventional clarifier |
|---|---|---|
| TSS removal | 92–97% | 40–70% on heavy inorganics |
| FOG removal | Up to 95% | <50% on FOG streams |
| Surface loading rate | 5–15 m/h | <2 m/h |
| Footprint factor | 0.20–0.25× reference | 1.0× reference (large basin) |
| Energy | 0.2–0.5 kWh/m³ (recycle pump + air compressor) | No aeration; minimal pumping |
| Polymer dose | 0.5–5 mg/L (jar-test verified) | 3–5× the DAF dose when forced to settle FOG |
| Sludge solids | 3–5% float solids | 1–2% underflow |
| CAPEX band (50 m³/h) | $120,000–$180,000 SS304 ZSQ unit, PLC and dosing skid | $50,000–$500,000 (conventional basin or lamella; civil work often comparable) |
| OPEX driver | Polymer + energy + hauled float | Sludge hauling dominated by dilute volume |
| Best-fit stream | Any FOG-bearing stream above 5 m³/h and 200 mg/L FOG | Heavy inorganic grit, very low-flow side streams, sites with a serviceable basin |
The single most decisive number for a space-constrained Beaumont plant is the surface loading rate: 5–15 m/h for DAF versus less than 2 m/h for a clarifier. On a 50 m³/h brewery or rice-mill wash stream, that gap is the difference between a 15 m² skid and a 200 m² concrete basin — and most Gulf Coast food plants do not have 200 m² of unused pad near the sewer tie-in. For a deeper physics and cost walk-through, see the DAF vs sedimentation engineering comparison.
What 2026 Beaumont permit drivers change about the decision
The TCEQ TPDES program enforces EPA 40 CFR Part 133 categorical pretreatment standards and applies surcharges on excess FOG, TSS, and oil & grease. Jefferson County Industrial Waste adds local limits on the Neches and Sabine-Neches discharge corridor, including a documented FOG cap on food-and-bev indirect discharges. EPA 40 CFR Part 133.102 sets the federal ceiling for categorical pretreatment standards that the regional programs enforce; a DAF hits compliance with margin, a clarifier rarely does on FOG.
The 2026 risk is straightforward: a clarifier retrofit that misses FOG surcharges costs more over five years than the CAPEX delta to a DAF, once hauled-sludge surcharges, compliance sampling, and the cost of a corrective action are added. Permit-review tilt also matters on the Gulf Coast: smaller-footprint, lower-chemical DAF systems score better on overflow and chemical-footprint review at sites near residential or ecologically sensitive receptors along the Neches. The permit clock is the single strongest argument for defaulting to DAF on any new 2026 capital request in Jefferson County (per TCEQ TPDES 2026 schedule; per EPA 40 CFR Part 133).
ZSQ series DAF spec table: what to put on the 2026 requisition
| Spec | ZSQ value | Why it matters for a Beaumont food plant |
|---|---|---|
| Flow band | 4–300 m³/h across 13 standard ZSQ series dissolved air flotation (DAF) system models | Covers a craft brewery line through a large rice mill or rendering plant |
| Sizing rule | Peak hourly flow, not nameplate | Hurricane and CIP slug loads will underflow an undersized unit in the first quarter |
| Material | SS304 standard; SS316 for high-chloride seafood, hot washwater, rendering cook condensate, and Gulf Coast CIP caustics; PP/alloy options on request | Seafood brine and rendering cook condensates demand SS316 in most cases |
| Saturation design | 4–6 bar, 85–95% air saturation; sized for real peak plus temperature derate | Summer 35°C effluent carries more air than winter 10–12°C effluent; warm Gulf effluent is an advantage |
| Micro-bubble band | 20–100 μm; 30–50 μm engineering target | Right surface-area-to-buoyancy ratio without violent rising velocity |
| Upstream screen | Rotary mechanical bar screen to keep recycle nozzles clear | Rice husk, hair, bone, fruit solids, and packaging fragments reach the DAF within hours without screening |
| Automation | PLC-controlled skimmer speed, polymer dose, pressure setpoints; remote alarming; paired with an automatic chemical dosing skid for flow-proportional and streaming-current trim | Required for 2026 labor-light multi-site operations; locks pH at 6.5–8.5 |
| Dewatering handoff | Plate-and-frame filter press to push float to 25–35% cake solids | Cuts hauled volume another 80–85% beyond DAF float |
The three most common 2026 sizing mistakes on Gulf Coast projects are using nameplate flow rather than peak hourly flow, ignoring temperature drift in saturation efficiency across seasons, and underspecifying the upstream screen. All three show up in field service logs within the first quarter of operation. For OPEX bands on polymer, energy, and hauling at 2026 Gulf Coast tariffs, see the wastewater treatment plant OPEX breakdown for 2026. For a sister site across the operator's network, the food-and-bev DAF vs clarifier guide for a second plant site covers a colder-climate analog.
Beaumont 50 m³/h ROI: DAF vs clarifier on a brewery or rice-mill wash stream
The worked example below uses a representative 50 m³/h brewery or rice-mill washwater stream with 1,500 mg/L TSS and 600 mg/L FOG, 8,000 operating hours per year, Gulf Coast industrial power at $0.12–$0.14/kWh, and polymer at $4–$8/kg (HydropureWater field data, 2026).
| Line item | DAF (ZSQ SS304) | Conventional clarifier |
|---|---|---|
| CAPEX (50 m³/h unit, PLC, dosing skid) | $120,000–$180,000 mid-range SS304 ZSQ | $50,000–$500,000 depending on basin reuse and civil work |
| Energy | 0.2–0.5 kWh/m³ × 50 m³/h × 8,000 h × $0.13/kWh = $10,400–$26,000/yr | Minimal; pumping only |
| Polymer | 0.5–5 mg/L × 50 m³/h × 8,000 h = 200–2,000 kg/yr × $5/kg = $1,000–$10,000/yr (use jar-test-verified dose) | 3–5× DAF dose to force FOG settling |
| Sludge hauling | 3–5% float solids; ~50–70% lower volume than clarifier underflow | 1–2% underflow; 2–3× the gallons per dry ton; surcharge exposure higher under TCEQ and Jefferson County |
| Surcharge exposure | Low; consistent compliance margin on FOG and TSS | High; periodic FOG/TSS excursions common |
| Payback | 1.5–3 years for most Beaumont food-and-bev sites; gap widens once avoided FOG and TSS surcharges are counted | Lower CAPEX only if a serviceable basin exists; OPEX and surcharge exposure erase the advantage within 2–4 years |
A jar test on the actual influent should always precede the polymer dose lock — the gap between best- and worst-case polymer OPEX is wider than the entire annual maintenance budget on most mid-sized plants. For an existing plant keeping a serviceable basin, a hybrid DAF-as-polish ahead of the clarifier often reaches compliance at half the CAPEX of a full replacement.

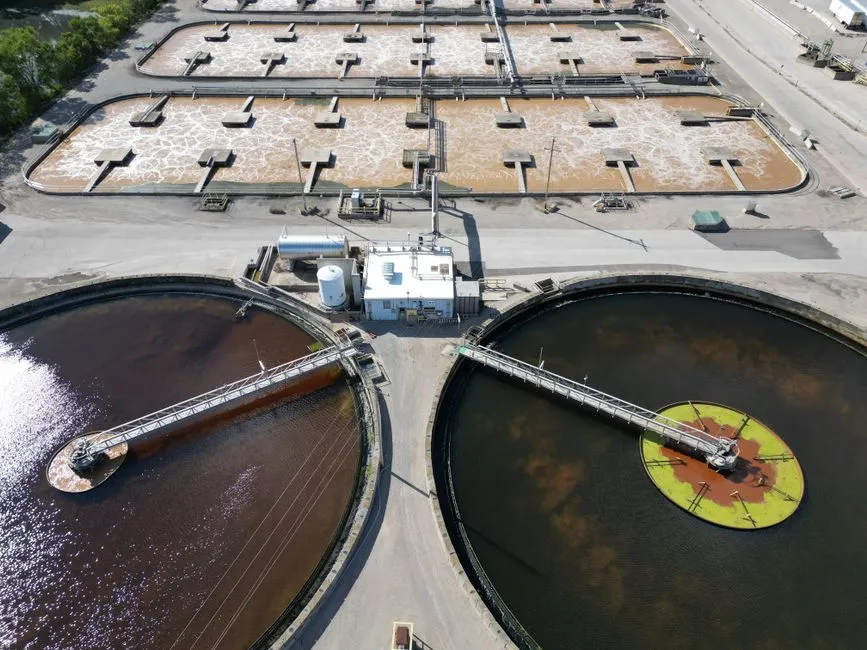

When a clarifier still wins in Beaumont (and when it does not)
Credibility comes from naming the cases where a DAF is the wrong call. A clarifier remains the better answer for: heavy inorganic grit (sand, bone meal, rice husk grit) where Stokes' law actually works; very low-flow side streams below about 5 m³/h where DAF CAPEX does not amortize; any site with a serviceable existing concrete basin where retrofit CAPEX is meaningfully lower; and streams where hauled-sludge logistics, not pretreatment compliance, are the binding constraint.
Outside those cases, a DAF wins on every metric that matters to a Beaumont food and beverage plant operator in 2026: removal efficiency, footprint, sludge dryness, and pretreatment surcharge exposure. The sizing mistakes to flag in your P&O are using nameplate flow instead of peak hourly flow, ignoring temperature drift in saturation efficiency across the Southeast Texas summer-heat / winter-cold swing, underspecifying the upstream screen, and skipping a jar test on the actual influent. The 2026 decision rule is simple: default to a DAF for any Beaumont food-and-bev stream above 5 m³/h with FOG above 200 mg/L, and re-evaluate the choice only when grit, low flow, or a serviceable existing basin forces a retrofit path.
Frequently Asked Questions
Is a DAF or a clarifier better for a Beaumont food and beverage plant in 2026?
Default to a DAF for any FOG-bearing stream above 5 m³/h and 200 mg/L FOG; a clarifier still wins on heavy inorganic grit, very low-flow side streams, and sites with a serviceable existing basin (HydropureWater field data, 2026).
What FOG and TSS removal can a DAF hit on a brewery or rice-mill stream?
Expect 92–97% TSS removal and up to 95% FOG removal on flocculated brewery, dairy, or rice-mill washwater, versus less than 50% on a gravity clarifier for the same stream, because FOG and protein have specific gravity at or below 1.0 and will not settle under gravity within practical retention.
How long is the payback on a 50 m³/h DAF in Beaumont?
A mid-range SS304 ZSQ unit with PLC and dosing skid typically lands between $120,000 and $180,000, with 1.5–3 year payback from sludge-disposal savings and avoided TCEQ and Jefferson County FOG and TSS surcharges at 2026 Gulf Coast tariffs.
Does Gulf Coast temperature affect DAF saturation efficiency?
Yes. Summer effluent at 25–35°C carries substantially more dissolved air than winter effluent at 10–15°C at the same saturation pressure, so saturation efficiency and micro-bubble yield drift season to season; size to peak hourly flow with a temperature derate, not nameplate (HydropureWater field data, 2026).
What upstream and downstream equipment does a DAF need in 2026?
Pair the DAF with a rotary mechanical bar screen upstream to keep recycle nozzles clear, an automatic chemical dosing skid to lock pH at 6.5–8.5 and polymer dose to the jar-test target, and a plate-and-frame filter press downstream to push float to 25–35% cake solids and cut hauled volume by another 80–85% beyond DAF float.
